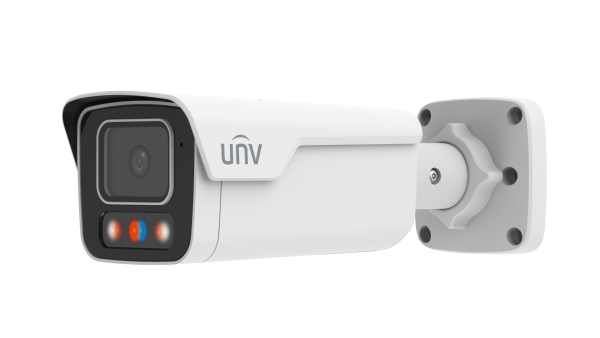

IPC2B14SS-ADF28KMC-I1 Uniview 4MP Intelligent Light and Sound Warning IP Bullet Camera, NDAA
Tri-Guard Bullet IP Camera
Uniview IPC2B14SS-ADF28KMC-I1
Resolution
4 MP
Lens
2.8 mm
WDR
130 dB
Weather Rating
IP67
The Uniview IPC2B14SS-ADF28KMC-I1 is a 4MP Tri-Guard fixed dual-light bullet network camera designed for clear video, smart detection, and active deterrence. With a 1/2.7" CMOS sensor, F1.0 large aperture lens, 130dB true WDR, built-in microphone and speaker, red/blue warning light, dual-light illumination, and IP67 weather protection, this camera is a strong choice for entrances, driveways, parking areas, warehouses, storefronts, and commercial security applications.
Key Features
- ✦ High-quality image with 4MP resolution and 1/2.7" CMOS sensor
- ✦ 2.8mm fixed lens with wide 102.3° horizontal field of view
- ✦ F1.0 large aperture lens helps capture brighter images in low-light scenes
- ✦ 130dB true WDR helps produce clear images in strong backlight or high-contrast scenes
- ✦ Supports Ultra 265 / H.265 / H.264 / MJPEG video compression formats
- ✦ Dual-light illumination with IR and warm light up to 40m / 131ft
- ✦ Supports red and blue warning light for active deterrence
- ✦ Built-in microphone and speaker for two-way audio support
- ✦ Supports alarm input and alarm output — 1 input / 1 output
- ✦ Supports audio input and audio output — 1 input / 1 output
- ✦ Supports 9:16 corridor mode for hallways, entrances, aisles, and narrow viewing areas
- ✦ Supports microSD card storage up to 512GB, card sold separately
- ✦ Outdoor-ready with IP67 weather protection
- ✦ Supports smart intrusion prevention with human, vehicle, and non-motor vehicle classification
Tri-Guard Active Deterrence
Tri-Guard combines smart detection, red/blue warning lights, and audio features to help notify users and discourage unwanted activity around protected areas.
Smart Intrusion Prevention
Intelligent target classification helps focus on humans, vehicles, and non-motor vehicles, reducing false alarms caused by leaves, birds, lights, and other non-important motion.
Additional Features
Dual-Light Night Vision
This camera supports both IR and warm light illumination up to 40m / 131ft. Dual-light technology allows the camera to adapt to different scenes and provide improved visibility during nighttime monitoring.
Red & Blue Warning Light
The built-in red and blue warning light can be used as an active deterrence feature. When configured properly, it can help warn unwanted visitors and bring attention to important events.
Two-Way Audio Support
With a built-in microphone and speaker, the IPC2B14SS-ADF28KMC-I1 supports two-way audio when used with compatible software, apps, and recorder configurations. This can be useful for entrances, gates, storefronts, loading areas, and active deterrence applications.
Line Crossing & Perimeter Detection
Smart intrusion prevention features include cross line detection, intrusion detection, enter area detection, and leave area detection. Human, vehicle, and non-motor vehicle classification helps reduce unnecessary alerts and improves event accuracy.
On-Board Storage
The built-in microSD card slot supports up to 512GB for on-board recording. This can be used as a backup or redundant recording option to help preserve footage if the network connection is interrupted. MicroSD card is sold separately.
People Counting & Crowd Density
This model supports people flow counting and crowd density monitoring, making it helpful for entrances, retail spaces, commercial facilities, and locations where occupancy awareness is needed.
Specifications
- ✦ Model: IPC2B14SS-ADF28KMC-I1
- ✦ Type: 4MP Tri-Guard fixed dual-light bullet network camera
- ✦ Sensor: 1/2.7" CMOS sensor
- ✦ Maximum Resolution: 4MP, up to 2688 × 1520
- ✦ Frame Rate: 4MP up to 30/25fps; 3MP and 1080P up to 30/25fps
- ✦ Lens: 2.8mm fixed lens, F1.0 aperture
- ✦ Field of View: Horizontal 102.3°, Vertical 54.7°, Diagonal 106.8°
- ✦ DORI Distance: Detect 63.0m / 206.7ft; observe 25.2m / 82.7ft; recognize 12.6m / 41.3ft; identify 6.3m / 20.7ft, based on 2.8mm lens
- ✦ WDR: 130dB true WDR
- ✦ Illumination: Dual light — IR up to 40m / 131ft, warm light up to 40m / 131ft
- ✦ Video Compression: Ultra 265, H.265, H.264, MJPEG
- ✦ Audio: Built-in microphone and built-in speaker, supports two-way audio
- ✦ Audio I/O: 1 input / 1 output
- ✦ Alarm I/O: 1 input / 1 output
- ✦ Local Storage: Built-in microSD card slot, supports up to 512GB, card sold separately
- ✦ Network: RJ45 Ethernet network connection
- ✦ Power: DC 12V or PoE IEEE 802.3af
- ✦ Weather Protection: IP67 rated
- ✦ Recommended Use: Entrances, driveways, gates, storefronts, warehouses, parking areas, and perimeter monitoring
Best Use: Ideal for entrances, storefronts, driveways, gates, parking areas, warehouses, loading areas, building perimeters, and locations that need smart detection, two-way audio, warning light deterrence, and reliable outdoor surveillance.
Installation Tip: For best results, confirm the camera angle, detection area, speaker volume, warning light settings, and nighttime performance after installation. Smart detection and active deterrence features should be adjusted based on the actual scene to reduce unnecessary alerts.
Note: Specifications are subject to change without notice. Features, analytics, audio functions, warning light behavior, MicroSD support, image performance, and compatibility may vary by firmware version, recorder model, installation environment, lighting conditions, network setup, and system configuration. Please always double-check the manufacturer’s official specifications for the most accurate and up-to-date product information before ordering.
