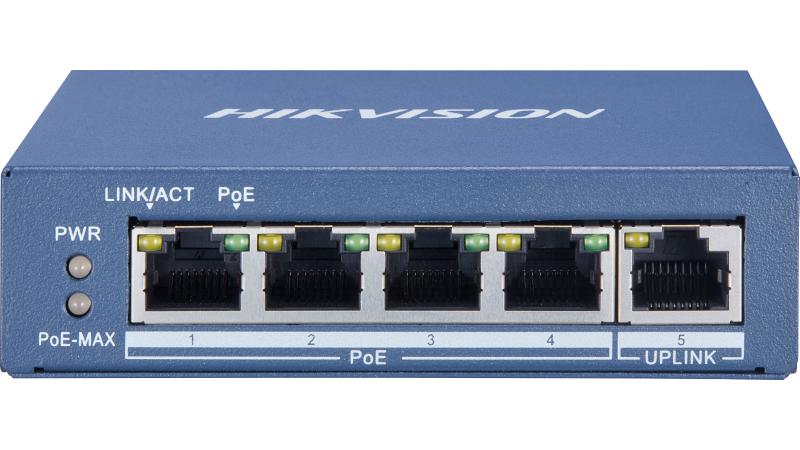

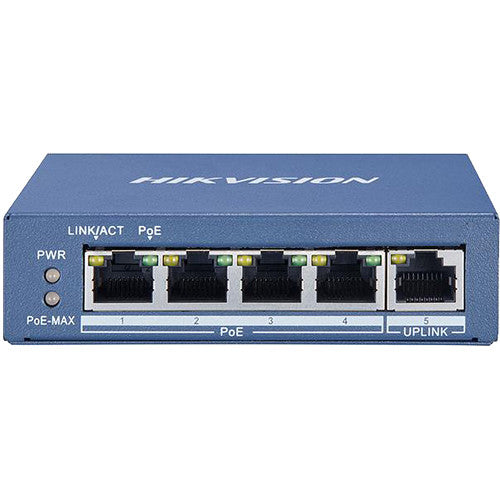

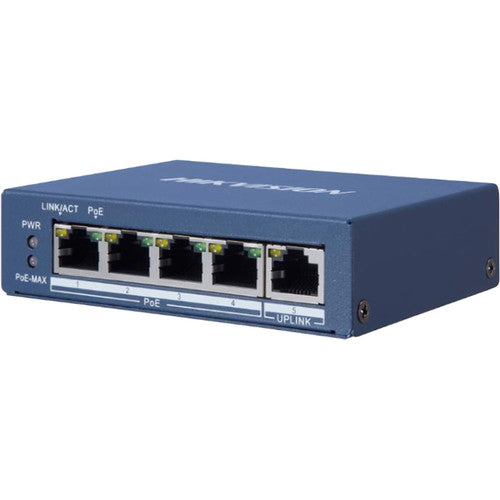

Hikvision 4-Port Gigabit PoE-Compliant Unmanaged Network Switch (DS-3E0505P-E)
In Stock

Hikvision

Hikvision DS-3E0505P-E 5-Port Gigabit PoE Switch

SKU: DS-3E0505P-E

$50.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast ShippingU.S. warehouse fulfillment
Easy RMA SupportStreamlined assistance when needed
Need compatibility help? Call (856) 317-0600 for professional assistance.
Overview Resources & Support Compatibility Solution Builder Specifications
Product overview

Reliable Network Connectivity

Designed to provide stable network connectivity and PoE power for IP surveillance devices. Performance depends on network design, cable quality, power budget, and connected equipment.

Professional Quality

Designed for demanding surveillance and networking environments.

System Compatibility

Use the compatibility tools below to select supported components.

Technical Support

Get assistance with configuration, installation and product selection.

Secure Purchasing

U.S.-based fulfillment and protected checkout.

Product assistance

Need Assistance?

Documentation, system compatibility tools, shipping information, and direct support from NSI Security.

Shipping InformationU.S. fulfillment

Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.

View Shipping Policy →
DocumentationBy request

Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.

Request Documentation →
Technical SupportNSI assistance

Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.

Contact Support →
Verified System ComponentsProduct-specific compatibility

Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.

View Components →
RMA RequestAfter-purchase assistance

Request return authorization, repair evaluation, or replacement assistance for an eligible order.

Start RMA Request →
Contact Our TeamSales and product questions

Contact NSI Security for product selection, availability, compatibility, and order assistance.

Contact NSI Security →
System compatibility

Verified System Components

Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

Verified system components have not been assigned to this item yet.
One-click system configuration

Build Your Complete Solution

Select the components you need and add the complete configuration to your cart.

Product information

Product Details & Technical Specifications

5-Port Gigabit Unmanaged PoE Switch

Hikvision DS-3E0505P-E 5-Port Gigabit PoE Switch

The Hikvision DS-3E0505P-E is a compact 5-port gigabit unmanaged PoE switch designed for small IP camera systems, access points, intercoms, and other PoE network devices. It provides 4 gigabit PoE ports, 1 gigabit uplink port, up to 60W total PoE budget, up to 30W per PoE port, metal housing, desktop or wall mounting, and 6kV surge protection.

5-Port
Gigabit Switch
4 PoE
Output Ports
60W
PoE Budget
6kV
Surge Protection

Compact PoE Switching for Small Camera Systems

The DS-3E0505P-E is ideal for small surveillance projects where a few IP cameras or PoE devices need network and power from one compact switch. With gigabit ports, a 60W PoE budget, and unmanaged plug-and-play operation, it is a simple option for small offices, storefronts, homes, workshops, warehouses, and camera add-on projects.

Key Features

🔌

4 Gigabit PoE Ports

Provides 4 gigabit PoE output ports for compatible IP cameras, access points, and PoE network devices.

🌐

Gigabit Uplink Port

Includes 1 gigabit uplink port for connection back to a router, NVR, main switch, or network backbone.

⚡

60W PoE Power Budget

Supports up to 60W total PoE power budget, with up to 30W per PoE port for compatible devices.

📦

Unmanaged Plug-and-Play

No complex switch programming required. Designed for simple small-network PoE deployment.

🛡️

6kV Surge Protection

Built-in surge protection helps improve reliability in supported installation environments.

🧱

Metal Housing

Compact metal body supports desktop or wall-mounted installation for clean deployment.

Feature Overview

✓ 5-port gigabit unmanaged PoE switch
✓ 4 × gigabit PoE output ports
✓ 1 × gigabit uplink port
✓ IEEE 802.3af / IEEE 802.3at PoE support
✓ Up to 30W per PoE port
✓ Up to 60W total PoE budget
✓ 10Gbps switching capacity
✓ 7.44Mpps packet forwarding rate
✓ 2K MAC address table
✓ Metal material housing
✓ Desktop or wall-mounted installation
✓ 6kV surge protection

Best Applications

Small Camera Systems
Storefronts
Office Networks
PoE Camera Add-On
Access Points
Intercom Devices

Product Highlights

The DS-3E0505P-E is an unmanaged PoE switch for small security and network installations. Before ordering, confirm the connected device power draw, total PoE budget, uplink requirements, cable quality, cable distance, installation environment, and whether this non-managed switch fits the project.

Model DS-3E0505P-E
Brand Hikvision
Product Type 5-Port Gigabit Unmanaged PoE Switch
Network Ports 4 × Gigabit PoE Ports + 1 × Gigabit Uplink Port
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Ports Ports 1 to 4 support PoE output
Maximum Port Power Up to 30W per PoE port
PoE Power Budget Up to 60W total PoE budget
Switching Capacity 10Gbps
Packet Forwarding Rate 7.44Mpps
MAC Address Table 2K
Internal Cache 1 Mbits
Surge Protection 6kV
Housing Metal Material
Installation Mode Desktop / Wall-Mounted
Operating Temperature 0°C to 40°C / 32°F to 104°F
Operating Humidity 5% to 95%, non-condensing
Dimensions 105.0mm × 27.6mm × 83.1mm / 4.13" × 1.08" × 3.27"
Net Weight 0.25kg / 0.55lb
Important Compatibility Note Confirm PoE power draw, total PoE budget, cable distance, device compatibility, and whether unmanaged switch operation fits your installation.

Installation Tip

Before installation, calculate the total PoE load of all connected cameras and PoE devices. Make sure the total power draw stays within the switch PoE budget, and confirm cable quality, cable length, ventilation, uplink speed, and network layout. For higher-power PTZ cameras or long cable runs, verify the power requirement carefully before connecting.

Note: Specifications are subject to change without notice. PoE output, power budget, port behavior, device compatibility, uplink performance, surge protection, operating temperature, installation method, and overall network performance may vary depending on hardware version, power source, connected device model, cable quality, cable distance, PoE load, network setup, and installation environment. Please always double-check the manufacturer’s official specifications and compatibility before ordering.
