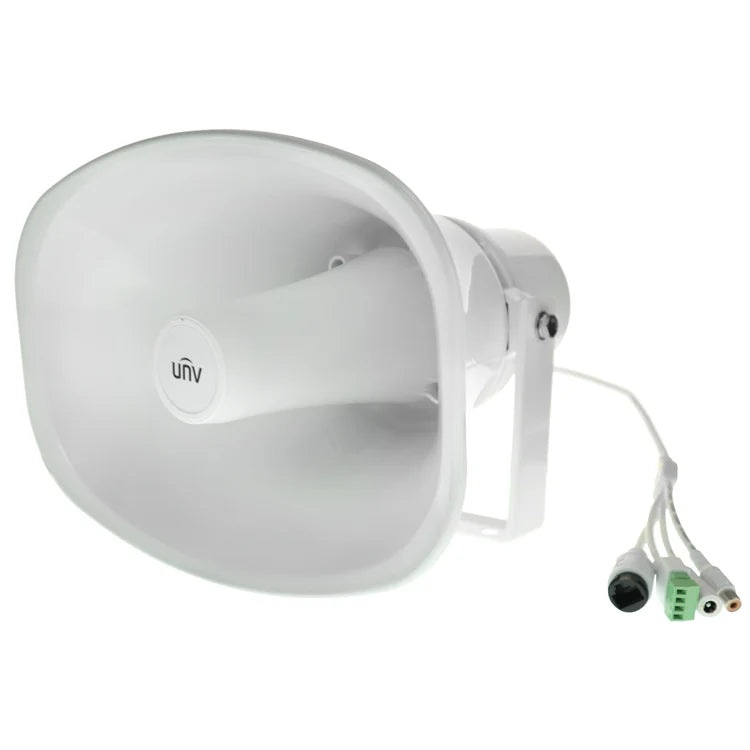

UNV IPS302030-S 30W Outdoor IP Horn Speaker
Model / SKU: IPS302030-S
Overview
Network Audio Warning for Security Systems
The IPS302030-S helps add voice warning and alarm broadcast capability to compatible surveillance systems. It can be used for perimeter warning, parking lot announcements, warehouse alerts, building entrances, car wash sites, gate areas, and security monitoring projects that need loud and clear audio output.
Key Features
30W Horn Speaker Output
Designed for strong outdoor audio broadcast, security warning, and announcement applications.
Alarm Broadcast Support
Supports alarm broadcast with compatible Uniview NVR systems, including video and audio linkage.
Two-Way Audio
Built-in microphone support allows two-way communication when used with compatible software and system settings.
Custom Audio Files
Supports audio file storage and playback for customized warning messages and event announcements.
ONVIF / RTSP Integration
Supports ONVIF, RTSP, RTP, and LAPI protocols for compatible security system integration.
PoE Power Support
PoE support helps simplify installation by allowing network and power through compatible PoE infrastructure.
Feature Overview
Best Applications
Product Highlights
The IPS302030-S is designed for IP-based audio broadcast and security warning applications. Integration behavior may depend on the connected Uniview NVR, VMS platform, ONVIF support, network setup, PoE power, firmware version, audio file format, and system configuration. For best results, confirm speaker compatibility and audio linkage support before installation.
| Model | IPS302030-S |
| Product Type | Horn IP Speaker 30W |
| Rated Power | 30W |
| Maximum Acoustic Pressure | 130 dB SPL |
| Frequency Response | 300 Hz to 12.5 kHz |
| Audio Functions | Regular Broadcast, Live Broadcast, Alarm Broadcast |
| Two-Way Audio | Supported with built-in microphone and compatible system configuration |
| Alarm Linkage | Supports alarm broadcast with compatible Uniview NVR, video and audio linkage |
| Audio File Support | MP3 / WAV |
| Integration Protocols | ONVIF / RTSP / RTP / LAPI |
| System Integration Note | Compatibility may vary depending on NVR model, VMS platform, firmware version, ONVIF implementation, audio linkage support, network settings, and PoE power configuration. |
| Power | PoE Supported |
| Recommended Use | Outdoor security warning, alarm broadcast, live announcements, video/audio linkage, and perimeter monitoring support |
Installation Tip
For best results, confirm PoE power, network connectivity, audio volume level, NVR or VMS compatibility, ONVIF behavior, alarm linkage rules, audio file format, mounting location, and local sound regulations before installation. Test live broadcast and alarm broadcast before final handoff.
Note: Specifications are subject to change without notice. Audio output, SPL level, broadcast behavior, two-way audio support, ONVIF behavior, RTSP/RTP/LAPI support, PoE behavior, alarm linkage, audio file playback, NVR compatibility, VMS compatibility, and overall system performance may vary depending on firmware version, connected recorder, software platform, network setup, PoE switch, mounting location, audio settings, system configuration, and installation environment. Please always double-check the manufacturer’s official specifications and system compatibility before ordering.
