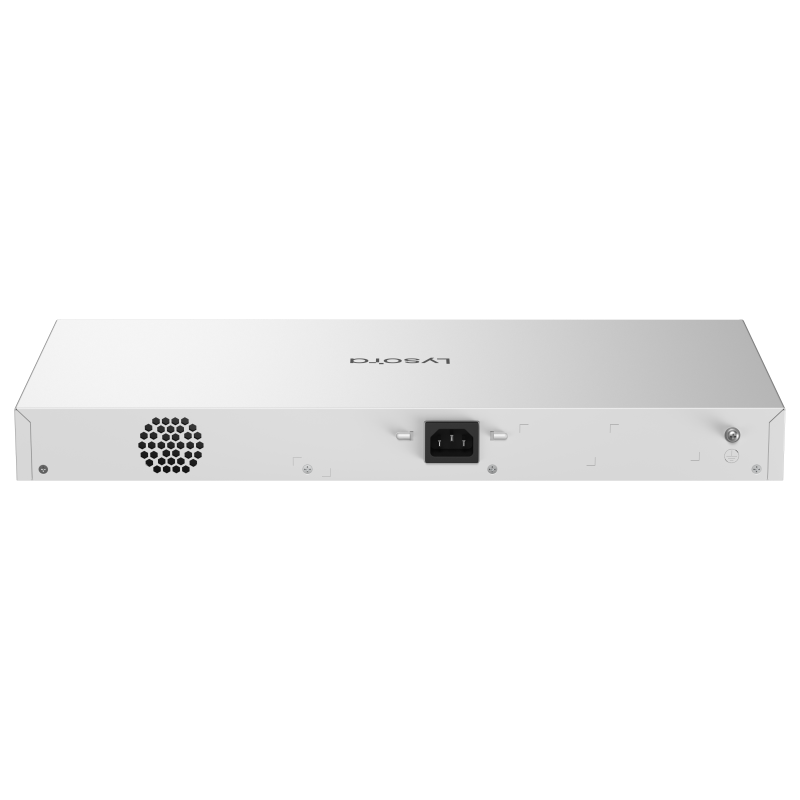

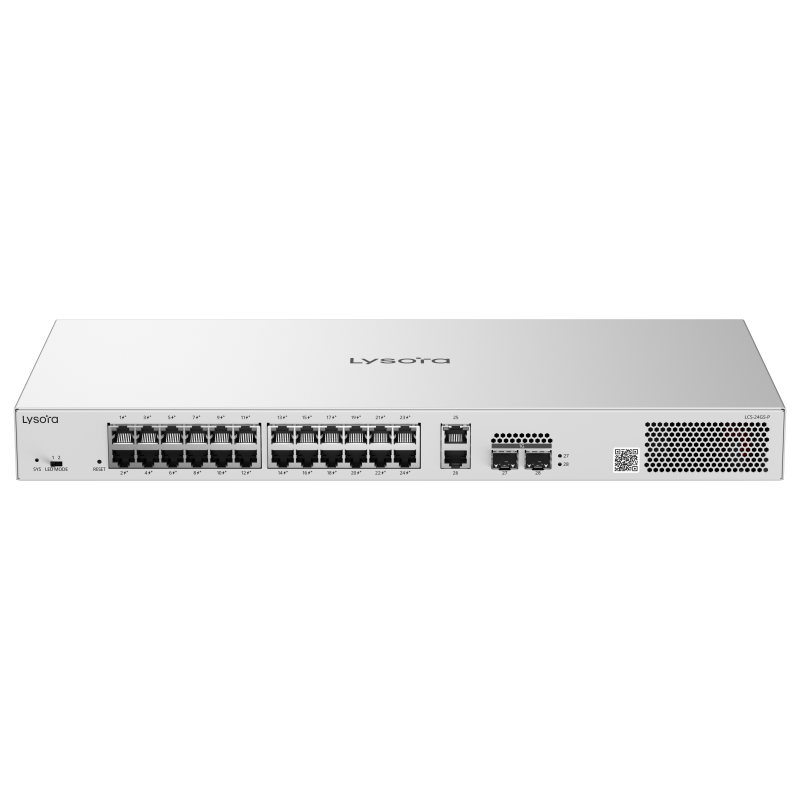

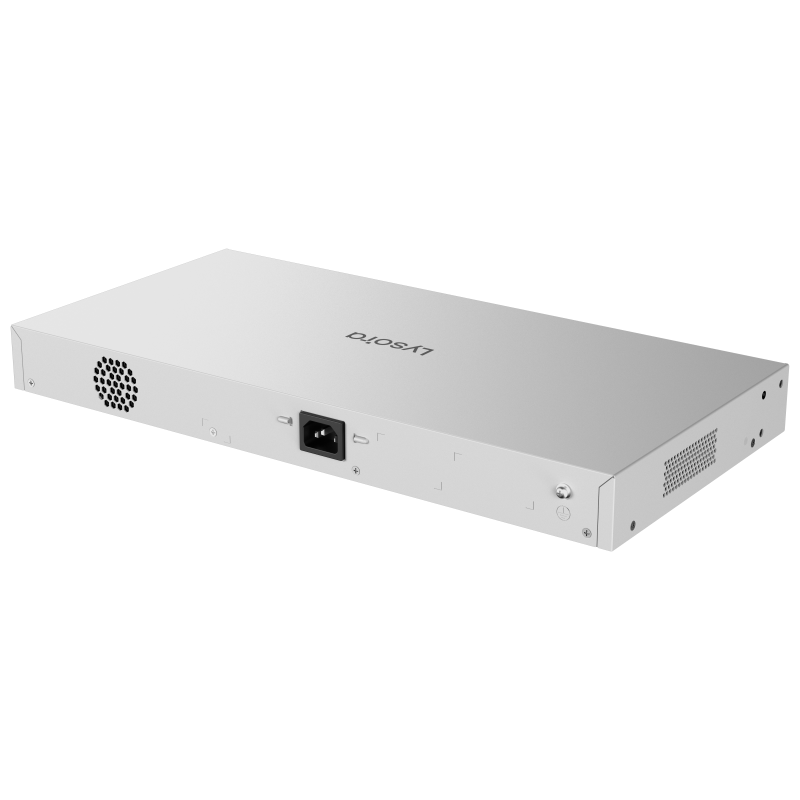

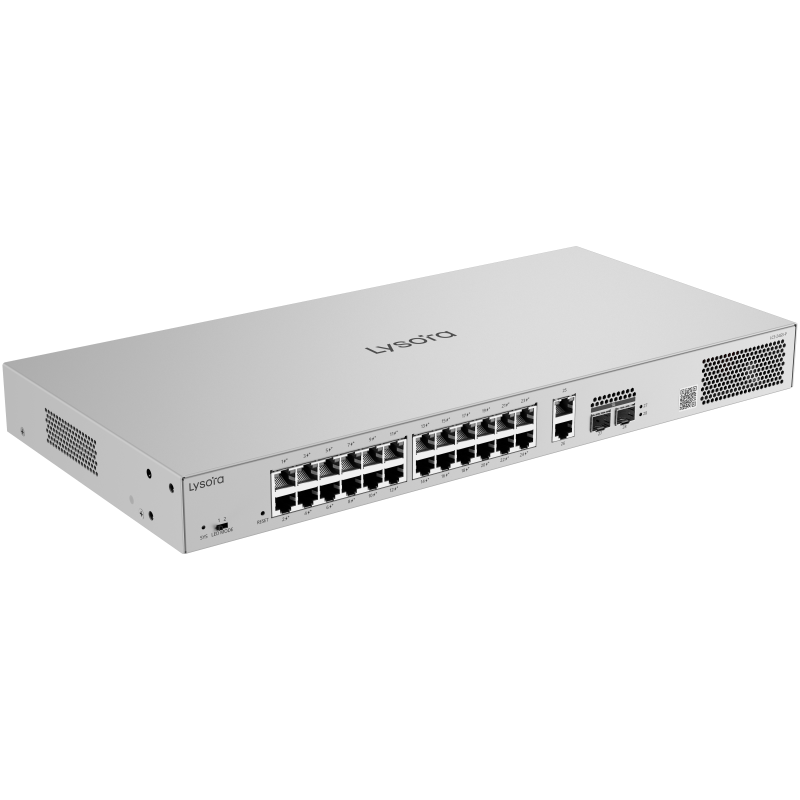

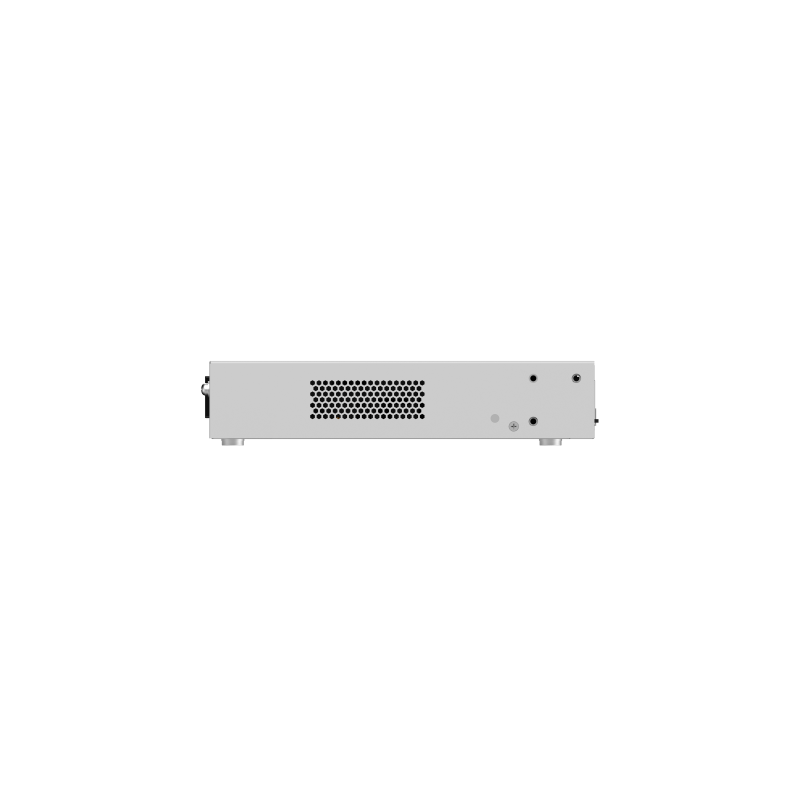

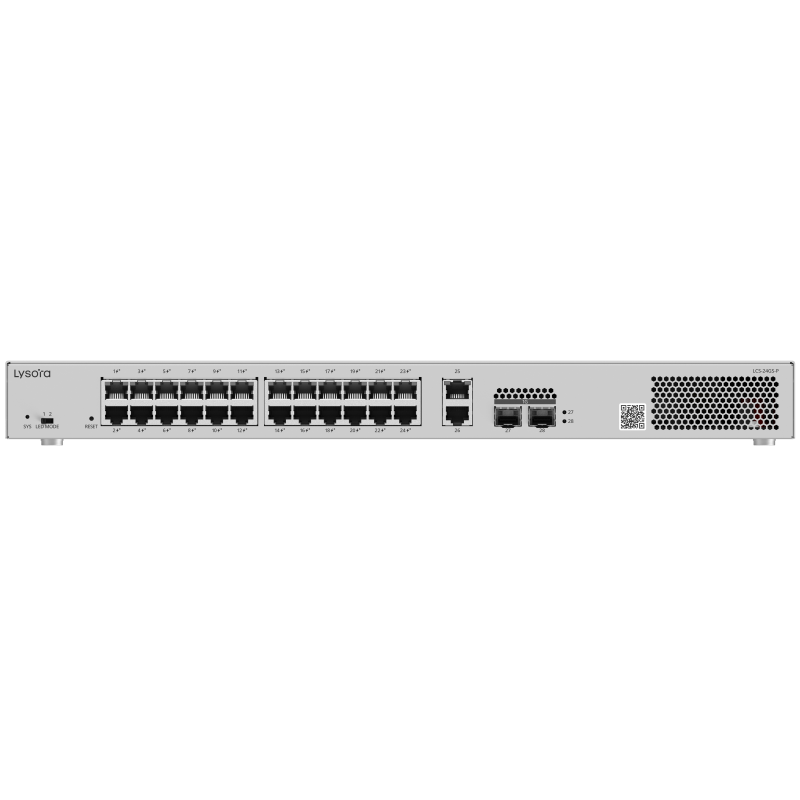

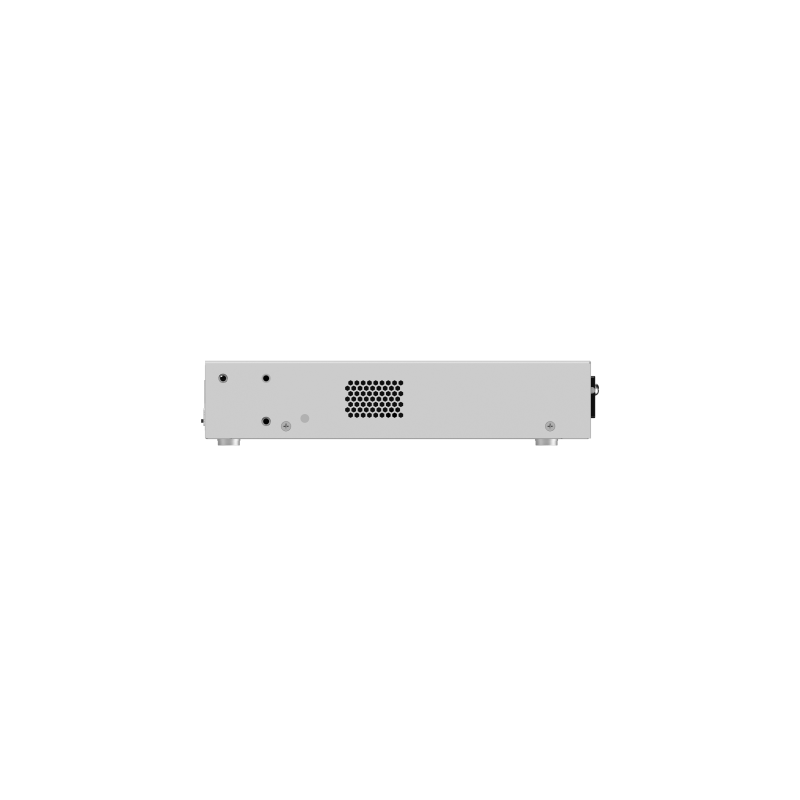

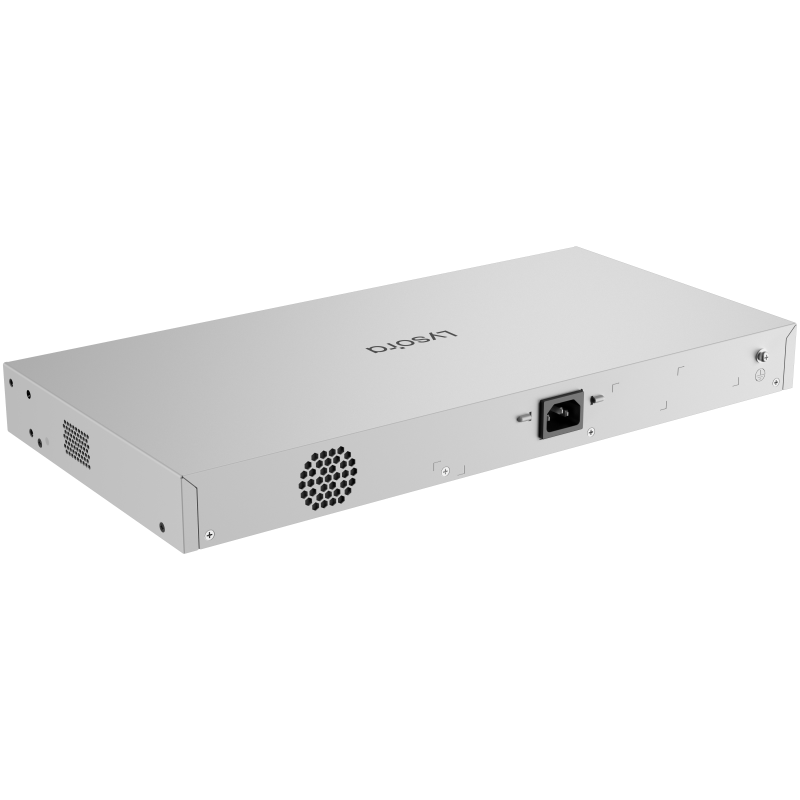

Lysora 24-Port Layer 2 Managed PoE Switch LCS-24GS-P

Lysora

24-Port Layer 2 Managed PoE Switch

Model: LCS-24GS-P

$578.00

In stock

Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

At a glance

  • Dimensions: 440 mm x 214.9 mm x 44 mm (17.32 in. x 8.46 in. x 1.73 in.)
  • PoE power budget: 370 W
  • Switching capacity: 56 Gbps
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
Warranty Limited manufacturer warranty: 3 years Warranty help
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast FulfillmentU.S. warehouse order processing
30-Day Eligible ReturnsUnused items with approved RMA

Need help choosing? (856) 317-0600

Overview

The Lysora LCS-24GS-P is a high-density cloud-managed Gigabit PoE+ switch designed for enterprise surveillance systems, commercial networking, wireless deployments, and structured rack installations. Featuring 24 PoE/PoE+ ports, dual RJ45 uplinks, dual SFP uplinks, and a robust 370W PoE budget, it delivers scalable power, centralized management, and advanced Layer 2 networking capabilities for demanding professional environments.

  • 24 × Gigabit PoE/PoE+ ports
  • 370W total PoE power budget
  • 2 × Gigabit RJ45 uplink ports
  • 2 × 1G SFP uplink ports

Additional Product Information

Key Features

  • Cloud, Web & Mobile App management
  • 56 Gbps switching capacity
  • 41.6 Mpps forwarding rate
  • PoE Watchdog for automatic device recovery
  • IEEE 802.1Q VLAN support
  • DHCP Snooping & Storm Control
  • Camera Detection & Self-Organizing Network (SON)
  • Jumbo frame support up to 10,000 bytes
  • Rack-mount steel enclosure
  • ±4kV / ±6kV surge & ESD protection
  • NDAA compliant
  • 3-Year warranty

Technical Specifications

Physical
Dimensions440 mm x 214.9 mm x 44 mm (17.32 in. x 8.46 in. x 1.73 in.)
Weight2.84 kg (6.26 lbs) (without packaging)
CasingMetal
MountingRack
Port Specifications
Total number of RJ45 ports26
Total number of optical ports2
Number of 1GE SFP ports2
Number of 10/100/1000BASE-T ports26
Uplinks2 × Gigabit RJ45 and 2 × 1G SFP uplinks
PoE Specifications
Number of PoE/PoE+ Out ports24
PoE budget370 W
PoE power pins1–2 (+), 3–6 (-)
System Specifications
Switching capacity56 Gbps
Forwarding rate41.6 Mpps
Buffer size4.1 Mbit
CPUMAC chip, single-core processor, 500 MHz clock frequency
Flash memory8 MB
Power supply and Consumption
Power Method220 V AC power supply: ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Rated input current: 6 A
Max. Power Consumption25 W (with no PoE load) 400 W (with PoE full load)
Heat Dissipation85.5 BTU/hr (220 V/50 Hz), with no PoE load 1,368 BTU/hr (220 V/50 Hz), with PoE full load
Environment and Reliability
Surge protectionService port: ±4 kV for common mode Power connector: ±6 kV for common mode and ±6 kV for differential mode
Operating temperature0°C to 40°C (32°F to 104°F)
Storage temperature–40°C to +70°C (–40°F to +158°F)
Operating humidity10% RH to 90% RH (non-condensing)
Storage humidity5% RH to 95% RH (non-condensing)
Fan1 x fixed fan
CoolingAir cooling, front-to-rear airflow
Altitude–500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
MTBF200,000 hours
ESD protectionAir discharge: 8 kV Contact discharge: 6 kV
Basic Configurations
PoE watchdogYes
Online upgradeYes
Interface
Jumbo frame length (MTU)10000 bytes
EEEYes
Cable testYes
Ethernet Switching
Maximum number of VLANs16
Maximum number of MAC address entries8000
VLAN configuration supported on LAN portsYes
IEEE 802.1Q VLANYes
Static MAC addressYes
Interface flow controlYes
Inbound or outbound rate limiting based on interface trafficYes
IP Service
DNS clientYes
DHCP clientYes
Security
Port isolationYes
Broadcast storm controlYes
Multicast storm controlYes
Unknown unicast storm controlYes
CPU Protection PolicyYes
DHCP snoopingYes
Network Management and Monitoring
Web managementYes
Cloud managementYes
App managementYes
MirroringYes
Self-Organizing NetworkYes
Camera detectionYes

Built for Scale

Simplify network deployment and everyday management with the Lysora networking ecosystem.

  • Unified cloud dashboard
  • Self-organizing networking
  • Zero-touch deployment
  • AI-assisted optimization
  • Scalable network performance
  • License-free cloud management
  • Controller-free architecture
  • Local product support from NSI Security
Lysora cloud dashboard displayed on desktop and mobile

Ecosystem features vary by model, firmware and network setup.
