Lysora

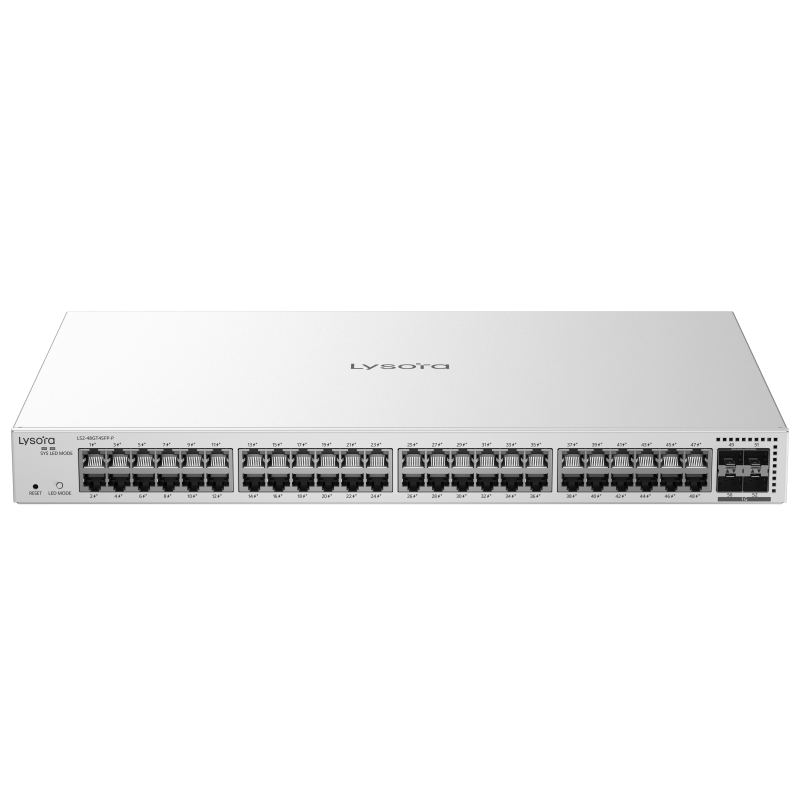

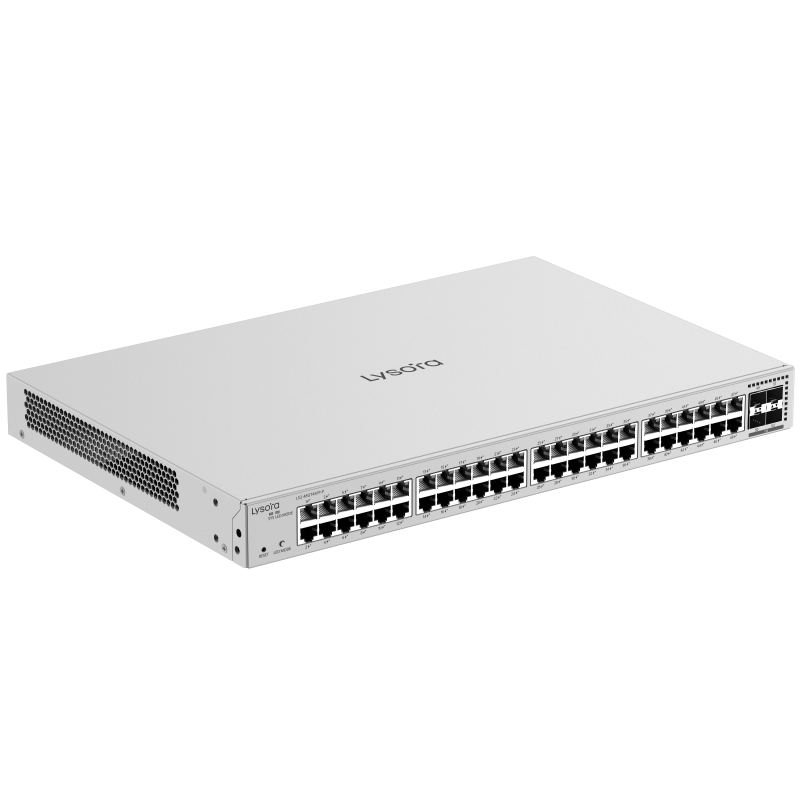

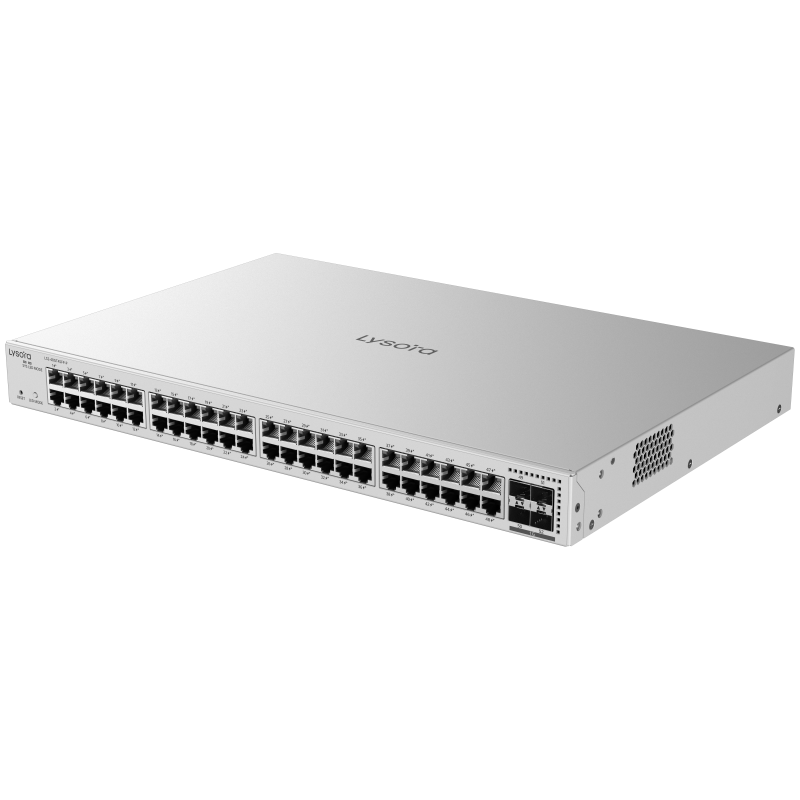

48-Port Layer 2 Managed PoE Switch
$898.00
The Lysora LS2-48GT4SFP-P is a high-density Layer 2 cloud-managed Gigabit PoE+ switch built for enterprise surveillance, commercial networking, and large-scale edge deployments. Featuring 48 Gigabit PoE+ ports, 4 Gigabit SFP uplinks, advanced Layer 2 management features, and a 370W PoE power budget, it delivers scalable performance, centralized cloud management, and reliable connectivity for demanding professional environments.

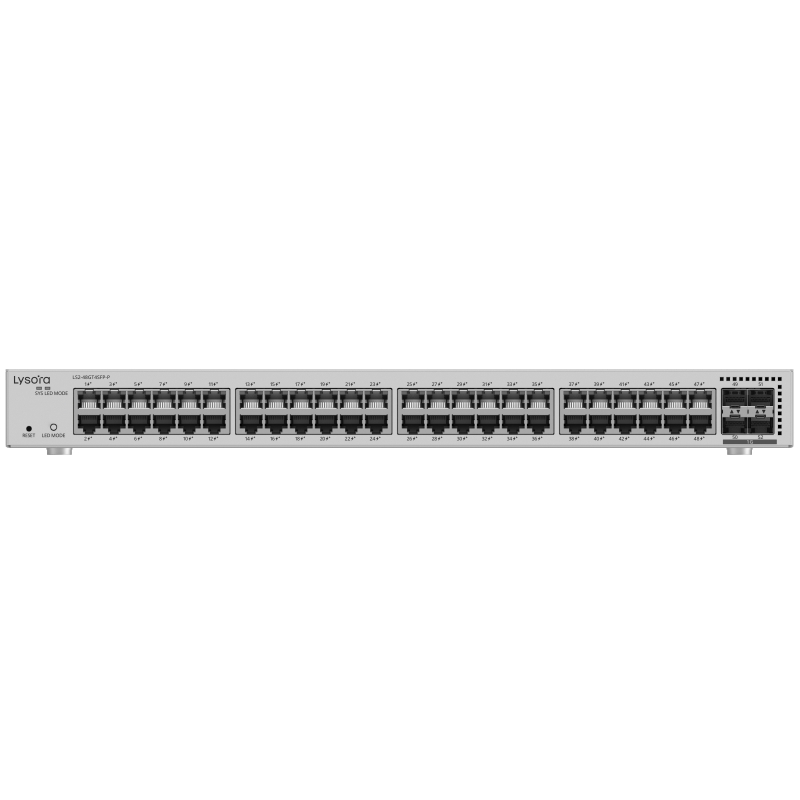

- 48 × Gigabit PoE/PoE+ RJ45 ports
- 4 × 1G SFP uplink ports
- 370W total PoE budget
- Layer 2 cloud-managed switching
Additional Product Information
Key Features
- 104 Gbps switching capacity
- 77.38 Mpps forwarding rate
- Web, Cloud, App & SNMP management
- IEEE 802.3af/at PoE+ support
- VLAN support up to 4094 VLANs
- Static LAG & LACP support
- DHCP Snooping & IGMP Snooping
- ACL, QoS & Port Isolation
- STP/RSTP redundancy support
- Jumbo frame support up to 9216 bytes
- 6kV surge protection
- Rack-mount metal chassis
- NDAA compliant
- Dual fixed cooling fans
- 3-Year warranty
Built for Scale
Simplify network deployment and everyday management with the Lysora networking ecosystem.
- Unified cloud dashboard
- Self-organizing networking
- Zero-touch deployment
- AI-assisted optimization
- Scalable network performance
- License-free cloud management
- Controller-free architecture
- Local product support from NSI Security
Ecosystem features vary by model, firmware and network setup.
Technical Specifications
| Physical | |
|---|---|

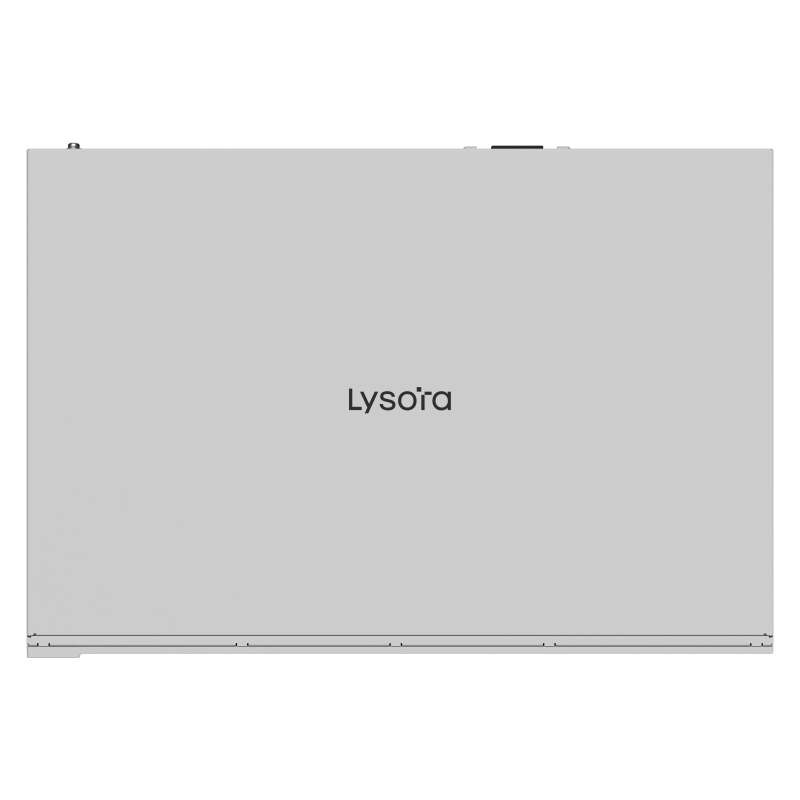

| Dimensions | 440 mm x 293 mm x 44 mm (17.32 in. x 11.54 in. x 1.73 in.) |
| Weight | 4.32 kg (9.52 lbs) (without packaging) |
| Casing | Metal |
| Mounting | Rack/Desk |
| Port Specifications | |
| Total number of RJ45 ports | 48 |
| Total number of optical ports | 4 |
| Number of 1GE SFP ports | 4 |
| Number of 10/100/1000BASE-T ports | 48 |
| Uplinks | 4 × 1G SFP slots |
| PoE Specifications | |
| Number of PoE/PoE+ Out ports | 48 |
| PoE budget | 370 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| System Specifications | |
| Switching capacity | 104 Gbps |
| Forwarding rate | 77.38 Mpps |
| Buffer size | 4.1 Mbit |
| CPU | MAC chip, dual-core processor, 1 GHz clock frequency per core |
| RAM | 512 MB |
| Flash memory | 256 MB |
| Power supply and Consumption | |
| Power Method | 220 V AC power supply: ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 6 A |
| Max. Power Consumption | 46 W (with no PoE load) 450 W (with full PoE load) |
| Heat Dissipation | No PoE load: 157.32 BTU/hr (220V/50Hz) Full PoE load: 1539 BTU/hr (220V/50Hz) |
| Environment and Reliability | |
| Surge protection | Service port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |

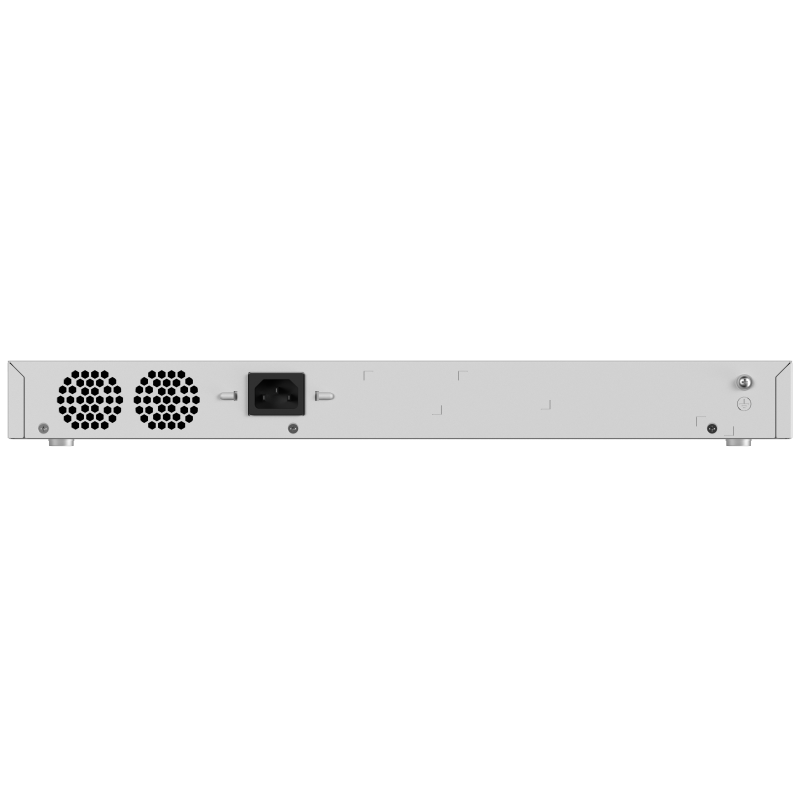

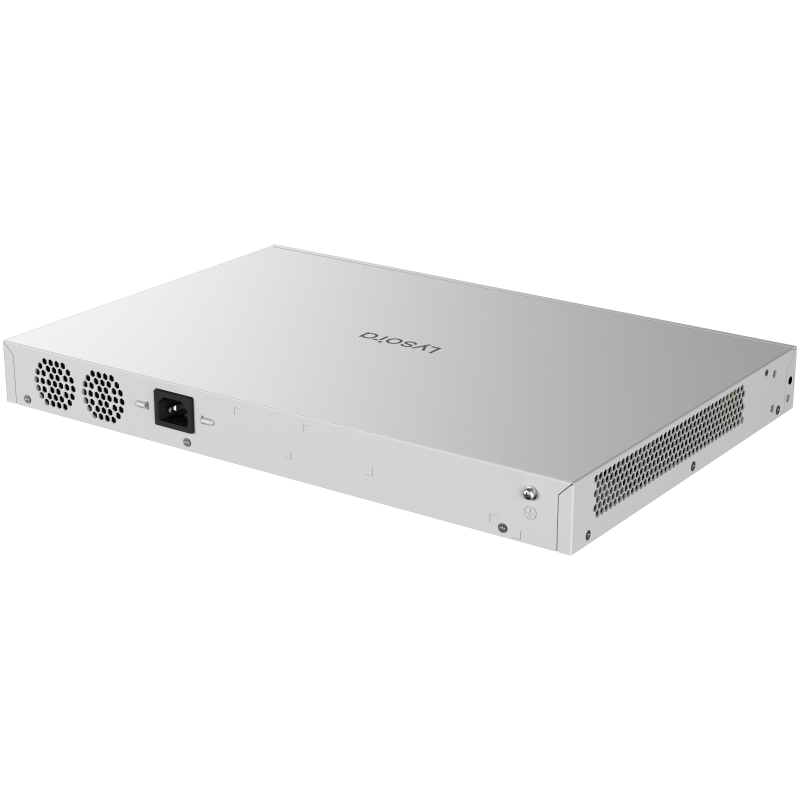

| Fan | 2 x fixed fans |

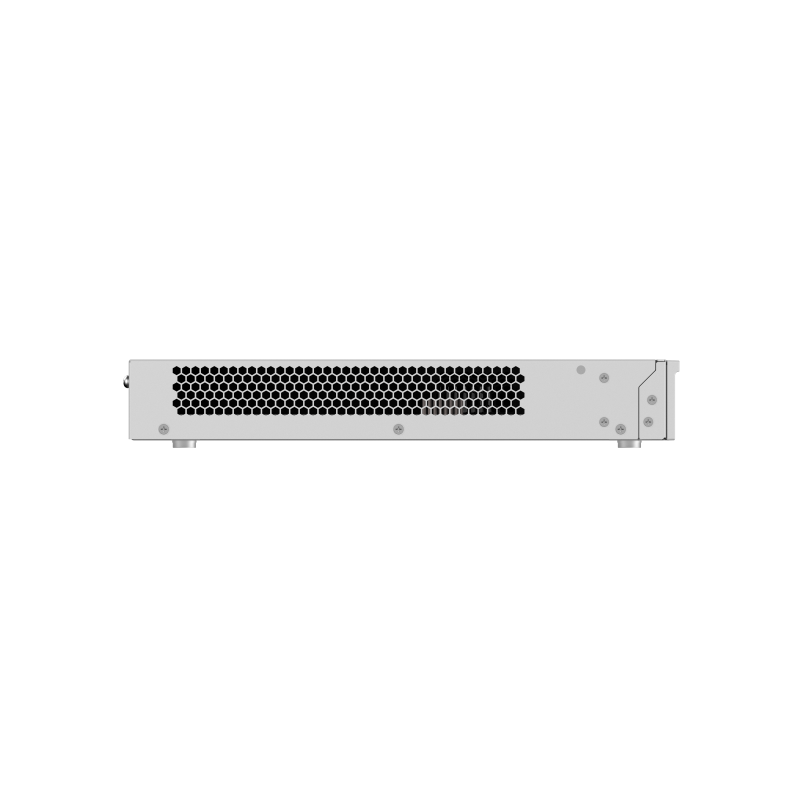

| Cooling | Air cooling, side-to-rear airflow |
| Altitude | Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
| MTBF | 400,000 hours |
| ESD protection | Contact discharge: 6 kV Air discharge: 8 kV |
| Ethernet Switching | |
| Maximum number of VLANs | 4094 |
| Maximum number of MAC address entries | 16000 |
| Interface flow control | Yes |
| MAC address-based VLAN | No |
| IP subnet–based VLAN assignment | No |
| Port-based VLAN | Yes |
| IEEE 802.1Q VLAN | Yes |
| Basic QinQ | No |
| Voice VLAN | Yes |
| STP,RSTP,MSTP | Yes |
| LLDP/LLDP-MED | Yes |
| Static MAC address | Yes |
| MAC address filtering | Yes |
| Static aggregation | Yes |
| LACP | Yes |
| Inbound or outbound rate limiting based on interface traffic | Yes |
| IP Service | |
| Maximum number of ARP entries | 1000 |
| ARP | Yes |
| IPv4 ping | Yes |
| IPv4 traceroute | Yes |
| ICMPv6 | Yes |
| IPv6 ping | Yes |
| IPv6 traceroute | Yes |
| DNS client | Yes |
| DNSv6 client | Yes |
| DHCP relay | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| IP Routing | |
| IPv4 static route | No |
| IPv6 static route | No |
| OSPFv2 | No |
| OSPFv3 | No |
| Multicast | |
| IGMPv1 snooping | Yes |
| IGMPv2 snooping | Yes |
| Basic IGMPv3 snooping | Yes |
| Full IGMPv3 snooping | No |
| IGMP filtering | Yes |
| IGMPv1, v2, and v3 | No |
| ACL and QoS | |
| Standard ACL | Yes |
| Extended ACL | Yes |
| 802.1p priority-based traffic classification | Yes |
| DSCP priority-based traffic classification | Yes |
| Egress queues based on 802.1p and DSCP priorities | Yes |
| Egress queues based on IP precedences | No |
| Ingress flow-based rate limiting | No |
| Queue scheduling | Yes |
| DRR | No |
| SP | Yes |
| SP+DRR | No |
| SP+WFQ | No |
| SP+WRR | Yes |
| WFQ | No |
| WRR | Yes |
| Congestion avoidance: tail drop | Yes |
| Security | |
| 802.1X authentication | Yes |
| Inaccessible Authentication Bypass (IAB) | Yes |
| MAC address-based 802.1X authentication | Yes |
| Port-based 802.1X authentication | Yes |
| Authentication, Authorization, and Accounting (AAA) | No |
| Radius | No |
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| DHCP snooping | Yes |
| IP-MAC-port binding | Yes |
| ARP anti-spoofing | Yes |
| IP source guard | Yes |
| CPU Protection Policy | Yes |
| Reliability | |
| VCS | No |
| System dual backup | No |
| Cloud-based auto-recovery | Yes |
| Loop prevention | Yes |
| Network Management and Monitoring | |
| Web management | Yes |
| Cloud management | Yes |
| App management | Yes |
| Mirroring | Yes |
| Self-Organizing Network | Yes |
| HTTPS login | Yes |
| RLOG | Yes |
| Syslog | Yes |
| PoE service failure | Yes |
| PoE power overload | Yes |
| SNMPv1, v2c, and v3 | Yes |
| NTP client | Yes |
| Camera detection | Yes |
| Basic Configurations | |
| PoE watchdog | Yes |
| Local upgrade | Yes |
| Online upgrade | Yes |
| Interface | |
| Jumbo frame length (MTU) | 9216 bytes (global configuration mode) |
| EEE | Yes |
| Cable test | Yes |
