Lysora

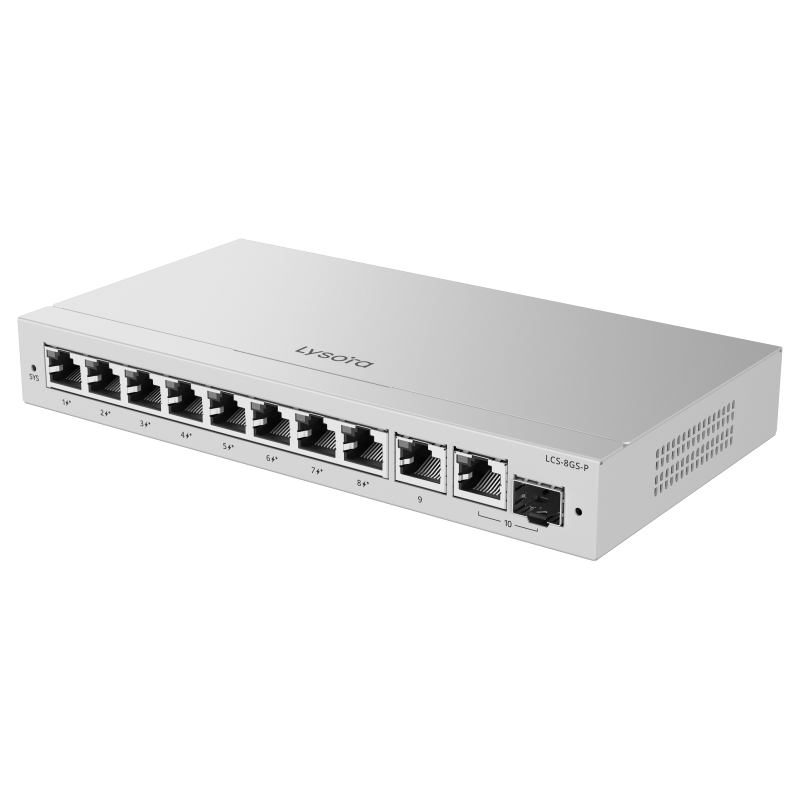

8 Port Cloud Managed Gigabit PoE Switch
$198.00
The Lysora LCS-8GS-P is a high-performance cloud-managed Gigabit PoE+ switch designed for surveillance systems, wireless networking, VoIP deployments, and growing business networks. Featuring 8 PoE/PoE+ ports, a 120W PoE budget, Gigabit uplinks, and intelligent Layer 2 management features, it delivers scalable power, remote management, and reliable network performance in a compact fanless design.
- 8 × Gigabit PoE/PoE+ ports
- 120W total PoE power budget
- 10 × Gigabit RJ45 ports
- 1 × 1G SFP uplink port
Additional Product Information
Key Features
- Cloud, Web & Mobile App management
- 20 Gbps switching capacity
- 14.8 Mpps forwarding rate
- Fanless silent cooling system
- PoE Watchdog for automatic recovery
- VLAN support with IEEE 802.1Q
- DHCP Snooping & Storm Control
- Port Isolation & CPU Protection
- Camera Detection & SON support
- Surge & ESD protection
- Compact desktop/wall-mount steel enclosure
- NDAA compliant
- 3-Year warranty
Built for Scale
Simplify network deployment and everyday management with the Lysora networking ecosystem.
- Unified cloud dashboard
- Self-organizing networking
- Zero-touch deployment
- AI-assisted optimization
- Scalable network performance
- License-free cloud management
- Controller-free architecture
- Local product support from NSI Security
Ecosystem features vary by model, firmware and network setup.
Technical Specifications
| Physical | |
|---|---|
| Dimensions | 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in.) |
| Weight | 0.55 kg (1.21 lbs) (without packaging) |
| Casing | Metal |
| Mounting | Wall/Desk |
| Port Specifications | |
| Total number of RJ45 ports | 10 |
| Total number of optical ports | 1 |
| Number of 1GE combo ports | 1 |
| Number of 1GE SFP ports | 1 |
| Number of 10/100/1000BASE-T ports | 10 |
| Uplinks | 1 × Gigabit RJ45 and 1 × Gigabit RJ45/SFP combo uplink |
| PoE Specifications | |
| Number of PoE/PoE+ Out ports | 8 |
| PoE budget | 120 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| System Specifications | |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.8 Mpps |
| Buffer size | 1.5 Mbit |
| CPU | MAC chip, single-core processor, 62.5 MHz clock frequency |
| Flash memory | 4 MB |
| Power supply and Consumption | |
| Power Method | DC power adapter ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Rated input current: 2.5 A Output： ● Rated output voltage: 54 V DC ● Maximum output current: 2.4 A |
| Max. Power Consumption | 10 W (with no PoE load) 130 W (with PoE full load) |
| Heat Dissipation | 34.2 BTU/hr (220 V/50 Hz), with no PoE load 443.6 BTU/hr (220 V/50 Hz), with PoE full load |
| Environment and Reliability | |
| Surge protection | Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Fan | Fanless design |
| Cooling | Natural cooling |
| Altitude | –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
| MTBF | 200,000 hours |
| ESD protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Basic Configurations | |
| PoE watchdog | Yes |
| Online upgrade | Yes |
| Interface | |
| Jumbo frame length (MTU) | 9216 bytes |
| EEE | Yes |
| Cable test | Yes |
| Ethernet Switching | |
| Maximum number of VLANs | 16 |
| Maximum number of MAC address entries | 4000 |
| VLAN configuration supported on LAN ports | Yes |
| IEEE 802.1Q VLAN | Yes |
| Static MAC address | Yes |
| Interface flow control | Yes |
| Inbound or outbound rate limiting based on interface traffic | Yes |
| IP Service | |
| DNS client | Yes |
| DHCP client | Yes |
| Security | |
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| CPU Protection Policy | Yes |
| DHCP snooping | Yes |
| Network Management and Monitoring | |
| Web management | Yes |
| Cloud management | Yes |
| App management | Yes |
| Mirroring | Yes |
| Self-Organizing Network | Yes |
| Camera detection | Yes |
Lysora
8 Port Cloud Managed Gigabit PoE Switch
Model: LCS-8GS-P
$198.00
In stock
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.
Warranty
Limited manufacturer warranty: 3 years
Warranty help
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast FulfillmentU.S. warehouse order processing
30-Day Eligible ReturnsUnused items with approved RMA
Overview
The Lysora LCS-8GS-P is a high-performance cloud-managed Gigabit PoE+ switch designed for surveillance systems, wireless networking, VoIP deployments, and growing business networks. Featuring 8 PoE/PoE+ ports, a 120W PoE budget, Gigabit uplinks, and intelligent Layer 2 management features, it delivers scalable power, remote management, and reliable network performance in a compact fanless design.
- 8 × Gigabit PoE/PoE+ ports
- 120W total PoE power budget
- 10 × Gigabit RJ45 ports
- 1 × 1G SFP uplink port
Additional Product Information
Key Features
- Cloud, Web & Mobile App management
- 20 Gbps switching capacity
- 14.8 Mpps forwarding rate
- Fanless silent cooling system
- PoE Watchdog for automatic recovery
- VLAN support with IEEE 802.1Q
- DHCP Snooping & Storm Control
- Port Isolation & CPU Protection
- Camera Detection & SON support
- Surge & ESD protection
- Compact desktop/wall-mount steel enclosure
- NDAA compliant
- 3-Year warranty
Technical Specifications
| Physical | |
|---|---|
| Dimensions | 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in.) |
| Weight | 0.55 kg (1.21 lbs) (without packaging) |
| Casing | Metal |
| Mounting | Wall/Desk |
| Port Specifications | |
| Total number of RJ45 ports | 10 |
| Total number of optical ports | 1 |
| Number of 1GE combo ports | 1 |
| Number of 1GE SFP ports | 1 |
| Number of 10/100/1000BASE-T ports | 10 |
| Uplinks | 1 × Gigabit RJ45 and 1 × Gigabit RJ45/SFP combo uplink |
| PoE Specifications | |
| Number of PoE/PoE+ Out ports | 8 |
| PoE budget | 120 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| System Specifications | |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.8 Mpps |
| Buffer size | 1.5 Mbit |
| CPU | MAC chip, single-core processor, 62.5 MHz clock frequency |
| Flash memory | 4 MB |
| Power supply and Consumption | |
| Power Method | DC power adapter ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Rated input current: 2.5 A Output： ● Rated output voltage: 54 V DC ● Maximum output current: 2.4 A |
| Max. Power Consumption | 10 W (with no PoE load) 130 W (with PoE full load) |
| Heat Dissipation | 34.2 BTU/hr (220 V/50 Hz), with no PoE load 443.6 BTU/hr (220 V/50 Hz), with PoE full load |
| Environment and Reliability | |
| Surge protection | Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Fan | Fanless design |
| Cooling | Natural cooling |
| Altitude | –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
| MTBF | 200,000 hours |
| ESD protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Basic Configurations | |
| PoE watchdog | Yes |
| Online upgrade | Yes |
| Interface | |
| Jumbo frame length (MTU) | 9216 bytes |
| EEE | Yes |
| Cable test | Yes |
| Ethernet Switching | |
| Maximum number of VLANs | 16 |
| Maximum number of MAC address entries | 4000 |
| VLAN configuration supported on LAN ports | Yes |
| IEEE 802.1Q VLAN | Yes |
| Static MAC address | Yes |
| Interface flow control | Yes |
| Inbound or outbound rate limiting based on interface traffic | Yes |
| IP Service | |
| DNS client | Yes |
| DHCP client | Yes |
| Security | |
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| CPU Protection Policy | Yes |
| DHCP snooping | Yes |
| Network Management and Monitoring | |
| Web management | Yes |
| Cloud management | Yes |
| App management | Yes |
| Mirroring | Yes |
| Self-Organizing Network | Yes |
| Camera detection | Yes |
Built for Scale
Simplify network deployment and everyday management with the Lysora networking ecosystem.
- Unified cloud dashboard
- Self-organizing networking
- Zero-touch deployment
- AI-assisted optimization
- Scalable network performance
- License-free cloud management
- Controller-free architecture
- Local product support from NSI Security
Ecosystem features vary by model, firmware and network setup.
