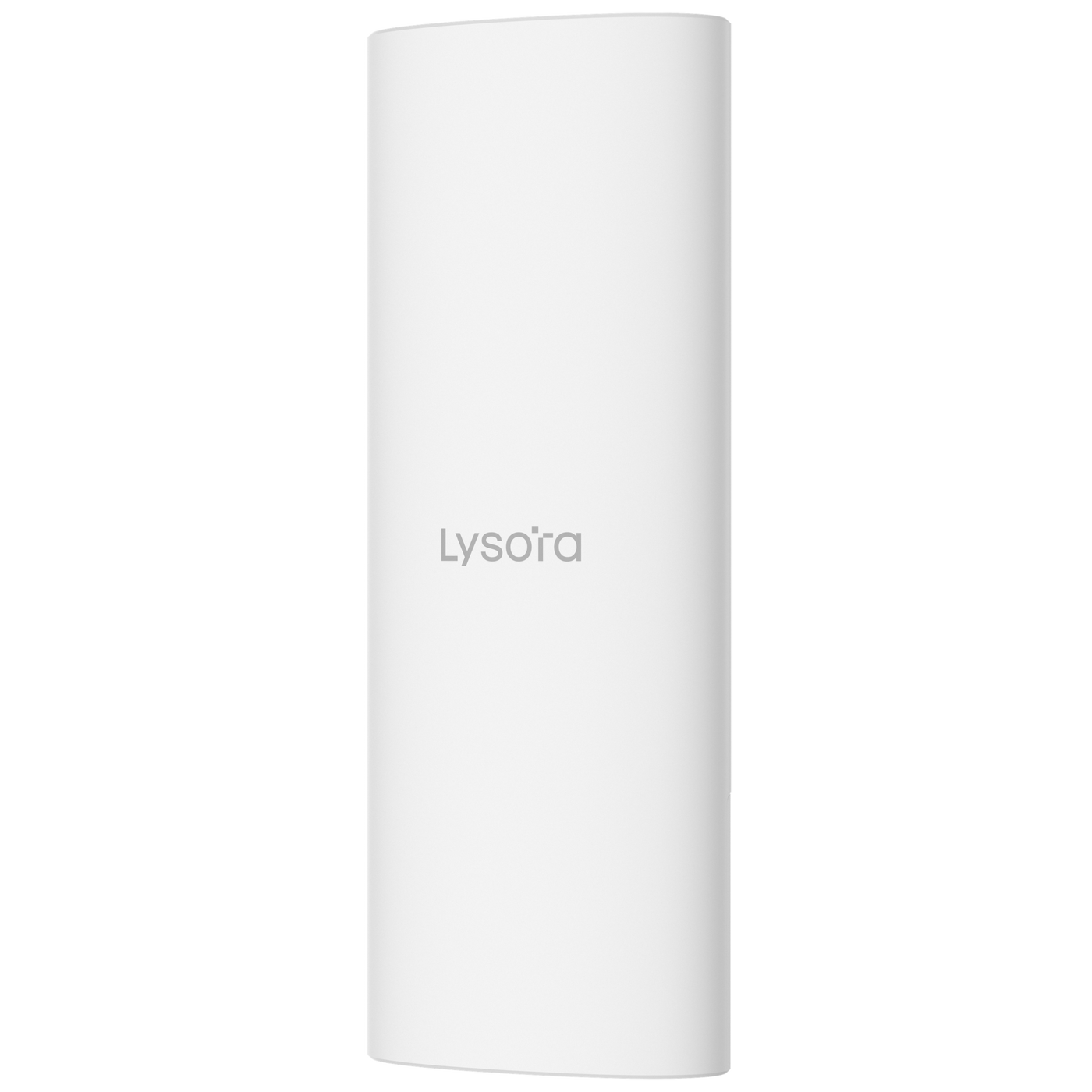

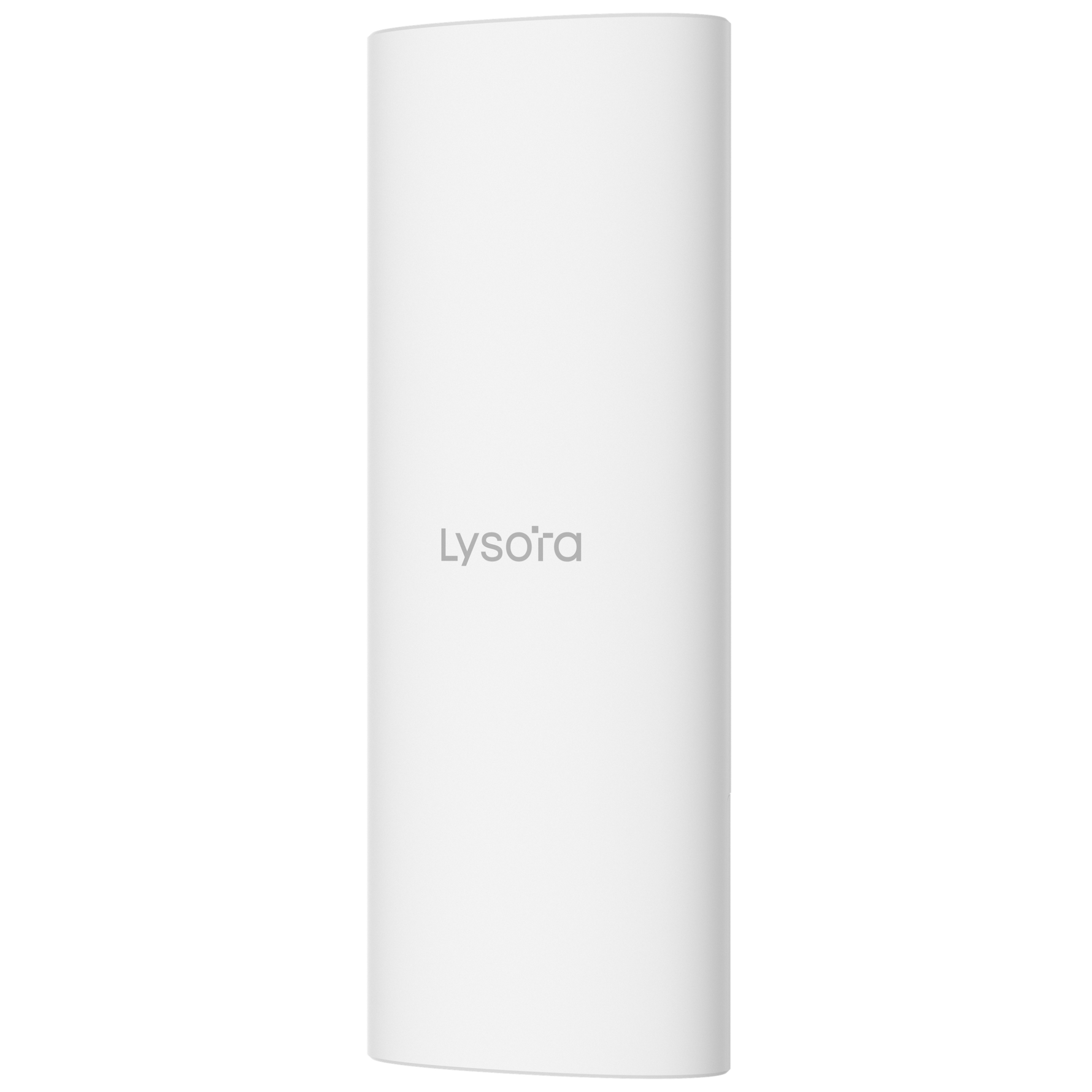

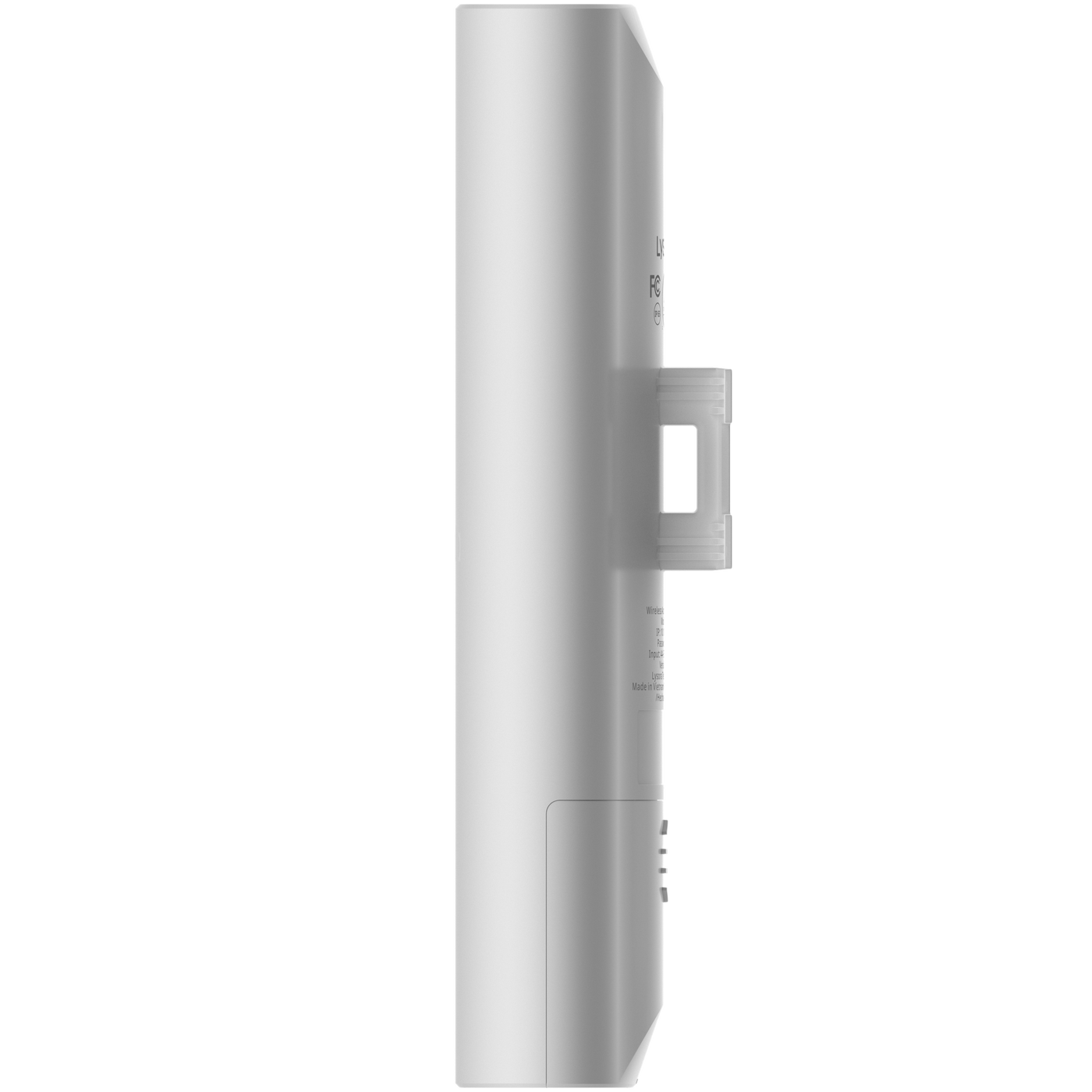

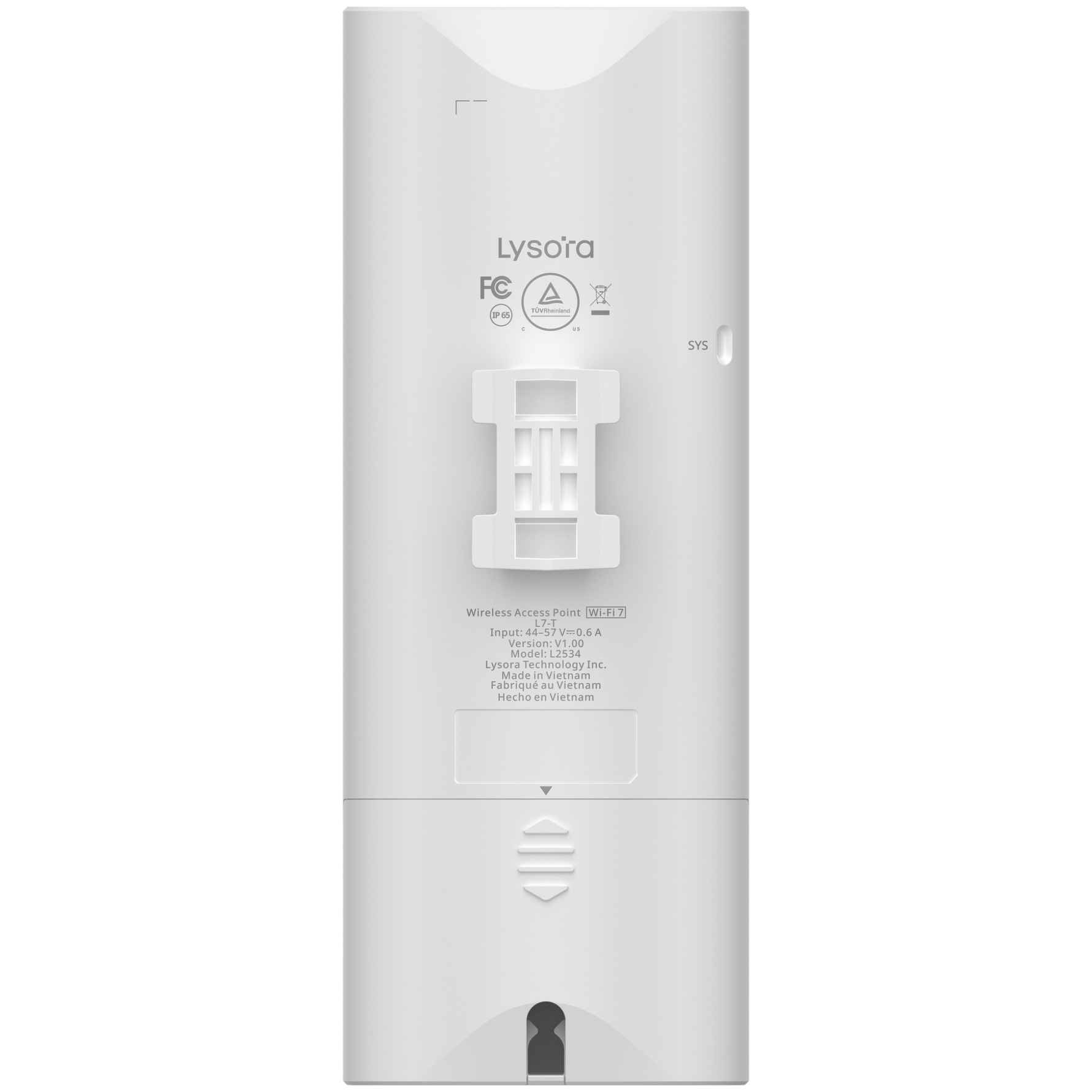

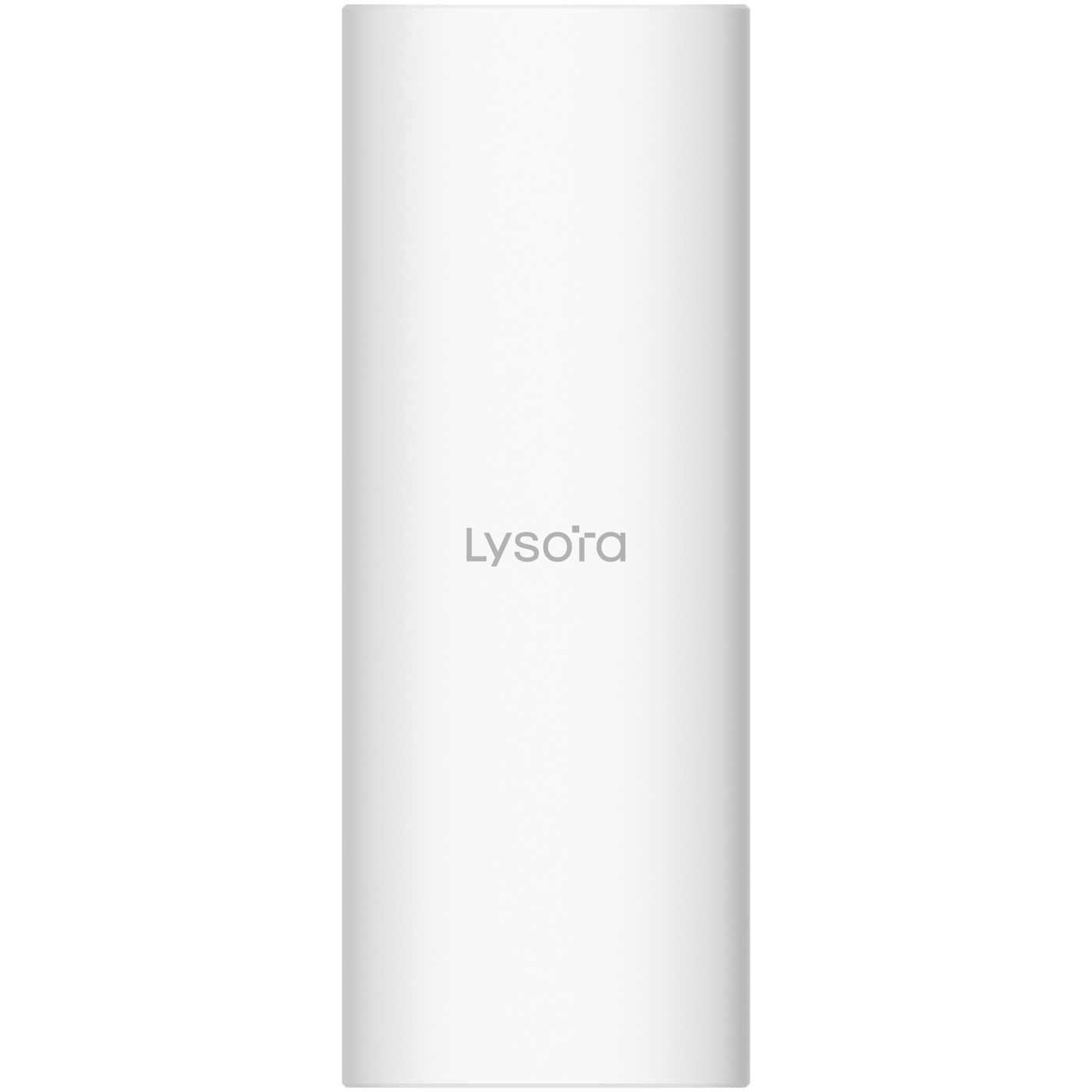

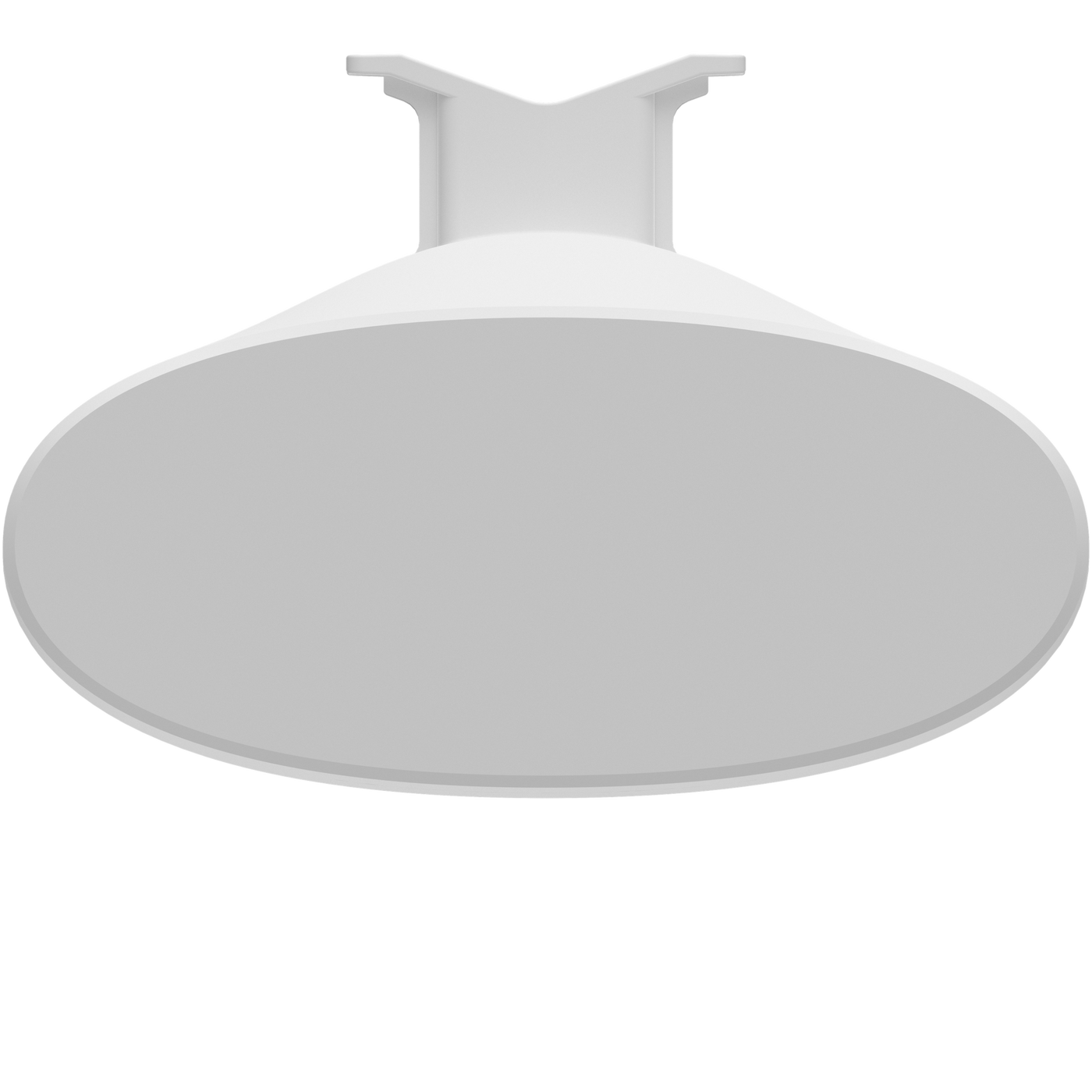

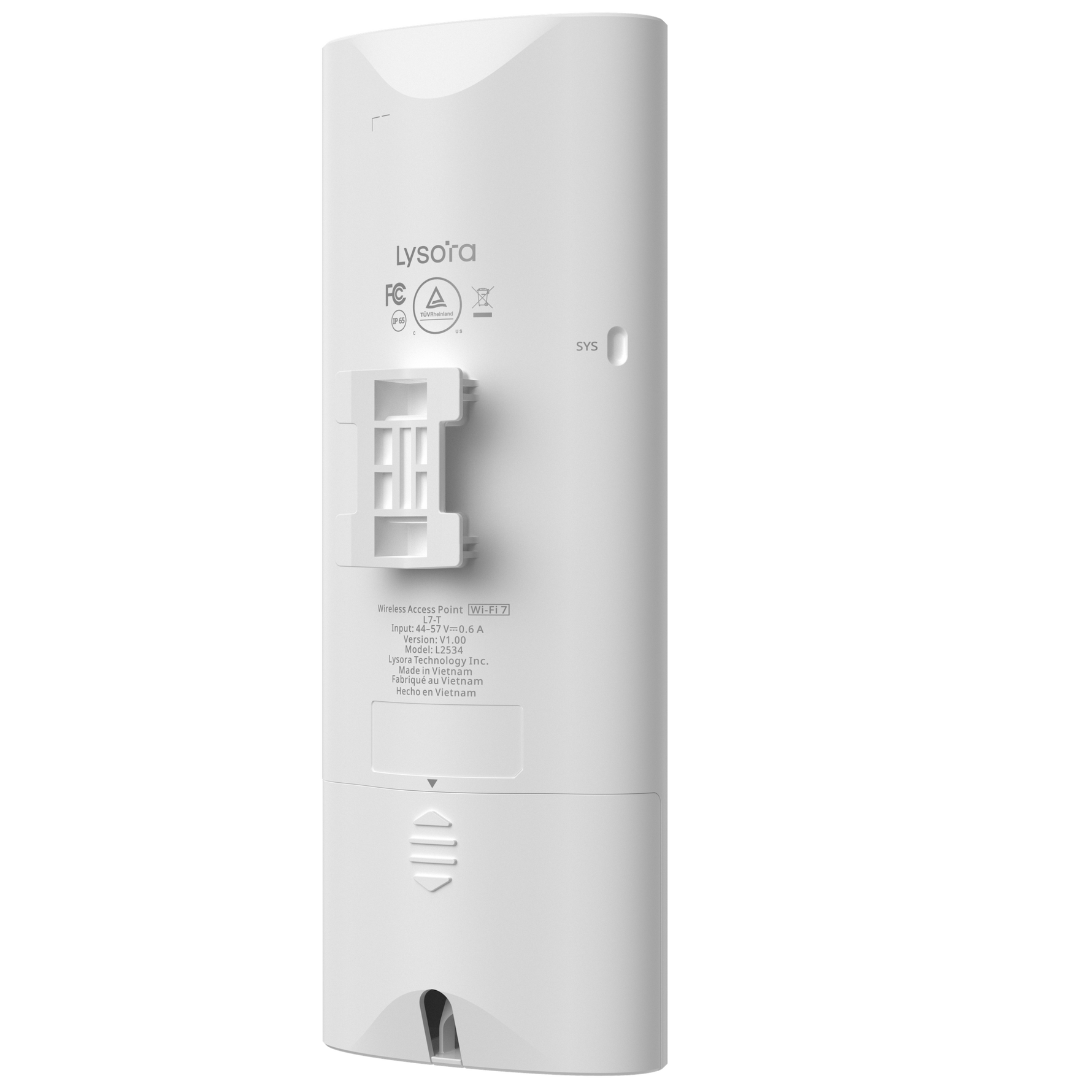

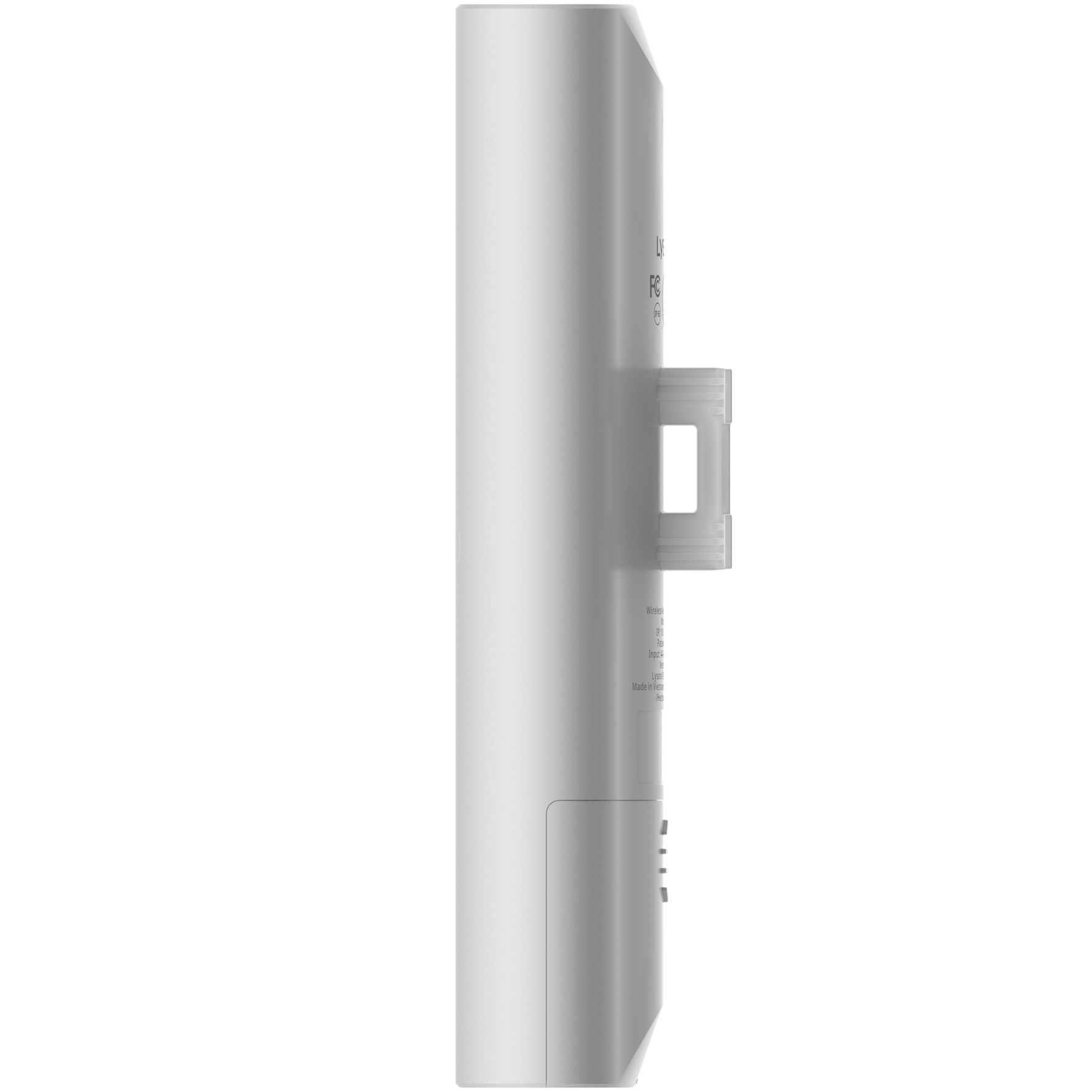

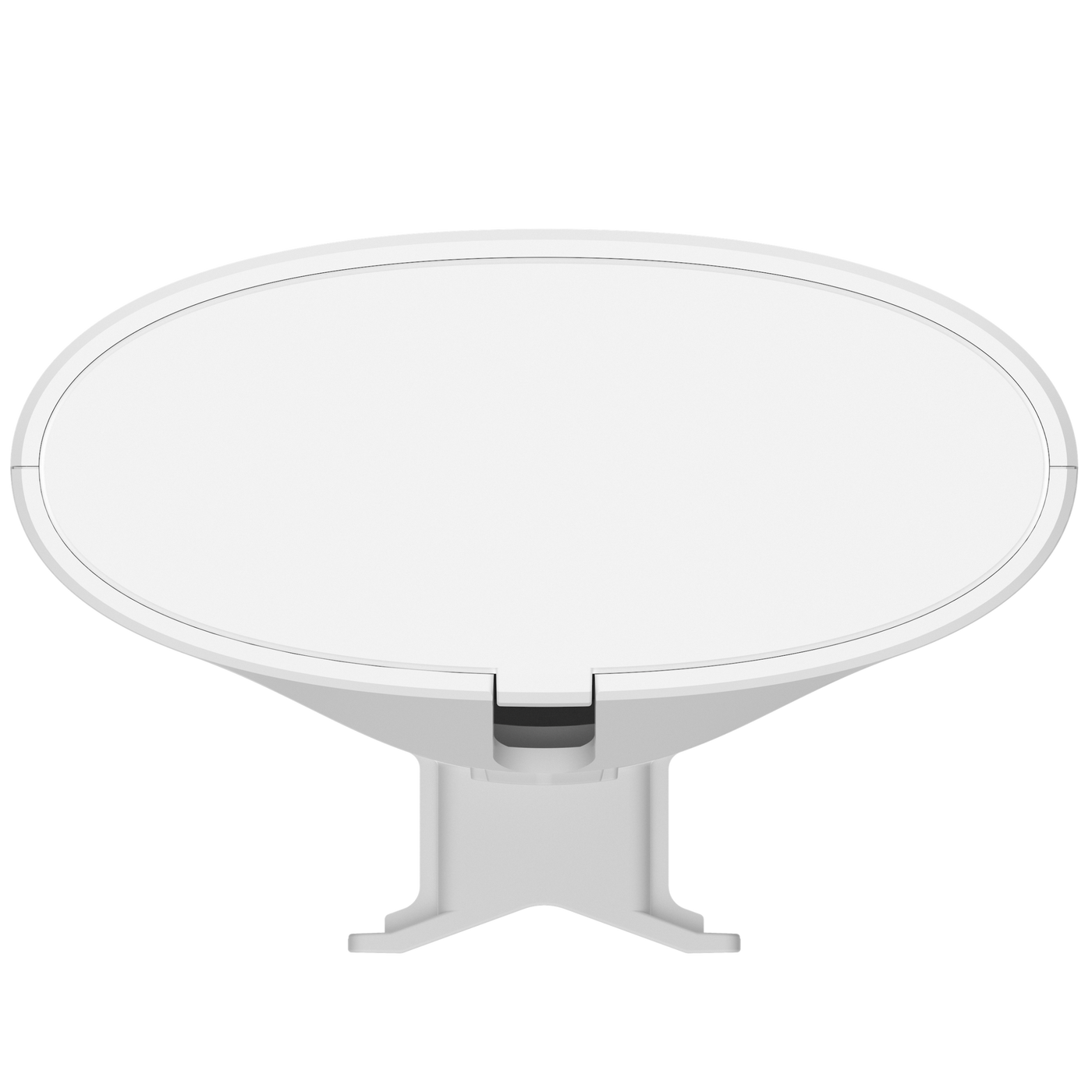

Lysora Wi-Fi 7 BE5040 Dual-Band Outdoor Access Point L7T

Lysora

Wi-Fi 7 BE5040 Dual-Band Outdoor Access Point

Model: L7T

$278.00

In stock

Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

At a glance

  • Dimensions: 90 mm x 46 mm x 239 mm (3.54 in. x 1.81 in. x 9.41 in.)
Warranty Limited manufacturer warranty: 3 years Warranty help
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast FulfillmentU.S. warehouse order processing
30-Day Eligible ReturnsUnused items with approved RMA

Need help choosing? (856) 317-0600

Overview

The Lysora L7T (L7-T) is a Wi-Fi 7 BE5040 dual-band outdoor access point for business wireless networks. It operates on 2.4GHz and 5GHz with five spatial streams and supports management through the Lysora Cloud app.

  • Wi-Fi 7 (IEEE 802.11be)
  • One 2.5GbE Ethernet port
  • Power: 802.3af/at PoE
  • Wall or pole mounting

Additional Product Information

Lysora L7T (L7-T) Wi-Fi 7 Access Point

Key features

Actual wireless performance depends on client devices, site layout and interference. Ask NSI Security for help matching access points, switches and coverage requirements.

Manufacturer specifications

Technical Specifications

Wireless
Wi-Fi standardsIEEE 802.11 a/b/g/n/ac/ax/be
Radio bands and protocols2.4 GHz: IEEE 802.11 b/g/n/ax/be 5 GHz: IEEE 802.11 a/n/ac/ax/be
Spatial streams5
MU-MIMO2.4 GHz: 2 x 2 MU-MIMO 5 GHz: 3 x 3 MU-MIMO
Wireless link rates2.4 GHz: 688 Mbps 5 GHz: 4323 Mbps; theoretical radio rates, not measured application throughput
Channel widths2.4 GHz: 20/40 MHz 5 GHz: 20/40/80/160 MHz
Antenna gain2.4 GHz: 3.62 dBi 5 GHz: 6.28 dBi
Maximum transmit power2.4 GHz: 26 dBm 5 GHz: 26 dBm
Maximum associated clients64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled)
Recommended associated clients●Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) ●Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled) ●Support for IEEE 802.11ac: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled)
Coverage (ideal unobstructed conditions)5 GHz max: 300 m (984.25 ft.) 2.4 GHz max: 100 m (328.08 ft.) 5 GHz recommended: 150 m (492.13 ft.) 2.4 GHz recommended: 50 m (164.04 ft.); actual coverage depends on clients and interference
ModulationOFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM OFDMA
Receiver sensitivity11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11 Mbps) 11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps) 11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15) 11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9) 11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9) 11ac: 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9) 11ac: 160 MHz: –76 dBm (MCS0), –50 dBm (MCS9) 11ax: 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11) 11ax: 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11) 11ax: 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11) 11ax: 160 MHz: –76 dBm (MCS0), –49 dBm (MCS11) 11be: 20 MHz: –85 dBm (MCS0), –52 dBm (MCS13) 11be: 40 MHz: –82 dBm (MCS0), –49 dBm (MCS13) 11be: 80 MHz: –82 dBm (MCS0), –46 dBm (MCS13) 11be: 160 MHz: –79 dBm (MCS0), –44 dBm (MCS13)
Network interfaces and power
Ethernet interfaces1 x 10/100/1000/2500BASE-T port
Power inputPoE+ (IEEE 802.3at) input
Wireless features and security
Operating modesAccess point; router
Wireless featuresBand steering; wireless mesh; WMM; 802.1Q VLAN; beamforming; rate limiting; client isolation; Wi-Fi scheduling
Multi-Link Operation (MLO)Yes
4096-QAMYes
RoamingIEEE 802.11k/v/r; Layer 2 and Layer 3 roaming
Authentication and encryptionPSK; WPA (TKIP); WPA2 (AES); WPA-PSK; OWE (Enhanced Open); WPA3-SAE; WPA2-PSK/WPA3-SAE; 802.1X
Routing servicesNAT; static IP; DHCP server; PPPoE client
Captive portalSupported; bandwidth limiting supported; data quotas not supported
Management
Management interfacesLocal web interface; local or remote Lysora App; remote Lysora Cloud; SNMP
Self-organizing network capacity300 APs
Unified managementUnified networking and cloud configuration/monitoring
DiagnosticsPing; traceroute
AI optimizationSupported
Physical and environmental
Dimensions90 mm x 46 mm x 239 mm (3.54 in. x 1.81 in. x 9.41 in.)
Weight≤ 0.7 kg (1.54 lbs.) (without packaging materials)
MountingWall, Pole (Mounts Included)
Indicator1 x System Status LED
Button1 x Reset button
Environmental limitsOperating Temperature: –30°C to +65°C (–22°F to +149°F) Storage Temperature: –40°C to +75°C (–40°F to +167°F) Operating Humidity: 5% RH to 95% RH (Non-condensing) Storage Humidity: 5% RH to 95% RH (Non-condensing)
Ingress and surge protectionIP Rating: IP65 Lightning Protection/Surge Protection: ±4 kV
Compliance
NDAA complianceYes
CertificationsFCC, IC, cTUVus

Built for Scale

Simplify network deployment and everyday management with the Lysora networking ecosystem.

  • Unified cloud dashboard
  • Self-organizing networking
  • Zero-touch deployment
  • AI-assisted optimization
  • Scalable network performance
  • License-free cloud management
  • Controller-free architecture
  • Local product support from NSI Security
Lysora cloud dashboard displayed on desktop and mobile

Ecosystem features vary by model, firmware and network setup.
