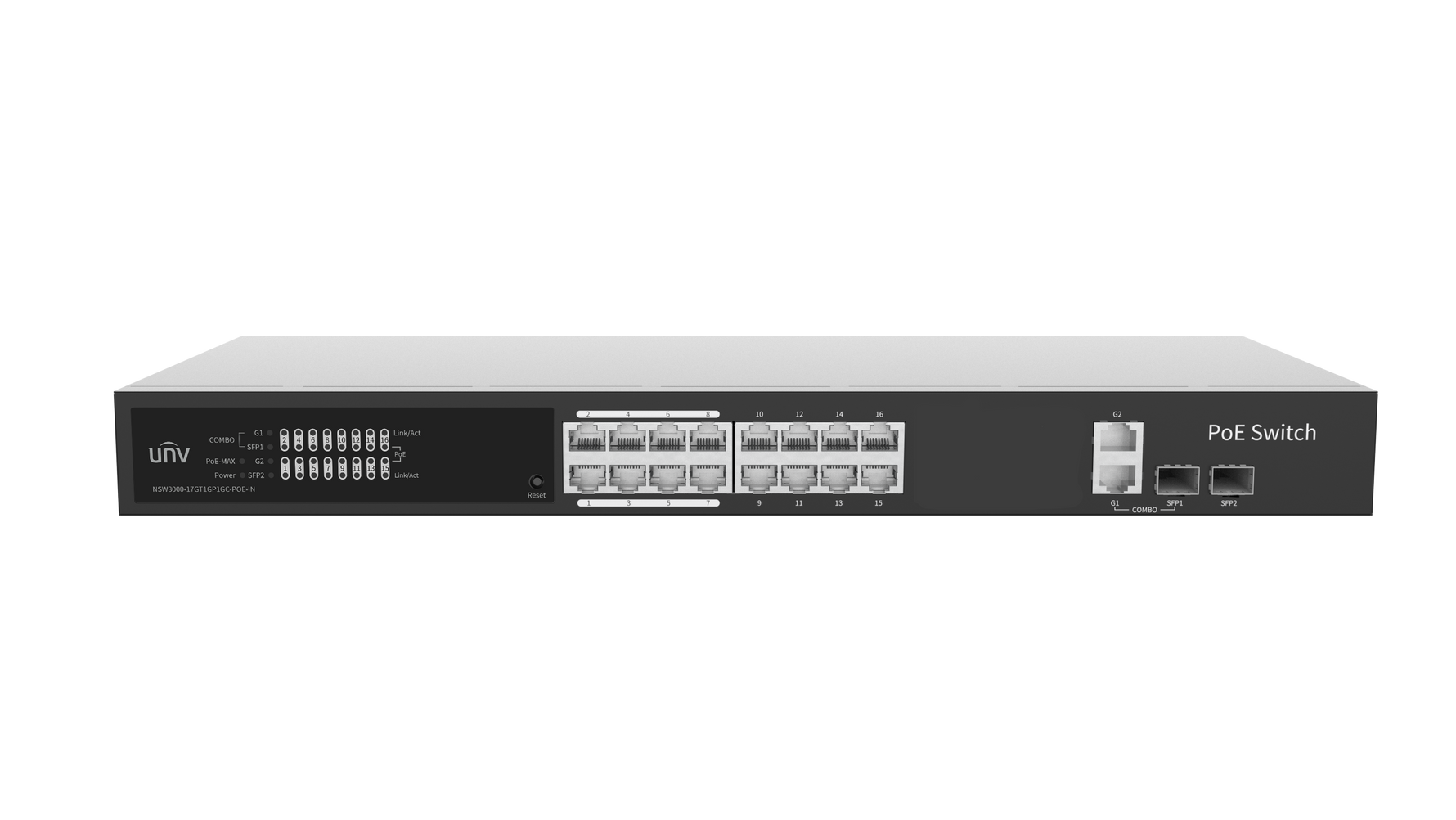

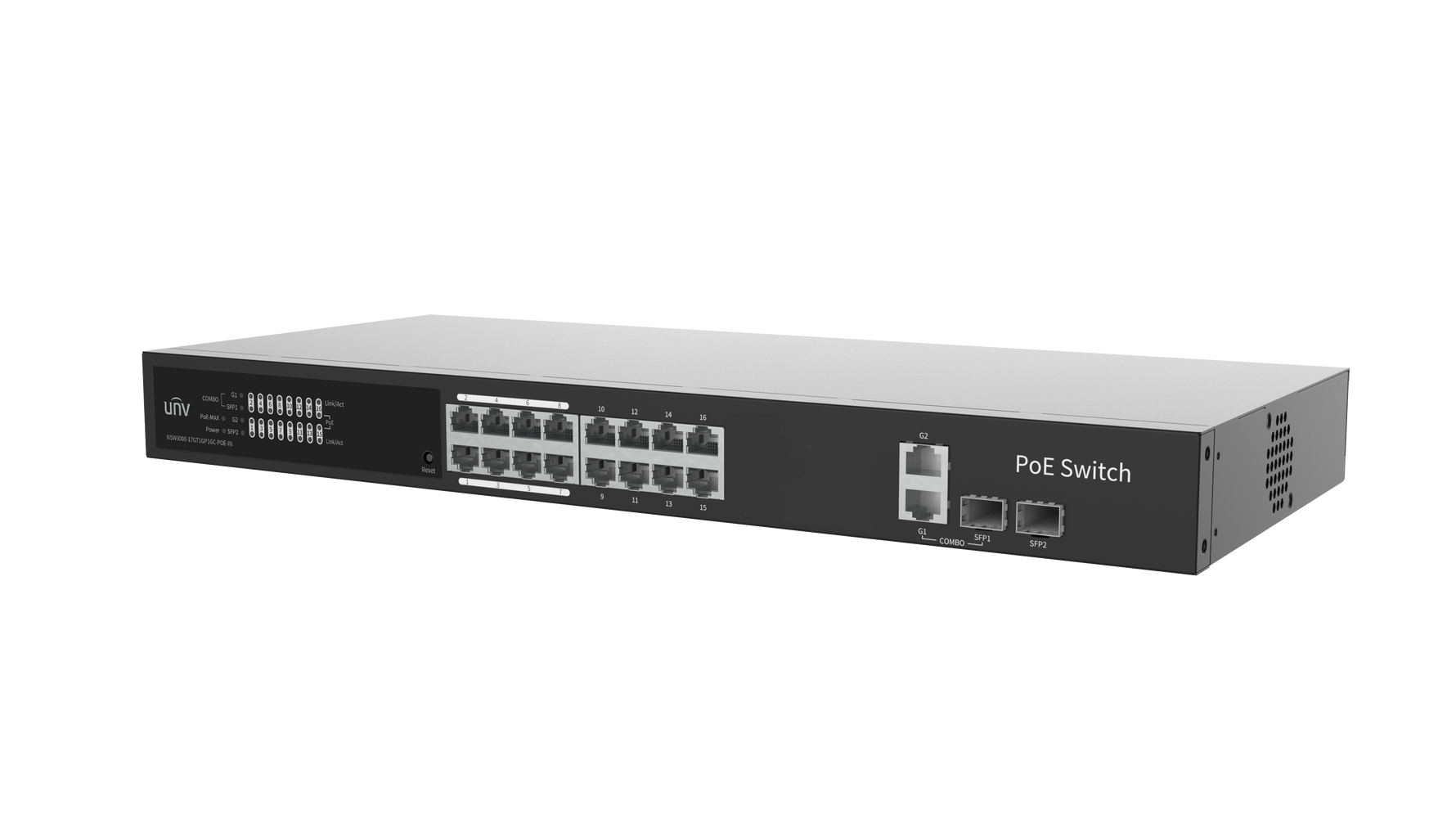

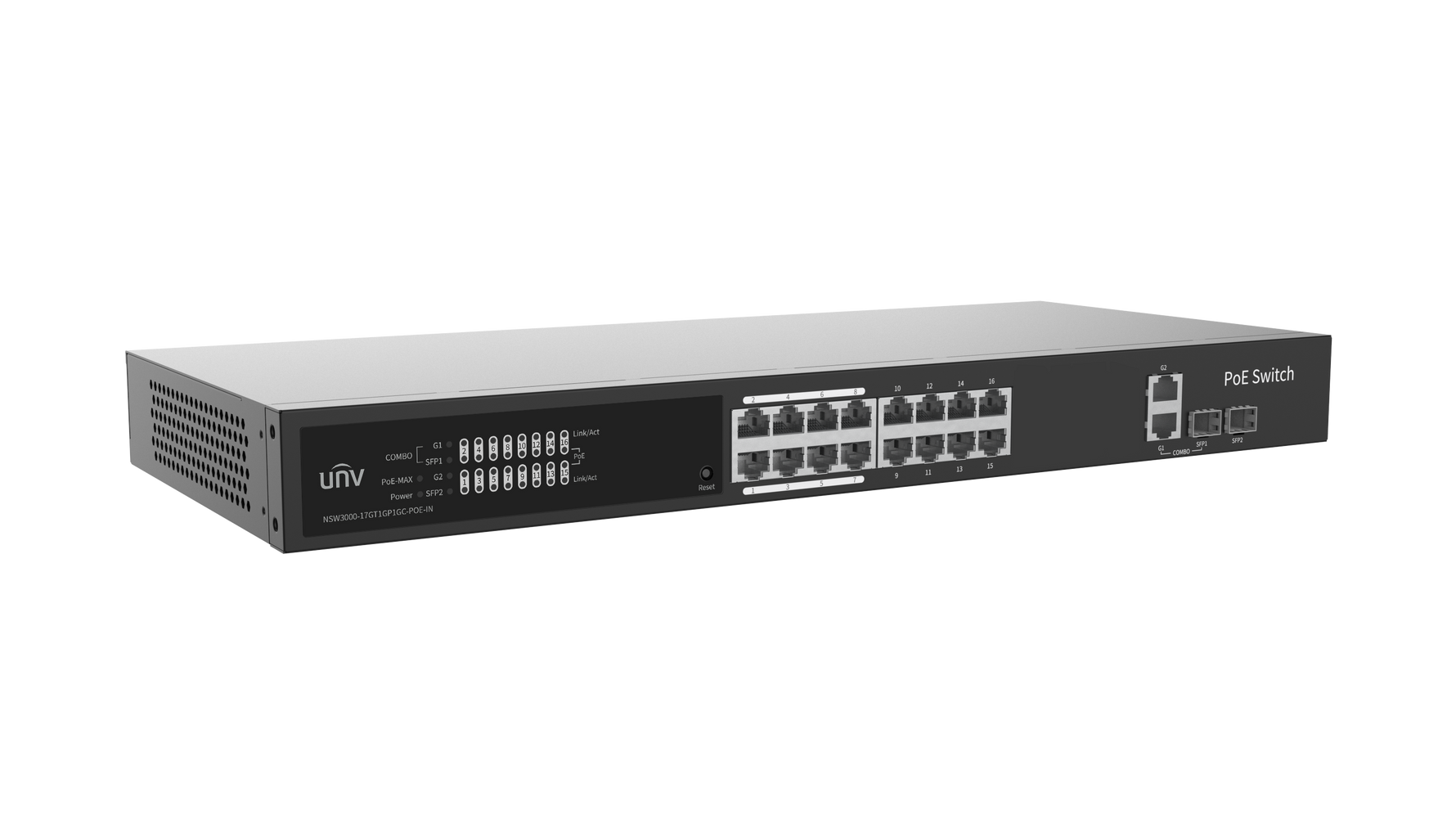

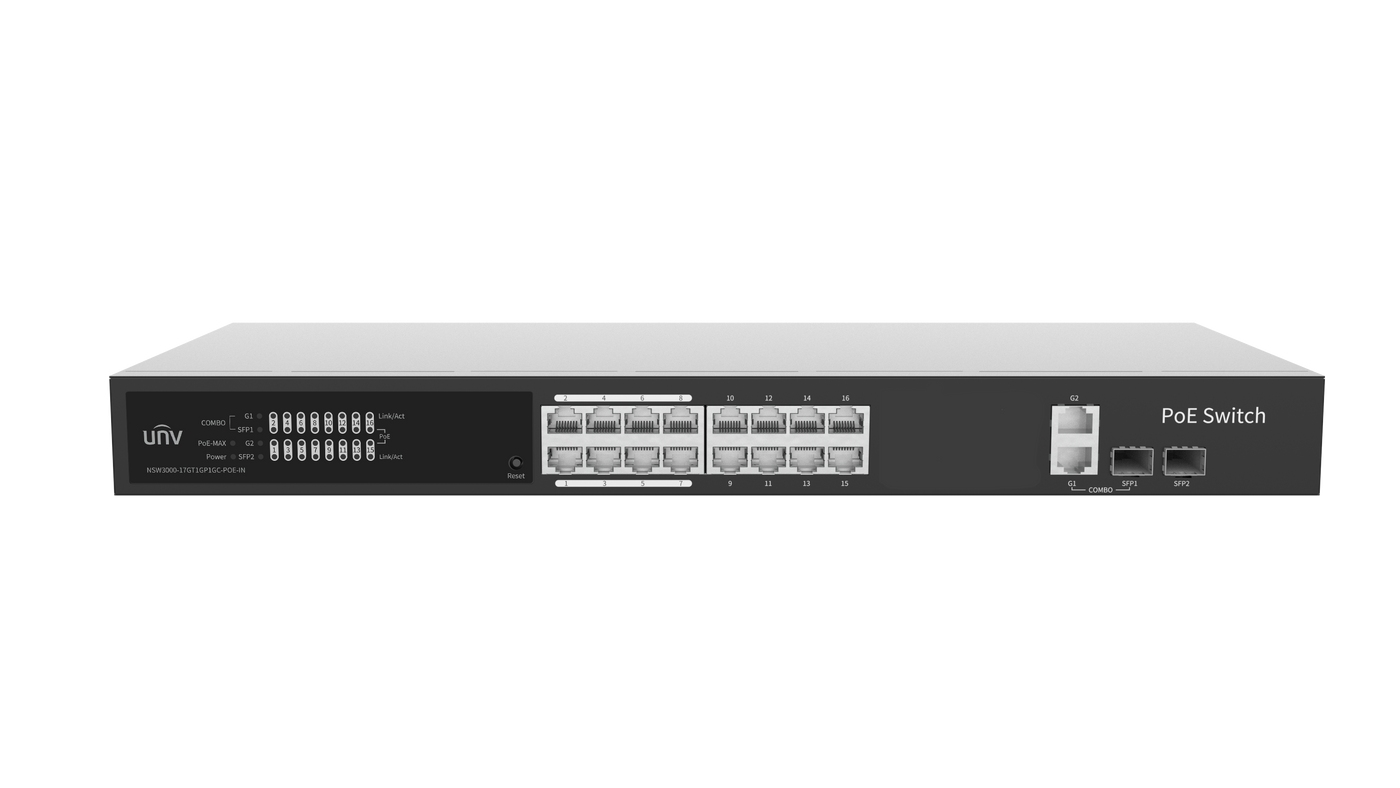

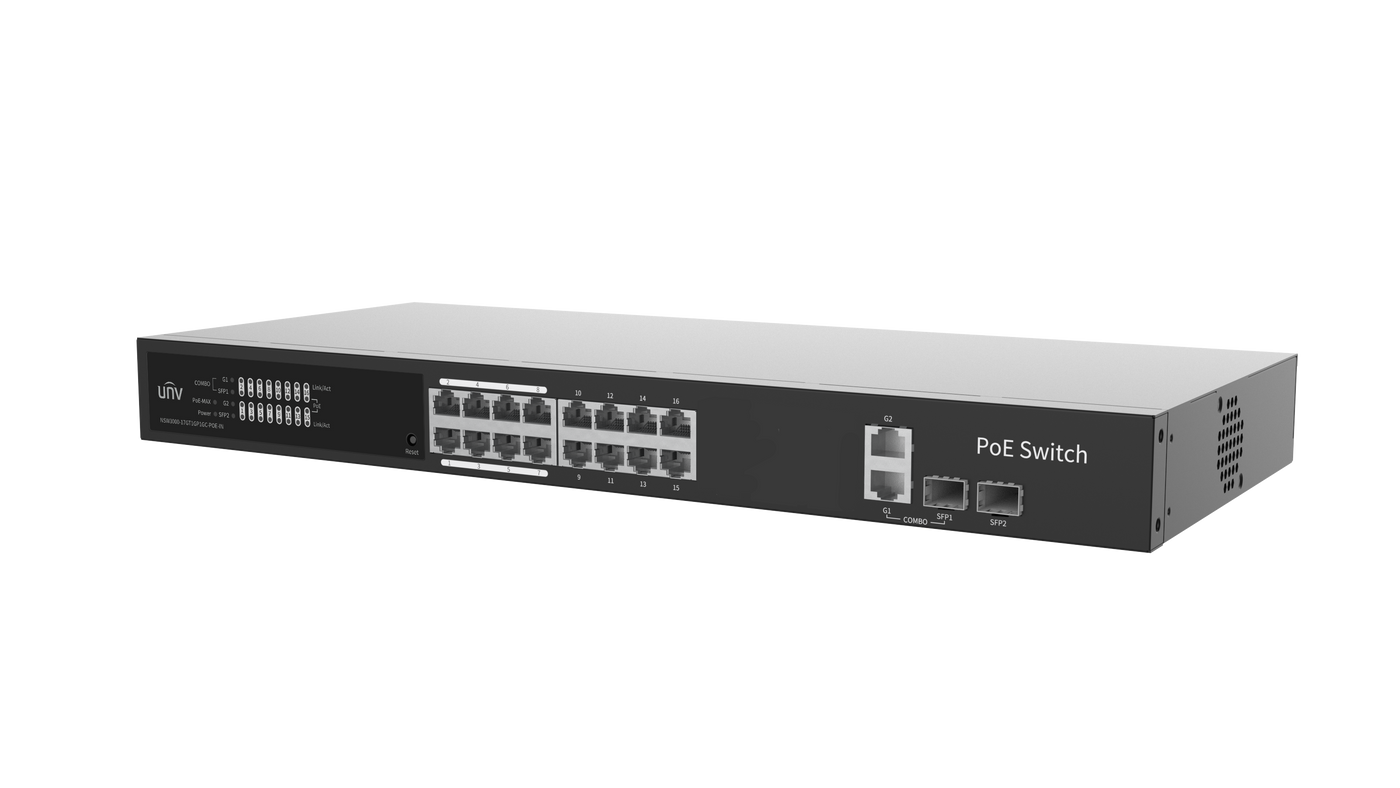

Uniview 16 Port Cloud Managed Gigabit PoE Switch (NSW3000-17GT1GP1GC-POE-IN)

Uniview

| 16-Port PoE+ Switch — NDAA Compliant

Model: NSW3000-17GT1GP1GC-POE-IN

$539.00 $669.00

In stock

Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

At a glance

  • Built-in PoE: 16 × 10/100/1000Mbps PoE RJ45 Ports
  • Switching Capacity: 38Gbps
  • Power Supply: AC 100–240V, 50/60Hz
  • Dimensions: 440 × 189.8 × 44mm
Warranty Limited manufacturer warranty: 3 years Warranty help
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast FulfillmentU.S. warehouse order processing
30-Day Eligible ReturnsUnused items with approved RMA

Need help choosing? (856) 317-0600

Overview

The UNV NSW3000-17GT1GP1GC-POE-IN supplies 16 Gigabit PoE+ ports for camera and network-device connections. Additional copper, SFP and combo uplink interfaces offer flexible connections to the wider network.

  • 16 Gigabit PoE ports
  • 250W total PoE budget
  • Up to 30W per PoE port
  • Cloud and web management

Uplink planning

Choose copper or compatible fiber connectivity to suit the site. A combo interface shares its port function, so its copper and optical connections are not independent extra uplinks.

Power and reach

The 250W total budget is shared across connected devices. Extended transmission operates at reduced speed, which must still accommodate the camera’s video stream.

Specifications

Model NSW3000-17GT1GP1GC-POE-IN
Product Type Gigabit Cloud-Managed PoE Switch
PoE Ports 16 × 10/100/1000Mbps PoE RJ45 Ports
Additional Ports 1 × 10/100/1000Mbps RJ45 Port, 1 × Gigabit SFP Port, and 1 × Gigabit Combo Interface
Network Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3az
Switching Capacity 38Gbps
Forwarding Performance 28.272Mpps
Packet Buffer 4 Mbit
MAC Address Table 8K
PoE Standard IEEE 802.3af / IEEE 802.3at
Maximum PoE Budget 250W Total
Maximum PoE Per Port Up to 30W
PoE Pin Assignment Mode A: Pins 1/2 positive and 3/6 negative;
Mode B: Pins 4/5 positive and 7/8 negative
Priority Ports Ports 1–8
Extended Transmission Up to approximately 250 meters at a reduced rate of up to 10Mbps
Management Supported Uniview Software, Cloud Management, Mobile Application, and Web Interface
Power Supply AC 100–240V, 50/60Hz
Maximum Power Consumption 265W
Cooling 1 Cooling Fan
Dimensions 440 × 189.8 × 44mm
Weight Approximately 2.18kg
Operating Temperature 0°C to 45°C / 32°F to 113°F
Operating Humidity 10% to 90% RH, Non-Condensing

Compatibility

Match PoE devices to IEEE 802.3af/at and check both per-port and aggregate demand. Confirm SFP module and fiber compatibility for optical uplinks.

Need help matching this product to your project? Ask NSI

Specifications

Compatibility & accessories

Downloads & support

Find model-specific documentation and available software in Uniview’s Download Center.

Official Uniview downloads
