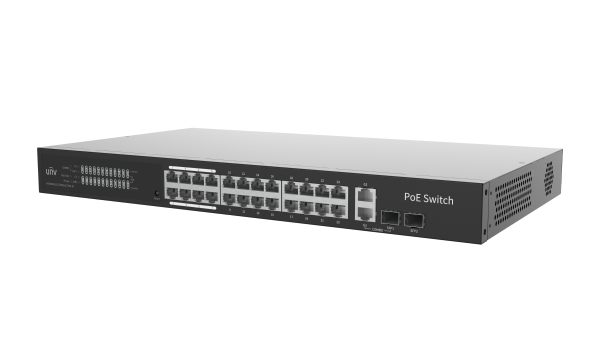

Uniview 24 Port Cloud Managed Gigabit PoE Switch (NSW3000-25GT1GP1GC-POE-IN)

Uniview

24-Port Gigabit Cloud-Managed PoE+ Switch — NDAA Compliant

Model: NSW3000-25GT1GP1GC-POE-IN

$849.00 $1,059.00

In stock

Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

At a glance

  • Built-in PoE: 24 × 10/100/1000Mbps PoE RJ45 Ports
  • Switching Capacity: 54Gbps
  • Power Supply: AC 100–240V, 50/60Hz
  • Dimensions: 440 × 244.8 × 44mm
Warranty Limited manufacturer warranty: 3 years Warranty help
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast FulfillmentU.S. warehouse order processing
30-Day Eligible ReturnsUnused items with approved RMA

Need help choosing? (856) 317-0600

Overview

With 24 Gigabit PoE+ ports, the UNV NSW3000-25GT1GP1GC-POE-IN supports a larger camera network from one switch. Copper and optical uplink options connect the camera group to a recorder or core network.

  • 24 Gigabit PoE ports
  • 370W shared PoE capacity
  • Gigabit RJ45, SFP and combo uplink interfaces
  • Cloud, app and web management

Camera power

Each port supports up to 30W, but all ports share the 370W total. Size the load using maximum device consumption, including IR, heaters and other accessories.

Network layout

Use the uplink arrangement that matches the site’s copper or fiber cabling. Extended-distance mode reduces link speed and should be checked against the video bitrate on that run.

Specifications

Model NSW3000-25GT1GP1GC-POE-IN
Product Type Gigabit Cloud-Managed PoE Switch
PoE Ports 24 × 10/100/1000Mbps PoE RJ45 Ports
Additional Ports 1 × 10/100/1000Mbps RJ45 Port, 1 × Gigabit SFP Port and 1 × Gigabit Combo Interface
Network Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at and IEEE 802.3az
Switching Capacity 54Gbps
Forwarding Performance 40.176Mpps
Packet Buffer 4 Mbit
MAC Address Table 8K
PoE Standard IEEE 802.3af / IEEE 802.3at
Maximum PoE Budget 370W Total
Maximum PoE Per Port Up to 30W
PoE Pin Assignment Mode A: Pins 1/2 positive and 3/6 negative;
Mode B: Pins 4/5 positive and 7/8 negative
Priority Ports Ports 1–8
Extended Transmission Up to approximately 250 meters at a reduced rate of up to 10Mbps
Management Cloud Management, Mobile Application and Web Interface
Power Supply AC 100–240V, 50/60Hz
Maximum Power Consumption 390W
Cooling 1 Cooling Fan
Dimensions 440 × 244.8 × 44mm
Weight Approximately 2.98kg
Operating Temperature 0°C to 45°C / 32°F to 113°F
Operating Humidity 5% to 90% RH, Non-Condensing

Compatibility

The combo interface is a shared interface. Use compatible SFP modules and IEEE 802.3af/at devices; equipment needing more than 30W per port requires separate power.
