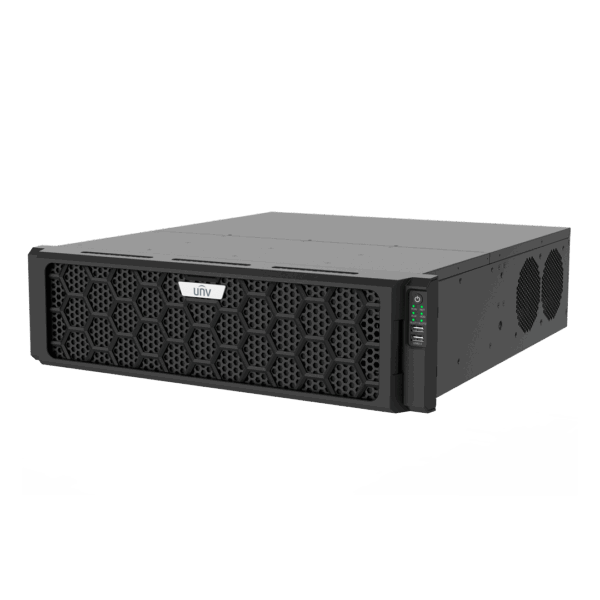

UNV UG-I500-H16-IN Smart IoT Integrated Management Server | 16-Bay Unified Security Platform

The Uniview UG-I500-H16-IN is a Smart IoT all-in-one management platform designed for large-scale surveillance and centralized security management. With support for 16 hard drive bays, multiple network interfaces, alarm input/output, HDMI and VGA display output, PC and mobile client access, and enterprise-level system management tools, this platform is a strong choice for large commercial properties, multi-site surveillance systems, campuses, warehouses, parking facilities, industrial sites, and professional security projects.

Important System Notice: The UG-I500-H16-IN is an advanced video management / Smart IoT platform, not a standard small-system NVR. System design, camera licensing, storage planning, network configuration, and compatibility should be reviewed before ordering.

Key Features

• ✦ Smart IoT Platform AIO designed for centralized security and video management
• ✦ Supports up to 16 hard disk bays for large storage capacity
• ✦ Linux-based system for reliable and stable operation
• ✦ Supports dual-BIOS design for improved system reliability
• ✦ Supports dual power modules for enhanced system stability

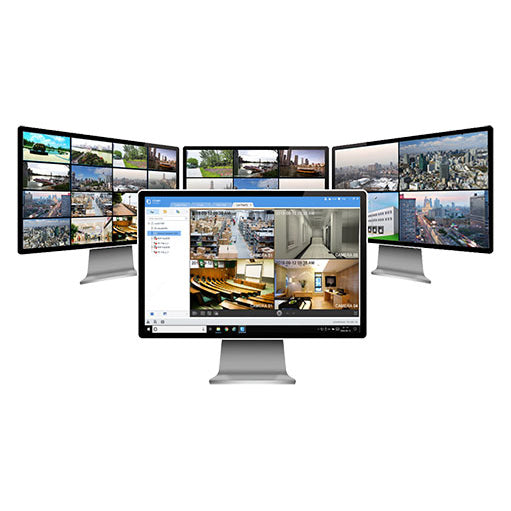

• ✦ Supports access through PC client, browser client, iOS, and Android mobile client
• ✦ Includes 4 Gigabit Ethernet ports for flexible network deployment
• ✦ Includes 24 alarm inputs and 8 alarm outputs for event integration
• ✦ Supports 2 HDMI outputs and 1 VGA output for local display connection
• ✦ Supports network fault tolerance, load balance, multi-IP address, secure password, and IP address filtering
• ✦ Built for professional operation and maintenance, including server status, device/channel status, and log search

Additional Features

Specifications

• ✦ Model: UG-I500-H16-IN
• ✦ Type: Smart IoT Platform AIO / integrated video management platform
• ✦ Storage Bays: 16 hard disk bays
• ✦ Operating System: Linux system
• ✦ Reliability: Dual-BIOS and dual power modules
• ✦ Network Interfaces: 4 × Gigabit Ethernet ports
• ✦ Alarm Input: 24 channels
• ✦ Alarm Output: 8 channels
• ✦ USB Interfaces: 2 × USB 2.0 and 2 × USB 3.0
• ✦ Display Output: 2 × HDMI and 1 × VGA
• ✦ Client Access: PC client, browser client, iOS, and Android mobile client
• ✦ Security Features: Network fault tolerance, load balance, multi-IP address, secure password, and IP address filtering
• ✦ Recommended Use: Large commercial surveillance, multi-site management, campuses, warehouses, parking facilities, industrial sites, and enterprise security projects

Best Use: Ideal for enterprise surveillance systems, large commercial buildings, campuses, warehouses, parking facilities, industrial sites, multi-site camera management, central monitoring rooms, and projects that require large storage capacity and centralized operation.

Installation Tip: Before ordering or installation, confirm total camera/channel requirements, storage retention needs, network bandwidth, hard drive configuration, alarm integration, user access needs, client software requirements, display output requirements, and overall system design. This product is best planned as part of a professional surveillance solution.

Note: Specifications are subject to change without notice. Storage support, management capacity, client access, alarm integration, network performance, display output, reliability features, software functions, and system performance may vary by firmware version, license, camera model, hard drive configuration, network design, bitrate, resolution, frame rate, installation environment, and system configuration. Please always double-check the manufacturer’s official specifications for the most accurate and up-to-date product information before ordering.

Special Order Notice: This item is a special order product. Once the order is placed, it cannot be canceled, returned, or refunded. Estimated lead time is approximately 2 weeks, depending on manufacturer availability and shipping schedule.
