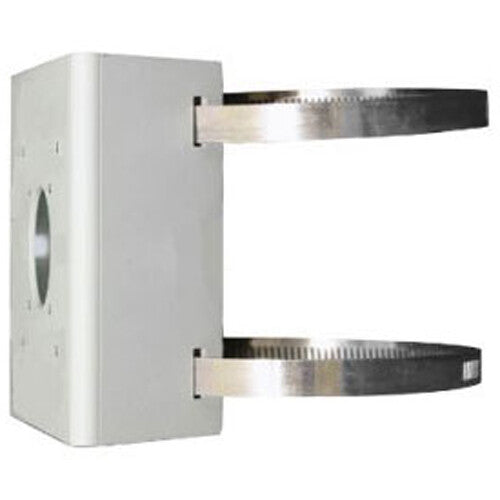

Uniview TR-UP06-B-IN Pole Mount Adapter for IPC22X, IPC24X & IPCB1XX Series Bullet Cameras
In Stock Uniview

UNV TR-UP06-B-IN Bullet Camera Pole Mount Adapter

Model / SKU: TR-UP06-B-IN

$15.50 $19.50
Secure CheckoutProtected payment processing
U.S. SupportProduct and compatibility help
Fast FulfillmentShips from U.S. distribution
Product information

Overview

Bullet Camera Pole Mount Adapter

UNV TR-UP06-B-IN Bullet Camera Pole Mount Adapter

The UNV TR-UP06-B-IN is a compact pole mount adapter designed for compatible Uniview bullet camera installations. It supports outdoor pole or rail mounting for selected IPC22X, IPC24X, and IPCB1XX series bullet cameras, helping installers create a cleaner and more secure mounting solution when a wall surface is not available.

Pole
Mount Adapter
Bullet
Camera Support
67–127mm
Pole Diameter
Outdoor
Pole / Rail Use

Clean Pole Mounting for Compatible Bullet Cameras

The TR-UP06-B-IN helps mount compatible bullet cameras on poles or rails where a normal wall mount is not practical. It is useful for parking lots, gate entrances, yards, loading areas, driveways, car wash sites, warehouse exteriors, and other outdoor surveillance locations.

Key Features

🧱

Pole or Rail Installation

Designed for outdoor pole or rail mounting when a standard flat wall surface is not available.

🎥

Bullet Camera Support

Supports compatible Uniview bullet camera installations, including selected IPC22X, IPC24X, and IPCB1XX series models.

🔩

Aluminum & Stainless Steel

Built with aluminum and stainless steel material for a solid professional mounting accessory.

📏

Adjustable Pole Range

Supports an embrace hoop diameter range of approximately 67mm to 127mm / 2.64" to 5.00".

🔌

Cable Routing Planning

Helps support cleaner mounting when paired with the correct camera, junction box, and cable path.

✅

Installer-Friendly Accessory

A practical accessory for outdoor camera projects where pole or rail mounting is required.

Feature Overview

✓ Pole mount adapter for compatible bullet cameras
✓ Outdoor pole or rail installation support
✓ Compatible with selected IPC22X, IPC24X, and IPCB1XX series bullet cameras
✓ Adjustable embrace hoop diameter: 67–127mm / 2.64"–5.00"
✓ Aluminum and stainless steel material
✓ Compact 99 × 90 × 38mm design
✓ Lightweight 0.2kg bracket
✓ Professional accessory for compatible UNV camera installations

Best Applications

Pole Mounting
Rail Mounting
Bullet Cameras
Parking Lots
Gate Areas
Outdoor Installs

Product Highlights

The TR-UP06-B-IN is a pole mount adapter for compatible bullet camera installations. Before ordering, confirm the camera model, pole diameter, rail size, mounting surface, cable routing, outdoor exposure, and accessory compatibility to make sure the adapter fits the installation.

Model TR-UP06-B-IN
Accessory Type Pole Mount Adapter for Bullet Cameras
Application Outdoor pole or rail installation for compatible bullet cameras
Camera Type Support Compatible bullet camera mounting applications, including selected IPC22X, IPC24X, and IPCB1XX series models
Supported Pole Diameter 67mm to 127mm / 2.64" to 5.00"
Dimensions 99mm × 90mm × 38mm / 3.9" × 3.5" × 1.5"
Weight 0.2kg / 0.44lb
Material Aluminum and Stainless Steel
Installation Note Verify camera compatibility, pole diameter, mounting hardware, pole strength, and cable routing before installation.

Installation Tip

Always confirm the compatible camera model, pole diameter, strap fit, mounting direction, cable path, and outdoor sealing before installation. For outdoor projects, make sure the pole or rail is stable enough to support the camera and bracket safely.

Note: Specifications are subject to change without notice. Camera compatibility, pole diameter support, mounting fitment, dimensions, weight, material, installation method, cable routing, pole strength requirements, outdoor suitability, and overall installation results may vary depending on camera model, bracket version, mounting surface, hardware used, installer method, and site conditions. Please always double-check the manufacturer’s official specifications and camera compatibility before ordering.
