NDAA Compliant 16-Channel AI NVR • No Built-In PoE

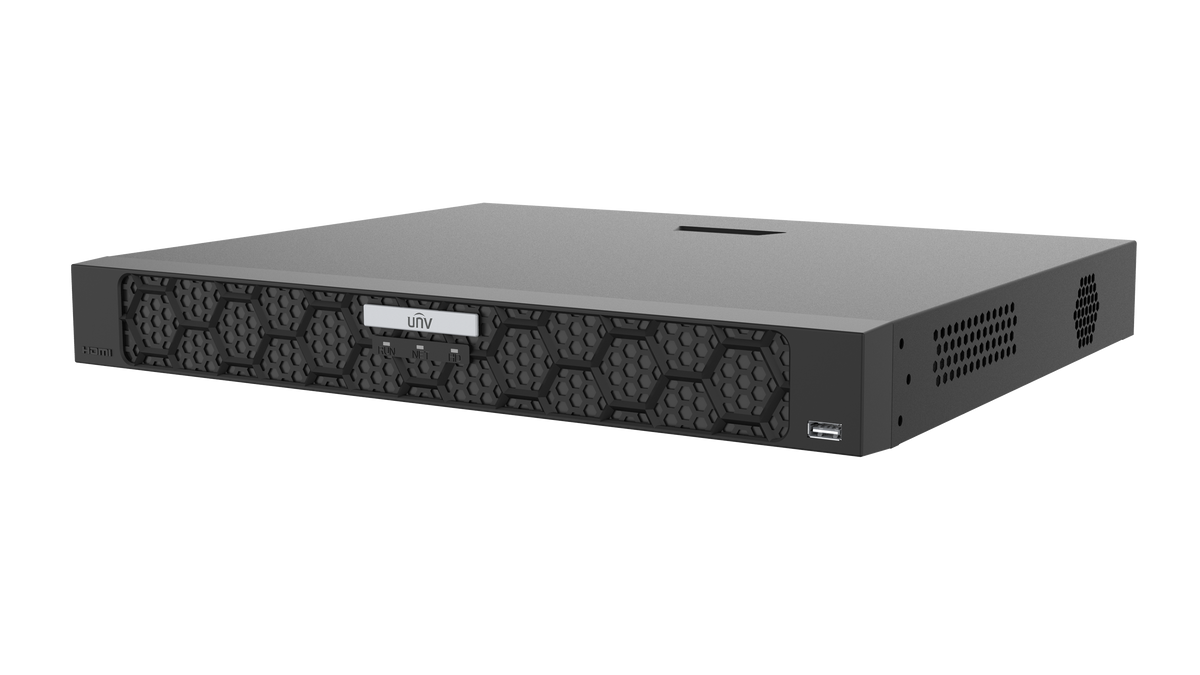

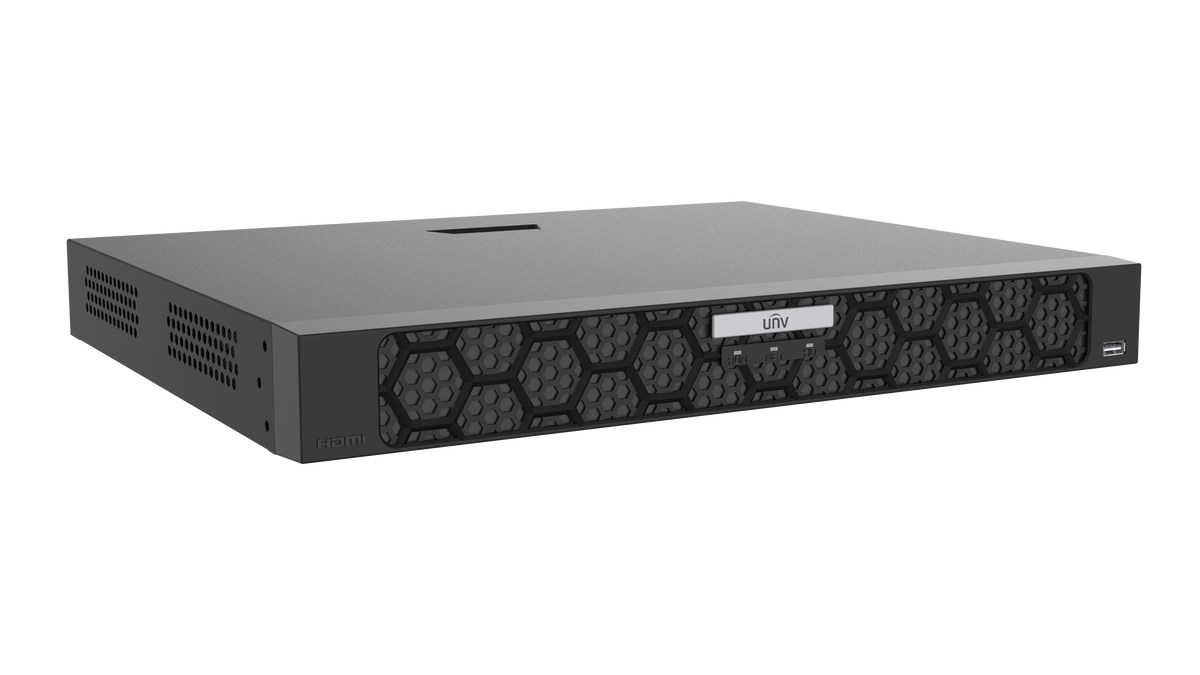

UNV NVR502-16B-IQ 16-Channel 2-HDD AI Network Video Recorder

The UNV NVR502-16B-IQ is a 16-channel AI network video recorder with AcuSearch, AcuTrack, recorder-side smart analytics, up to 16MP recording, 4K HDMI output, two SATA hard-drive bays, RAID 1, ANR, dual Gigabit networking, alarm I/O, and ONVIF integration. This recorder does not include built-in PoE ports and requires an external PoE switch.

16CH
IP Camera Input
AI IQ
Recorder Analytics
No PoE
External Switch Required
320Mbps
Smart-Off Input
4K
HDMI Output

Important PoE Notice

The NVR502-16B-IQ has no built-in PoE camera ports. All cameras must connect through external PoE switches, PoE injectors, network switches, fiber uplinks, or other properly designed network infrastructure. Confirm total camera bitrate, switch PoE budget, uplink speed, VLAN design, and network topology before ordering.

Recorder-Side AI Search and Analytics

The IQ platform adds AcuSearch, AcuTrack, image search, vehicle comparison, face detection, Smart Intrusion Prevention, and Ultra Motion Detection. Only one recorder-side analyzer mode can be active at a time. Enabling Smart On reduces incoming bandwidth from 320Mbps to 160Mbps, so system design must account for the selected operating mode.

Key Features

AcuSearch and AcuTrack

Search and follow human or vehicle targets across recordings from compatible UNV SIP and UMD cameras.

Recorder-Side AI Analytics

Supports face detection, Smart Intrusion Prevention, and Ultra Motion Detection in supported analyzer modes.

320Mbps Smart-Off Bandwidth

Provides up to 320Mbps incoming bandwidth when recorder-side smart processing is disabled.

External PoE Switch Required

This model has no built-in PoE camera ports. Cameras must connect through external PoE switching or network infrastructure.

Two SATA HDD Bays

Supports two hard drives, disk groups, redundant storage, RAID 1, and ANR.

NDAA Compliant

The NVR502-16B-IQ appears on Uniview USA’s current NDAA-compliant product list.

Feature Overview

✓ 16-channel IP camera input
✓ No built-in PoE — external PoE switch required
✓ AcuSearch and AcuTrack support
✓ Recorder-side face detection, SIP, and UMD
✓ Search by image and vehicle-number comparison
✓ Smart Off: 320Mbps incoming bandwidth
✓ Smart On: 160Mbps incoming bandwidth
✓ 160Mbps outgoing bandwidth
✓ Ultra 265, H.265, and H.264
✓ Up to 16MP recording
✓ 4K HDMI and independent VGA output
✓ 16-channel synchronous playback
✓ Two SATA hard-drive interfaces
✓ RAID 1, redundant storage, and ANR
✓ Two Gigabit Ethernet interfaces
✓ 8 alarm inputs and 2 alarm outputs
✓ RCA two-way audio
✓ Up to 128 remote users
✓ Cloud upgrade support
✓ NDAA compliant

Official Product Specifications

Model NVR502-16B-IQ
Recorder Type 16-channel, 2-HDD, 1U AI network video recorder
Built-In PoE No — external PoE switch or suitable network infrastructure required
IP Video Input 16 channels
Incoming Bandwidth Smart Off: 320Mbps / Smart On: 160Mbps
Outgoing Bandwidth 160Mbps
Maximum Remote Users 128
Video Compression Ultra 265, H.265, H.264
Recording Resolution 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, CIF
Smart-Off Decoding 2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30, 8 × 4MP@30, 10 × 3MP@30, or 16 × 1080p@30
Smart-On Decoding 2 × 12MP@30, 2 × 4K@30, 6 × 4MP@30, 8 × 3MP@30, 12 × 1080p@30, or 16 × 720p@30
HDMI Output Up to 4K 3840 × 2160 at 30Hz
VGA Output Up to 1920 × 1080 at 60Hz
Display Operation HDMI and VGA independent output
Live View Layout 1 / 4 / 6 / 8 / 9 / 16
Corridor Mode Layout 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16
Synchronous Playback 16 channels
RCA Audio Input / Output 1 input / 1 output
Two-Way Audio 1 channel using RCA input and output
Audio Compression G.711A, G.711U
AcuSearch All channels with compatible UNV SIP / UMD cameras
AcuTrack All channels with compatible UNV SIP / UMD cameras
Face Detection by NVR Up to 8 channels with UNV face-detection cameras; up to 2 channels with supported normal cameras
SIP by NVR Up to 4 × 2MP, 2 × 4MP, or 1 × 4K normal camera
UMD by NVR Up to 8 × 2MP, 4 × 4MP, or 2 × 4K normal cameras
Vehicle Libraries Up to 5 vehicle-picture libraries with up to 25,000 vehicle images total
Smart Record Capacity Up to 2 million vehicle records, 3 million SIP records, and 2 million video-metadata records
Hard Drive Interfaces 2 SATA interfaces
HDD Capacity Verify the current compatible-drive list and environmental limits before ordering
Storage Features Disk groups, redundant storage, RAID 1, ANR
Network Interfaces 2 × RJ45 10/100/1000Mbps self-adaptive Ethernet
Camera Compatibility UNV cameras; ONVIF Profiles S, G, T; RTSP
Alarm Inputs / Outputs 8 inputs / 2 outputs
RS485 1
USB Front: 1 × USB 2.0; rear: 1 × USB 2.0 and 1 × USB 3.0
Power Supply 12V DC / 3A
Dimensions 380 × 315 × 53mm / 15.0 × 12.4 × 2.1in
Weight ≤2kg / 4.4lb without HDDs
Compliance NDAA compliant; CE, FCC, UL, RoHS, WEEE

Hard Drives Are Not Automatically Included

Unless the listing specifically states otherwise, surveillance hard drives are sold separately. Confirm the current UNV-compatible drive list, individual drive capacity, operating-temperature limitations, and retention requirements before ordering.

Smart Mode and Compatibility Notice

Recorder-side analyzer modes cannot operate simultaneously. AcuSearch and AcuTrack require compatible UNV SIP or UMD cameras. Third-party cameras may require manual configuration, and smart events, metadata, audio, alarms, image search, and firmware management may be limited.

Installation Tip

Design the system around external PoE switches and the selected AI operating mode. Confirm camera bitrate, Smart-On bandwidth, switch PoE budget, uplinks, VLANs, fiber links, storage retention, RAID design, UPS capacity, remote-viewing bandwidth, and camera compatibility before installation.

3-Year UNV Manufacturer Warranty

This product includes a three-year UNV manufacturer equipment warranty when purchased through NSI Security, subject to applicable warranty terms, eligibility, exclusions, serial-number verification, and return procedures.

Note: Specifications, AI capacities, bandwidth, decoding, HDD compatibility, analytics, search functions, and NDAA status are subject to firmware, region, and manufacturer changes. Smart-On mode reduces incoming bandwidth to 160Mbps. This recorder has no built-in PoE ports. Verify current official Uniview specifications and external PoE network requirements before ordering.
