UNV IPC3628SR-ADF28KM-WP 8MP OwlView Turret Camera
In Stock Sale

Uniview

UNV IPC3628SR-ADF28KM-WP 8MP OwlView Turret Camera

SKU: IPC-3628SR-ADF28KM-WP

$569.00 $669.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast ShippingU.S. warehouse fulfillment
Easy RMA SupportStreamlined assistance when needed
Need compatibility help? Call (856) 317-0600 for professional assistance.
Overview Resources & Support Compatibility Solution Builder Specifications
Product overview

Reliable Security Performance

Designed to deliver dependable video surveillance with features and performance that vary by model, firmware, environment, and system configuration.

Professional Quality

Designed for demanding surveillance and networking environments.

System Compatibility

Use the compatibility tools below to select supported components.

Technical Support

Get assistance with configuration, installation and product selection.

Secure Purchasing

U.S.-based fulfillment and protected checkout.

Product assistance

Need Assistance?

Documentation, system compatibility tools, shipping information, and direct support from NSI Security.

Shipping InformationU.S. fulfillment

Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.

View Shipping Policy →
DocumentationBy request

Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.

Request Documentation →
Technical SupportNSI assistance

Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.

Contact Support →
Verified System ComponentsProduct-specific compatibility

Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.

View Components →
RMA RequestAfter-purchase assistance

Request return authorization, repair evaluation, or replacement assistance for an eligible order.

Start RMA Request →
Contact Our TeamSales and product questions

Contact NSI Security for product selection, availability, compatibility, and order assistance.

Contact NSI Security →
System compatibility

Verified System Components

Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

One-click system configuration

Build Your Complete Solution

Select the components you need and add the complete configuration to your cart.

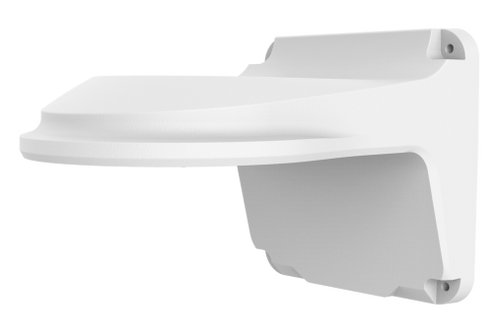

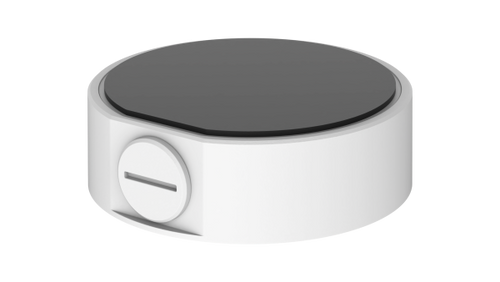

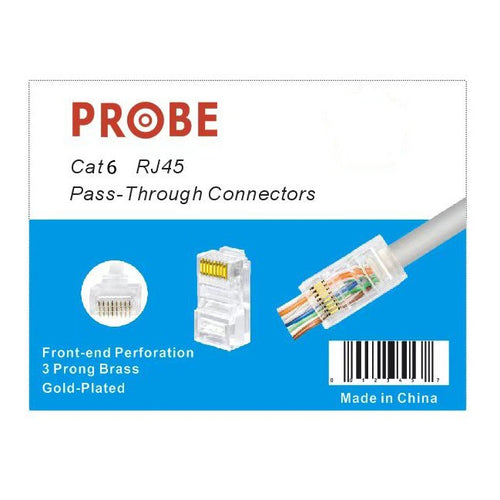

Mounting & Accessories

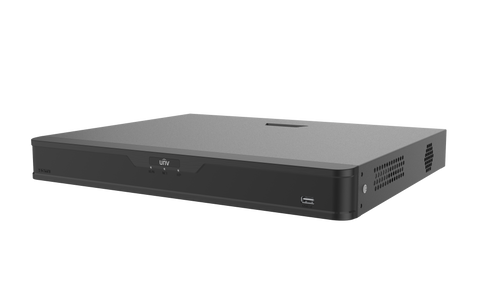

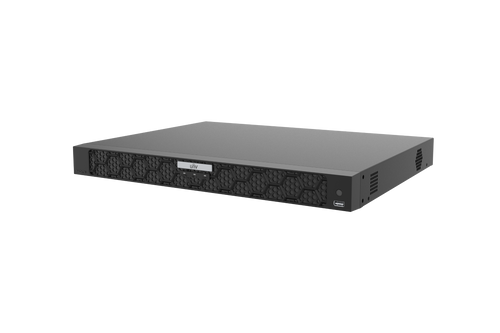

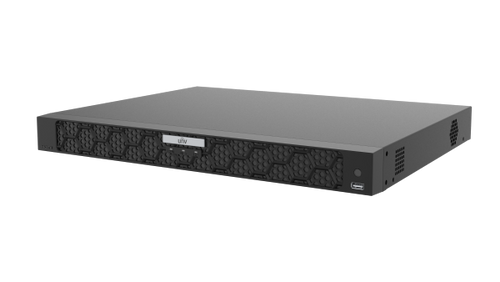

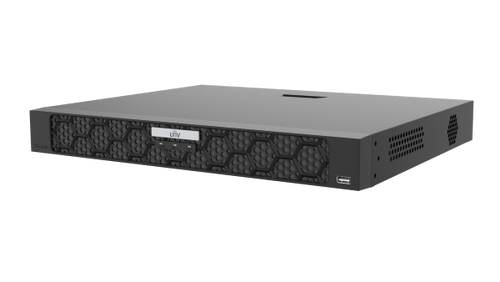

Compatible Recorders

PoE Switches

Product information

Product Details & Technical Specifications

8MP OwlView ColorHunter Wise-ISP Turret Camera

UNV IPC3628SR-ADF28KM-WP 8MP ColorHunter Wise-ISP Warm Light Turret Network Camera

The UNV IPC3628SR-ADF28KM-WP is an 8MP OwlView turret network camera designed for strong low-light color performance. With ColorHunter technology, Wise-ISP image processing, 4K video, a 2.8mm fixed lens, 120dB true WDR, built-in microphone, warm light illumination, MicroSD card support, PoE, and IP67 outdoor protection, this camera is a strong choice for storefronts, building entrances, parking areas, warehouses, car wash sites, and commercial security applications.

8MP
4K Image
Wise-ISP
OwlView Image
120dB
True WDR
IP67
Outdoor Rated

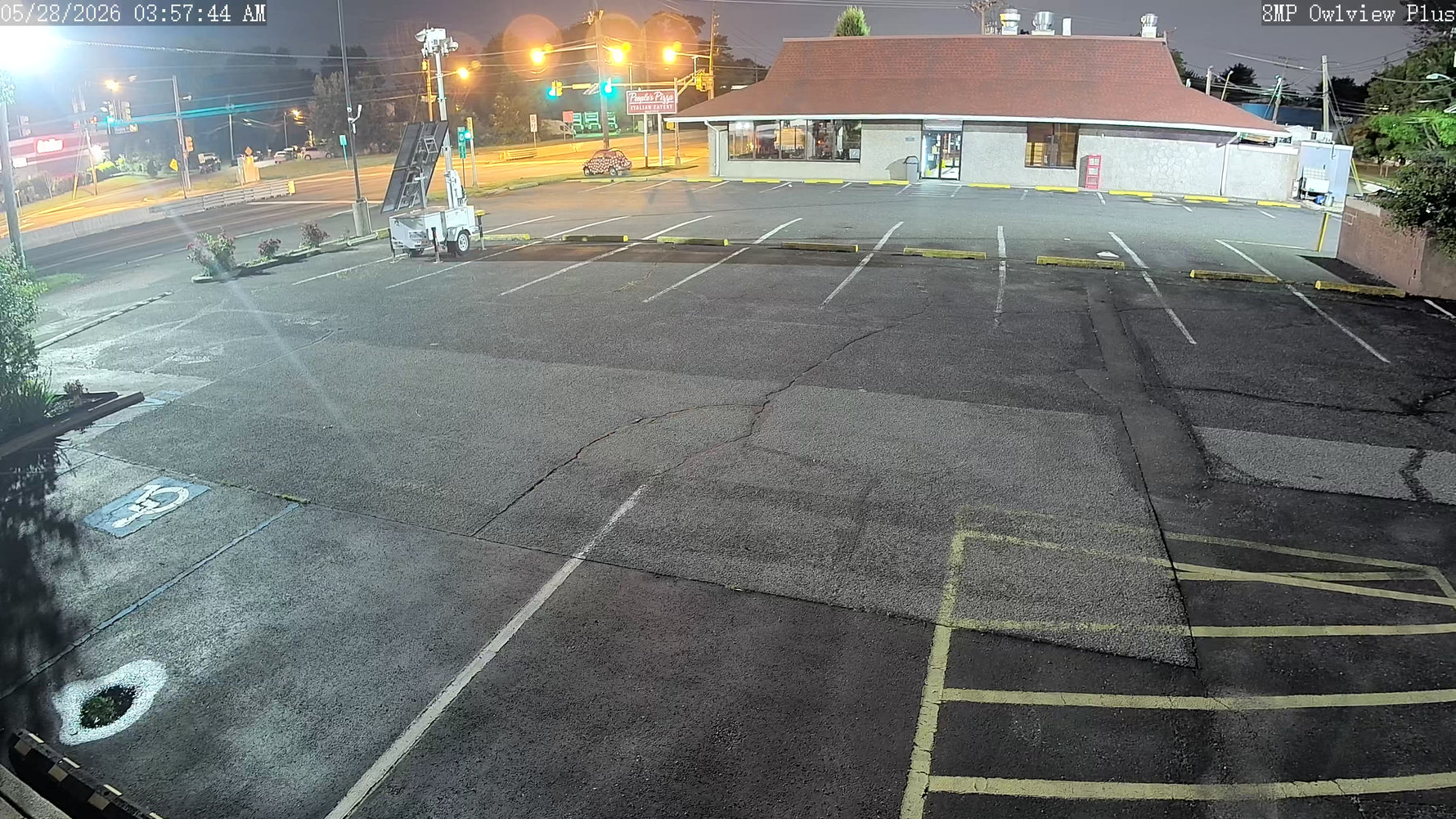

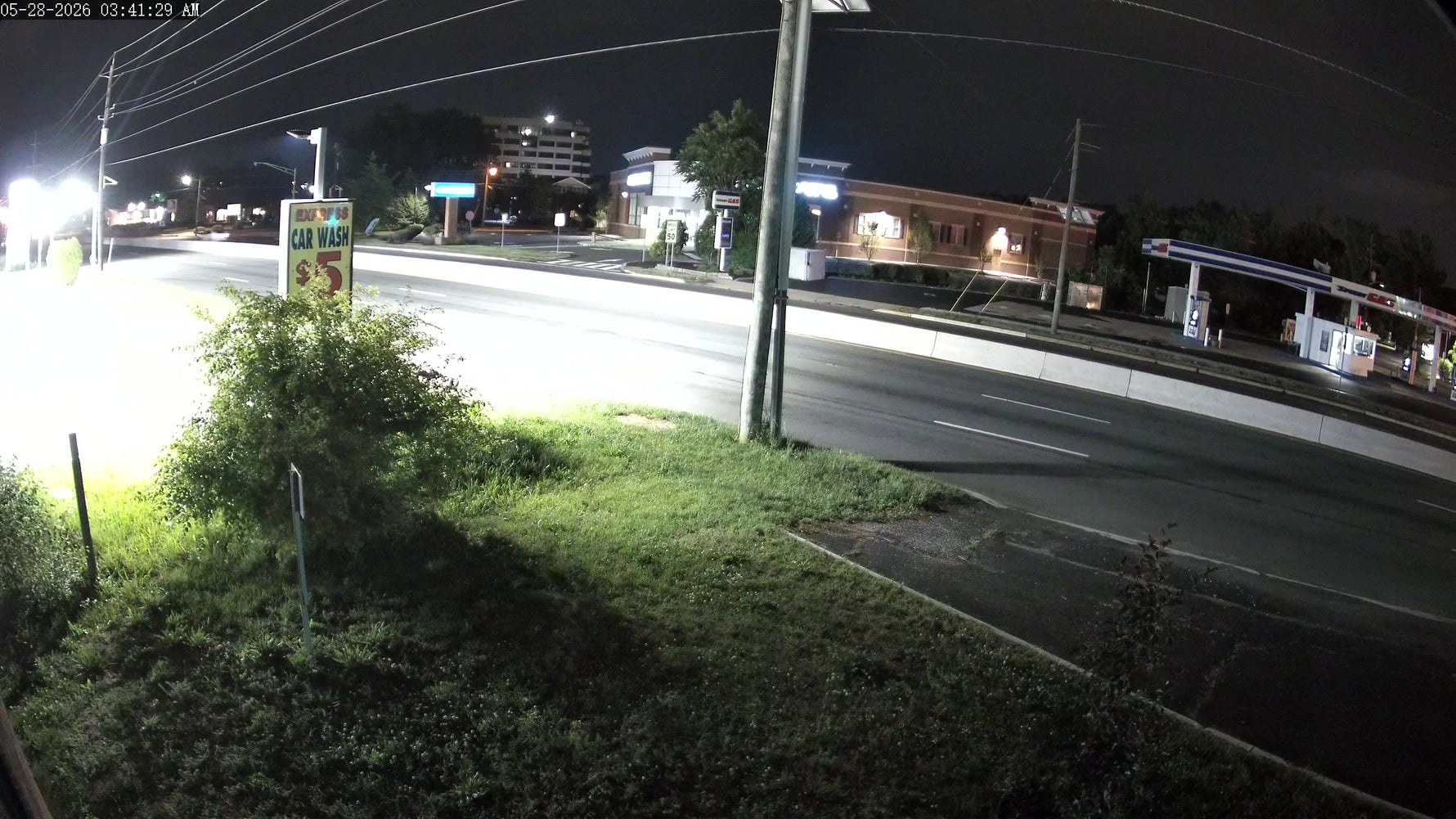

OwlView Color Performance for Low-Light Security

The IPC3628SR-ADF28KM-WP is built for customers who want better color detail at night compared with standard IR-only cameras. Wise-ISP helps improve low-light image processing, while the warm light illumination supports full-color monitoring in dark environments.

Key Features

📷

8MP 4K Image

Captures high-resolution 8MP video for detailed commercial surveillance footage.

🦉

OwlView Wise-ISP

Wise-ISP helps deliver improved full-screen color image quality in low-light scenes.

🌙✨

ColorHunter Imaging

Designed to provide color images in low-light environments with warm light support.

🔆

120dB True WDR

Helps balance bright and dark areas for clearer images in difficult lighting conditions.

🎙️

Built-In Microphone

Supports audio recording when used with compatible recorder, software, and local regulations.

🌧️

IP67 Outdoor Protection

Weather-rated turret housing supports outdoor installation when properly mounted and protected.

Feature Overview

✓ 8MP ColorHunter Wise-ISP turret network camera
✓ OwlView low-light color image technology
✓ 1/1.8" CMOS image sensor
✓ F1.0 large-aperture lens
✓ 2.8mm fixed lens
✓ Wide 110.4° horizontal field of view
✓ Multiple main stream and sub stream resolution options
✓ Ultra 265 / H.265 / H.264 / MJPEG
✓ Third-party recorder integration flexibility
✓ ONVIF profile compatibility depends on recorder support
✓ 120dB true WDR
✓ Warm light illumination up to 30m / 98.4ft
✓ Built-in microphone
✓ 9:16 corridor mode support
✓ MicroSD card support up to 512GB
✓ DC 12V and PoE power support
✓ IP67 weather protection

Best Applications

Storefronts
Building Entrances
Parking Areas
Warehouses
Car Wash Sites
Low-Light Areas

Product Highlights

The IPC3628SR-ADF28KM-WP supports multiple main stream and sub stream resolution options. This is helpful for third-party recorder integration because some non-UNV recorders may not support the camera’s full 8MP output, full frame rate, codec, ONVIF profile, or stream profile. If a third-party recorder cannot display or record the full-resolution stream properly, the camera may need to be adjusted to a lower supported resolution, FPS, compression format, or stream setting for better compatibility.

Model IPC3628SR-ADF28KM-WP
Camera Type 8MP ColorHunter Wise-ISP Warm Light Turret Network Camera
Series OwlView
Image Sensor 1/1.8" CMOS
Resolution 8MP / 4K
Main Stream 8MP 3840 × 2160, max 20fps
5MP 3072 × 1728, max 30fps
4MP 2560 × 1440, max 30fps
1080P 1920 × 1080, max 30fps
720P 1280 × 720, max 30fps
Sub Stream 1080P 1920 × 1080, max 30fps
720P 1280 × 720, max 30fps
D1 720 × 576, max 30fps
640 × 360, max 30fps
2CIF 704 × 288, max 30fps
CIF 352 × 288, max 30fps
Third-Party Recorder Integration Third-party recorder compatibility is commonly affected by ONVIF profile support, firmware version, codec support, camera resolution, frame rate, and stream profile settings. If a third-party recorder cannot display or record the full 8MP stream properly, the camera may need to be adjusted to a lower supported resolution, FPS, compression format, or stream setting.
Video Compression Ultra 265 / H.265 / H.264 / MJPEG
Low-Light / Color Imaging ColorHunter with Wise-ISP and warm light illumination
Wide Dynamic Range 120dB True WDR
Lens 2.8mm Fixed Lens, F1.0
Field of View Horizontal 110.4°
Illumination Warm Light up to 30m / 98.4ft
Audio Built-In Microphone
Storage MicroSD Card Support up to 512GB
Power DC 12V / PoE Supported
Protection IP67 Weather Rated

Installation Tip

For best low-light color performance and recorder compatibility, confirm camera angle, warm light behavior, WDR, audio recording rules, PoE power, stream resolution, FPS, codec, ONVIF profile support, storage settings, and recorder compatibility during setup. If the recorder is a third-party model, test both the main stream and sub stream before final installation.

Note: Specifications are subject to change without notice. Features, MicroSD card support, audio functions, image performance, stream resolution, frame rate, codec support, warm light distance, PoE behavior, ONVIF profile support, third-party recorder compatibility, color night performance, Wise-ISP behavior, and overall system performance may vary depending on firmware version, recorder model, ONVIF implementation, installation environment, lighting conditions, network setup, camera settings, stream profile, and system configuration. Please always double-check the manufacturer’s official specifications and recorder compatibility before ordering.

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
