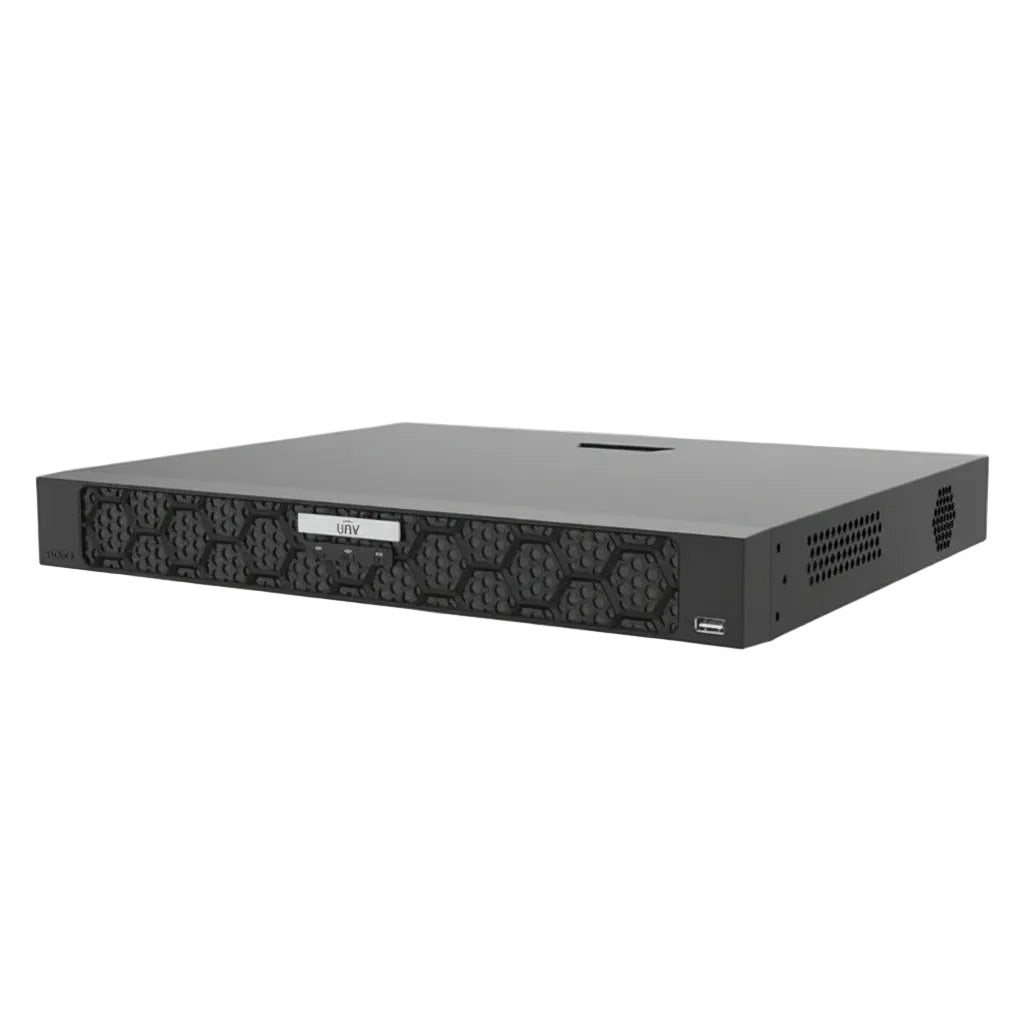

Uniview 16-Channel PoE NVR with Decoding up to 16MP Resolution NDAA Compliant (NVR502-16B-P16)
In Stock Sale

Uniview

UNV NVR502-16B-P16 16-Channel PoE NVR with Decoding up to 16MP Resolution

SKU: NVR502-16B-P16

$1,099.00 $1,309.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast ShippingU.S. warehouse fulfillment
Easy RMA SupportStreamlined assistance when needed
Need compatibility help? Call (856) 317-0600 for professional assistance.
Overview Resources & Support Compatibility Solution Builder Specifications
Product overview

Reliable Video Recording

Built for dependable video recording, AI analytics, and scalable surveillance deployments. Features vary by model, firmware, storage configuration, and connected devices.

Professional Quality

Designed for demanding surveillance and networking environments.

System Compatibility

Use the compatibility tools below to select supported components.

Technical Support

Get assistance with configuration, installation and product selection.

Secure Purchasing

U.S.-based fulfillment and protected checkout.

Product assistance

Need Assistance?

Documentation, system compatibility tools, shipping information, and direct support from NSI Security.

Shipping InformationU.S. fulfillment

Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.

View Shipping Policy →
DocumentationBy request

Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.

Request Documentation →
Technical SupportNSI assistance

Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.

Contact Support →
Verified System ComponentsProduct-specific compatibility

Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.

View Components →
RMA RequestAfter-purchase assistance

Request return authorization, repair evaluation, or replacement assistance for an eligible order.

Start RMA Request →
Contact Our TeamSales and product questions

Contact NSI Security for product selection, availability, compatibility, and order assistance.

Contact NSI Security →
System compatibility

Verified System Components

Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

One-click system configuration

Build Your Complete Solution

Select the components you need and add the complete configuration to your cart.

Storage

Product information

Product Details & Technical Specifications

UNV Prime Series • NDAA Compliant

UNV NVR502-16B-P16 16-Channel 16-PoE 2-HDD 4K Network Video Recorder

NVR502-16B-P16

Professional 16-channel network video recorder with 16 independent PoE ports, up to 320Mbps incoming bandwidth, 4K HDMI output, two SATA hard-drive bays, ANR recording protection, RAID 1 support, alarm I/O and broad ONVIF camera compatibility.

16 ChannelsIP camera recording
16 PoE PortsPlug-and-play camera power
320MbpsIncoming bandwidth
2 HDD BaysDual SATA storage
4K HDMIIndependent video output
Why this recorder

High-Bandwidth 16-Channel PoE Recording

The NVR502-16B-P16 is designed for professional surveillance systems that need direct PoE camera connections, high-resolution recording, flexible storage and reliable remote access without requiring a separate PoE switch for the first 16 cameras.

16 Independent PoE Interfaces

Connect and power up to 16 compatible IP cameras directly from the recorder using IEEE 802.3af/at PoE.

320Mbps Incoming Bandwidth

Provides substantial network capacity for multi-camera systems using higher resolutions, frame rates and bitrates.

Up to 16MP Recording

Supports recording resolutions up to 16 megapixels, depending on camera, codec, stream settings and available recorder resources.

Dual Independent Displays

One HDMI and one VGA output support independent display configurations, with HDMI resolution up to 4K.

Two-Hard-Drive Storage

Two SATA interfaces support large-capacity surveillance storage, disk groups, redundant storage and RAID 1.

ANR Storage Protection

With compatible cameras, Automatic Network Replenishment can backfill video to the NVR after a temporary network interruption.

Smart Camera Events

Supports compatible camera-side analytics such as intrusion, cross-line, vehicle detection, people counting and video metadata.

Third-Party Camera Support

Supports mainstream ONVIF Profile S, G and T cameras plus RTSP, subject to third-party compatibility and feature limitations.

Built for Professional Surveillance Systems

Strong bandwidth, 16 built-in PoE ports, dual-drive storage, independent display outputs and extensive alarm connectivity make this recorder a practical choice for commercial systems requiring reliability and room for higher-resolution cameras.

16-Channel Synchronous PlaybackReview up to 16 supported channels at the same time.
RAID 1 SupportMirror compatible drives to improve storage redundancy.
8 Alarm Inputs / 2 OutputsIntegrate supported external sensors and alarm devices.
Remote User CapacitySupports up to 128 remote users under suitable network conditions.
Ultra 265 CompressionHelps reduce bandwidth and storage requirements with compatible UNV cameras.
Cloud Upgrade SupportSupports compatible cloud-based firmware upgrade workflows.
Recommended applications

Ideal for Medium-Sized Professional Systems

Retail StoresSales floors, entrances and parking areas
WarehousesLoading docks, aisles and exterior coverage
Office BuildingsEntrances, common areas and parking
Apartment PropertiesHallways, entrances and shared spaces
SchoolsCampus and facility surveillance
Car WashesEquipment areas, lanes and cashier coverage
Industrial SitesOperations, perimeter and safety monitoring
Multi-Camera UpgradesReplacement for aging 16-channel NVRs
Technical specifications

Detailed Specifications

Model NVR502-16B-P16
Series UNV Prime Series
IP Camera Inputs 16 channels
PoE Interfaces 16 × RJ45 10/100Mbps independent PoE ports
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Power Up to 30W per port; up to 240W total PoE budget
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 160Mbps
Video Compression Ultra 265, H.265 and H.264
Maximum Recording Resolution Up to 16MP
Recording Resolutions 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF and CIF
HDMI Output 1 channel; up to 3840 × 2160 at 30Hz
VGA Output 1 channel; up to 1920 × 1080 at 60Hz
Display Operation HDMI and VGA independent output
Synchronous Playback Up to 16 channels
Live View Layouts 1 / 4 / 6 / 8 / 9 / 16
Audio Input / Output 1 RCA input / 1 RCA output
Two-Way Audio Supported using RCA audio input and output
Hard Drive Interfaces 2 SATA interfaces
Drive Capacity Up to 24TB per HDD on the current manufacturer page under stated environmental conditions; older documentation may list lower limits
Storage Features Disk group, redundant storage and RAID 1 support
Network Interface 1 × RJ45 10/100/1000Mbps self-adaptive Ethernet
USB Front: 1 × USB 2.0; Rear: 1 × USB 3.0
Alarm Inputs / Outputs 8 inputs / 2 outputs
RS485 1
Remote Users Up to 128
Camera Compatibility UNV cameras; ONVIF Profiles S, G and T; RTSP
Network Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP and IPv6
Power Supply AC 100–240V
Recorder Consumption ≤20W without HDDs, excluding PoE camera load
Operating Temperature 14°F to 131°F (-10°C to 55°C)
Operating Humidity ≤90% RH, non-condensing
Dimensions 380 × 322 × 53 mm (15.0 × 12.7 × 2.1 in)
Weight ≤2.6 kg (5.73 lb) without HDDs
Compliance NDAA-listed model; CE, FCC, UL, RoHS and WEEE certifications listed by manufacturer

Important PoE Notice

This recorder includes 16 built-in PoE ports. Confirm that the total PoE power consumption of all connected cameras remains within the recorder’s maximum PoE budget. High-power PTZ, heater, illuminator or specialty cameras may require additional power planning or an external PoE switch.

Hard Drives Are Not Automatically Included

Unless the product listing specifically states otherwise, surveillance hard drives are sold separately. NSI Security can supply compatible surveillance-grade drives and may offer optional HDD installation, formatting and testing before shipment.

Third-Party Camera Compatibility

ONVIF and RTSP support do not guarantee access to every advanced feature. Third-party cameras may require manual configuration, and analytics, audio, alarm functions, motion events, smart search, firmware management or plug-and-play setup may be limited. Verify compatibility before ordering.

Why buy from NSI Security

Professional Product and System Support

3-Year UNV WarrantyManufacturer equipment coverage
NDAA ListedModel appears on Uniview’s NDAA list
Storage PlanningHDD sizing and retention guidance
Compatibility ReviewCamera and recorder assistance
Pre-Build OptionsHDD installation and basic setup when available
Commercial SupportProject and volume assistance
Genuine UNV ProductsProfessional distribution channels
U.S. Customer ServiceSupport from NSI Security

Warranty Information

This product includes a three-year UNV manufacturer equipment warranty when purchased through NSI Security, subject to applicable warranty terms, eligibility, exclusions and return procedures. Labor, removal, reinstallation, onsite service, shipping damage, power damage, surge damage and improper installation are not included unless separately stated in writing.

Professional Disclaimer

Specifications, storage limits, decoding capacity, analytics, PoE budget, supported resolutions and compatibility are subject to firmware, region and manufacturer changes. Actual recording performance depends on camera resolution, frame rate, codec, bitrate, stream count, playback demand, network conditions and HDD configuration. Always verify the latest manufacturer documentation and project requirements before ordering.

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
