Uniview
Model: XVR302-16Q4
In stock
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

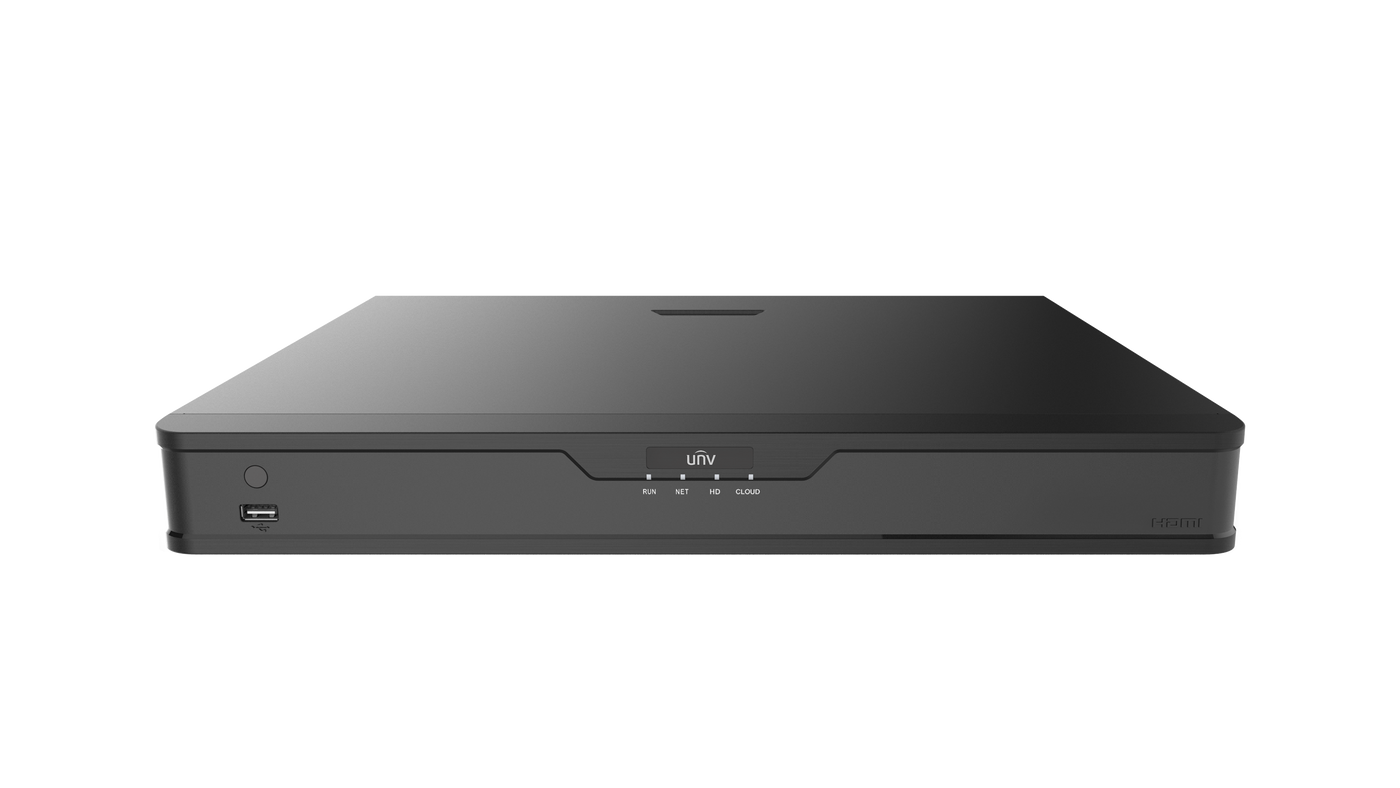

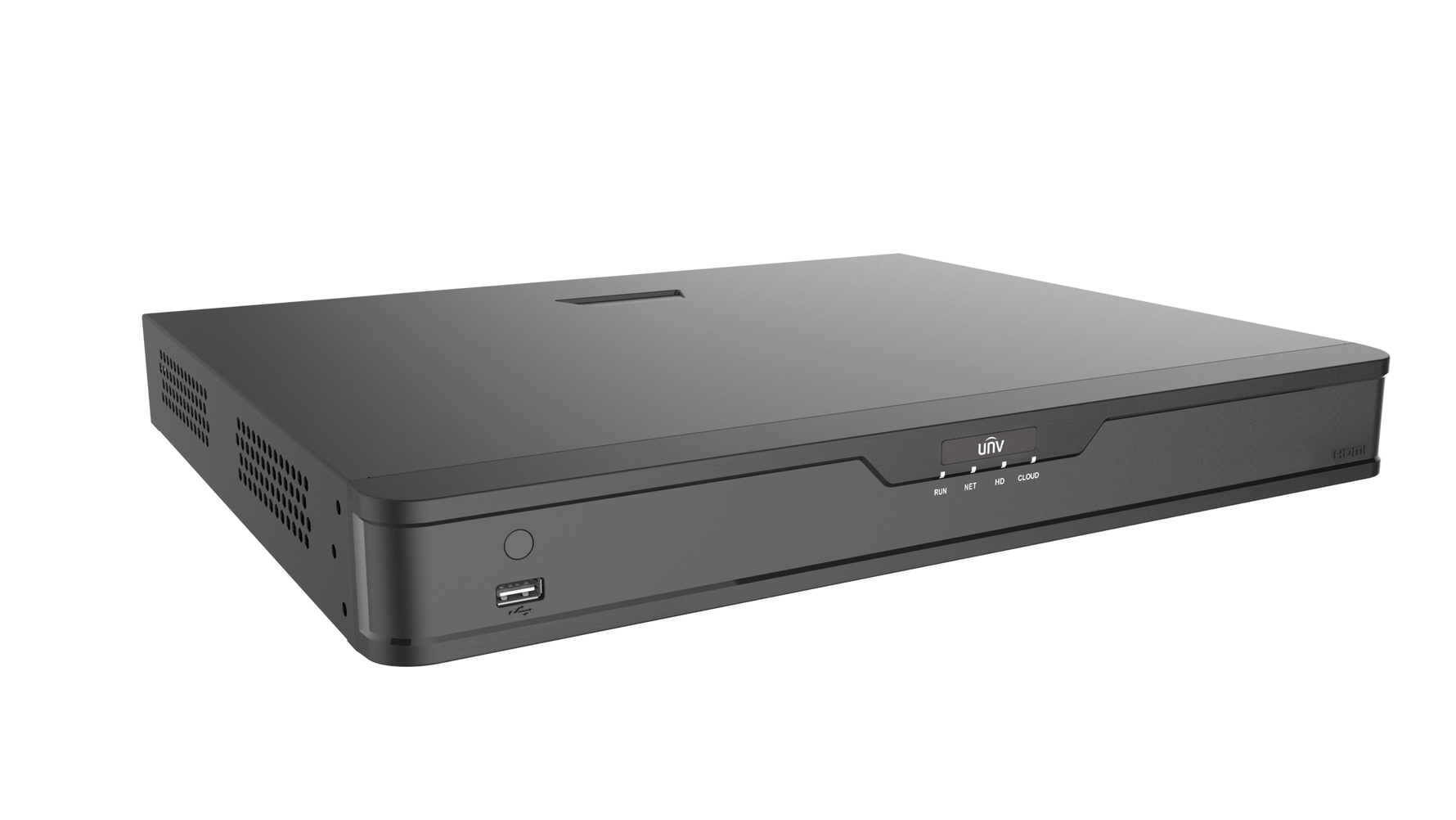

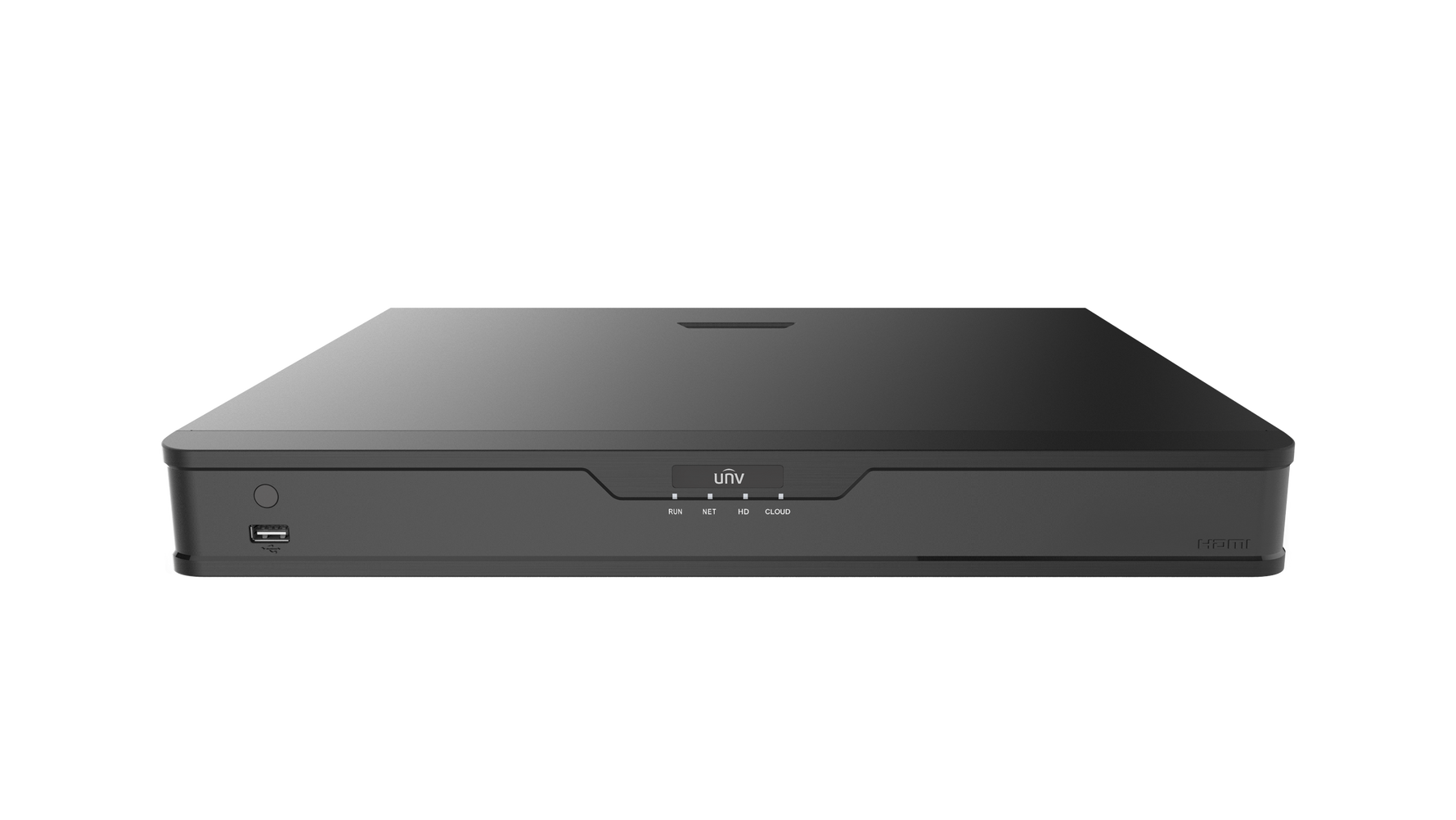

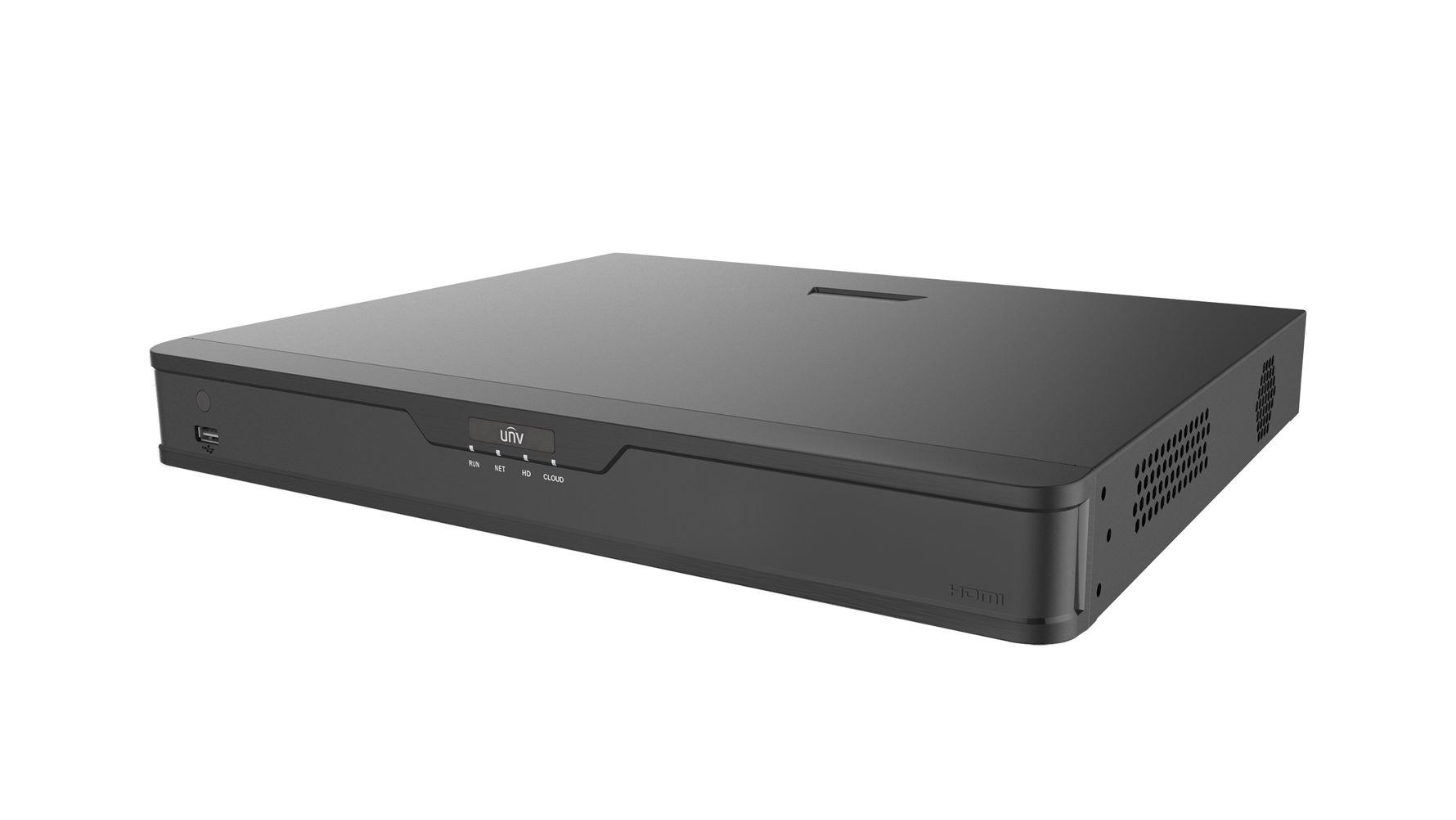

The UNV XVR302-16Q4 provides 16 analog camera inputs and two drive bays for a larger coax-based system. Eight IP channels are available in the standard configuration, allowing network cameras to be added alongside analog cameras.
Converting analog channels increases IP capacity but reduces the available analog inputs. Work out the final camera mix before using the maximum IP-channel figure.
Camera output format, accepted input resolution and recording frame rate must match. Drive capacity and the combined recording bitrate determine how much footage the two bays can retain.
| Camera inputs | |
|---|---|
| Model | XVR302-16Q4 |
| Analog video inputs | 16 × BNC |
| IP camera inputs | 8 channels in addition to analog inputs; up to 24 IP channels after analog-channel conversion |
| Built-in PoE | None; IP cameras require external network connections and suitable power |
| Camera signal formats | TVI, AHD, CVI, CVBS and supported IP cameras |
| Analog signal support | |
| AHD input formats | 8MP@15fps; 5MP@20/12fps; 4MP@30/25/15fps; 1080p@30/25fps; 720p@30/25fps |
| TVI input formats | 8MP@15/12fps; 3K@20fps; 5MP@20/12fps; 4MP@30/25/15fps; 1080p@30/25fps; 720p@30/25fps |
| CVI input formats | 8MP@15/12fps; 5MP@25/20fps; 4MP@30/25fps; 1080p@30/25fps; 720p@30/25fps |
| CVBS input | Supported |
| Input versus recording | Camera input formats and recorded stream resolutions/frame rates are separate limits |
| Recording and playback | |
| Video formats | H.265, H.264 |
| 8MP Lite recording | Main: 8MP Lite@8fps; sub: D1@8fps; third: CIF@8fps |
| 3K Lite recording | Main: 3K Lite@12fps; sub: D1@12fps; third: CIF@12fps |
| 5MP recording | Main: 5MP@6fps; sub: D1@6fps; third: CIF@6fps |
| 5MP Lite recording | Main: 5MP Lite@12fps; sub: D1@12fps; third: CIF@12fps |
| 4MP recording | Main: 4MP@15fps; sub: D1@15fps; third: CIF@15fps |
| 4MP Lite recording | Main: 4MP Lite@15fps; sub: D1@15fps; third: CIF@15fps |
| 1080p recording | Main: 1080p@15fps; sub: D1@15fps; third: CIF@15fps |
| 720p recording | Main: 720p@30fps; sub: D1@30fps; third: CIF@30fps |
| Stream-rate coupling | Each listed main/sub/third combination is an alternative configuration; substream rates are not independently 30fps at every main-stream resolution |
| Analog decoding — alternative configurations | 16 × 8MP Lite@8fps; 16 × 3K Lite@12fps; 16 × 5MP@6fps; 16 × 5MP Lite@12fps; 16 × 4MP@15fps; 16 × 1080p@15fps; 16 × 720p@30fps |
| IP decoding — alternative configurations | 2 × 8MP@30fps; 2 × 6MP@30fps; 3 × 5MP@30fps; 4 × 4MP@30fps; 5 × 3MP@30fps; 8 × 1080p@30fps; 16 × 720p@30fps; 32 × D1@30fps |
| Local simultaneous playback | 16 channels |
| Video outputs | |
| Video outputs | 1 × HDMI, 1 × VGA, 1 × CVBS/BNC |
| Display operation | HDMI and VGA simultaneous output |
| HDMI modes | 3840 × 2160 at 30Hz; 1920 × 1080 at 60/50Hz; 1600 × 1200, 1280 × 1024, 1280 × 720 and 1024 × 768 at 60Hz |
| VGA modes | 1920 × 1080 at 60/50Hz; 1600 × 1200, 1280 × 1024, 1280 × 720 and 1024 × 768 at 60Hz |
| Live-view layouts | 1 / 4 / 6 / 8 / 9 / 16 / 25 |
| HDMI standard | HDMI 1.4 |
| Default HDMI / VGA live views | 16 / 16 |
| Playback layouts | 1 / 4 / 9 / 16 |
| Audio and snapshots | |
| BNC channel audio inputs | 16 |
| RCA audio input / output | 1 / 1 |
| Audio sample format | 8kHz, 16-bit per channel |
| Audio bitrate | 64Kbps per channel |
| Audio over coax | 16-channel one-way audio; compatible UNV TVI/CVI cameras |
| Two-way audio | 1 channel with supported IP or specific analog cameras |
| BNC channel audio outputs | 16 |
| 3.5mm audio input / output | None |
| Two-way analog camera models | UAC-B142-ACF28LM-DL, UAC-B142-ACF40LM-DL, UAC-T142-ACF28LM-DL, UAC-T142-ACF40LM-DL |
| Analog camera upgrade over coax | Supported |
| FTP / scheduled / event snapshots | 24 channels; max source video 8MP (3840 × 2160), snapshots 4CIF |
| Network | |
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 160Mbps |
| LAN | 1 × RJ45 10/100/1000Mbps |
| Remote users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser support | IE10/11, Chrome 45+, Edge 79+, Firefox 52+ (plugin required) |
| Configured users | 32 |
| Plugin-free browsers | Chrome 57+, Edge 16+, Firefox 58+, Safari 11+ |
| ONVIF | Profile S, downlink |
| NAS / ANR | Supported |
| UNV analog dual-light control | Supported over TVI |
| Ucode | Basic and Advanced modes for analog and IP cameras |
| POS | Not supported |
| PTZ presets / cruise lines | 32 presets; 4 cruise lines per camera |
| Analytics and events | |
| Recorder-side analog analytics | UMD; face detection; SIP: intrusion, line crossing, enter-area and leave-area detection |
| Recorder-side channel limits | UMD: 16; SIP: 4; face detection: 2 |
| Camera-side IP analytics | Face detection, SIP, defocus, scene change, object removal/left behind, auto-tracking and people-flow counting; supported cameras required |
| VCA search | Face search, behavior search and people-counting reports |
| General alarm | Motion |
| System alerts | IP conflict, network disconnection, offline/abnormal disk, illegal access, low/full disk, abnormal recording/snapshot |
| Storage and interfaces | |
| SATA bays | 2 |
| Maximum HDD capacity | Up to 16TB per HDD; maximum capacity varies with ambient temperature and drive size; ambient temperature must not exceed 40°C for this capacity specification |
| USB | Front: 1 × USB 2.0; rear: 1 × USB 3.0 |
| RS485 | 1 |
| Alarm inputs / outputs | 4 / 1 |
| Disk groups | Supported |
| RS232 | None |
| Power switch / redundant supply | Not supported |
| Buzzer | Supported |
| Power and physical | |
| Power supply | 12V DC / 3.3A |
| Consumption without HDD | ≤12W |
| Operating temperature | -10°C to 55°C; maximum-capacity HDD operation is subject to the 40°C limit above |
| Operating humidity | ≤95% RH, non-condensing |
| Dimensions | 380 × 325.9 × 53mm |
| Weight without HDD | ≤1.9kg |
| GUI languages | 38 languages |
| Certifications | CE, FCC, UL, RoHS, WEEE |
| CE standards | EN 55032; EN 61000-3-3; EN IEC 61000-3-2; EN 55035 |
| FCC | Part 15 Subpart B |
| Chassis height | 1U |
| Cooling | Radiator |
| Recording resolutions | 8MP Lite / 3K Lite / 5MP Lite / 4MP Lite / 1080p / 720p / D1; frame-rate combinations are specified in the encoding rows. |
Use supported camera and signal combinations for audio and analytics. PoE power for network cameras must come from separate equipment.
NDAA compliant.
