Uniview
Model: UAC-B128-ADF28
In stock
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

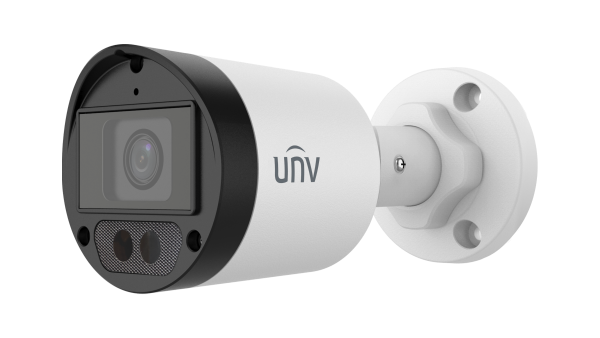

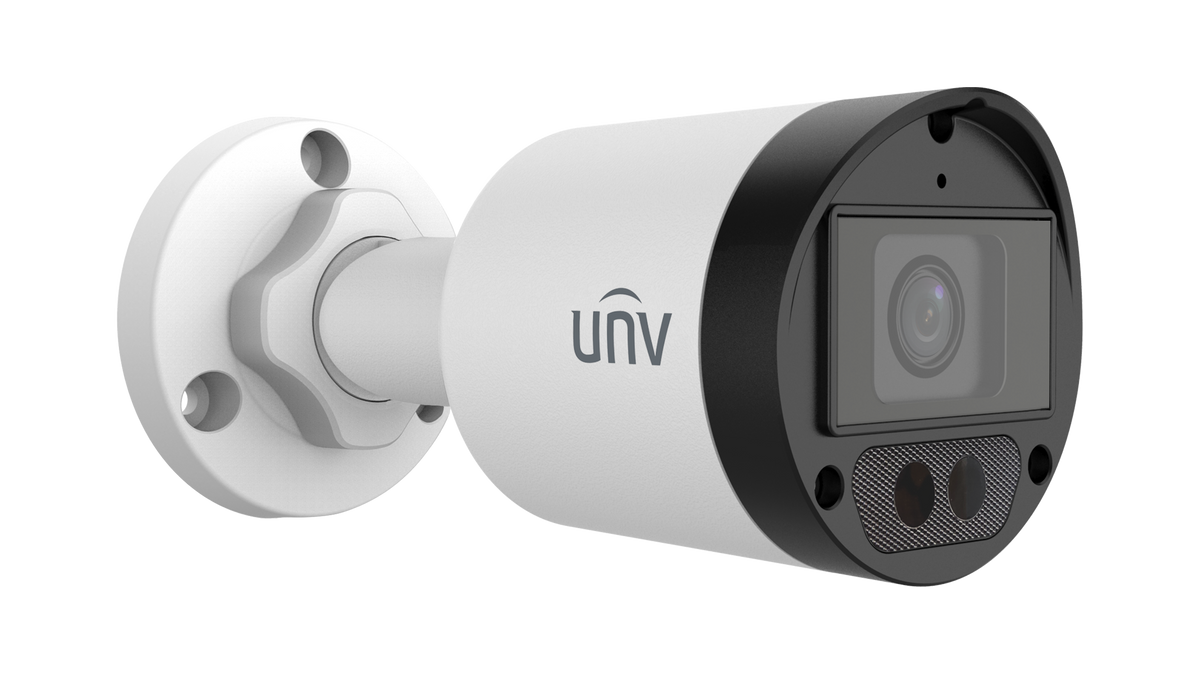

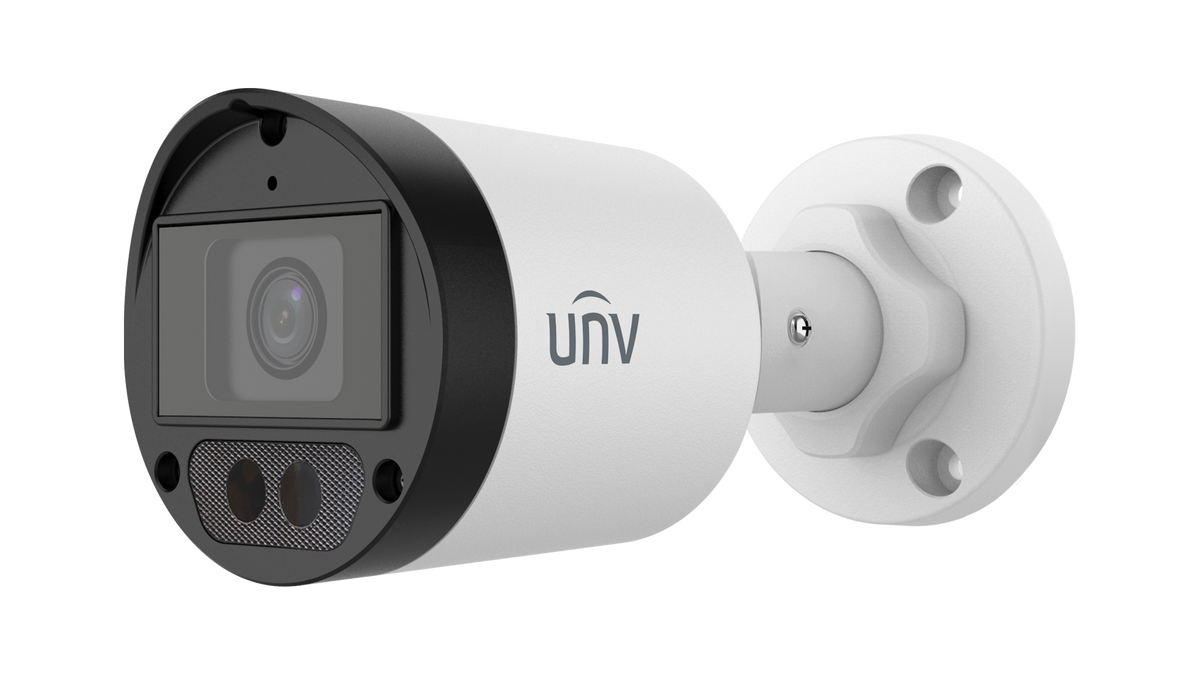

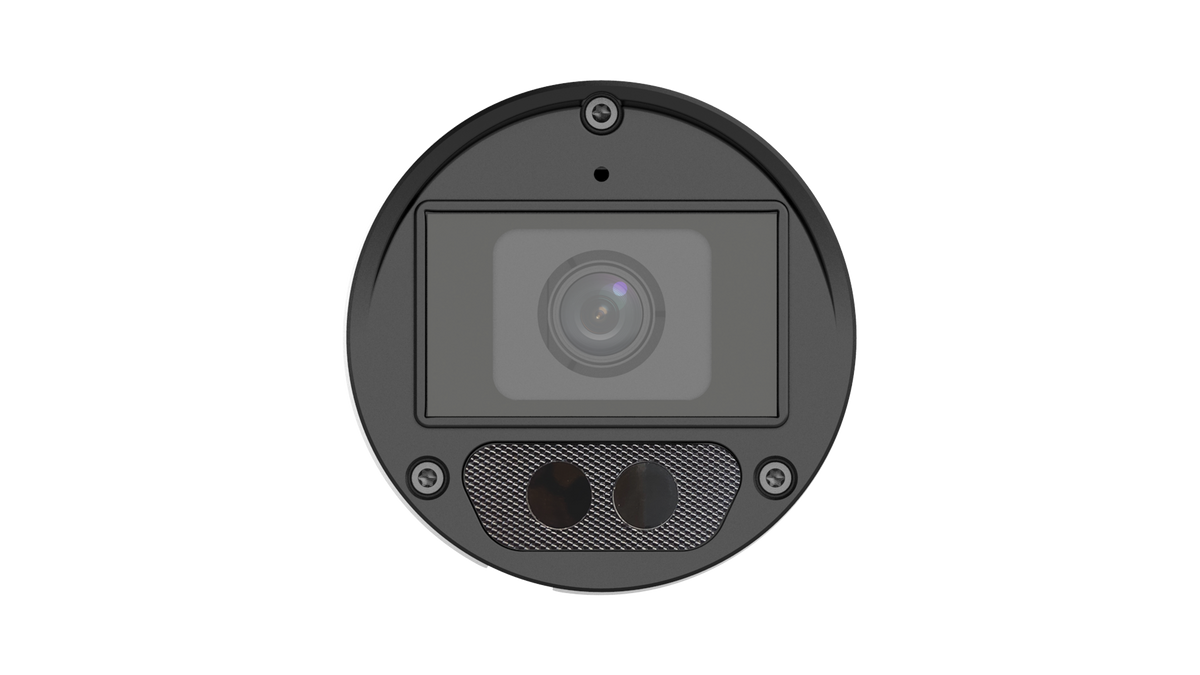

The UNV UAC-B128-ADF28MS delivers 8MP analog video in a bullet housing. It pairs a 2.8mm fixed lens with LightHunter imaging and a built-in microphone for a compatible coax recording system.
Select a TVI, CVI, AHD or CVBS mode supported by the recorder. Resolution and frame rate vary by output format and the recorder’s encoding limits.
Provide the specified 12V DC supply and verify voltage at the camera. Protect outdoor cable connections and avoid close reflective surfaces in the IR path.
| Model | UAC-B128-ADF28MS |
| Camera Type | 8MP LightHunter Fixed IR Bullet Analog Camera |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 3840 × 2160 (4K) |
| Video Output | TVI / CVI / AHD / CVBS |
| Lens | 2.8mm Fixed |
| Lens Aperture | F1.6 |
| Horizontal Field of View | 109.1° |
| Vertical Field of View | 61.0° |
| Diagonal Field of View | 126.7° |
| Minimum Illumination | 0.005 Lux (Color), 0 Lux with IR |
| IR Distance | 40m (131 ft) |
| Wide Dynamic Range | 120 dB True WDR |
| Noise Reduction | 2D / 3D DNR |
| Audio | Built-in Microphone (Audio over Coax) |
| Day/Night | ICR Auto Switching |
| Power Supply | 12V DC |
| Protection Rating | IP67 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
Microphone audio requires compatible audio-over-coax support. This camera does not connect as a PoE IP device.
Need help matching this product to your project? Ask NSI
Choose accessories for your setup. Sold separately.
Live view, playback and alerts for supported UNV cameras and recorders.
Manage supported cameras and recorders with the EZStation desktop CMS.
Discover and configure supported devices on your local network.
Features and compatibility depend on the device model, firmware and software version. Check UniEase device compatibility
