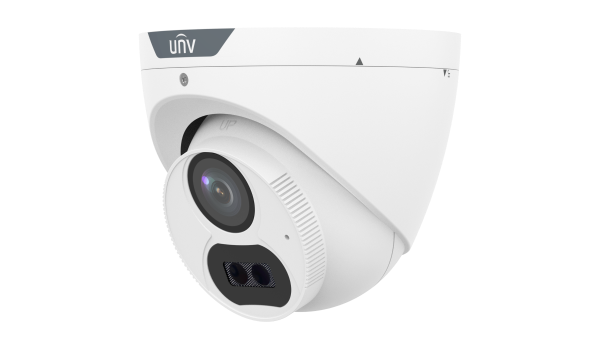

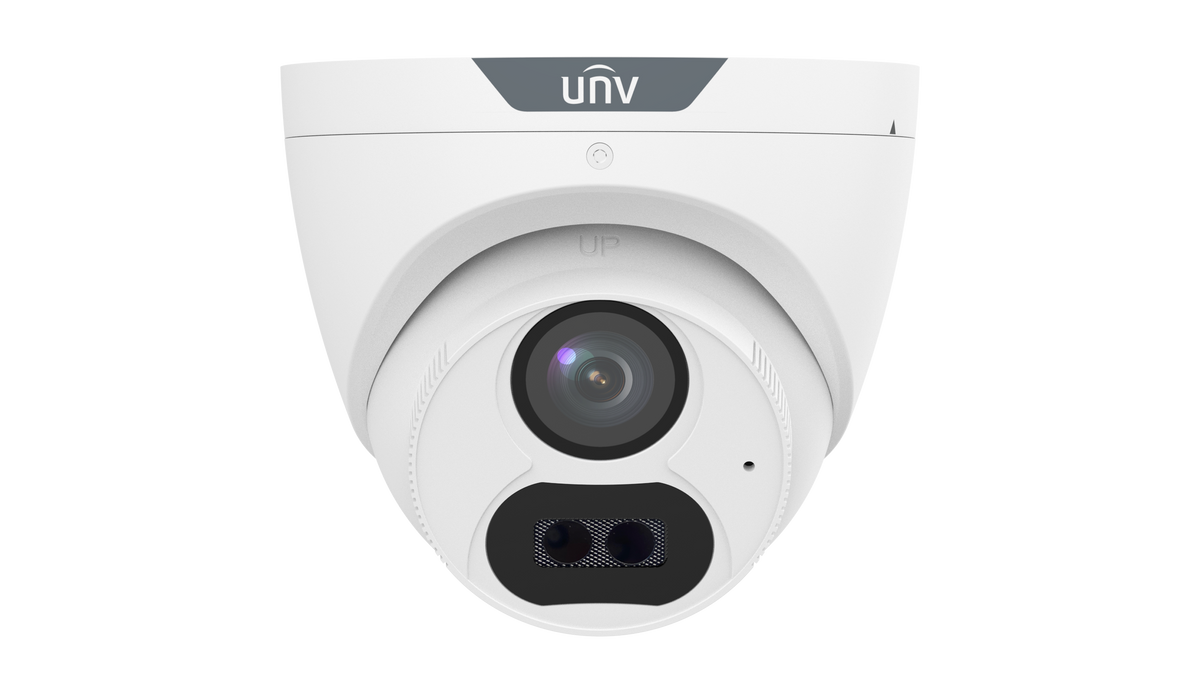

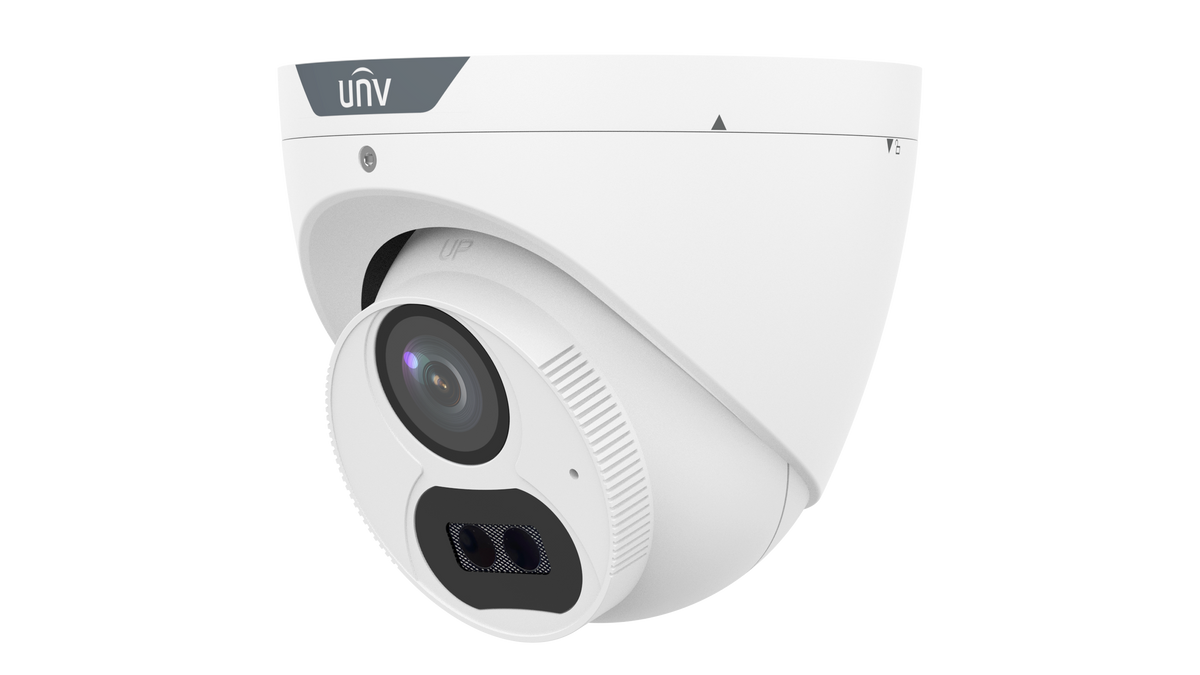

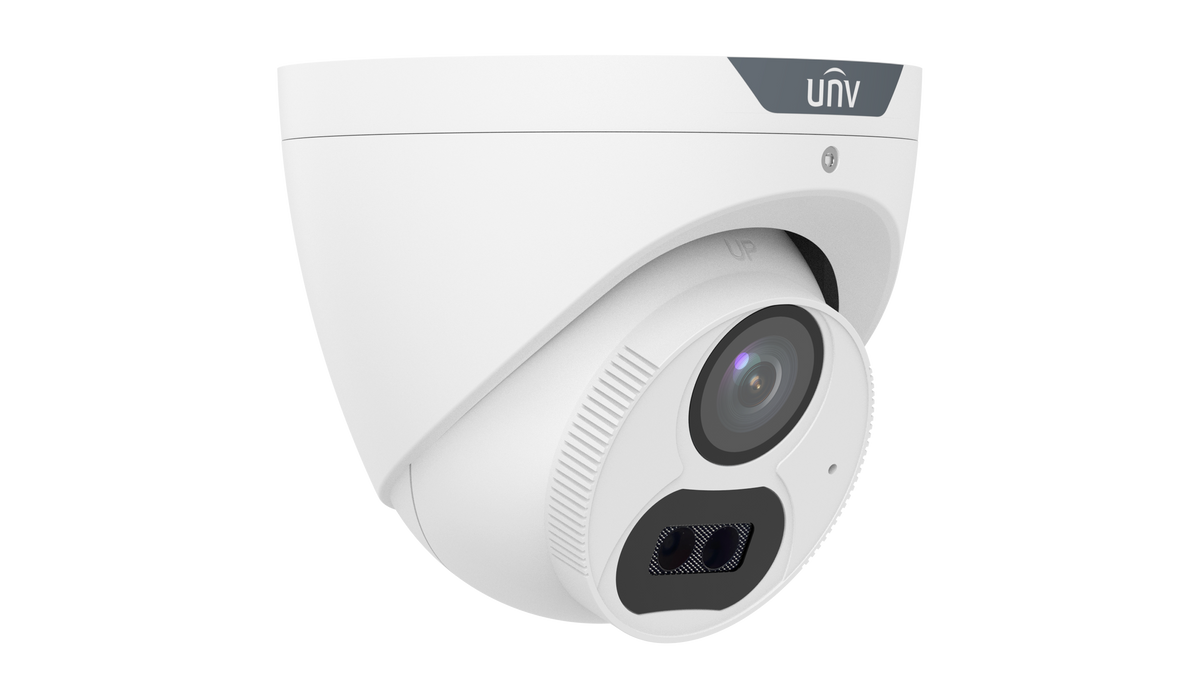

UNV UAC-T128-ADF28MS 8MP LightHunter Fixed IR Turret Analog Camera

Uniview

8MP LightHunter Fixed IR Turret Analog Camera — NDAA Compliant

Model: UAC-T128-ADF28MS

$199.00 $239.00

In stock

Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

Warranty Limited manufacturer warranty: 3 years Warranty help
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast FulfillmentU.S. warehouse order processing
30-Day Eligible ReturnsUnused items with approved RMA

Need help choosing? (856) 317-0600

Overview

The UNV UAC-T128-ADF28MS is an 8MP LightHunter analog turret camera for compatible coax systems. Its fixed 2.8mm lens and built-in microphone support wide-area video and audio capture.

  • 8MP 4K image resolution
  • TVI, CVI, AHD and CVBS output options
  • 120dB WDR
  • Built-in audio over coax

Recorder matching

The selected output format determines the available resolution and frame rate. Match it to the DVR or XVR’s supported input and recording modes.

Power and installation

The camera requires 12V DC power. Check cable quality, power at the camera and the nighttime image after installation.

Specifications

Model UAC-T128-ADF28MS
Camera Type 8MP LightHunter Fixed IR Turret Analog Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Maximum Resolution 3840 × 2160 (4K)
Video Output TVI / CVI / AHD / CVBS
Lens Options 2.8mm Fixed
Lens Aperture F1.6
Viewing Angle (2.8mm) H: 109.1° / V: 61.0° / D: 126.7°
Minimum Illumination 0.005 Lux (Color), 0 Lux with IR
Night Vision Smart IR up to 40m (131 ft)
Wide Dynamic Range 120 dB True WDR
Noise Reduction 2D / 3D DNR
Audio Built-in Microphone (Audio over Coax)
Day/Night ICR Auto Switching
Power Supply 12V DC
Protection Rating IP67
Operating Temperature -30°C to 60°C (-22°F to 140°F)

Compatibility

Audio over coax requires a supported format and recorder. This ADF28 model uses the 2.8mm lens; other lens values in series documentation describe different variants.

Compatible Mounting Accessories

  • TR-JB03-G-IN Junction Box
  • TR-WM03-D-IN-V2 Wall Mount Bracket
  • TR-JB07/WM03-G-IN-V2 Wall Mount Assembly
  • TR-UP06-C-IN-V2 Pole Mount Bracket
  • TR-UC08-C-V2 Corner Mount Bracket
  • TR-SE24-IN Pendant Mount Pole (200mm)
  • TR-SE24-A-IN Pendant Mount Pole (500mm)
  • TR-CM24-IN Indoor Ceiling Mount

Need help matching this product to your project? Ask NSI

Specifications

Compatibility & accessories

Compatible products

Choose accessories for your setup. Sold separately.

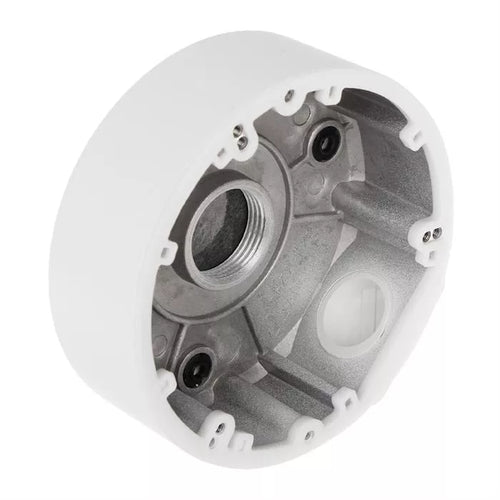

Uniview TR-JB03-G-IN Junction Box for IPC32X Series fixed dome
