Uniview
Model: XVR302-32Q3
In stock
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

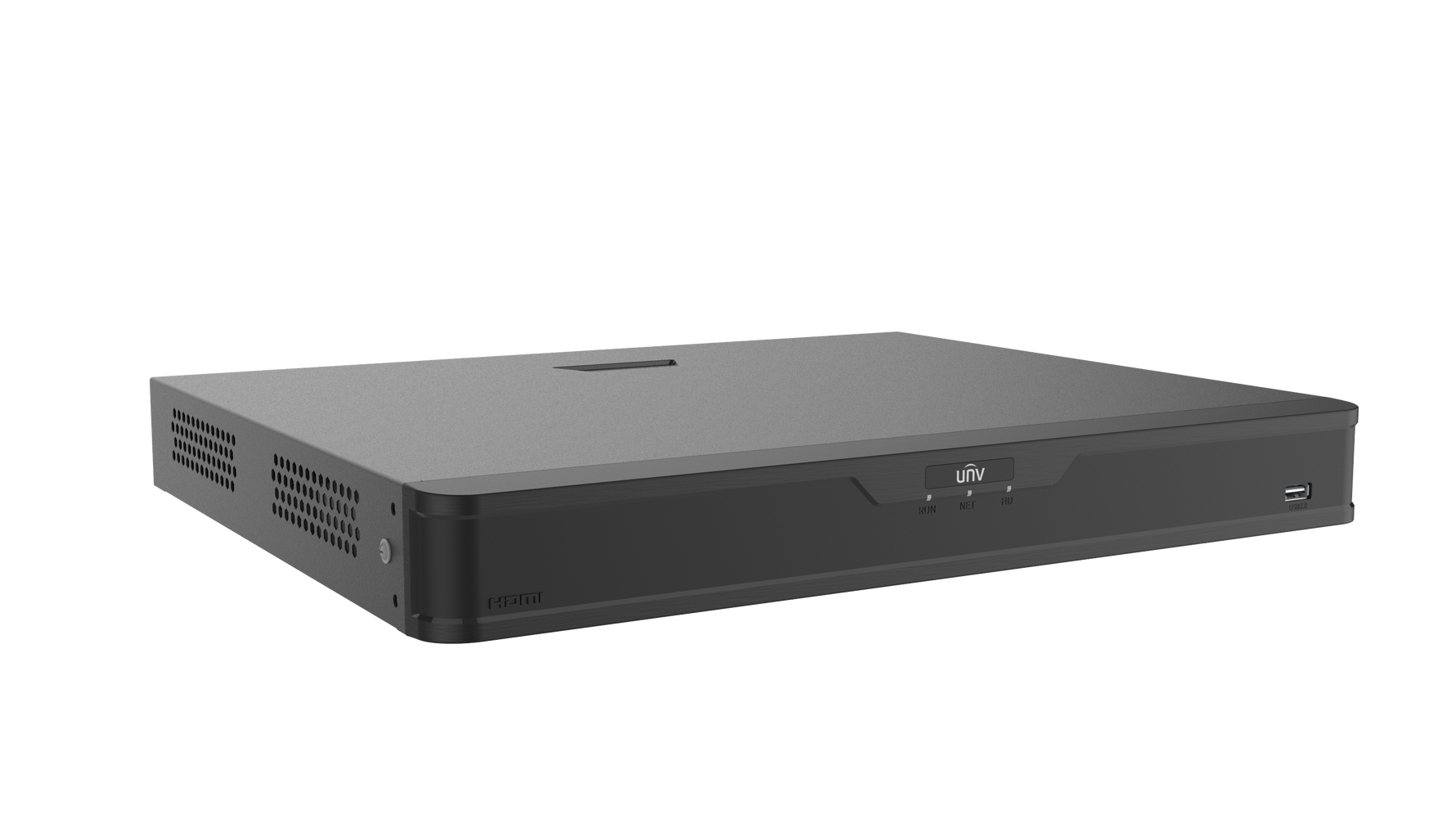

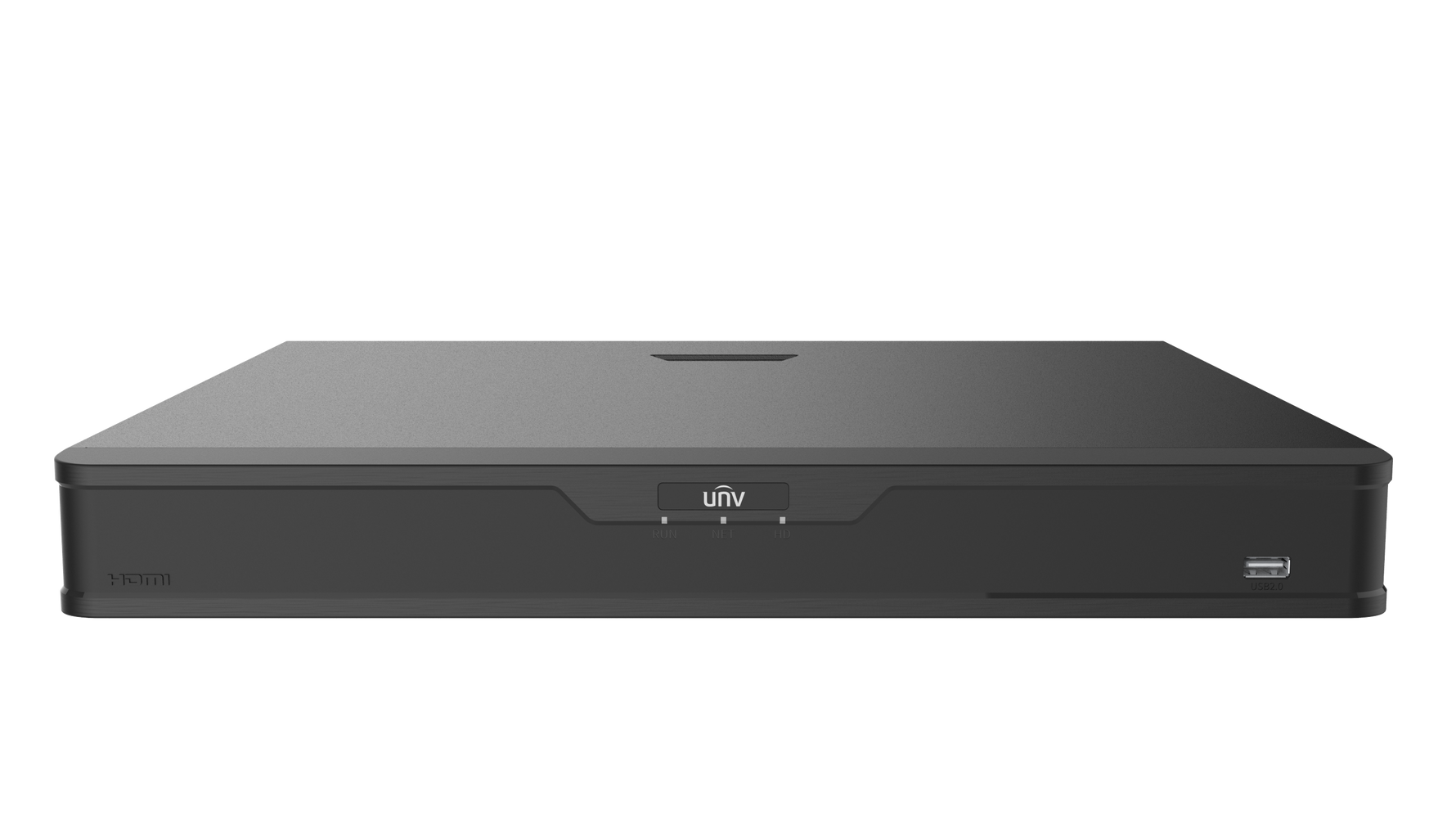

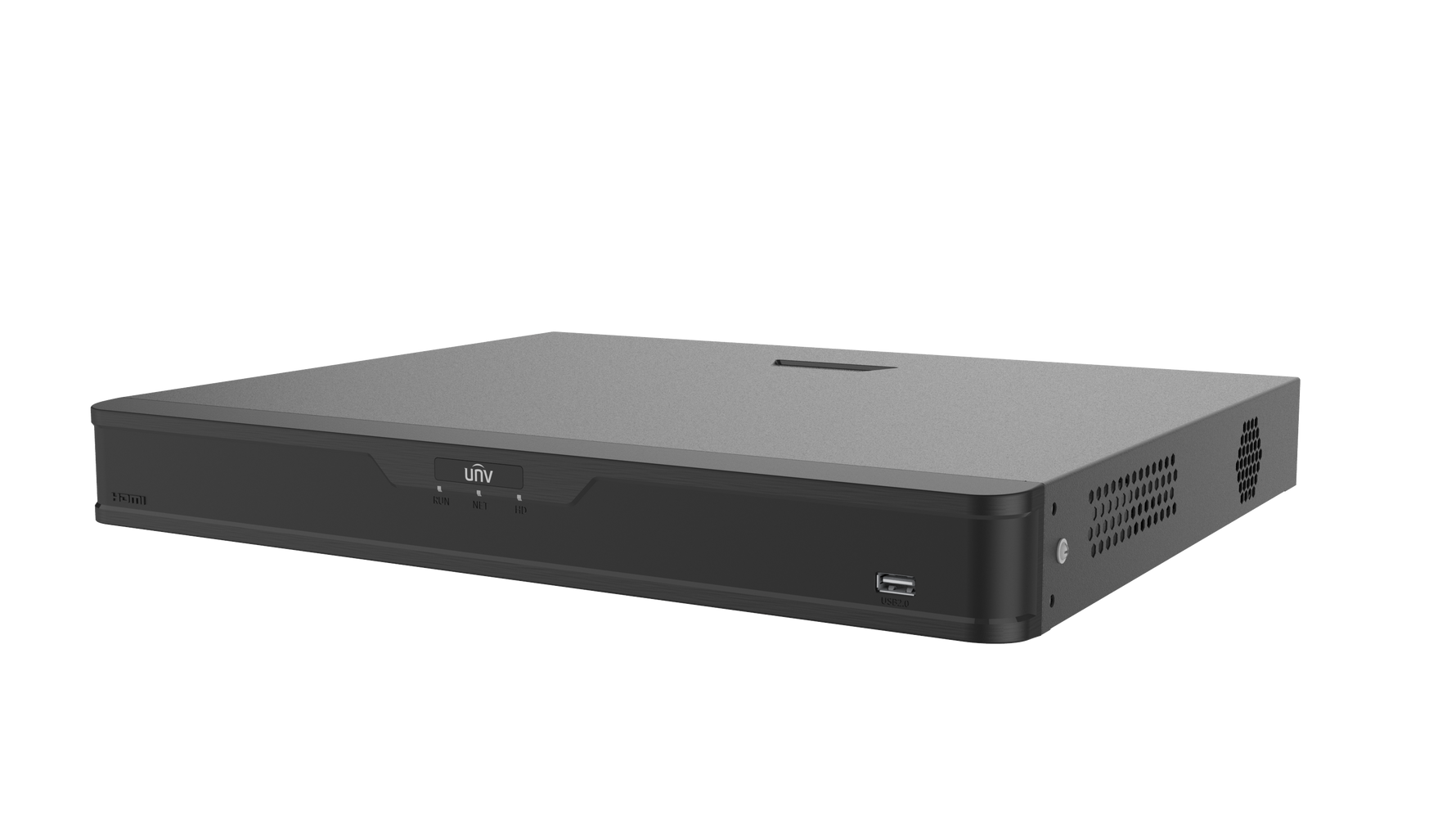

The UNV XVR302-32Q3 is a two-bay recorder for installations with up to 32 analog cameras. It also accepts four IP channels in its standard configuration, with further IP capacity available through analog-channel conversion.
The 36-channel IP maximum requires conversion of analog channels. Choose the final analog/IP mix before specifying the recorder’s camera capacity.
Audio over coax requires a supported camera and signal format. Compatible UNV CVI cameras can carry audio with video, while other combinations should be checked against the recorder’s format limits.
| Camera inputs | |
|---|---|
| Model | XVR302-32Q3 |
| Analog video inputs | 32 × BNC |
| IP camera inputs | 4 channels in addition to analog inputs; up to 36 IP channels after analog-channel conversion |
| Built-in PoE | None; IP cameras require external network connections and suitable power |
| Camera signal formats | TVI, AHD, CVI, CVBS and supported IP cameras |
| Analog signal support | |
| AHD / TVI input formats | 8MP@15fps; 5MP@20fps; 4MP@30fps; 1080p@30fps; 720p@30fps |
| CVI input formats | 8MP@15fps; 5MP@25fps; 4MP@30fps; 1080p@30fps; 720p@30fps |
| CVBS input | Supported |
| Input versus recording | Camera input formats and recorded stream resolutions/frame rates are separate limits |
| Recording and playback | |
| Video formats | H.265, H.264 |
| 8MP Lite recording | Main: 8MP Lite@8fps; sub: D1@8fps |
| 5MP Lite recording | Main: 5MP Lite@12fps; sub: D1@12fps |
| 4MP Lite recording | Main: 4MP Lite@15fps; sub: D1@15fps |
| 1080p recording | Main: 1080p@15fps; sub: D1@15fps |
| 720p recording | Main: 720p@30fps; sub: D1@30fps |
| Stream-rate coupling | Each listed main/sub combination is an alternative configuration; substream rates are not independently 30fps at every main-stream resolution |
| Analog decoding — alternative configurations | 16 × 8MP Lite@8fps; 16 × 5MP Lite@12fps; 16 × 4MP Lite@15fps; 16 × 1080p@15fps; 16 × 720p@30fps |
| IP decoding — alternative configurations | 2 × 8MP@30fps; 4 × 4MP@30fps; 8 × 1080p@30fps; 16 × 720p@30fps |
| Local concurrent playback | 16 |
| Video outputs | |
| Video outputs | 1 × HDMI, 1 × VGA, 1 × CVBS/BNC |
| Display operation | HDMI and VGA simultaneous output |
| HDMI modes | 3840 × 2160 at 30Hz; 1920 × 1080 at 60/50Hz; 1600 × 1200, 1280 × 1024, 1280 × 720 and 1024 × 768 at 60Hz |
| VGA modes | 1920 × 1080 at 60/50Hz; 1600 × 1200, 1280 × 1024, 1280 × 720 and 1024 × 768 at 60Hz |
| Live-view layouts | 1 / 4 / 6 / 8 / 9 / 25 / 36 |
| Audio and snapshots | |
| BNC channel audio inputs | 32 |
| RCA audio input / output | 1 / 1 |
| Audio sample format | 8kHz, 16-bit per channel |
| Audio bitrate | 64Kbps per channel |
| Audio over coax | 32-channel one-way audio; Uniview CVI protocol cameras only |
| Two-way audio | 1 channel using RCA input/output |
| FTP / scheduled / event snapshots | 32 channels, up to 3840 × 2160 |
| Network | |
| Incoming bandwidth | 80Mbps; up to 144Mbps after all analog channels are converted |
| Outgoing bandwidth | 160Mbps |
| LAN | 1 × RJ45 10/100/1000Mbps |
| Remote users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser support | IE10/11, Chrome 45+, Edge 79+, Firefox 52+ (plugin required) |
| IP camera protocols | ONVIF and RTSP |
| Analytics and events | |
| Recorder-side analog analytics | UMD; face detection; SIP: intrusion, line crossing, enter-area and leave-area detection |
| Recorder-side channel limits | UMD: 16; SIP: 8; face detection: 2 |
| Camera-side IP analytics | Face detection, SIP, defocus, scene change, object removal/left behind, auto-tracking and people-flow counting; supported cameras required |
| VCA search | Face search, behavior search and people-counting reports |
| General alarm | Motion |
| System alerts | IP conflict, network disconnection, offline/abnormal disk, illegal access, low/full disk, abnormal recording/snapshot |
| Storage and interfaces | |
| SATA bays | 2 |
| Maximum HDD capacity | Up to 16TB per HDD; maximum capacity varies with ambient temperature and drive size; ambient temperature must not exceed 40°C for this capacity specification |
| USB | Front: 1 × USB 2.0; rear: 1 × USB 3.0 |
| RS485 | 1 |
| Alarm inputs / outputs | 4 / 1 |
| Power and physical | |
| Power supply | 12V DC / 5A |
| Consumption without HDD | ≤38W |
| Operating temperature | -10°C to 55°C; maximum-capacity HDD operation is subject to the 40°C limit above |
| Operating humidity | ≤90% RH, non-condensing |
| Dimensions | 380 × 326 × 53mm |
| Weight without HDD | ≤2.6kg |
| GUI languages | 38 languages |
| Certifications | CE, FCC, UL, RoHS, WEEE |
| CE standards | EN 55032; EN 61000-3-3; EN IEC 61000-3-2; EN 55035 |
| FCC | Part 15 Subpart B |
| Recording resolutions | 8MP Lite / 5MP Lite / 4MP Lite / 1080p / 720p / D1; frame-rate combinations are specified in the encoding rows. |
This recorder does not provide PoE camera power. Input resolution, encoding frame rate and analytics availability vary by channel configuration.
NDAA compliant.
