UNV NVR504-32B 32-Channel 16MP 4-Bay Network Video Recorder
SKU: NVR504-32B
$1,189.00
$1,399.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast ShippingU.S. warehouse fulfillment
Easy RMA SupportStreamlined assistance when needed
Need compatibility help?
Call (856) 317-0600 for professional assistance.
Product overview
Reliable Video Recording
Built for dependable video recording, AI analytics, and scalable surveillance deployments. Features vary by model, firmware, storage configuration, and connected devices.
Use the compatibility tools below to select supported components.
Get assistance with configuration, installation and product selection.
U.S.-based fulfillment and protected checkout.
Product assistance
Need Assistance?
Documentation, system compatibility tools, shipping information, and direct support from NSI Security.
Shipping InformationU.S. fulfillment
Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.
View Shipping Policy →DocumentationBy request
Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.
Request Documentation →Technical SupportNSI assistance
Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.
Contact Support →Verified System ComponentsProduct-specific compatibility
Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.
View Components →RMA RequestAfter-purchase assistance
Request return authorization, repair evaluation, or replacement assistance for an eligible order.
Start RMA Request →Contact Our TeamSales and product questions
Contact NSI Security for product selection, availability, compatibility, and order assistance.
Contact NSI Security →
System compatibility
Verified System Components
Product-specific components selected for a more confident system configuration. Only populated categories are displayed.
Western Digital Purple Surveillance Hard Drive 4TB
$279.00 ● In stock
Western Digital Purple Surveillance Hard Drive 8TB
$429.00 ● In stock
One-click system configuration
Build Your Complete Solution
Select the components you need and add the complete configuration to your cart.
Storage
Product information
Product Details & Technical Specifications
Professional 32-Channel Network Video Recorder
UNV NVR504-32B
The UNV NVR504-32B is a professional 32-channel network video recorder designed for commercial surveillance systems requiring high-resolution recording, substantial storage capacity, reliable network performance, and centralized camera management.
Supporting recording resolutions up to 16 megapixels, up to 320Mbps incoming bandwidth, four internal SATA hard-drive bays, RAID storage protection, independent HDMI and VGA display outputs, and Uniview Ultra 265 compression, the NVR504-32B is well suited for medium and large IP video surveillance deployments.
32
IP Camera Channels
16MP
Maximum Recording Resolution
4-Bay
SATA Hard-Drive Storage
320Mbps
Incoming Bandwidth
Important
Standard Non-PoE Recorder
The NVR504-32B does not include built-in PoE camera ports. IP cameras must connect through a compatible external PoE switch or network infrastructure.
This is the standard NVR504-32B model and should not be confused with the NVR504-32B-IQ or NVR504-32B-P16-IQ models.
Enterprise-Grade Recording
Product Highlights
32-Channel IP Camera Support
Connect and manage up to 32 compatible IP cameras for centralized live viewing, recording, playback, event review, and system administration.
Up to 16MP Recording
Supports high-resolution recording from compatible cameras at resolutions up to 16 megapixels for detailed evidentiary video.
High Network Bandwidth
Provides up to 320Mbps incoming and 160Mbps outgoing bandwidth for demanding multi-camera surveillance installations.
Four SATA Hard-Drive Bays
Accommodates up to four compatible surveillance hard drives, allowing storage capacity to be configured around recording duration, camera count, resolution, and frame rate.
RAID 1 and RAID 5 Support
Supports RAID storage configurations and redundant recording options to help improve storage resilience in professional surveillance environments.
Independent HDMI and VGA Outputs
Provides HDMI output up to 4K resolution along with independent VGA output for flexible local monitor configurations.
Ultra 265 Video Compression
Supports Ultra 265, H.265, and H.264 video formats to help reduce storage and network-bandwidth requirements when used with compatible cameras.
Automatic Network Replenishment
ANR technology can retrieve supported edge recordings from compatible cameras after a temporary network interruption, helping improve recording continuity.
Professional Recording Platform
Built for Multi-Camera Surveillance

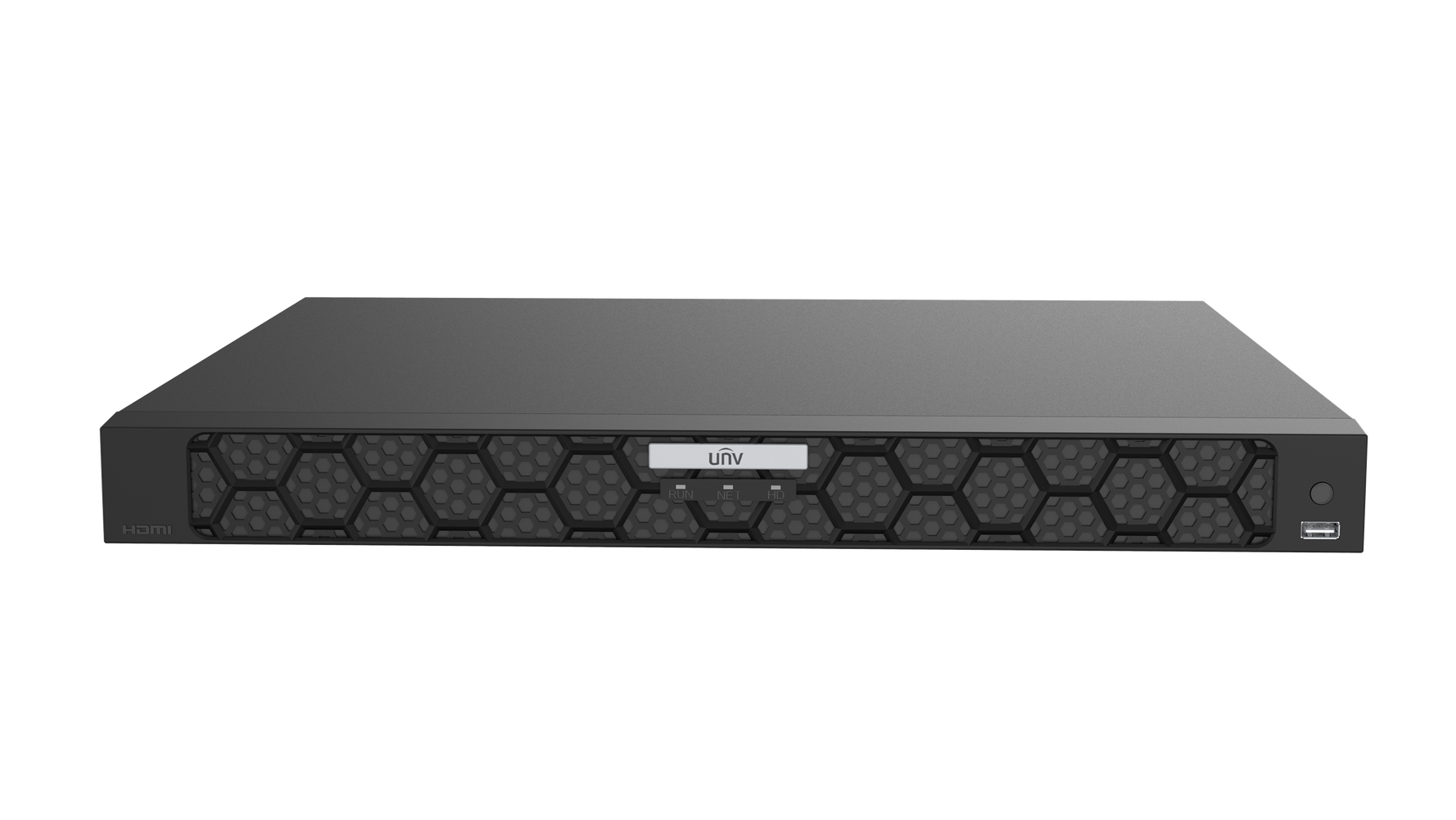

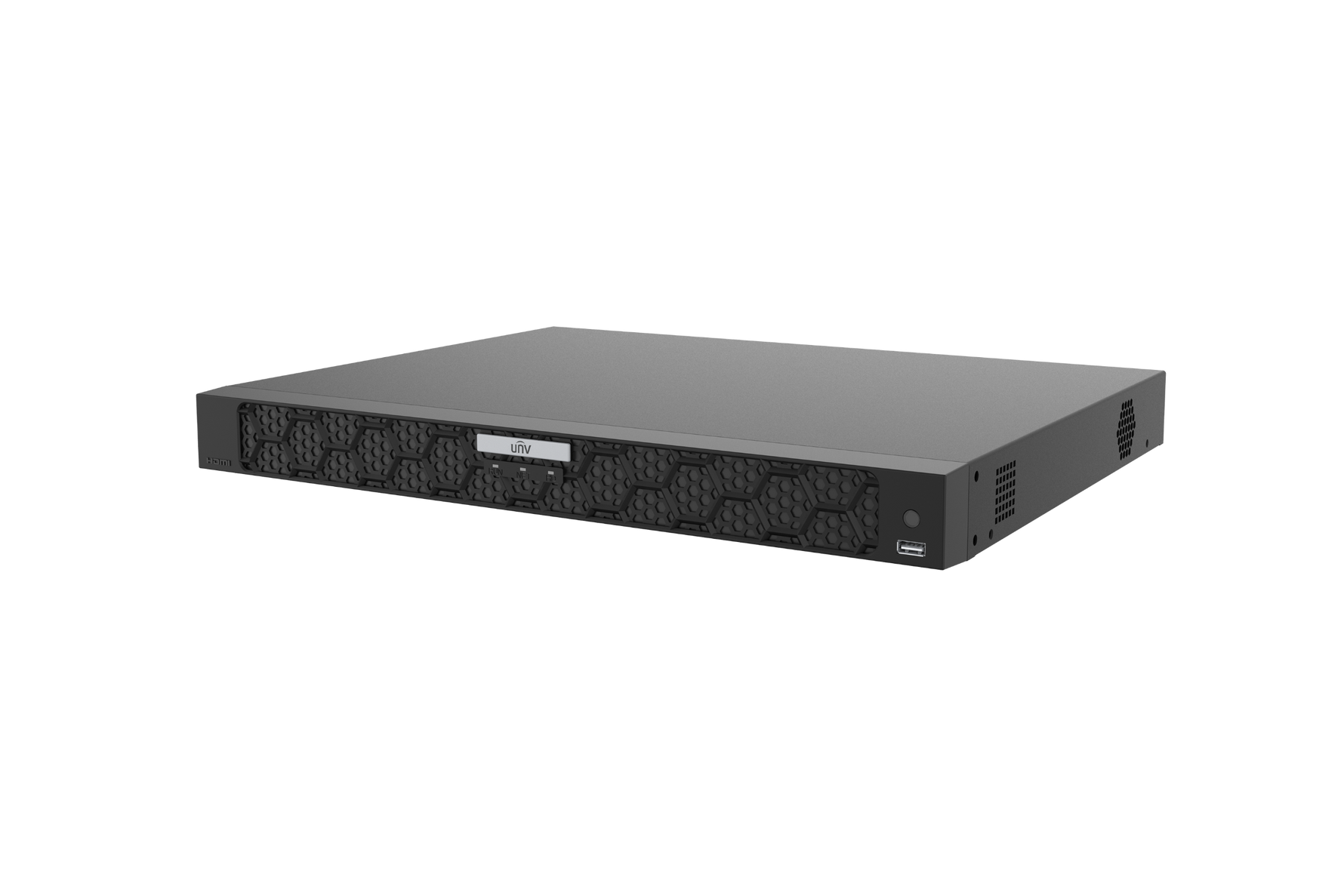

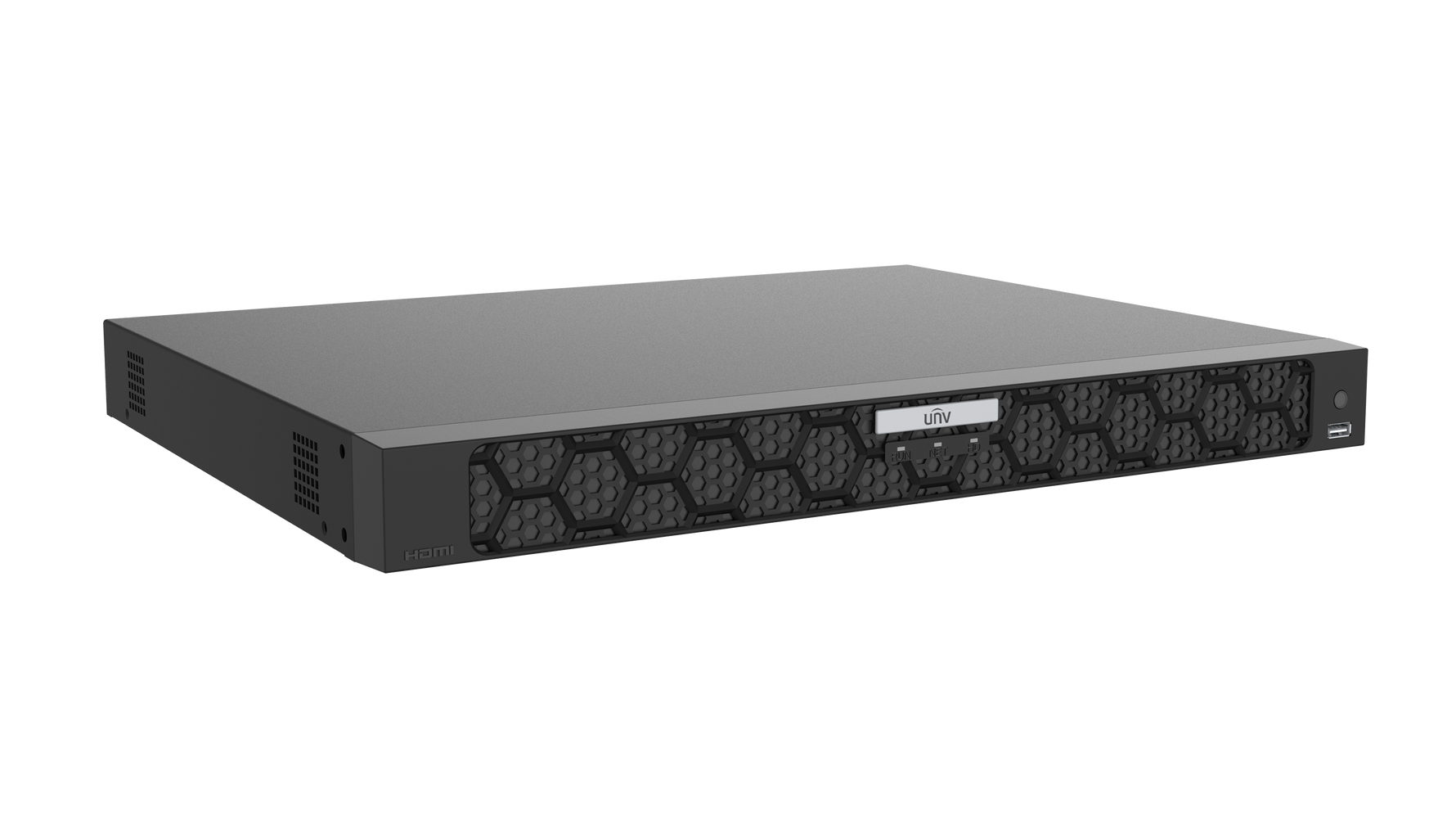

The NVR504-32B combines high camera capacity, substantial network throughput, flexible storage, and centralized administration in a compact 1U recorder.
- Up to 32 compatible IP camera channels
- Up to 16MP recording resolution
- Four internal SATA hard-drive interfaces
- RAID 1 and RAID 5 storage support
- Up to 16-channel synchronous local playback
- Two Gigabit Ethernet network interfaces
Flexible System Integration
UNV and Third-Party Camera Support
The recorder supports compatible Uniview cameras and mainstream third-party IP cameras using supported ONVIF profiles and RTSP protocols.
- ONVIF Profile S support
- ONVIF Profile G support
- ONVIF Profile T support
- RTSP network-stream support
- Local, browser, client-software, and mobile access
- Cloud upgrade capability
Camera-Side Intelligence
Compatible Smart Event Integration
When paired with compatible intelligent IP cameras, the NVR504-32B can receive, display, record, and search supported camera-generated analytics and VCA events.
Supported functions may include face detection, vehicle detection, license-plate recognition, intrusion detection, cross-line detection, Ultra Motion Detection, temperature events, people counting, video metadata, heat maps, and traffic-monitoring events.
This standard recorder does not add IQ-series recorder-side analytics to ordinary cameras. Smart functions depend on the connected camera, firmware, feature licensing, system resources, and configuration.
Scalable Video Storage
Four-Bay Storage with RAID Support
4
Internal SATA Interfaces
RAID 1
Mirrored Storage Support
RAID 5
Distributed Parity Support
24TB*
Listed Maximum per Drive
*Uniview’s current online specification lists support for up to 24TB per compatible hard drive. Maximum supported capacity may vary by firmware, approved hard-drive model, physical drive dimensions, operating temperature, and regional product revision. Hard drives may be sold separately unless specifically included in the product option.
Technical Overview
Specifications
| Model | NVR504-32B |
|---|---|
| Product Type | Professional Network Video Recorder |
| IP Camera Inputs | Up to 32 Channels |
| Built-In PoE Ports | No — External PoE Switch Required |
| Recording Resolution | Up to 16MP; also supports 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, and CIF |
| Video Compression | Ultra 265, H.265, and H.264 |
| Incoming Bandwidth | Up to 320Mbps |
| Outgoing Bandwidth | Up to 160Mbps |
| Remote Users | Up to 128 |
| Decoding — Ultra 265/H.265 | Up to 2 × 16MP at 30fps, 2 × 12MP at 30fps, 4 × 4K at 30fps, 6 × 5MP at 30fps, 8 × 4MP at 30fps, 10 × 3MP at 30fps, 16 × 1080p at 30fps, or 32 × 960p at 25fps |
| Local Synchronous Playback | Up to 16 Channels |
| HDMI Output | 1 × HDMI, Up to 4K at 30Hz |
| VGA Output | 1 × VGA, Up to 1920 × 1080 at 60Hz |
| Display Operation | Independent HDMI and VGA Output |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| Two-Way Audio | 1 Channel Using the RCA Audio Input and Output |
| Audio Compression | G.711A and G.711U |
| Hard-Drive Interfaces | 4 × SATA |
| Maximum Listed Drive Capacity | Up to 24TB per compatible HDD, subject to firmware, drive approval, environmental conditions, and product revision |
| Storage Features | Disk Groups and Redundant Storage |
| RAID Support | RAID 1 and RAID 5 |
| Network Interfaces | 2 × RJ45 10/100/1000Mbps Self-Adaptive Gigabit Ethernet Ports |
| Camera Compatibility | Compatible UNV Cameras, ONVIF Profiles S/G/T, and Supported RTSP Devices |
| USB Interfaces |
Front: 1 × USB 2.0; Rear: 1 × USB 2.0 and 1 × USB 3.0 |
| Alarm Inputs | 16 Channels |
| Alarm Outputs | 4 Channels |
| Serial Interface | 1 × RS485 |
| Network Protocols | TCP/IP, IPv4, IPv6, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, and 802.1X |
| ANR Support | Yes, with Compatible Cameras and Storage |
| Power Supply | 12V DC, 5A |
| Power Consumption | Up to 20W Without Hard Drives |
| Operating Temperature | -10°C to 55°C / 14°F to 131°F |
| Operating Humidity | Up to 90% RH, Non-Condensing |
| Dimensions | 440 × 344 × 48mm / 17.3 × 13.5 × 1.9 Inches |
| Weight | Up to 3.4kg / 7.50 lb Without Hard Drives |
| Chassis | Professional 1U Rack-Mount Design |
| Compliance | NDAA Listed; CE, FCC, UL, RoHS, and WEEE Certifications |
Recommended Use
Ideal Applications
Commercial Properties
Apartment Buildings
Retail Locations
Warehouses
Schools and Campuses
Hotels and Hospitality
Office Buildings
Multi-Site Surveillance
Third-Party Camera Integration
Third-party IP cameras may not be plug-and-play and may require manual network, ONVIF, RTSP, user-account, stream, codec, resolution, and frame rate configuration.
Compatibility may vary depending on the camera’s ONVIF profile, firmware version, authentication method, video codec, resolution, frame rate, audio format, stream profile, and supported smart events. Full functionality is not guaranteed with every third-party camera.
Storage and Recording-Retention Notice
Recording retention depends on the number of cameras, resolution, frame rate, bitrate, compression format, scene activity, recording schedule, smart-event configuration, hard-drive capacity, and storage redundancy settings.
Surveillance-grade hard drives are recommended. Hard drives are not included unless specifically stated in the selected product option.
Manufacturer Warranty
Three-Year UNV Recorder Warranty
This UNV network video recorder includes a three-year manufacturer warranty when purchased through NSI Security, subject to the manufacturer’s warranty terms, product eligibility, serial-number verification, and NSI Security’s applicable Terms and Conditions.
Important Product Information
Specifications are subject to change without notice. Features, smart functions, camera compatibility, hard-drive support, storage capacity, recording performance, decoding capability, bandwidth, display output, mobile access, browser support, cloud functionality, and overall system performance may vary depending on firmware version, connected camera, hard-drive model, network configuration, installation environment, system settings, and regional product revision.
Smart analytics listed for this standard recorder are generated by compatible IP cameras and do not mean the recorder includes the same recorder-side analytics available on an IQ-series model. Always double-check the manufacturer’s current documentation and confirm system requirements before ordering.
NDAA status should be verified against the manufacturer’s latest compliance documentation before purchasing for government, public-sector, or compliance-sensitive projects.
Important product information:
Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
