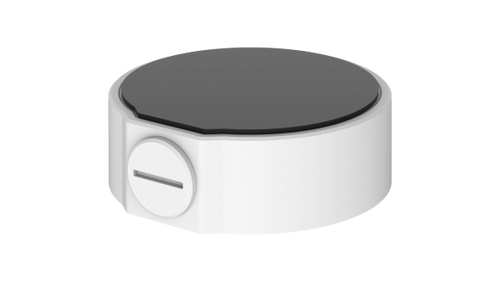

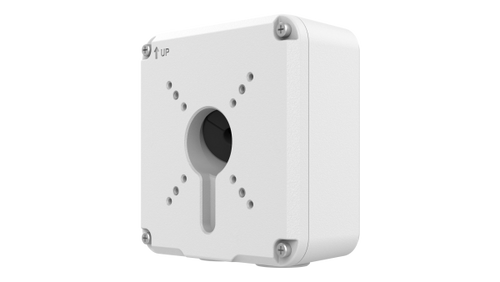

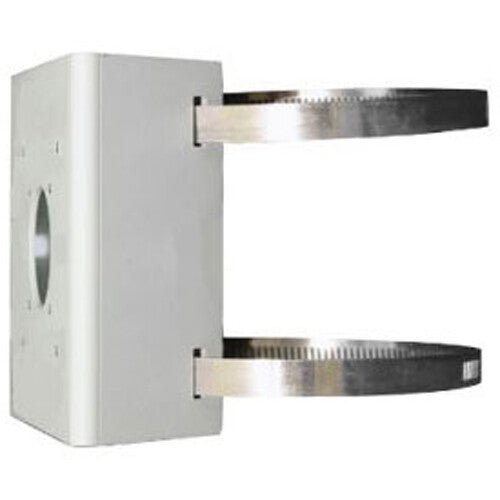

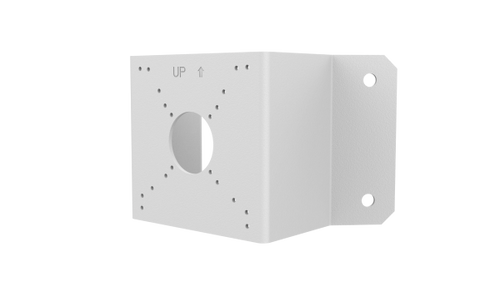

Mounting & Accessories

Compatible Recorders

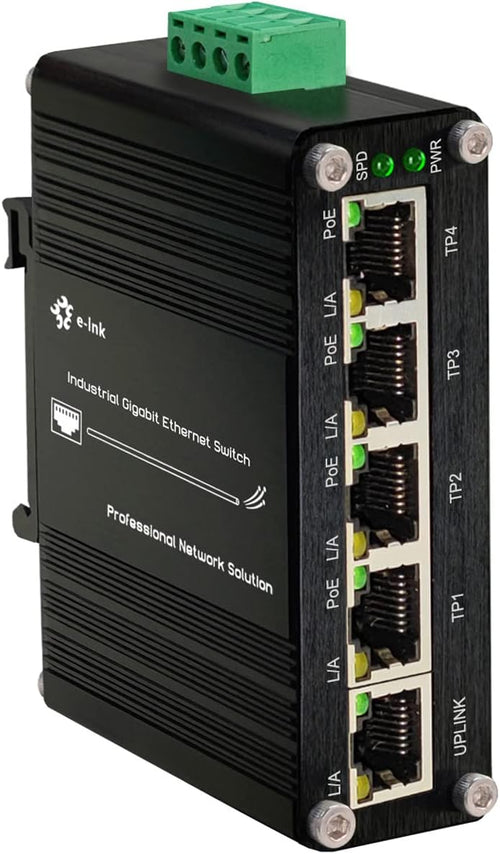

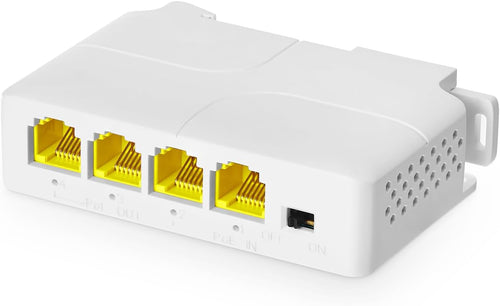

PoE Switches

Product information

Product Details & Technical Specifications

8MP OmniView 180° Wide-Angle Turret Camera

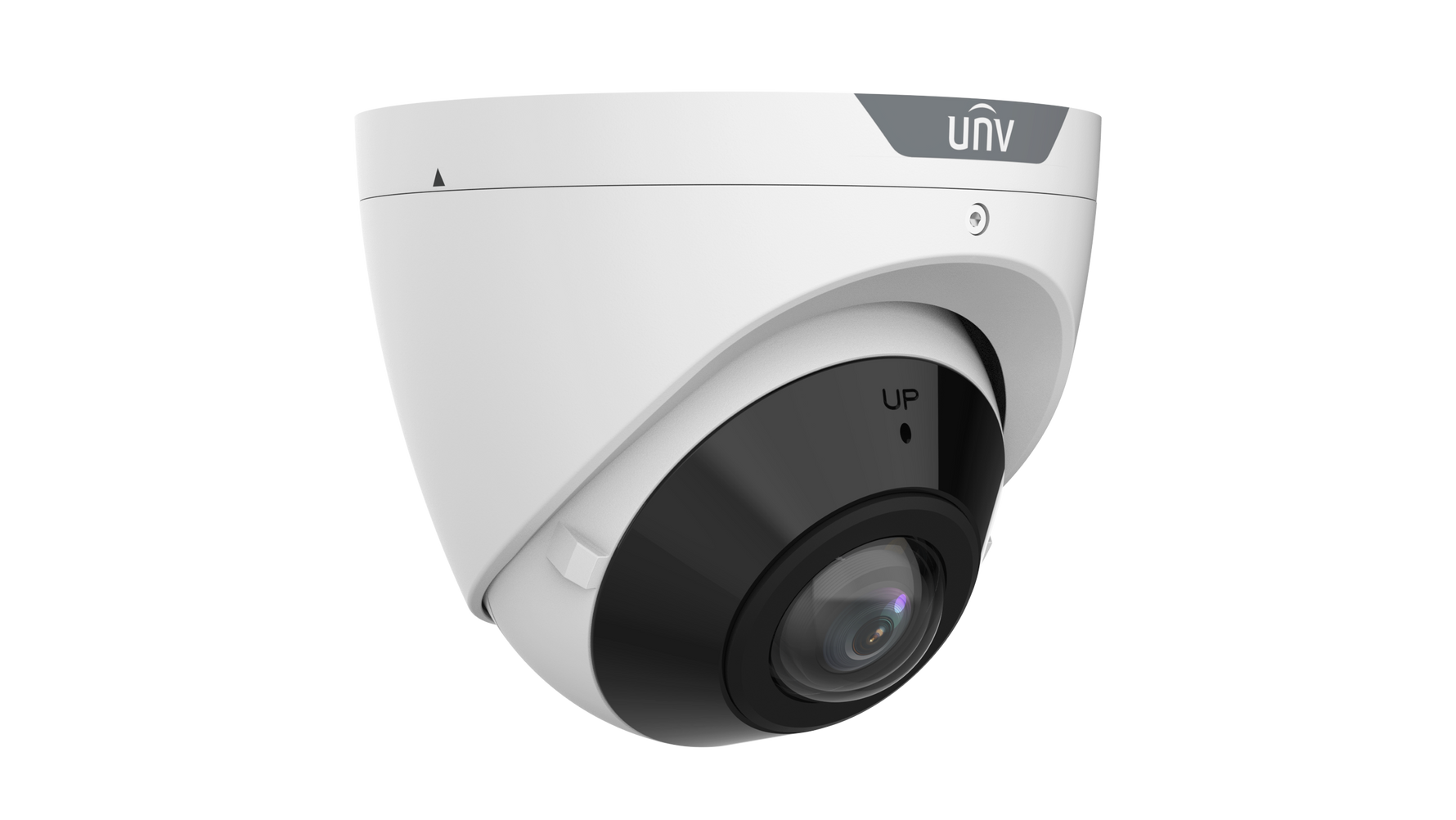

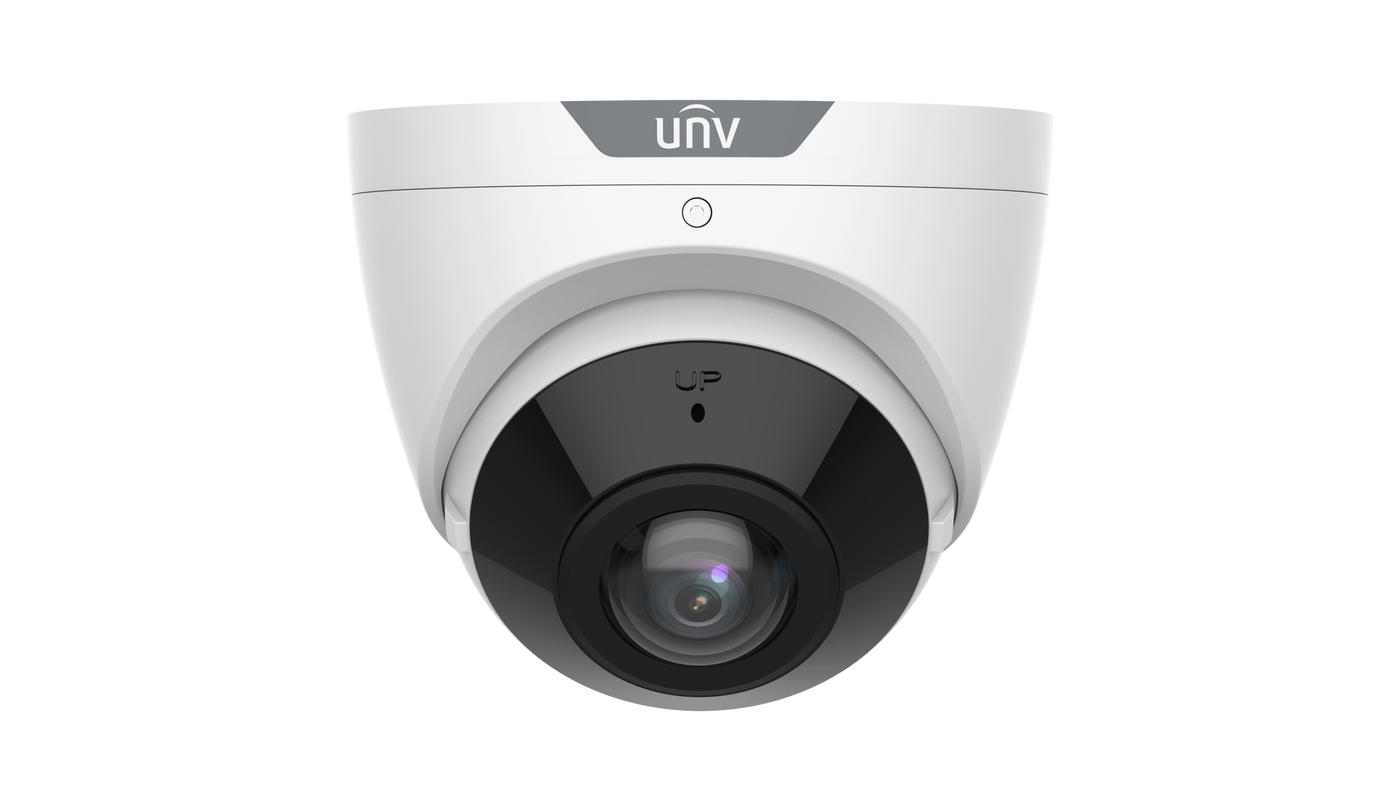

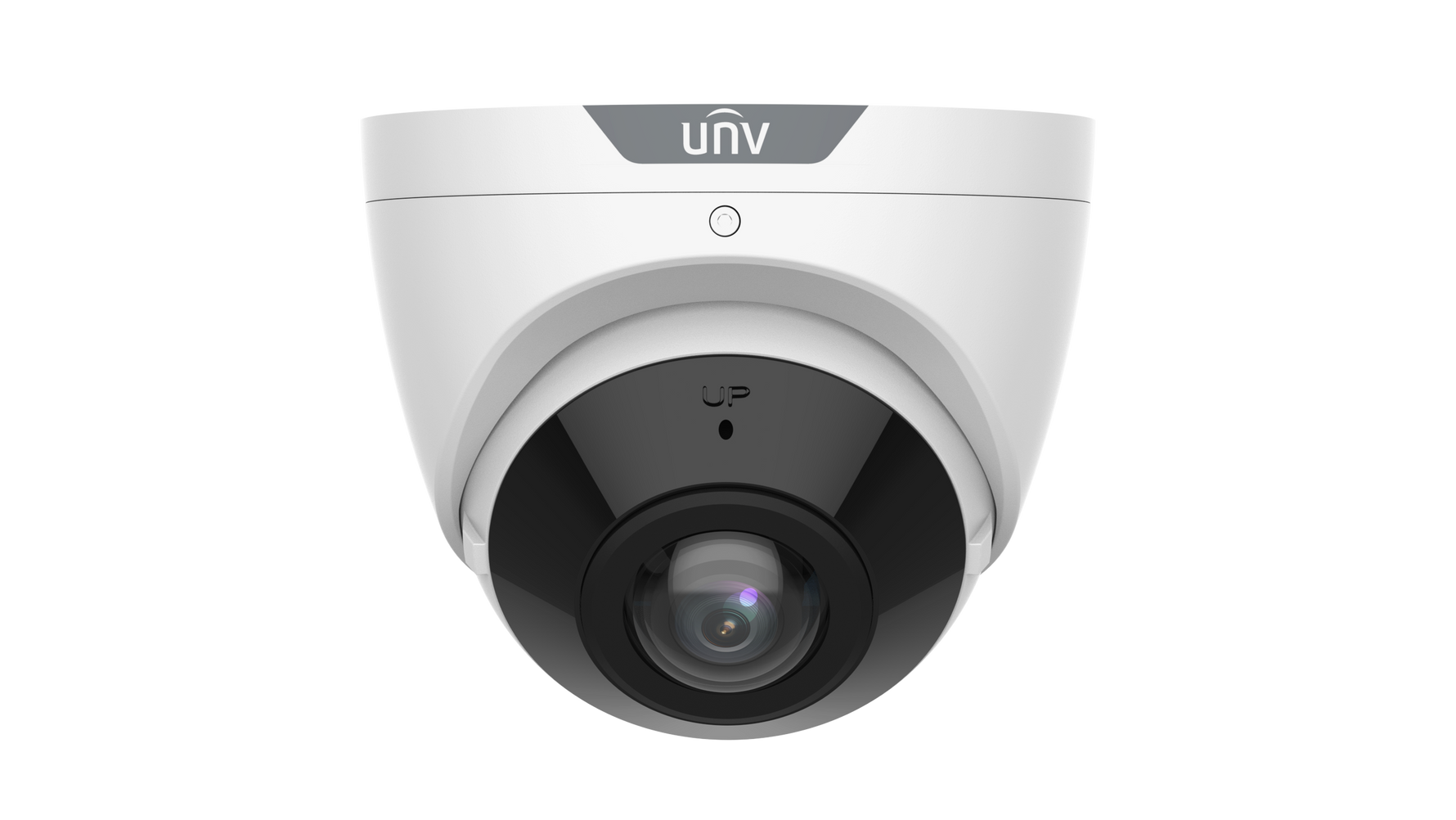

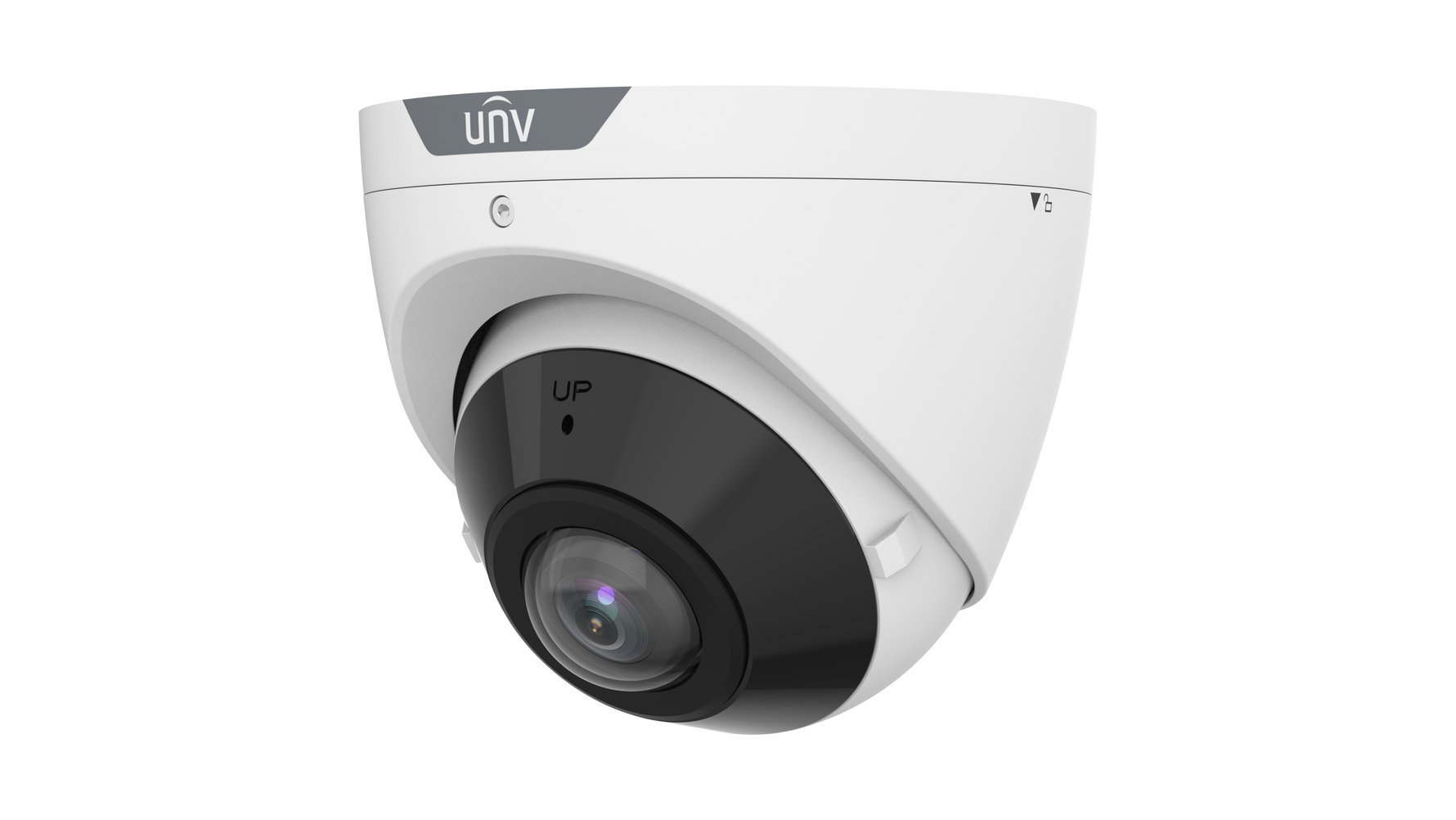

UNV IPC3608SB-ADF16KM-I0 8MP OmniView Fixed IR Turret Network Camera

The UNV IPC3608SB-ADF16KM-I0 is an 8MP OmniView wide-angle turret network camera designed for locations that need extra-wide coverage from a single camera. With 4K video, a 1.68mm fixed lens, 180° horizontal field of view, configurable dewarp level, 120dB true WDR, smart intrusion prevention, built-in microphone, Smart IR night vision, MicroSD support, PoE, IP67 outdoor protection, and IK10 vandal resistance, this camera is a strong choice for entrances, storefronts, hallways, warehouses, parking areas, and wide-scene security applications.

8MP
4K Image
180°
Wide View
120dB
True WDR
IK10
Vandal Resistant

Ultra-Wide 180° Coverage From One Turret Camera

The IPC3608SB-ADF16KM-I0 helps reduce blind spots by capturing an extra-wide scene with its OmniView 180° horizontal field of view. It is ideal when customers want wider coverage than a standard turret camera without installing multiple cameras in the same area.

Key Features

📷

8MP 4K Image

Captures up to 3840 × 2160 resolution at 30/25fps for detailed wide-angle surveillance video.

↔️

180° OmniView Coverage

Extra-wide 180° horizontal field of view helps cover more area with fewer cameras.

🧠

Smart Intrusion Prevention

Supports cross line, intrusion, enter area, and leave area detection with human, vehicle, and non-motor vehicle classification.

🔆

120dB True WDR

Helps balance bright and dark areas for clearer images in difficult lighting scenes.

🎙️

Built-In Microphone

Supports audio recording when used with compatible recorder, software, and local regulations.

🛡️

IP67 / IK10 Protection

Weather-rated and vandal-resistant turret housing supports demanding commercial environments.

Feature Overview

✓ 8MP high-resolution image quality
✓ 1/2.7" CMOS sensor
✓ 3840 × 2160 resolution up to 30/25fps
✓ 1.68mm fixed lens
✓ 180° horizontal field of view
✓ Configurable dewarp level from 1 to 9
✓ Ultra 265 / H.265 / H.264 / MJPEG
✓ Triple video streams
✓ Video bitrate 128Kbps to 16Mbps
✓ 120dB true WDR
✓ Smart intrusion prevention
✓ Human, vehicle, and non-motor vehicle classification
✓ Motion detection and ultra motion detection
✓ Audio detection support
✓ Built-in microphone
✓ Smart IR up to 20m / 65.6ft
✓ 9:16 corridor mode support
✓ MicroSD card support up to 512GB
✓ ONVIF Profile S / G / T / M support
✓ DC 12V ±25% / PoE IEEE 802.3af
✓ Max. power consumption 5.5W
✓ IP67 weather protection
✓ IK10 vandal-resistant protection
✓ Metal housing with 4KV surge protection

Best Applications

Storefronts
Building Entrances
Hallways
Warehouses
Parking Areas
Wide-Scene Coverage

Product Highlights

Model IPC3608SB-ADF16KM-I0
Camera Type 8MP OmniView Fixed IR Turret Network Camera
Resolution 8MP, up to 3840 × 2160 @ 30/25fps
Image Sensor 1/2.7" CMOS
Lens 1.68mm Fixed Lens, F2.0
Field of View 180° Horizontal / 100° Vertical / 180° Diagonal
WDR 120dB True WDR
Compression Ultra 265, H.265, H.264, MJPEG
IR Distance Smart IR up to 20m / 65.6ft
Audio Built-In Microphone
Storage MicroSD Card Support up to 512GB
Power DC 12V ±25%, PoE IEEE 802.3af, Max. 5.5W
Protection IP67 Weather Rated / IK10 Vandal Resistant

Installation Tip

This camera is designed for very wide 180° coverage. For best results, mount it where the full wide-angle view can capture the scene without being blocked by walls, poles, signs, or overhangs. Confirm dewarp level, camera angle, WDR, audio recording rules, PoE power, storage settings, and recorder compatibility during setup.

Note: Specifications are subject to change without notice. Features, MicroSD card support, audio functions, image performance, IR distance, PoE behavior, compatibility, wide-angle image behavior, dewarp behavior, edge distortion, and overall system performance may vary depending on firmware version, recorder model, installation environment, lighting conditions, network setup, camera settings, and system configuration. Please always double-check the manufacturer’s official specifications for the most accurate and up-to-date product information before ordering.
