Premium NDAA
Model: IPC-HNC328N-WDU
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

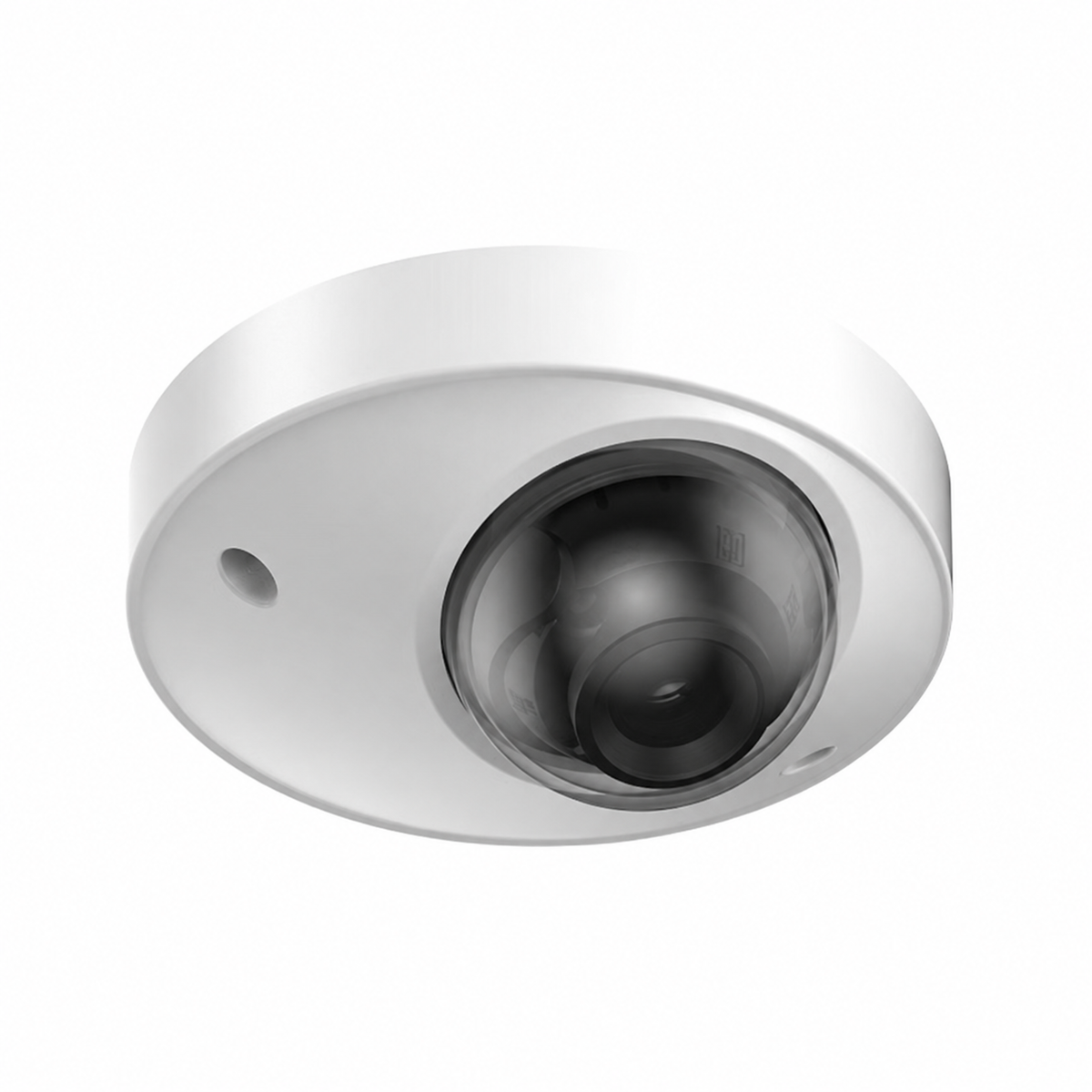

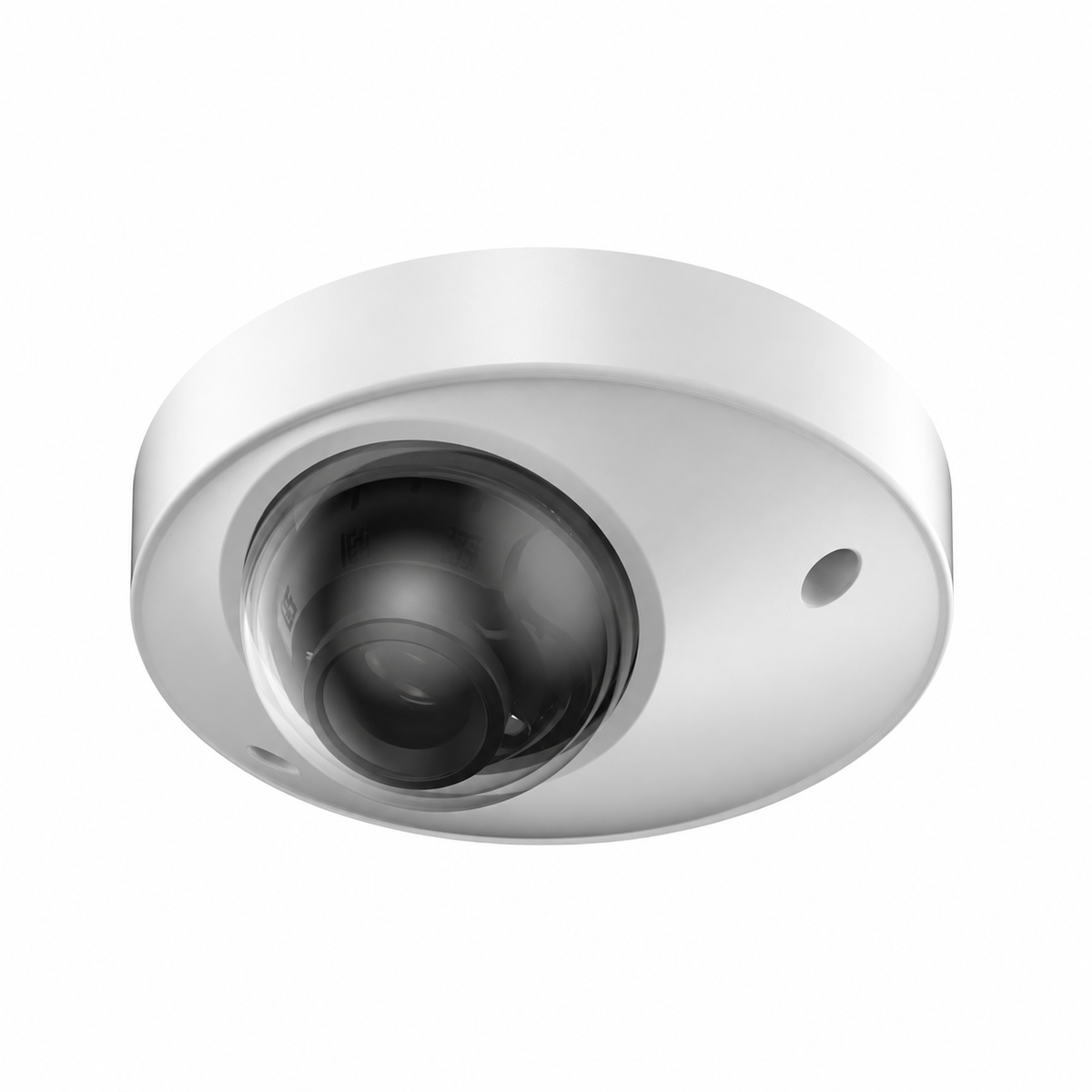

The Premium NDAA IPC-HNC328N-WDU is a compact 8MP mini dome camera with a fixed 2.8mm lens and a 95° horizontal view. IR and white-light illumination support night monitoring, while a built-in microphone and human/vehicle detection add context to recorded events.
| Camera & imaging | |
|---|---|
| Model | IPC-HNC328N-WDU |
| Camera design | Fixed mini dome |
| Maximum resolution | 8MP (3840 × 2160) |
| Image sensor | 1/2.9-in. Progressive CMOS |
| Minimum illumination | Color: 0.007 Lux at F1.6 Black/White: 0.0007 Lux at F1.6 0 Lux With IR Light On |
| Wide dynamic range | 120 dB |
| Noise reduction | 3D NR |
| Electronic shutter | Automatic, Manual 1/3 s to 1/100,000 s |
| Day/night modes | Automatic (ICR), Color, Black and White |
| Lens & coverage | |
| Lens, aperture & iris | 2.8mm fixed lens; F1.6 maximum aperture; fixed iris |
| Field of view | Horizontal: 95° Vertical: 52° Diagonal: 114° |
| Close focus | 1.1 m (3.6 ft) |
| DORI distances | Detect: 63.4 m (208.0 ft) Observe: 25.2 m (82.7 ft) Recognize: 12.5 m (41 ft) Identify: 6.3 m (20.7 ft) |
| Installation adjustment | Pan/Rotation: 0° to 355° Tilt: 0° to 80° |
| Night illumination | |
| Illumination | Dual light: two white-light LEDs and two IR LEDs; supports Smart Lux |
| Illumination range | IR: Up to 30.5 m (100.0 ft) White Light: Up to 30.5 m (100.0 ft) |
| Illuminator control | Automatic, Manual |
| Video | |
| Video compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
| Standard codec | Supported |
| Video streams | Two (2) |
| Frame rates | Main Stream: 3840 × 2160 at 20 fps Sub Stream 1: D1 at 30 fps |
| Supported resolutions | 8MP (3840 × 2160), 4MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240) |
| Video bit rate | H.264: 32 kbps to 6,144 kbps H.265: 12 kbps to 6,144 kbps |
| Bit-rate control | CBR/VBR |
| Image rotation | 0°/90°/180°/270° |
| Mirror rotation | Supported |
| Regions of interest | Four (4) Zones |
| Privacy masking | Four (4) Zones |
| Audio & analytics | |
| Audio input & output | Built-in microphone plus 1 audio input channel; 1 audio output channel |
| Audio compression | G.711a, G.711Mu, PCM |
| Video analytics | Line crossing and intrusion |
| Smart motion detection | Supported with Alarms for Vehicles and Humans |
| Alarm events | Line Crossing, Intrusion, Motion Detection, Smart Motion, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception |
| Network & storage | |
| Network connection | RJ-45 (10/100 Base-T) |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Recording & storage | FTP, SFTP, Micro SD Card (Max. 256 GB) |
| Supported browsers | Chrome, Firefox, Edge |
| Network protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Power & environment | |
| Power supply | 12 VDC, PoE (802.3af) |
| Power consumption | 12 VDC Maximum: 7.1 W Normal: 2.3 W PoE Maximum: 8.5 W Normal: 2.8 W |
| Operating conditions | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
| Storage temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection ratings | IP67, IK10 |
| Dimensions & compliance | |
| Camera dimensions | Φ108.9 mm x 55.0 mm (Φ4.3 in. x 2.2 in.) |
| Net weight | 0.4 kg (0.8 lb) |
| Gross weight | 0.5 kg (1.1 lb) |
| Packaging dimensions | 137.0 mm x 137.0 mm x 87.0 mm (5.4 in. x 5.4 in. x 3.4 in.) |
| Housing material | Metal |
| Certifications | FCC, IC |
| Compliance | NDAA |
Backed by a 3-Year Manufacturer Warranty. Use NeoViewer for compatible Premium NDAA viewing and device management; available functions depend on the model, firmware and system setup.
NeoViewer for iPhone · NeoViewer for Android
Confirm recorder, network and power compatibility before installation. Ask NSI for help with your setup.
Flexible deployment
View a compatible camera with NeoViewer. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use NeoViewer for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
