Premium NDAA
Model: IPC-HNR52NP16-32
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Storage: Supports up to 80TB capacity. Hard drives are not included unless explicitly stated in the selected configuration.
Camera Power: 16 built-in PoE ports. Check the total PoE budget and each camera's power requirements. Additional cameras require separate network connections and power.
Retention depends on camera count, bitrate, frame rate, recording schedule and usable drive capacity. Recording support does not guarantee that every third-party analytics or audio feature is supported. Remote viewing requires a configured network and internet connection.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

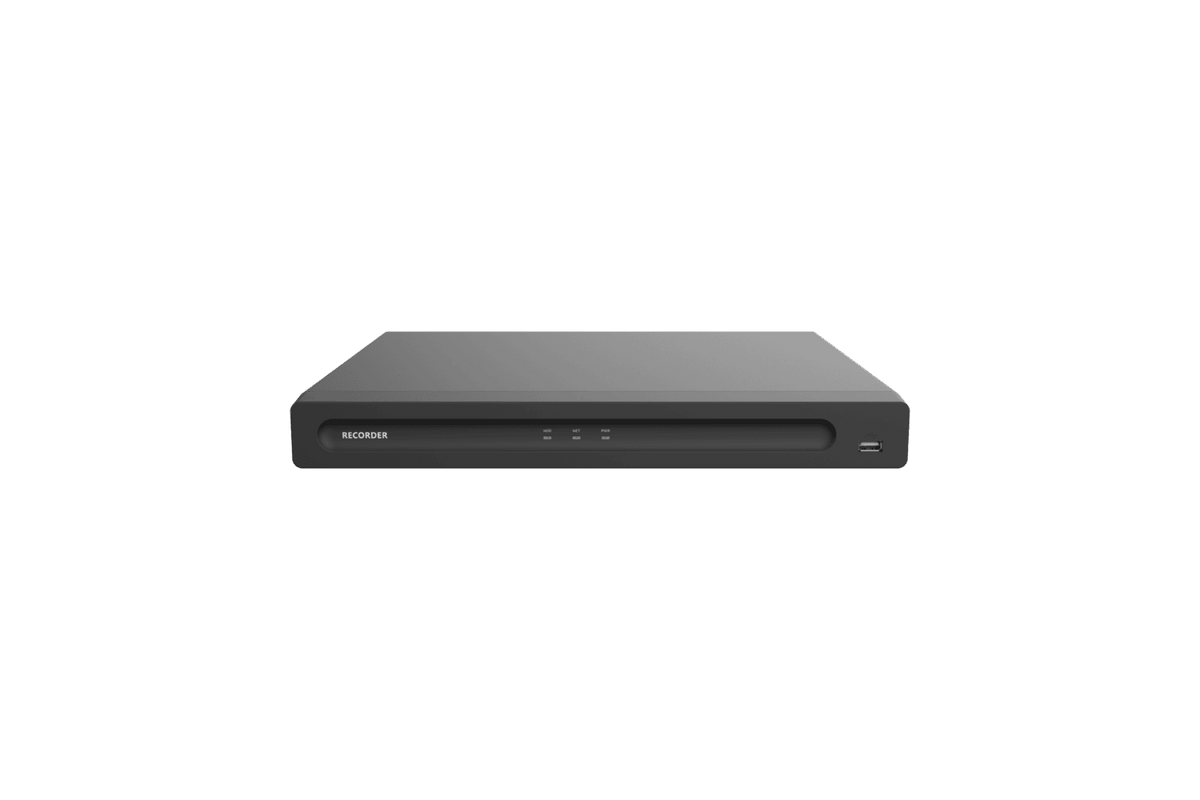

The Premium NDAA IPC-HNR52NP16-32 supports 32 IP camera channels and recording resolutions up to 16MP. It has 4 internal hard-drive bays. 16 built-in PoE ports provide camera connections.
Analytics require compatible cameras and the appropriate firmware and configuration. Review bandwidth, decoding, display outputs and analytics limits before sizing your system.
Part of the Premium NDAA product line.
Need help matching this product to your project? Ask NSI
| Recorder & channels | |
|---|---|
| Model | IPC-HNR52NP16-32 |
| IP Video Input | 32 Channels |
| Video, display & playback | |
| Recording Resolutions | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| HDMI Output | Up To 4K / 3840 × 2160 |
| VGA Output | Up To 1920 × 1080 |
| Live View Layout | 1 / 4 / 9 / 16 / 25 / 36 Views |
| Synchronous Playback | Up To 16 Channels |
| Analytics & search | |
| Intelligent Motion Detection | Camera-Driven: 32 Channels NVR-Driven: 4 Channels |
| Video Content Analytics | Camera-Driven: 32 Channels NVR-Driven Line Crossing: 2 Channels |
| Face Recognition | 1-Channel Face Capture & Recognition 8-Channel Face Picture Comparison From Compatible Cameras |
| Face Database | Up To 10 Face Libraries / 20,000 Face Pictures Total |
| License Plate Recognition | Up To 8 Channels With Compatible LPR Cameras |
| LPR Database | 2 Block Lists / 2 Allow Lists / Up To 20,000 Plate Numbers |
| Video Metadata | Up To 8 Channels With Compatible Cameras |
| Smart Search | Up To 16 Channels With Compatible Cameras |
| Storage | |
| SATA Interfaces | 4 Internal SATA Ports |
| Maximum HDD Capacity | Up To 20TB Per HDD / 80TB Total |
| PoE & camera connections | |
| Built-In PoE Ports | 16 Independent PoE Ports |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Total PoE Budget | 150W |
| Maximum PoE Output Per Port | 25.5W |
| Network & bandwidth | |
| Network Interface | 1 × RJ45 10/100/1000 Mbps Gigabit Ethernet |
| Bandwidth | Incoming: 256 Mbps / 180 Mbps With AI Enabled Outgoing: 256 Mbps / 180 Mbps With AI Enabled |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF / RTSP |

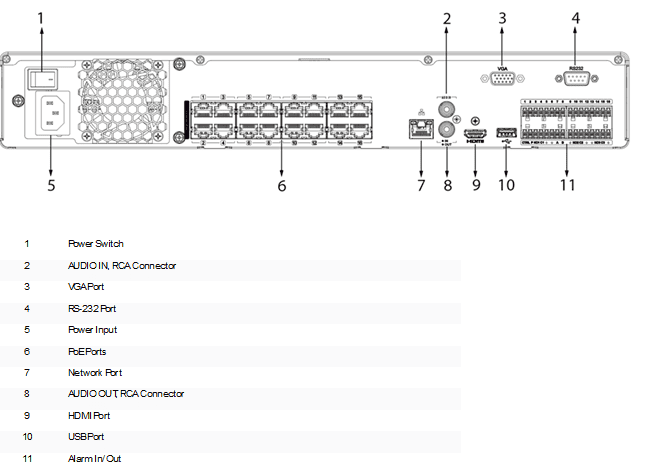

| Audio, alarms & interfaces | |
| USB | Front: 1 × USB 2.0 Rear: 1 × USB 2.0 |
| Serial Interfaces | 1 × RS-232 / 1 × RS-485 |
| Alarm I/O | 16 Inputs / 4 Outputs |
| Audio | 1-Channel RCA Input / 1-Channel RCA Output |
| Power & environment | |
| Power Supply | 100–240 VAC, 50–60 Hz |
| NVR Power Consumption | <10W Without HDD |
| Operating Temperature | -10°C to 55°C / 10°F to 131°F |
| Operating Humidity | 10%–93% |
| Dimensions, installation & compliance | |

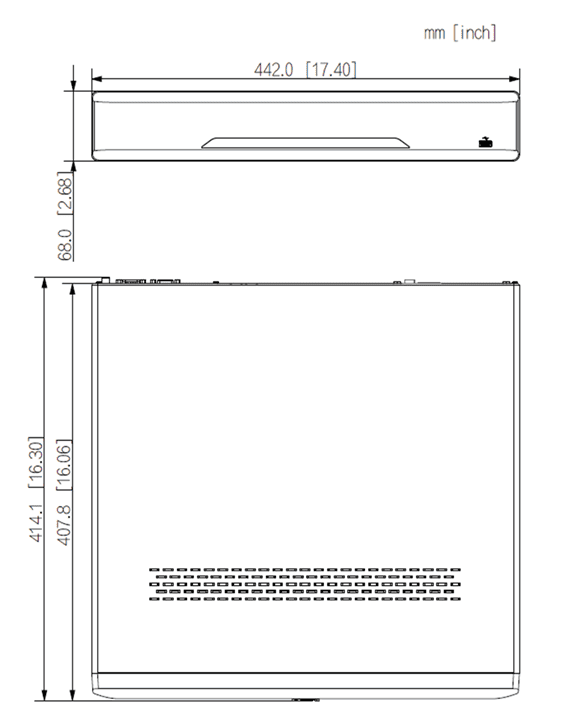

| Dimensions | 442.0 × 414.1 × 68.0 mm (17.4 × 16.3 × 2.7 in.) |
| Weight | 4.7 kg / 10.4 lb Without HDD |
| Certifications & Compliance | FCC Certified / NDAA Compliant |
Connect compatible existing Dahua IP cameras for a practical recorder upgrade, or use supported IP camera protocols for Axis, Dahua, Digital Watchdog, Hanwha, ONVIF, and Vivotek.
Compatibility and available features depend on the camera model, firmware, selected protocol, and system setup. Confirm audio, analytics, and event support before ordering.
Choose accessories for your setup. Sold separately.
Use NeoViewer for compatible remote live viewing, playback, and device management. Available functions depend on the model, firmware, and system setup.
Client Support: iOS / Android / Windows / Mac
Download NeoViewer CMS for desktop monitoring of compatible Premium NDAA cameras and NVRs. This is computer software, separate from the NeoViewer mobile app.
Downloads open in Google Drive. Supported features depend on the device model and firmware. Contact NSI for compatibility and setup guidance.
3-Year Manufacturer Warranty. Contact NSI Security for product selection, compatibility guidance, and warranty assistance.
Contact Support · Request an RMA · Shipping Policy
Ask NSI about compatibility, project quantities or dealer pricing.
