Premium NDAA
Model: IPC-HNR32NP6-16
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Storage: Supports up to 20TB capacity. Hard drives are not included unless explicitly stated in the selected configuration.
Camera Power: 16 built-in PoE ports. Check the total PoE budget and each camera's power requirements.
Retention depends on camera count, bitrate, frame rate, recording schedule and usable drive capacity. Recording support does not guarantee that every third-party analytics or audio feature is supported. Remote viewing requires a configured network and internet connection.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

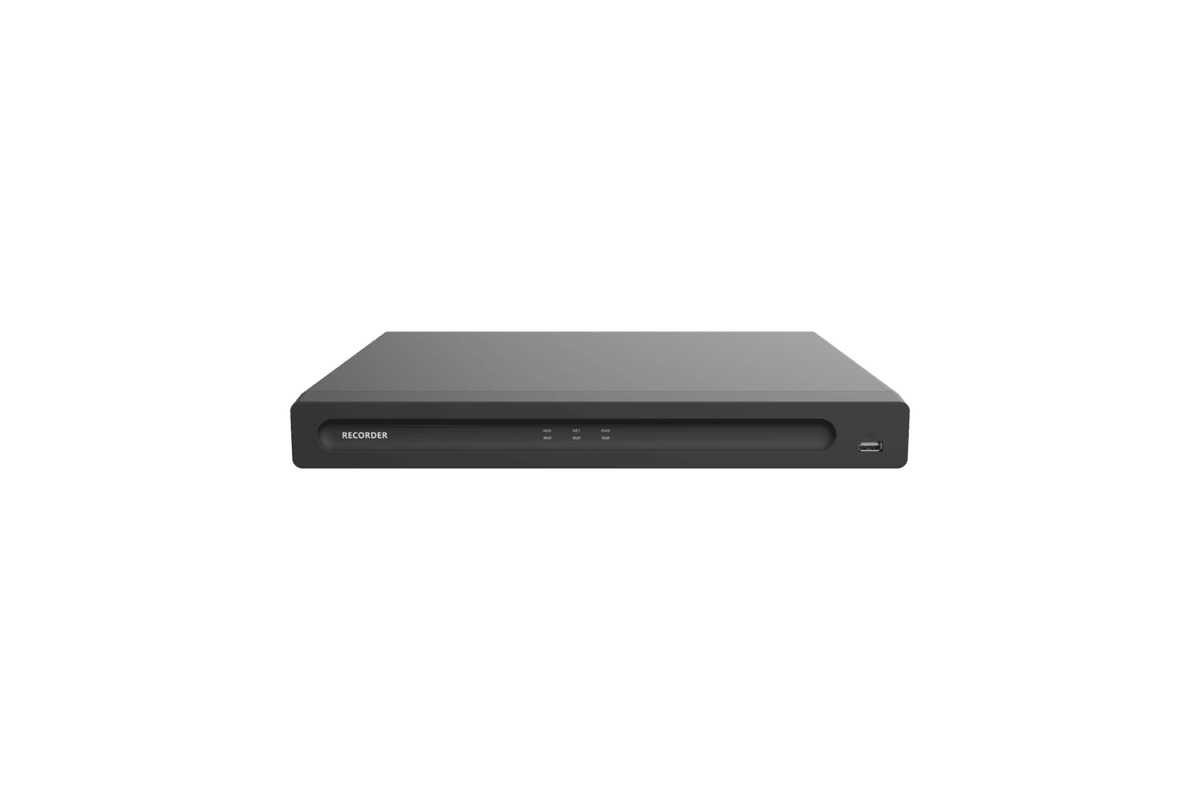

The Premium NDAA IPC-HNR32NP6-16 supports 16 IP camera channels and recording resolutions up to 8MP. It has 2 internal hard-drive bays. 16 built-in PoE ports provide camera connections.
Analytics require compatible cameras and the appropriate firmware and configuration. Review bandwidth, decoding, display outputs and analytics limits before sizing your system.
Part of the Premium NDAA product line.
Need help matching this product to your project? Ask NSI
| Recorder & channels | |
|---|---|
| Model Number | IPC-HNR32NP6-16 |
| IP Video Input | 16 Channels |
| Video, display & playback | |
| Recording Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| HDMI Output Resolution | 4K (3840 × 2160), 1920 × 1080, 1280 x 1024, 1280 x 720 |
| VGA Output Resolution | 1920 × 1080, 1280 x 1024, 1280 x 720 |
| Live View / Playback | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | H.265, H.264, H.264H, H.264B, MJPEG |
| Decoding Capability | Two (2) Channels: 8MP @ 30 fps Four (8) Channels: 1080p @ 30 fps |
| Synchronous Playback | 1, 4, 8, 9, or 16 Views Split-Screen Options |
| Analytics & search | |
| Camera AI Analytics Support | Intelligent Motion Detection (16-Ch), Video Content Analytics (8-Ch), Face Detection (4-Ch), License Plate Recognition (4-Ch) |
| Smart Search Module | Search by Target Classification, Pictures by Channel, Time, and Event Type |
| Storage | |
| SATA Interface Ports | Two (2) SATA Ports |
| HDD Storage Capacity | Up to 10 TB capacity per individual HDD (20TB Total Threshold) |
| PoE & camera connections | |
| PoE Camera Interfaces | 16 Ports RJ-45 Self-Adaptive Ethernet (10/100 Mbps) |
| PoE Standards | IEEE 802.3 af/at |
| PoE Power Budget | Total PoE Output Power: 115 W (Maximum output allocation per single port: 25.5 W) |
| Network & bandwidth | |
| Local Gigabit Network Uplink | One (1) RJ-45 Self-Adaptive Ethernet Port (10/100/1000 Mbps) |
| Throughput Bandwidth | Incoming/Recording Bandwidth: 160 Mbps Outgoing Bandwidth: 60 Mbps |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability Standards | ONVIF Compliant, RTSP |
| Audio, alarms & interfaces | |
| USB Interfaces | Front Panel: One (1) USB 2.0 Port Rear Panel: One (1) USB 2.0 Port |
| Hardware Alarm Interfaces | Input: Four (4) Channels Output: Two (2) Channels |
| Audio Connections | Input: One (1) RCA Channel Output: One (1) RCA Channel |
| Power & environment | |
| Power Input Supply | 100-240 V, 47-63 Hz, 3.5 A External Input |
| NVR Power Consumption | < 10 W (Without HDD installed) |
| Operating Conditions | -10 °C to 55 °C (10 °F to 131 °F) / 10% to 93% RH |
| Dimensions, installation & compliance | |
| NVR Unit Weight | 2.6 kg (5.8 lb) Without HDD |
| Dimensions (W x L x H) | 372.0 mm × 325.8 mm × 43.7 mm (14.7 in. × 12.8 in. × 1.7 in.) |
| Certifications & Compliance | FCC Certified, NDAA Compliant |
Connect compatible existing Dahua IP cameras for a practical recorder upgrade, or use supported IP camera protocols for Axis, Dahua, Digital Watchdog, Hanwha, ONVIF, and Vivotek.
Compatibility and available features depend on the camera model, firmware, selected protocol, and system setup. Confirm audio, analytics, and event support before ordering.
Dahua Recorder Alternative: N42C3P. Compare channel count, bandwidth, storage, and camera compatibility before replacing an existing recorder.
Choose accessories for your setup. Sold separately.
Use NeoViewer for compatible remote live viewing, playback, and device management. Available functions depend on the model, firmware, and system setup.
Download NeoViewer CMS for desktop monitoring of compatible Premium NDAA cameras and NVRs. This is computer software, separate from the NeoViewer mobile app.
Downloads open in Google Drive. Supported features depend on the device model and firmware. Contact NSI for compatibility and setup guidance.
3-Year Manufacturer Warranty. Contact NSI Security for product selection, compatibility guidance, and warranty assistance.
