Premium NDAA
Model: IPC-HNRA20N-64R
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Storage: Supports up to 160TB raw capacity. Hard drives are not included unless explicitly stated in the selected configuration.
Usable capacity depends on installed drives and RAID configuration.
Camera Power: No built-in PoE ports. Use a compatible external PoE switch or separately powered cameras.
Retention depends on camera count, bitrate, frame rate, recording schedule and usable drive capacity. Recording support does not guarantee that every third-party analytics or audio feature is supported. Remote viewing requires a configured network and internet connection.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

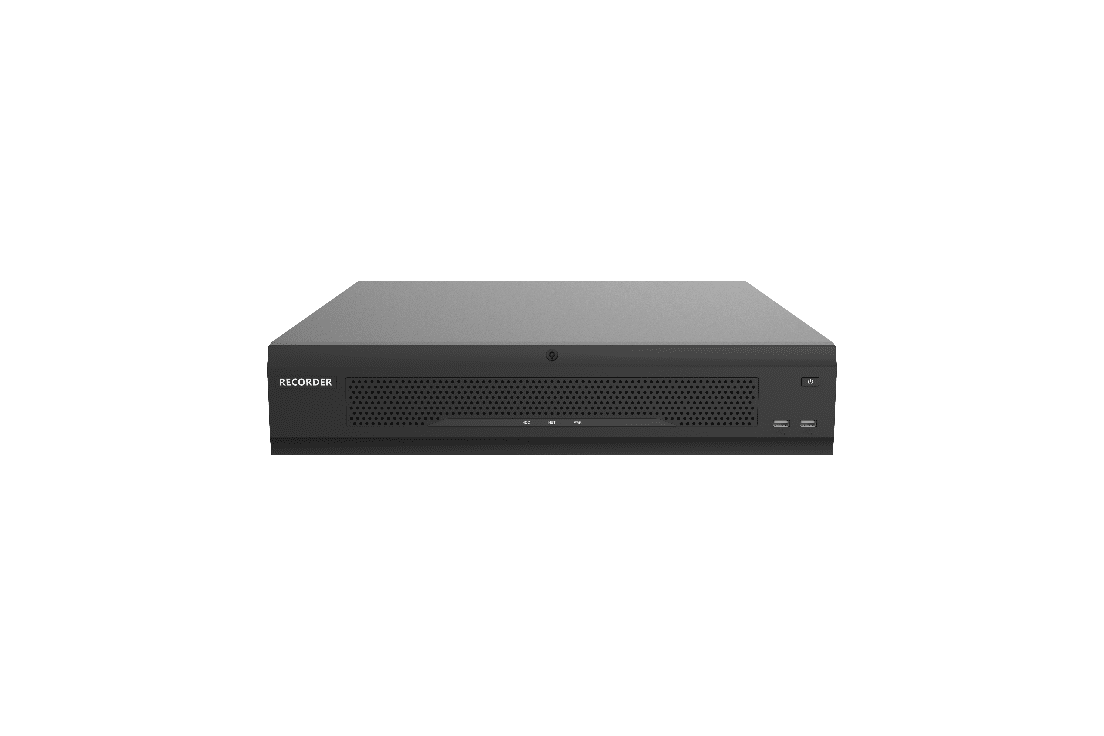

The Premium NDAA IPC-HNRA20N-64R supports 64 IP camera channels and recording resolutions up to 32MP. It has 8 internal hard-drive bays. There are no built-in PoE ports; cameras require an external PoE switch or separate power.
Analytics require compatible cameras and the appropriate firmware and configuration. Review bandwidth, decoding, display outputs and analytics limits before sizing your system.
Part of the Premium NDAA product line.
Need help matching this product to your project? Ask NSI
| Recorder & channels | |
|---|---|
| Model | IPC-HNRA20N-64R |
| IP Video Input | 64 Channels |
| Video, display & playback | |
| Supported Recording Resolutions | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| HDMI Outputs | 4 HDMI Outputs |
| HDMI 1 / HDMI 2 | Up To 3840 × 2160 (4K) |
| HDMI 3 | Up To 7680 × 4320 (8K) |
| HDMI 4 | Up To 1920 × 1080 |
| VGA Outputs | 2 Outputs / Up To 1920 × 1080 |
| Live View Layout | 1 / 4 / 9 / 16 / 25 / 36 / 64 Views |
| Auxiliary View Layout | 1 / 4 / 8 / 9 / 16 / 32 Views |
| Synchronous Playback | Up To 16 Views |
| Analytics & search | |
| Intelligent Motion Detection | Camera-Driven: 64 Channels / NVR-Driven: 32 Channels |
| Video Content Analytics | Camera-Driven: 64 Channels NVR-Driven: Up To 32 Channels |
| Face Recognition | Camera: Up To 64 Channels NVR: Up To 8 Channels In Simultaneous Output Mode |
| Face Database | Up To 40 Face Libraries / 300,000 Pictures Total |
| License Plate Recognition | Up To 64 Channels With Compatible LPR Cameras |
| LPR Database | 1 Block List / 1 Allow List / Up To 20,000 Plate Numbers |
| Smart Search | Up To 64 Channels With Compatible Cameras |
| Storage | |
| SATA Interfaces | 8 Hot-Swappable SATA Bays |
| eSATA | 1 Port |
| Maximum HDD Capacity | Up To 20TB Per HDD / 160TB Total |
| RAID | RAID 0 / 1 / 5 / 6 / 10 |
| Hot Swap | Supported |
| PoE & camera connections | |
| Built-In PoE Ports | None – External PoE Switch Required |
| Network & bandwidth | |
| Network Interfaces | 2 × RJ45 10/100/1000/2500 Mbps |
| Bandwidth – AI On | Incoming / Recording: 700 Mbps Outgoing: 512 Mbps |
| Bandwidth – AI Off | Incoming / Recording: 1400 Mbps Outgoing: 1024 Mbps |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF / RTSP |
| Audio, alarms & interfaces | |
| USB | Front: 2 × USB 2.0 Rear: 2 × USB 3.0 |
| Serial Interfaces | 1 × RS-232 / 1 × RS-485 |
| Alarm I/O | 16 Inputs / 8 Outputs |
| Audio | 1-Channel RCA Input / 2-Channel RCA Output / Two-Way Audio Supported |
| Power & environment | |
| Power Supply | 100–240 VAC, 50–60 Hz |
| NVR Power Consumption | <18W Without HDD |
| Operating Temperature | -10°C to 55°C / 14°F to 131°F |
| Operating Humidity | 10%–93% |
| Dimensions, installation & compliance | |
| Installation | Rack or Desktop Mount |
| Chassis | 2U |
| Dimensions | 442.0 × 457.3 × 88.0 mm (17.4 × 18.0 × 3.5 in.) |
| Weight | 7.2 kg / 15.8 lb Without HDD |
| Certifications & Compliance | FCC Certified / NDAA Compliant |
Connect compatible existing Dahua IP cameras for a practical recorder upgrade, or use supported IP camera protocols for Axis, Dahua, Digital Watchdog, Hanwha, ONVIF, and Vivotek.
Compatibility and available features depend on the camera model, firmware, selected protocol, and system setup. Confirm audio, analytics, and event support before ordering.
Dahua Recorder Alternative: N98A6N. Compare channel count, bandwidth, storage, and camera compatibility before replacing an existing recorder.
Choose accessories for your setup. Sold separately.
Use NeoViewer for compatible remote live viewing, playback, and device management. Available functions depend on the model, firmware, and system setup.
Download NeoViewer CMS for desktop monitoring of compatible Premium NDAA cameras and NVRs. This is computer software, separate from the NeoViewer mobile app.
3-Year Manufacturer Warranty. Contact NSI Security for product selection, compatibility guidance, and warranty assistance.
