Premium NDAA
Model: IPC-HNC6D54NIU
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

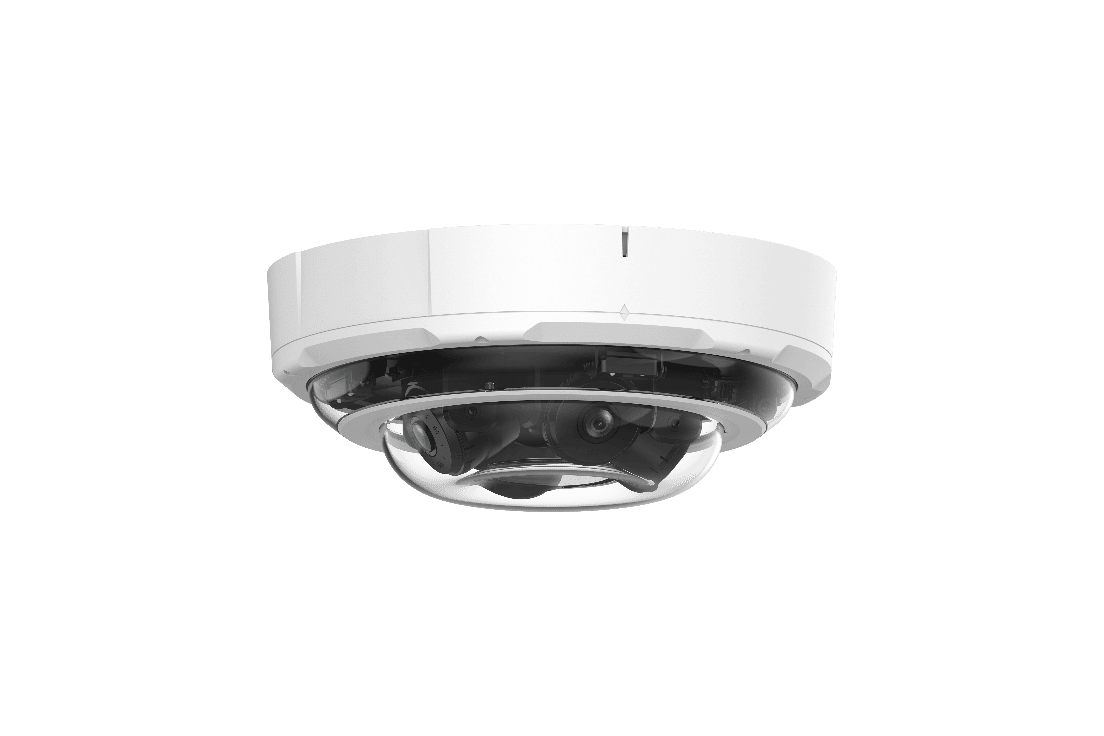

The Premium NDAA IPC-HNC6D54NIU is a multi-sensor network camera with four 5MP image sensors and adjustable 2.8–12mm lenses.
| Camera & imaging | |
|---|---|
| Model | IPC-HNC6D54NIU |
| Camera Type | 4 × 5MP Unstitched Multi-Sensor Network Camera |
| Image Sensors | Four 5MP 1/2.7-Inch Progressive CMOS Sensors |
| Maximum Resolution | 2592 × 1944 Per Sensor |
| Lens & positioning | |
| Lens Type | Motorized Varifocal |
| Focal Length | 2.8–12mm |
| Maximum Aperture | F1.7 |
| Field Of View | Horizontal: 100°–42° Vertical: 74°–32° Diagonal: 133°–53° |
| Close Focus Distance | 0.8m / 2.6 ft |
| DORI Distance | Detect: 66.0–140.4m (216.5–460.6 ft) Observe: 26.4–56.1m (86.6–184.1 ft) Recognize: 13.2–28.8m (43.3–94.5 ft) Identify: 6.6–14.0m (21.7–45.9 ft) |
| Installation Adjustment | Pan: 0°–360° Tilt: 0°–75° Rotation: 0°–355° |
| Iris Type | Fixed |
| Illumination & night monitoring | |
| Minimum Illumination | Color: 0.005 Lux @ F1.7 Black & White: 0.0005 Lux @ F1.7 0 Lux With IR On |
| Illuminators | 8 IR LEDs / 4 Per Sensor |
| IR Distance | Up To 30m / 100 ft |
| Illuminator Control | Automatic / Manual |
| Video & image settings | |
| Maximum Frame Rate | Single Stream Main Stream: 5MP at 30 fps Sub Stream 1: D1 at 30 fps Sub Stream 2: 1080p 30 fps Consolidated Stream Main Stream: 2MP at 30 fps Sub Stream 1: D1 at 30 fps Sub Stream 2: 8MP at 30 fps |
| Electronic Shutter | Automatic / Manual, 1/3s to 1/100,000s |
| S/N Ratio | >56dB |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG (Sub Stream Only) |
| Video Streams | Three (3) |
| Single-Stream Resolutions | 5MP (2592 × 1944), 4MP (2560 × 1440), 3MP (2304 × 1296 / 2048 × 1536), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240) |
| Consolidated Stream Resolutions | 8MP (3296 × 2472), 5MP (2592 × 1944), 1080p (1920 × 1080) |
| Video Bit Rate | H.264: 3–19,712 kbps H.265: 3–19,712 kbps |
| Bit Rate Control | CBR / VBR |
| Day / Night | Auto ICR / Color / Black & White |
| Noise Reduction | 3D NR |
| Light Balancing | DWDR |
| Image Rotation | 0° / 90° / 180° / 270° |
| Region Of Interest | 4 Zones |
| Privacy Masking | 8 Zones |
| Standard Codec | Supported |
| Mirror Rotation | Supported |
| Audio, analytics & alarms | |
| VCA+ | Line Crossing (Human / Vehicle), Intrusion (Human / Vehicle), Loitering Detection, Parking Detection |
| Face Detection | Facial Snapshots & Attribute Capture |
| AI Analytics | Face Detection / People Counting / Smart Object Detection |
| People Counting | Tripwire / In-Area People Counting / Queue Management With Reports |
| Audio I/O | 1-Channel RCA Input / 1-Channel RCA Output |
| Audio Compression | G.711a / G.711Mu / PCM |
| Alarm I/O | Input: Three (3) Channels (Max. 5 VDC, 5 mA) Output: Two (2) Channels (Max. 12 VDC, 300 mA) |
| Alarm Events | No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Abandoned Object, Missing Object, Loitering Detection, People Gathering, Parking Detection, Scene Changing, Audio Detection, External Alarm, Face Detection, People Counting In Area, Abnormal Number of People Detection, People Counting, People Stay Detection |
| Network & storage | |
| Network Interface | RJ45 10/100 Base-T Ethernet |
| ONVIF | Profiles S / G / T; API; P2P |
| Browser Support | Chrome / Firefox / Edge |
| Storage | FTP / SFTP / NAS / MicroSD Card Up To 256GB |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP; NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| Power & environment | |
| Power | 12VDC / PoE+ IEEE 802.3at |
| Maximum Power Consumption | <24.7W |
| Weather Protection | IP67 |
| Vandal Resistance | IK10 |
| Housing Material | Metal / Plastic |
| Operating Temperature | -30°C to 60°C / -22°F to 140°F |
| Operating Humidity | <95% RH, Non-Condensing |
| Storage Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Dimensions & compliance | |

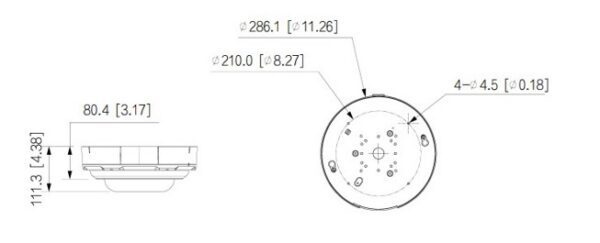

| Dimensions | 111.3 × Ø286.1 mm (4.4 × Ø11.3 in.) |
| Net Weight | 2.8 kg / 6.1 lb |
| Certifications & Compliance | FCC, IC / NDAA Compliant |
| Gross Weight | 4.5 kg (9.9 lb) |
| Compatibility & included items | |
| Compatible Wall Mount | HTH-602NJ |
| Compatible Pendant Mount | HTH-661NJ-24 / HTH-661NJ-36 |
| App & warranty | |
| Mobile App | NeoViewer – iPhone & Android |
| Warranty | 3-Year Manufacturer Warranty |
| Client Software | NeoViewer |
3-Year Manufacturer Warranty. Warranty coverage is subject to the applicable manufacturer terms.
This product is an alternative to Dahua IP camera models DH-IPC-PDBW82041-B360-S2, DH-IPC-PDBW5831N-B360.
Confirm lens coverage, recorder resolution and channel capacity, firmware, analytics, power and mounting requirements for the installation.
Available features depend on the model, firmware and system setup.
Desktop software is separate from the mobile app. Supported features depend on the device model and firmware.
Flexible deployment
View a compatible camera with NeoViewer. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use NeoViewer for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
