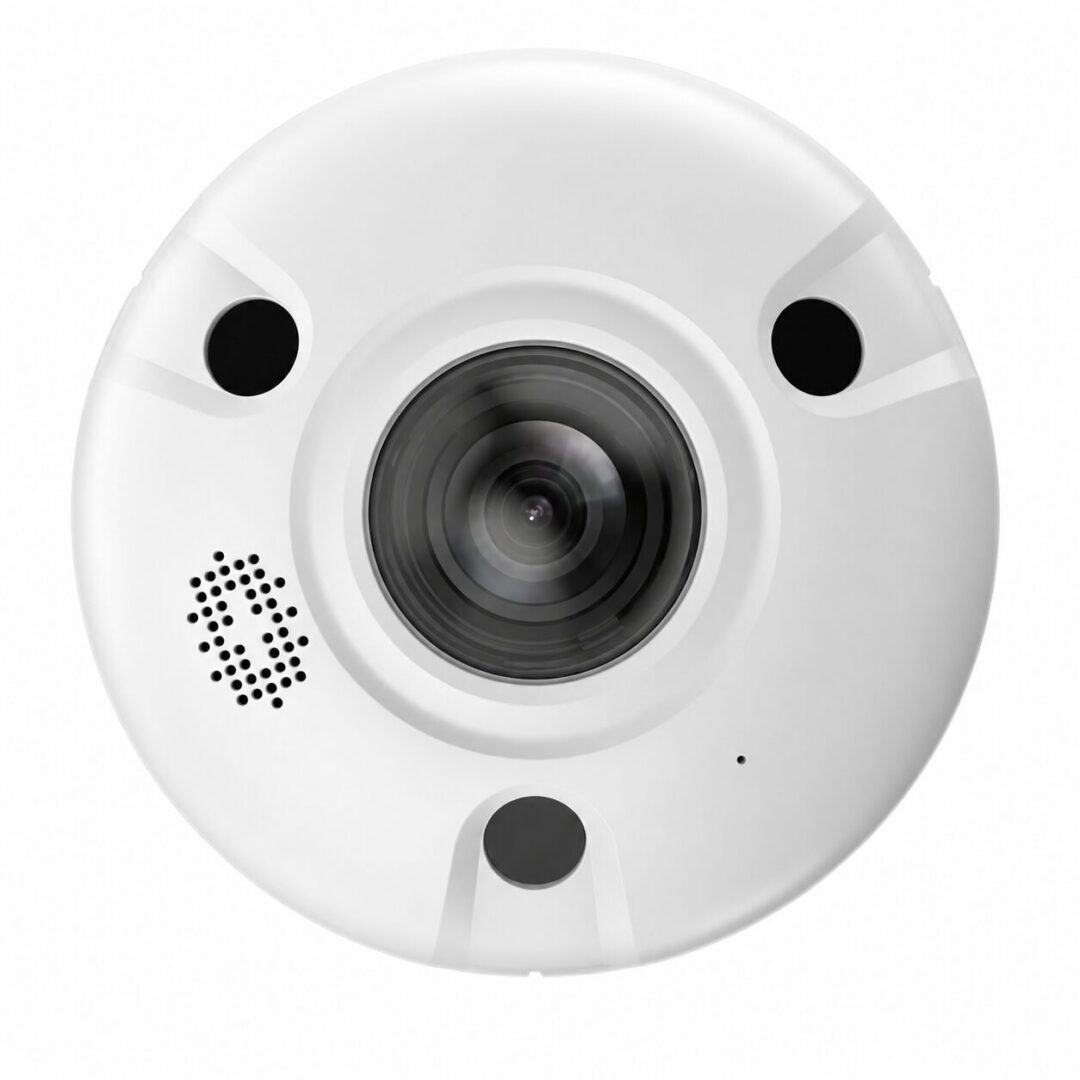

The Premium NDAA IPC-HNCA12N-FEU is a 12MP fisheye camera for panoramic monitoring.
| Camera & imaging | |
|---|---|
| Model Number | IPC-HNCA12N-FEU |
| Image Sensor | 1/1.7-in. 12MP Progressive CMOS |
| Maximum Resolution | 4000 x 3000 |
| Lens & positioning | |
| Lens Type / Iris Type | Fixed / Fixed |
| Focal Length / Aperture | 1.85mm / F2.0 |
| Field of View (FOV) | Horizontal: 185°; Vertical: 180° |
| Close Focus Range | 0.4 m (1.31ft) |
| DORI Distance | Detect: 40.0 m (131.2 ft) Observe: 16.0 m (52.5 ft) Recognize: 8.0 m (26.2 ft) Identify: 4.0 m (13.1 ft) |
| Illumination & night monitoring | |
| Minimum Illumination | Color: 0.01 Lux (F2.0) Black/White: 0.001 Lux (F2.0) 0 Lux With IR Light On |
| Number of Illuminators | 3 IR LEDs (Matrix Configuration) |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | IR Up to 10 m (30ft) |
| Video & image settings | |
| Electronic Shutter Speed | Automatic, Manual (1/3 s to 1/100,000 s) |
| S/N Ratio | > 56 dB |
| Video Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Substream Only) |
| Stream Capability | Three (3) Streams |
| Supported Resolutions | 4000 × 3000 (12MP), 3280 × 2480 (8MP), 2880 × 2160 (6MP), 2048 x 1546 (3MP), 704 x 480 (D1), 352 x 240 (CIF) |
| Maximum Frame Rate | Mainstream: 4000 x 3000 at 25 fps Substream 1: 704 x 576 at 30 fps Substream 2: 1280 x 960 at 30 fps |
| Fisheye Dewarp Modes | 1O (4000×3000), 1P (4096×1024), 2P (2432×2432), 1R (1216×1216), 2R (2432×2432), 4R (2432×2432), 1O+3R (2432×2432) |
| Video Bit Rate | H.264: 3 kbps to 14,336 kbps H.265: 3 kbps to 16,384 kbps (CBR/VBR) |
| Day / Night Mode | Auto (ICR), Color, Black and White |
| Noise Reduction / WDR | 3D NR / DWDR |
| Image Parameters | Image Angle: 0°/90°/180°/270°; Mirror Rotation Supported |
| Regions / Masking | Region of Interest (ROI): 4 Zones; Privacy Masking: 4 Zones |
| Standard Codec | Supported |
| Audio, analytics & alarms | |
| Video Content Analytics+ | Line Crossing, Intrusion |
| AI Intelligent Modules | Face Detection (Snapshot/Facial Attributes), Heat Map Tracking, People Counting (Tripwire/In-Area/Queue Management with Reports) |
| Audio Compression | PCM, G.711A, G.711Mu, G.726, G.723 |
| Audio Interface | Input: Built-In Dual Microphone and 1x RCA Port Output: Built-In Speaker and 1x Channel RCA Port |
| Alarm Events Tracking | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Tripwire, Intrusion, Scene Changing, Audio Detection, External Alarm, People Counting In Area, Stay Detection, People Counting, Security Exception |
| Alarm Interface Connections | Input: Two (2) Channels 5mA 3V-5VDC Output: Two (2) Channels 1,000mA 30VDC / 500mA 50VDC |
| Network & storage | |
| Network Interface & Interop | RJ-45 (10/100 Base-T); ONVIF (Profile S/G/T), API, SDK |
| Protocols | IPv4, IPv6, TCP, UDP, RTP, RTCP, RTSP, RTMP, NTP, HTTP, ARP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P |
| Edge Storage Capacity | FTP, SFTP, MicroSD Card (Max. 256 GB), NAS |
| Supported Browsers | Chrome, Firefox, Edge |
| Power & environment | |
| Power Infrastructure | 12 VDC / PoE+ (802.3at) / Consumption: < 13.9 W |
| Operating Conditions | -40 °C to 60 °C (-22°F to 140°F) / < 95% RH (Non-Condensing) |
| Protection / Material | IP67 Weatherproof, IK10 Certified Vandal-Proof / Metal Construction |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Dimensions & compliance | |

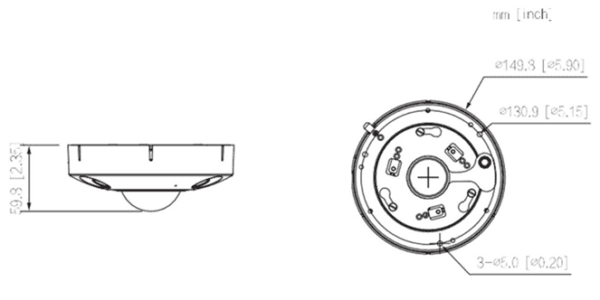

| Product Dimensions | 59.8 mm × Φ149.8 mm (2.35 in. × Φ5.90 in.) |
| Weight Parameters | Net: 0.79 kg (1.74 lb) Gross Shipping Weight: 1.21 kg (2.67 lb) |
| Certifications & Compliance | FCC, IC, NDAA Compliant |
| Compatibility & included items | |

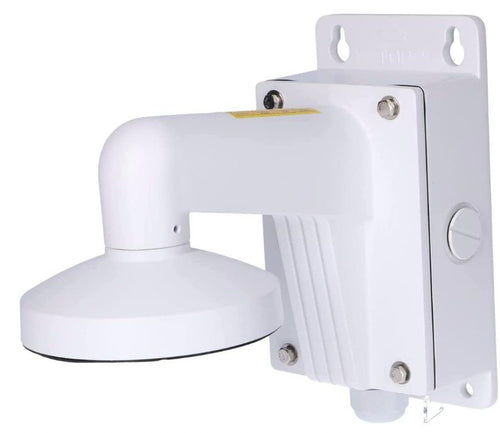

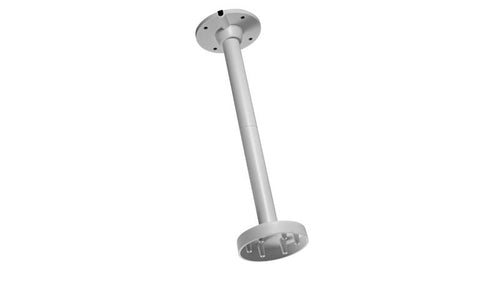

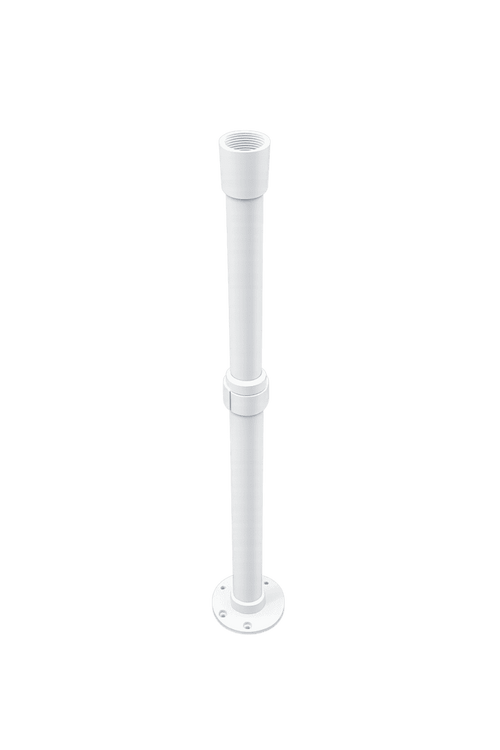

| Compatible System Mounts | Electrical Box: HTH-285NJ-J03 Wall Mount: HTH-272NJ-150B Pole Mount: HTH-271NJ-150 2-4 ft Telescope Mount: HTH-271NJ-150-24 3-6 ft Telescope Mount: HTH-271NJ-150-36 |
| App & warranty | |
| Client Software | NeoViewer, NeoViewer App |
3-Year Manufacturer Warranty. Warranty coverage is subject to the applicable manufacturer terms.
This product is an alternative to Dahua IP camera model DH-IPC-EBW81242N-AS-S2.
Confirm lens coverage, recorder resolution and channel capacity, firmware, analytics, power and mounting requirements for the installation.
Desktop software is separate from the mobile app. Supported features depend on the device model and firmware.
Flexible deployment
View a compatible camera with NeoViewer. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use NeoViewer for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
