Premium NDAA
Model: IPC-HNCA06N-FEU
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

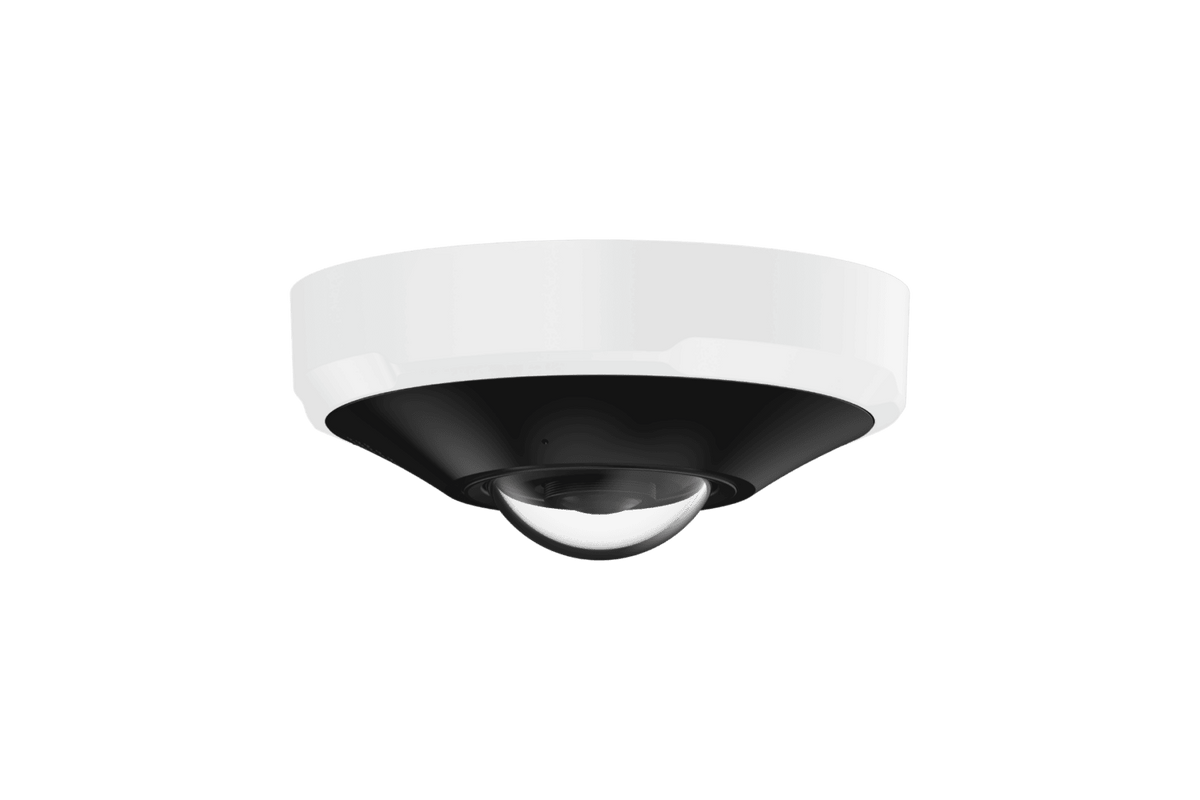

The Premium NDAA IPC-HNCA06N-FEU is a 6MP fisheye camera for panoramic monitoring.
| Camera & imaging | |
|---|---|
| Model Number | IPC-HNCA06N-FEU |
| Image Sensor | 1/2.5″ CMOS |
| Maximum Resolution | 2560 x 2560 |
| Lens & positioning | |
| Lens Type / Iris Type | Fixed-focal / Fixed |
| Focal Length / Aperture | 1.68 mm / F2.0 |
| Field of View (FOV) | Horizontal: 185°, Vertical: 185°, Diagonal: 185° |
| Close Focus Range | 0.3 m (0.98 ft) |
| DORI Distance | Detect: 33.5 m (110 ft) Observe: 13.7 m (45 ft) Recognize: 6.7 m (22 ft) Identify: 3.3 m (11 ft) |
| Fisheye Installation | Ceiling mount; Wall mount; Ground mount |
| Illumination & night monitoring | |
| Minimum Illumination | Color: 0.006 Lux at F2.0 Black & White: 0.0006 Lux at F2.0 0 Lux with IR Light On |
| Number of Illuminators | 3 x IR LEDs |
| Illumination Range | Horizontal: 185°; Vertical: 180°; Up to 15 m (50 ft) |
| Illuminator Control | Auto, Manual, Off |
| Video & image settings | |
| Electronic Shutter Speed | Auto/Manual (1/3 s to 1/100,000 s) |
| S/N Ratio / Noise Reduction | > 56 dB / 3D NR |
| Light Balancing / WDR | True WDR (120 dB) / DWDR |
| Video Compression | H.265, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Three (3) Streams (CBR, VBR, ABR supported) |
| Supported Resolutions | 6M (2560×2560), 4M (2048×2048), 1.6M (1280×1280), 2M (1440×1440), 1M (1024×1024), 720×720, SVCD (480×480), 2.5M (2560×960), 1.5M (2048×768), 1.3M (1920×720), 1280×480, 640×240, VGA (640×480), QVGA (320×240), 3M (2048×1536), 2.7M (1920×1440), XVGA (1024×768), UVGA (1600×1200) |
| Maximum Frame Rate | Main stream: 6MP at 30 fps Sub streams: 2MP at 30 fps |
| Video Bit Rate | H.264 / H.265: 3 kbps to 6144 kbps |
| Image Parameters | Image Angle: 0°/90°/180°/270°; Mirror, Rotation, and Privacy Mask (4 areas) supported |
| Fisheye Decoding Modes | Hard Decoding, Soft Decoding |
| Fisheye Display Modes | Hard Decoding: 1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R 2P/2R: Supports split screen for 2 windows. 4R: Supports split screen for 4 windows. *O: Fisheye original image view; P: Panoramic image view; R: Region image view. |
| Day / Night Mode | Auto/Color/B/W |
| Smart Codec | Supported |
| Region of Interest | Supported (4 areas) |
| Audio, analytics & alarms | |
| Intelligent Analysis | Video Content Analytics (VCA): Intrusion, Line Crossing Advanced Features: Heat Map, People Counting |
| Audio Interface & Compression | Built-in microphone & built-in speaker; 1× input, 1× output; PCM, G.711a, G.711Mu |
| Alarm Events Tracking | Line Crossing, Intrusion, Motion Detection, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception |
| Alarm Interface Connections | Input: 1x Channel (Max. 5 VDC, 5 mA) Output: 1x Channel (Max. 12 VDC, 300 mA) |
| Network & storage | |
| Network Interface & Interop | RJ-45 (10/100 Base-T); ONVIF (Profile S / G / T), CGI |
| Supported Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, NFS |
| Edge Storage Capacity | FTP, SFTP, NAS, Micro SD card (Supports max. 1 TB) |
| RS-485 | 1 |
| Reset Button | Supported |
| Power & environment | |
| Power Infrastructure | 12 VDC / PoE (802.3af) 12 VDC Consumption: Max 8.1 W, Typical 1.4 W PoE Consumption: Max 10.1 W, Typical 2.6 W |
| Operating Conditions | -30°C to +60°C (-22°F to +140°F) / Less than 95% RH |
| Structural Grading | IP67 Weatherproof / IK10 Vandal-Proof Rating / Metal Housing |
| Storage Temperature | -22°F to +140°F (-30°C to +60°C) |
| Dimensions & compliance | |

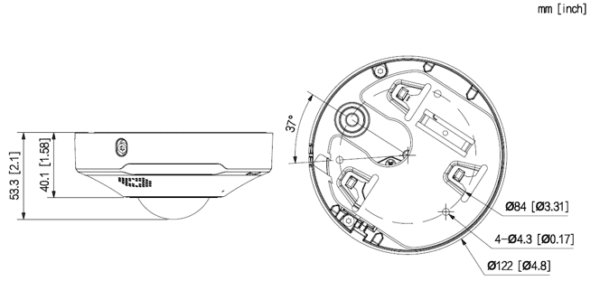

| Dimensions (Diameter x H) | Φ122.0 mm x 53.3 mm (Φ4.80″ x 2.10″) |
| Packaging Dimensions | 155 mm x 155 mm x 102 mm (6.10” × 6.10” × 4.02”) (L x W x H) |
| Weight Parameters | Net: 0.46 kg (1.01 lb) Gross Shipping Weight: 0.75 kg (1.65 lb) |
| Certifications & Compliance | FCC, NDAA Compliant |
| Compatibility & included items | |
| Compatible System Mounts | Electrical Box: HTH-280NJ-J02 Wall Mount: HTH-272NJ-120B Pole Mount: HTH-271NJ-120 2-4 ft Telescope Mount: HTH-271NJ-120-24 3-6 ft Telescope Mount: HTH-271NJ-120-36 |
| App & warranty | |
| Client Software | PC client: NeoViewer Mobile APP: NeoViewer |
3-Year Manufacturer Warranty. Warranty coverage is subject to the applicable manufacturer terms.
Confirm lens coverage, recorder resolution and channel capacity, firmware, analytics, power and mounting requirements for the installation.
Desktop software is separate from the mobile app. Supported features depend on the device model and firmware.
Flexible deployment
View a compatible camera with NeoViewer. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use NeoViewer for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
