Premium NDAA
Model: IPC-HNC344N-XDLUA/2.8
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

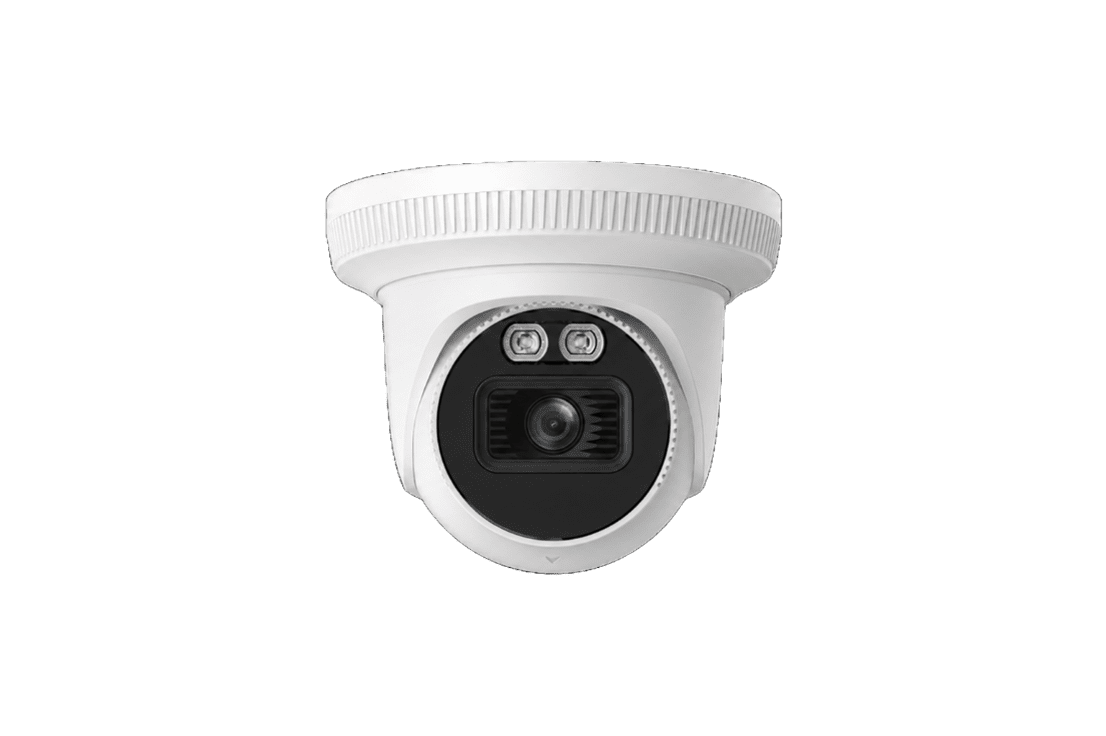

The Premium NDAA IPC-HNC344N-XDLUA/2.8 is a 4MP full-color turret camera with a fixed 2.8mm lens.
| Camera & imaging | |
|---|---|
| Model Number | IPC-HNC344N-XDLUA/2.8 |
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 x 1520 |
| Lens & positioning | |
| Installation Angle | Pan: 0° to 360°; Tilt: 0° to 78°; Rotation: 0° to 360° |
| Lens Type / Iris Type | Fixed / Fixed |
| Focal Length / Aperture | 2.8 mm / F1.0 |
| Field of View (FOV) | Horizontal: 112° Vertical: 60° Diagonal: 134° |
| Close Focus Range | 2.0 m (6.6 ft) |
| DORI Distance | Detect: 46.9 m (153.9 ft) Observe: 17.9 m (58.7 ft) Recognize: 9.3 m (30.5 ft) Identify: 4.5 m (14.8 ft) |
| Illumination & night monitoring | |
| Minimum Illumination | Color: 0.0006 Lux at F1.0 |
| Number of Illuminators | 2 White-Light LED |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | White Light: Up to 30.5 m (100 ft) |
| Video & image settings | |
| Electronic Shutter Speed | Automatic, Manual (1/3 s to 1/100,000 s) |
| S/N Ratio | > 50 dB |
| Video Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Two (2) Streams |
| Supported Resolutions | 4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate | Main Stream: 2560 x 1440 at 30 fps Sub Stream 1: D1 at 30 fps |
| Video Bit Rate | H.264 / H.265: 3 kbps to 6,144 kbps (CBR/VBR) |
| Day / Night Mode | Automatic (ICR), Color, Black and White |
| Noise Reduction / WDR | 3D NR / Wide Dynamic Range (120 dB) |
| Image Parameters | Image Angle: 0°/90°/180°/270° (90°/270° available for 2688 × 1520 or lower); Mirror Rotation Supported |
| Regions / Masking | Region of Interest (ROI): 4 Zones; Privacy Masking: 4 Zones |
| Standard Codec | Supported |
| Audio, analytics & alarms | |
| Video Content Analytics | Line Crossing, Intrusion |
| Smart Motion Detection | Supported with Alarms for Vehicles and Humans |
| Audio Compression | G.711a, G.711Mu, PCM |
| Audio Interface | Input: Built-In Microphone |
| Alarm Events Tracking | Line Crossing, Intrusion, Motion Detection, Smart Motion, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP Conflict, Voltage Detection, Security Warning |
| Network & storage | |
| Network Interface & Interop | RJ-45 (10/100 Base-T); ONVIF (Profile S/G/T), CGI |
| Supported Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Edge Storage Capacity | FTP, SFTP, Micro SD Card (Max. 256 GB) |
| Supported Browsers | Chrome, Firefox, Edge |
| Power & environment | |
| Power Supply | 12 VDC, PoE (802.3af) |
| Power Consumption | 12 VDC: Normal 2.0 W / Max 5.3 W PoE: Normal 2.5 W / Max 6.4 W |
| Operating Conditions | -40 to 60 °C (-40 to 140 °F) / < 95% RH (Non-Condensing) |
| Protection / Material | IP67 Weatherproof / Metal Construction |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Dimensions & compliance | |

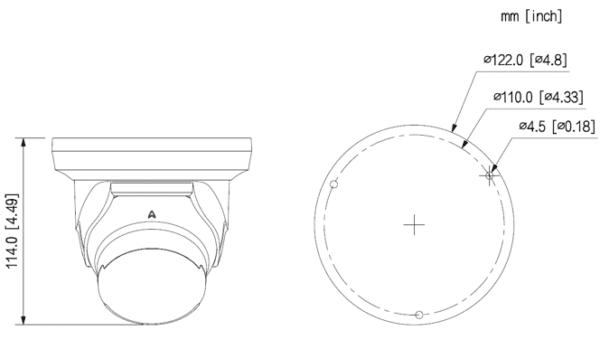

| Product Dimensions | Φ122.0 mm x 111.8 mm (Φ4.8 in. x 4.4 in.) |
| Weight Parameters | Net: 0.5 kg (1.2 lb) Gross Shipping Weight: 0.7 kg (1.6 lb) |
| Certifications & Compliance | FCC, IC, NDAA Compliant |
| Compatibility & included items | |
| Compatible System Mounts | Electrical Box: HTH-280NJ-J02, HTH-280NJ-CJ11 Wall Mount: HTH-262NJ-W01, HTH-272NJ-120B Pole Mount: HTH-271NJ-120 2-4 ft Telescope Mount: HTH-271NJ-120-24 3-6 ft Telescope Mount: HTH-271NJ-120-36 |
| App & warranty | |
| Client Software | NeoViewer, NeoViewer App |
3-Year Manufacturer Warranty. Warranty coverage is subject to the applicable manufacturer terms.
This product is an alternative to Dahua IP camera models N43BJ62, N45DUD2.
Confirm lens coverage, recorder resolution and channel capacity, firmware, analytics, power and mounting requirements for the installation.
Desktop software is separate from the mobile app. Supported features depend on the device model and firmware.
Flexible deployment
View a compatible camera with NeoViewer. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use NeoViewer for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
