Premium NDAA
Model: IPC-HNC524N-VBA50-LPR
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

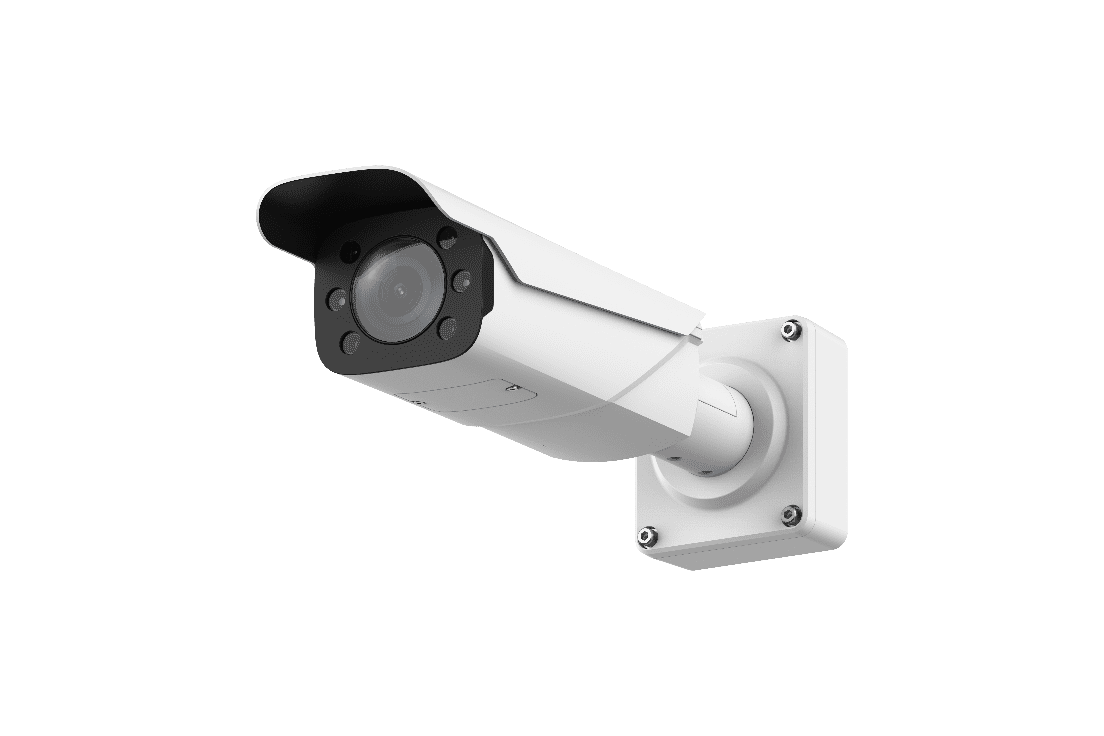

The Premium NDAA IPC-HNC524N-VBA50-LPR is a 4MP license-plate recognition camera with a 10–50mm lens.
| Camera & imaging | |
|---|---|
| Model Number | IPC-HNC524N-VBA50-LPR |
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 × 1520 (OSD Black Strip Excluded) |
| Lens & positioning | |
| Lens Mount / Iris Type | Module / Automatic (W:1.33—T:1.34) |
| Lens Type / Focal Length | Motorized Vari-Focal / 10 to 50 mm (0.4 to 2.0 in.) |
| Field of View (FOV) | Horizontal: 40.55° (W)–9.33° (T) Vertical: 22.7° (W)–5.3° (T) Diagonal: 46.6° (W)–10.63° (T) |
| Illumination & night monitoring | |
| Minimum Illumination | 0.002 Lux (Built-In Illuminator On) |
| Number of Illuminators | Six (6) IR Illuminators With Adjustable Brightness |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | Up to 30.0 m (98.4 ft) |
| Video & image settings | |
| Shutter Mode | Automatic, Manual (1/25 s–1/10,000 s) |
| Video Compression | H.265, H.264M, H.264H, MJPEG |
| Image Encoding Format | JPEG Snapshots |
| Stream Capability | Two (2) Streams |
| Main Stream Resolutions | 4MP (2688×1520), 2MP (1600×1200), 1080p (1920×1080), 720p (1280 × 720) @ 30 fps |
| Sub Stream Resolutions | 720p (1280 × 720), 960H (960× 480), D1 (704 × 480), CIF (352 × 240) @ 30 fps |
| Video Bit Rate | H.264/H.265: 4096 to 10240 kbps MJPEG: 8192 to 40960 kbps |
| Light & White Balancing | Wide Dynamic Range (96 dB) / Auto, Outdoor, Manual, Partial, Natural, Street Lamp |
| Noise Reduction Suite | 3D NR, Video 3D NR, Video Spatial 3D NR, Video Temporal 3D NR |
| OSD Data Overlays | Time, Plate, Vehicle (Color, Type), Vehicle Position, Counterfeit, Checkpoint Direction, Trigger Source, Custom Text |
| Image Tampering Prevention | Secure Watermark, Verification Function |
| Exposure Mode | Manual, Auto |
| Edge Enhancement | Supported |
| Audio, analytics & alarms | |
| Maximum Detection Speed | 80.5 km/h (50.0 mi/h) |
| Detection Width | 6.0 m to 7.0 m (19.7 ft to 23.0 ft) |
| Capture Distance | 8.0 m to 30.0 m (26.3 to 98.4 ft) |
| Trigger Mode | Video Detection, I/O Coil |
| ANPR Analytics Performance | Vehicle Detection Rate: ≥ 99%; Vehicle Recognition Rate: ≥ 95% |
| Recognized Attributes | Vehicle Color, Front-Seat Passenger, Licensed/Unlicensed Status, Plate & Vehicle Path Display |
| Audio Interface | Output: One (1) Channel RCA Port |
| Alarm Events Tracking | No SD Card, Insufficient Memory, SD Card Error, Offline, IP Conflict, Illegal Access, Security Exception |
| Alarm Interfaces | Input: 2-Channel Optocoupler (On/Off) Output: 2-Channel Relay (Gate control tripping) |
| Network & storage | |
| Hardware Ports | 1x RJ-45 (100/1000 Mbps Ethernet), 2x RS-485 Ports, 1x Wiegand Channel |
| Interoperability & Security | ONVIF (Profile S/T), CGI, SDK; Username/Password, MAC Address Binding, HTTPS Encryption, IEEE 802.1X, Network Access Control |
| Storage Options | Built-In 1x TF MicroSD Card Port (Max. 128 GB), ANR via Platform/FTP |
| Auto Registration | Supported |
| Power & environment | |
| Power Infrastructure | 12 VDC / PoE+ / Consumption: < 20 W |
| Operating Conditions | -30 to 65 °C (-22 to 149 °F) / 10 to 90% RH (Non-Condensing) |
| Protection Rating / Build | IP67 Weatherproof / Metal and Heavy Plastic |
| Dimensions & compliance | |

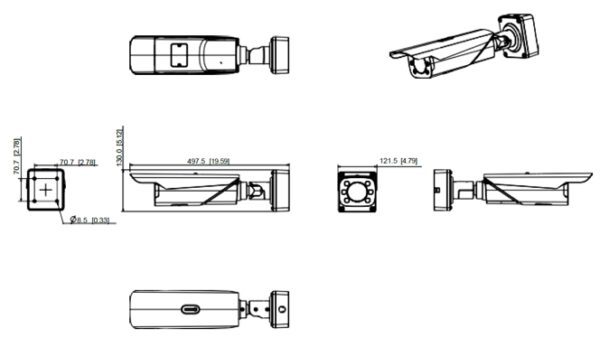

| Product Dimensions (L×W×H) | 497.4 × 121.6 × 130.0 mm (19.6 × 4.8 × 5.1 in.) |
| Packaging Dimensions | 625.0 × 305.0 × 270.0 mm (24.6 × 12.0 × 10.6 in.) |
| Weight Parameters | Net: 3.2 kg (7.05 lb) Gross Shipping Weight: 5.2 kg (11.46 lb) |
| Certifications & Compliance | FCC, IC, NDAA Compliant |
| Compatibility & included items | |
| Included Accessories | Integrated Electrical Junction Box Included |
3-Year Manufacturer Warranty. Warranty coverage is subject to the applicable manufacturer terms.
This product is an alternative to Dahua IP camera model ITC413-PW4D-Z3.
Confirm lens coverage, recorder resolution and channel capacity, firmware, analytics, power and mounting requirements for the installation.
Desktop software is separate from the mobile app. Supported features depend on the device model and firmware.
Flexible deployment
View a compatible camera with NeoViewer. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use NeoViewer for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
