Premium NDAA
Model: IPC-HNC6D42NIU
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

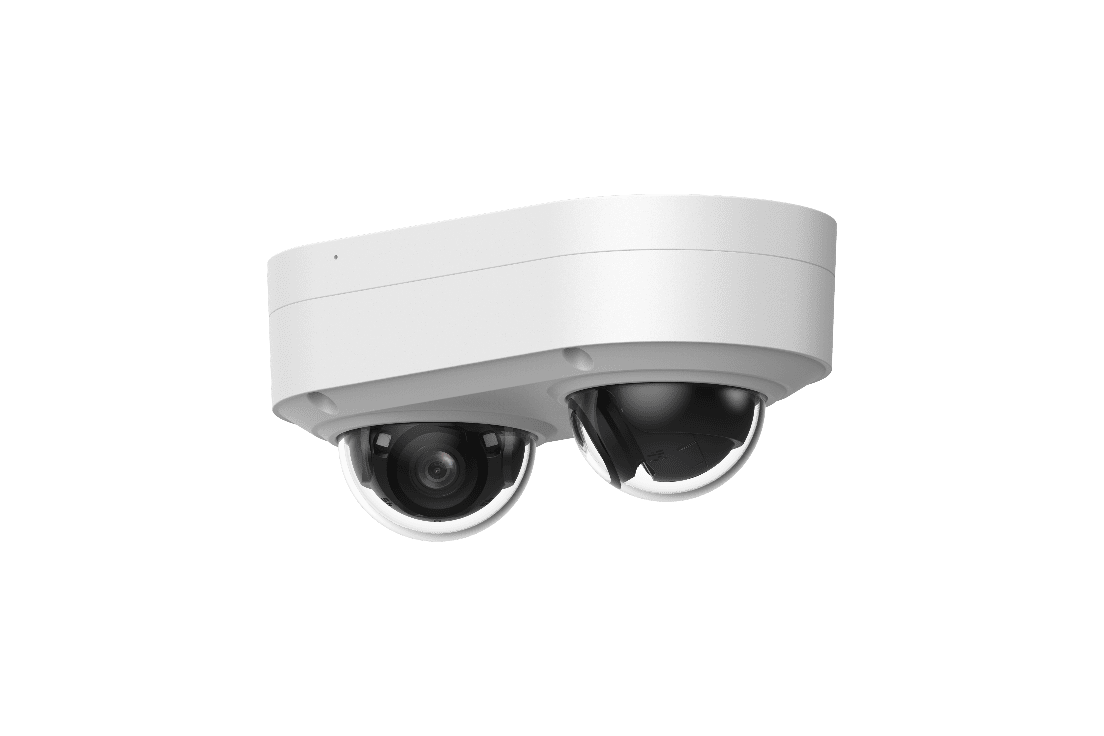

The Premium NDAA IPC-HNC6D42NIU is a dual-directional network camera with two 4MP image sensors and separate views.
| Camera & imaging | |
|---|---|
| Model | IPC-HNC6D42NIU |
| Camera Type | 2 × 4MP Unstitched Dual-Lens Network Camera |
| Image Sensors | Dual 4MP 1/2.7-Inch CMOS Sensors |
| Maximum Resolution | 2688 × 1520 |
| Lens & positioning | |
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Maximum Aperture | F1.6 |
| Field Of View | Horizontal: 101° Vertical: 54° Diagonal: 120° |
| Close Focus Distance | 1.1m / 3.6 ft |
| DORI Distance | Detect: 63.1m / 207.0 ft Observe: 25.0m / 82.0 ft Recognize: 12.5m / 41.0 ft Identify: 6.3m / 20.7 ft |
| Installation Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Iris Type | Fixed |
| Illumination & night monitoring | |
| Minimum Illumination | Color: 0.0007 Lux @ F1.6 0 Lux With IR On |
| Number Of Illuminators | 8 IR LEDs / 4 Per Sensor |
| IR Distance | Up To 30m / 100 ft |
| Illuminator Control | Automatic / Manual |
| Video & image settings | |
| Maximum Frame Rate | Main Stream: 2688 × 1520 @ 20 fps Sub Stream 1: D1 @ 30 fps The datasheet also lists Sub Stream 2: 1080p @ 30 fps |
| Electronic Shutter | Automatic / Manual, 1/3s to 1/100,000s |
| S/N Ratio | >56dB |
| Wide Dynamic Range | 120dB WDR |
| Noise Reduction | 3D NR |
| Day / Night | Color / Black & White |
| Video Compression | H.264, H. 265, Smart Encoding H.265, Smart Encoding H.264, MJPEG (Sub Stream 1 Only) |
| Video Stream Capability | The specification table lists Two (2) Streams |
| Video Bit Rate | H.264: 3–10,240 kbps H.265: 3–10,240 kbps |
| Bit Rate Control | CBR / VBR |
| Image Rotation | 0° / 90° / 180° / 270° |
| Region Of Interest | 4 Zones |
| Privacy Masking | 4 Zones |
| Standard Codec | Supported |
| Supported Resolutions | 4MP (2688 × 1520), 4MP (2560 × 1440), 3MP (2048 × 1536/2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240) |
| Mirror Rotation | Supported |
| Audio, analytics & alarms | |
| Video Content Analytics | Line Crossing / Intrusion |
| Smart Motion Detection | Human & Vehicle Classification |
| Audio | Built-in microphone; 1-channel audio input and 1-channel audio output |
| Audio Compression | G.711a / G.711Mu / PCM |
| Alarm Events | Line Crossing, Intrusion, Motion Detection, Smart Motion, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP Conflict, Voltage Detection, Security Warning |
| Network & storage | |
| Network Interface | RJ45 10/100 Base-T Ethernet |
| ONVIF | Profiles S / G / T; CGI |
| Browser Support | Chrome / Firefox / Edge |
| Storage | FTP / SFTP / NAS / MicroSD Card Up To 256GB |
| Network Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Power & environment | |
| Power | 12VDC / PoE IEEE 802.3af |
| Power Consumption | Standard: 4.8W / Maximum: 13.0W |
| Weather Protection | IP67 |
| Vandal Resistance | IK10 |
| Housing Material | Metal |
| Operating Temperature | -40°C to 60°C / -40°F to 140°F |
| Operating Humidity | Less Than 95% RH, Non-Condensing |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Dimensions & compliance | |

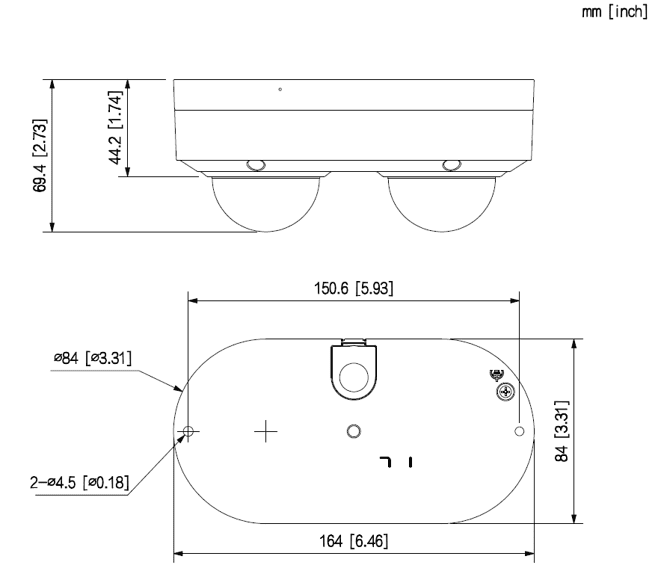

| Dimensions | 164.0 × 84.0 × 69.4 mm |
| Net Weight | 0.6 kg / 1.4 lb |
| Certifications & Compliance | FCC, IC / NDAA Compliant |
| Gross Weight | 0.8 kg (1.8 lb) |
| Packaging Dimensions | 205.0 mm x 121.0 mm x 101.0 mm (8.1 in. x 4.8 in. x 4.0 in.) |
| Compatibility & included items | |

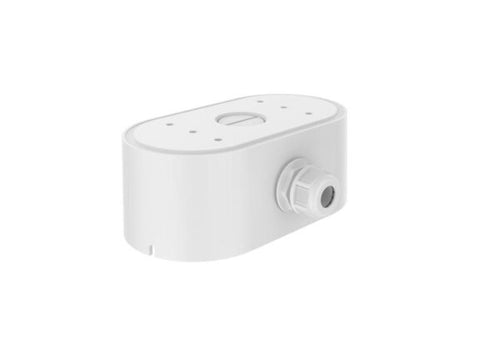

| Electrical Box | HTH-280ZJ-DE7 |

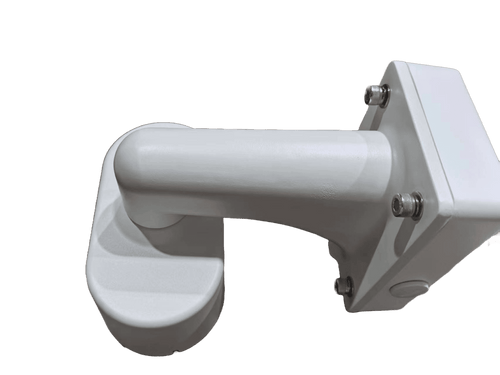

| Wall Mount | HTH-272ZJ-DE7 |

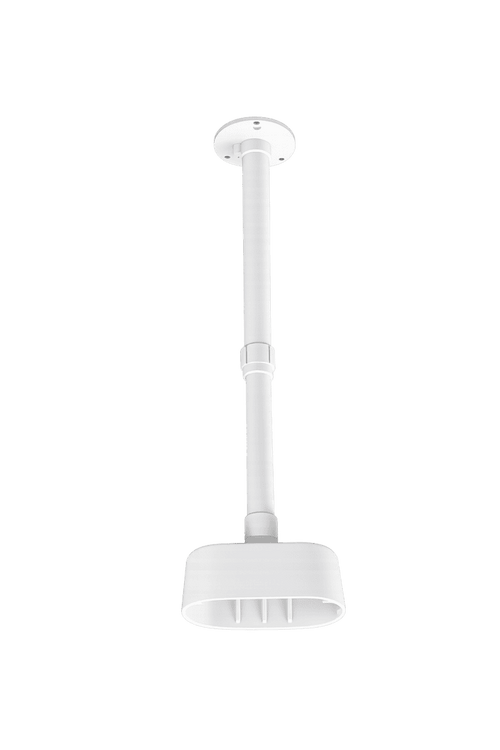

| Pendant Mount | HTH-271ZJ-DE7 |
| App & warranty | |
| Mobile App | NeoViewer – iPhone & Android |
| Warranty | 3-Year Manufacturer Warranty |
| Client Software | NeoViewer |
3-Year Manufacturer Warranty. Warranty coverage is subject to the applicable manufacturer terms.
This product is an alternative to Dahua IP camera model DH-IPC-HDBW5441FN-AS-E2.
Confirm lens coverage, recorder resolution and channel capacity, firmware, analytics, power and mounting requirements for the installation.
Available features depend on the model, firmware and system setup.
Desktop software is separate from the mobile app. Supported features depend on the device model and firmware.
Flexible deployment
View a compatible camera with NeoViewer. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use NeoViewer for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
