Premium NDAA
Model: IPC-HNC348NP-XDLUSLR/2.8
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

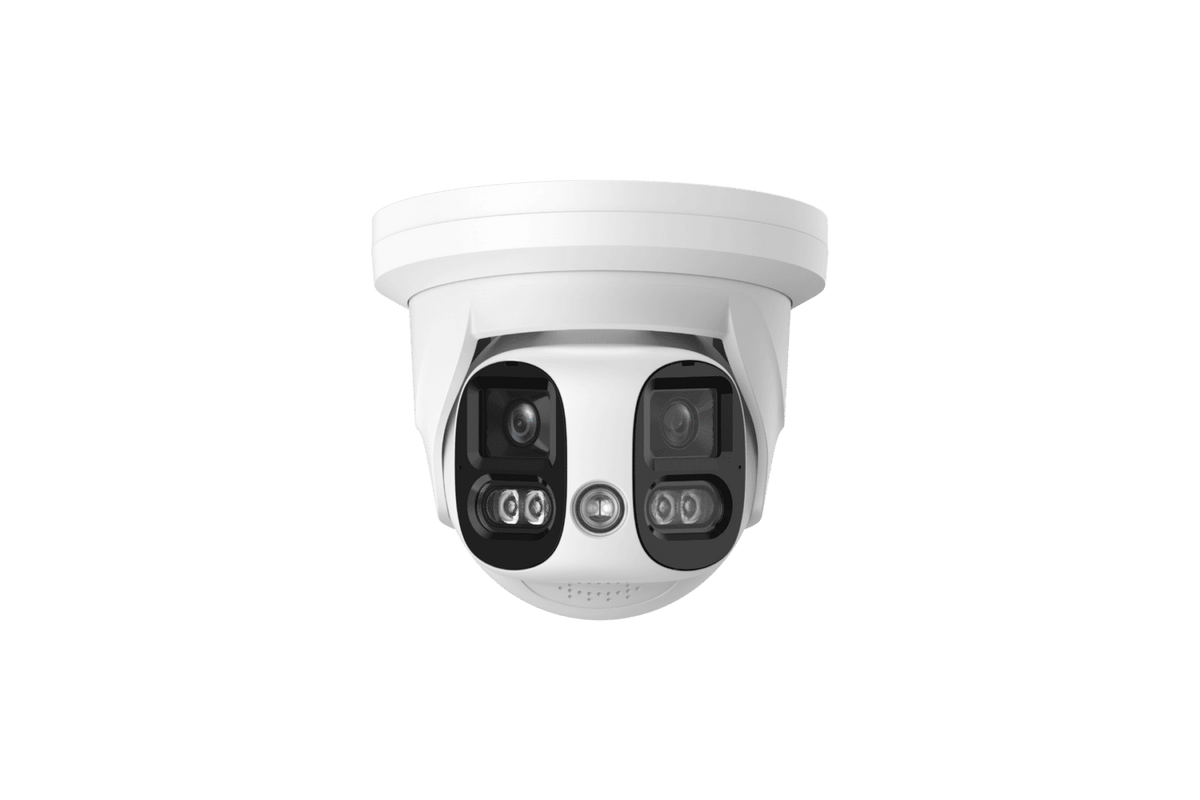

The Premium NDAA IPC-HNC348NP-XDLUSLR/2.8 is an 8MP panoramic turret camera with a 180° horizontal view, dual-light illumination and two-way audio.
| Camera & imaging | |
|---|---|
| Model Number | IPC-HNC348NP-XDLUSLR/2.8 |
| Image Sensor | 1/2.7-in. 4MP Progressive CMOS |
| Maximum Resolution | 4096 × 1860 |
| Lens & positioning | |
| Installation Angle | Pan: 0° to 360°; Tilt: 0° to 77°; Rotation: 0° to 360° |
| Lens Type / Iris Type | Fixed / Fixed |
| Focal Length / Aperture | 2.8 mm / F1.4 |
| Field of View (FOV) | Horizontal: 180° Vertical: 86° |
| Close Focus Range | 0.8 m (2.6 ft) |
| DORI Distance | Detect: 50.6 m (166.0 ft) Observe: 20.2 m (66.3 ft) Recognize: 10.1 m (33.1 ft) Identify: 5.1 m (16.7 ft) |
| Illumination & night monitoring | |
| Minimum Illumination | Color: 0.002 Lux at F1.4 Black/White: 0.0002 Lux at F1.4 0 Lux With IR Light On |
| Number of Illuminators | IR: Two (2) White Light: Two (2) |
| Illuminator Control | Automatic, Manual |
| Max Illumination Distance | IR: Up to 25.0 m (82.0 ft) White Light: Up to 20.0 m (66.0 ft) |
| Video & image settings | |
| Electronic Shutter Speed | Automatic, Manual (1/3 s to 1/100,000 s) |
| Video Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Three (3) Streams |
| Supported Resolutions | 8MP (4096 × 1860), 6MP (3632 x 1632), 4MP (3040 x 1368), 1.6MP (1920 x 860), 1200 x 530, 960 x 432 |
| Maximum Frame Rate | Main Stream: 4096 × 1860 at 20 fps Sub Stream 1: 1200 × 530 at 20 fps Sub Stream 2: 1920 × 1080 at 20 fps |
| Video Bit Rate | H.264 / H.265: 6 to 16384 kbps (CBR/VBR) |
| Light Balancing / WDR | Wide Dynamic Range (120 dB) / 3D NR |
| Day / Night Mode | Automatic (ICR), Color, Black and White |
| Image Parameters | Image Angle: 0°/90°/180°/270°; Mirror Rotation Supported |
| Regions / Masking | Region of Interest (ROI): 4 Zones; Privacy Masking: 4 Zones |
| Standard Codec | Supported |
| Audio, analytics & alarms | |
| Video Content Analytics | Line Crossing, Intrusion, Loitering Detection |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Smart Sense Technology | Electronically Zoom and Track Multiple Humans/Vehicles and Trigger Alarms Automatically |
| Audio Compression | G.711a, G.711Mu, PCM |
| Audio Interface | Input: Built-in Dual Microphones and 1x RCA Port Output: Built-in Speaker and 1x RCA Port |
| Alarm Events | No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Scene Changing, Audio Detection, External Alarm |
| Alarm Interface | Input: 1 Channel (3V-5VDC, 5 mA) Output: 1 Channel (12 VDC, 300 mA) |
| Network & storage | |
| Network Interface | RJ-45 (10/100 Base-T) |
| Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Supported Browsers | Chrome, Firefox, Edge |
| Edge Storage | FTP, SFTP, Micro SD Card (Max. 256 GB) |
| Power & environment | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption | 12 VDC: Normal 4.0 W / Max 8.7 W PoE: Normal 5.0 W / Max 10.9 W |
| Operating Conditions | -40 to 60 °C (-40 to 140 °F) / < 95% RH (Non-Condensing) |
| Protection / Material | IP67 Weatherproof / Metal Construction |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Dimensions & compliance | |

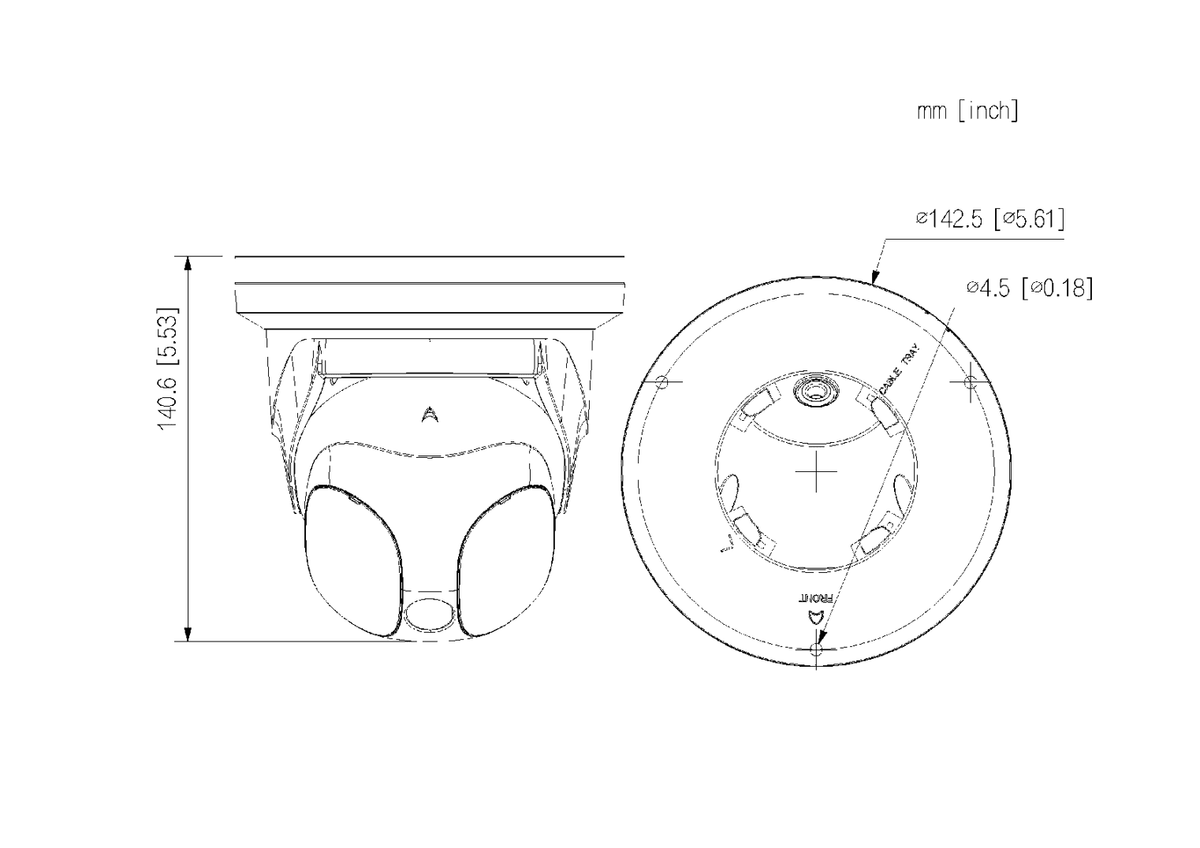

| Product Dimensions | 140.6 mm × Φ 142.5 mm (5.5 in. × Φ 5.6 in.) |
| Weight | Net: 1.0 kg (2.2 lb) Gross: 1.3 kg (2.8 lb) |
| Certifications & Compliance | FCC, IC, NDAA Compliant |
| Compatibility & included items | |
| Compatible Mounts | Electrical Box: HTH-280NJ-J04 Wall Mount: HTH-273NJ-140B Pole Mount: HTH-271NJ-140 2-4 ft Telescope: HTH-271NJ-140-24 3-6 ft Telescope: HTH-271NJ-140-36 |
| App & warranty | |
| Client Software | NeoViewer |
3-Year Manufacturer Warranty. Warranty coverage is subject to the applicable manufacturer terms.
This product is an alternative to Dahua IP camera model DH-IPC-PDW5849-A180-E2-ASTE.
Confirm lens coverage, recorder resolution and channel capacity, firmware, analytics, power and mounting requirements for the installation.
Desktop software is separate from the mobile app. Supported features depend on the device model and firmware.
Flexible deployment
View a compatible camera with NeoViewer. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use NeoViewer for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
