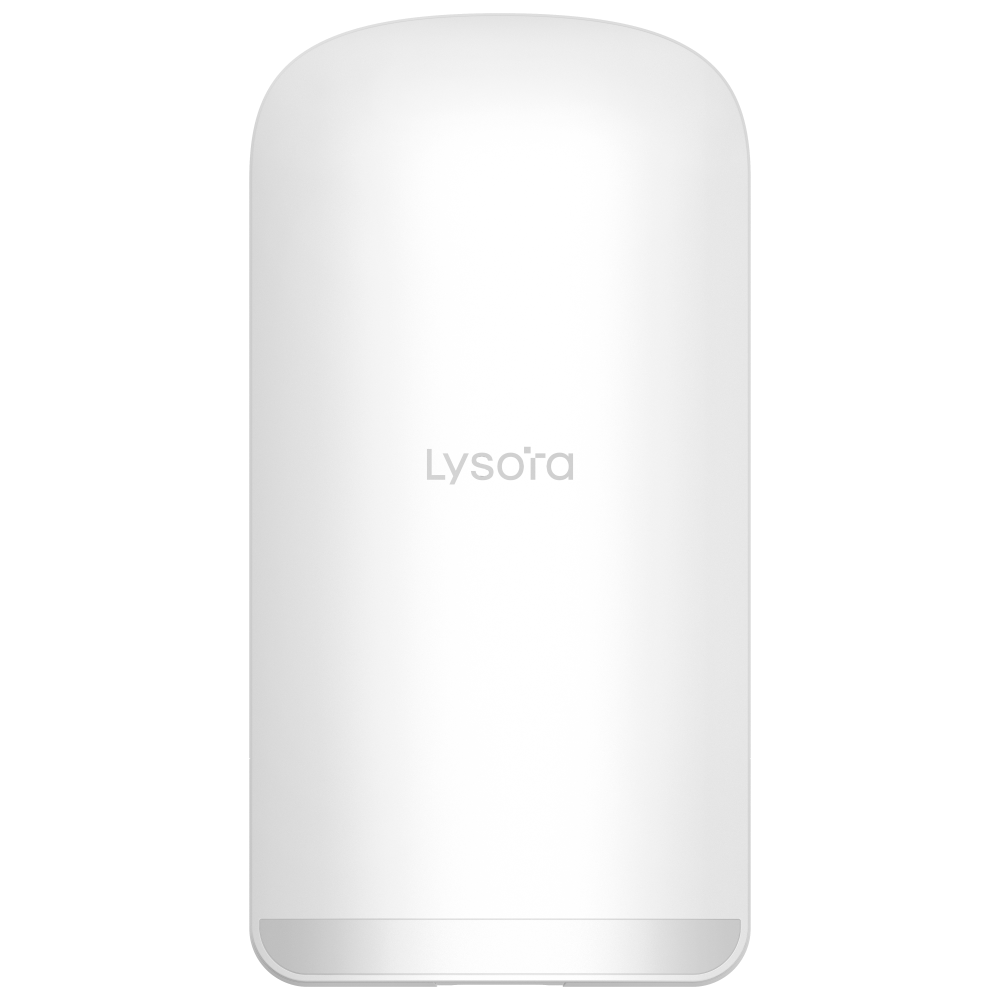

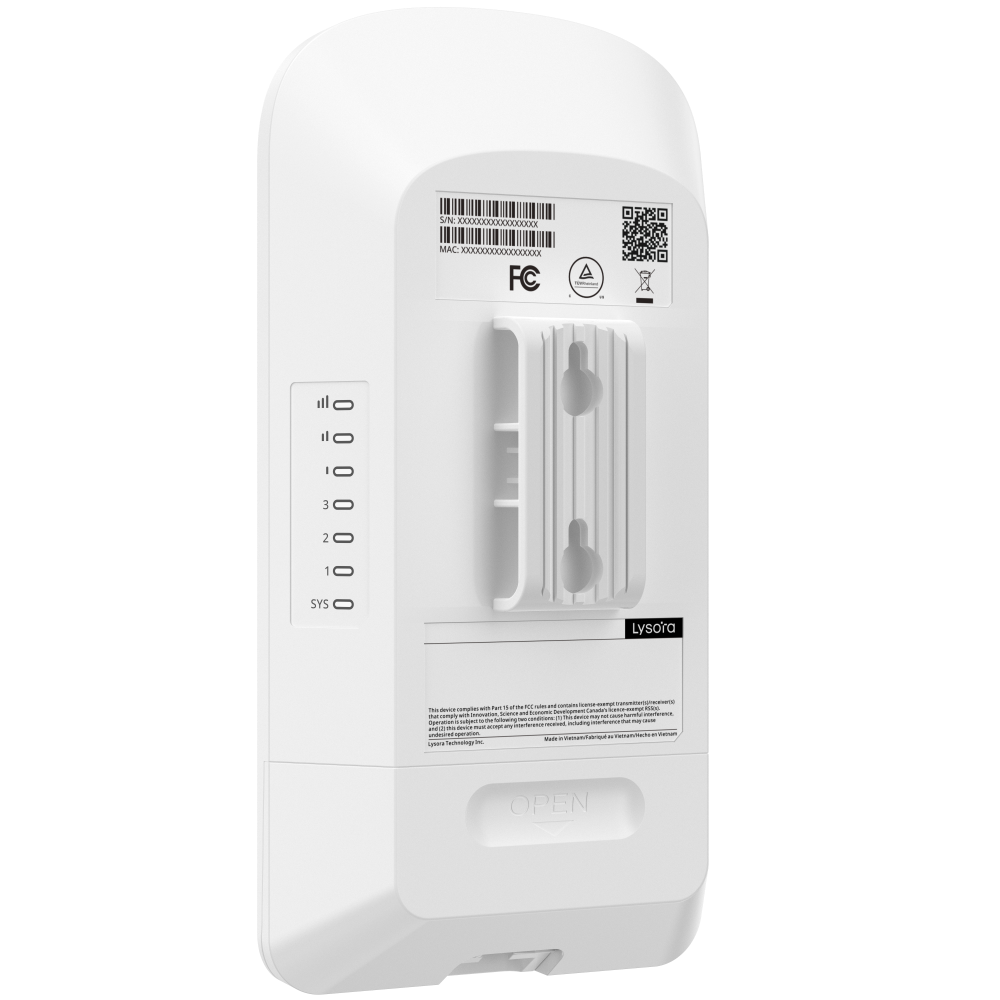

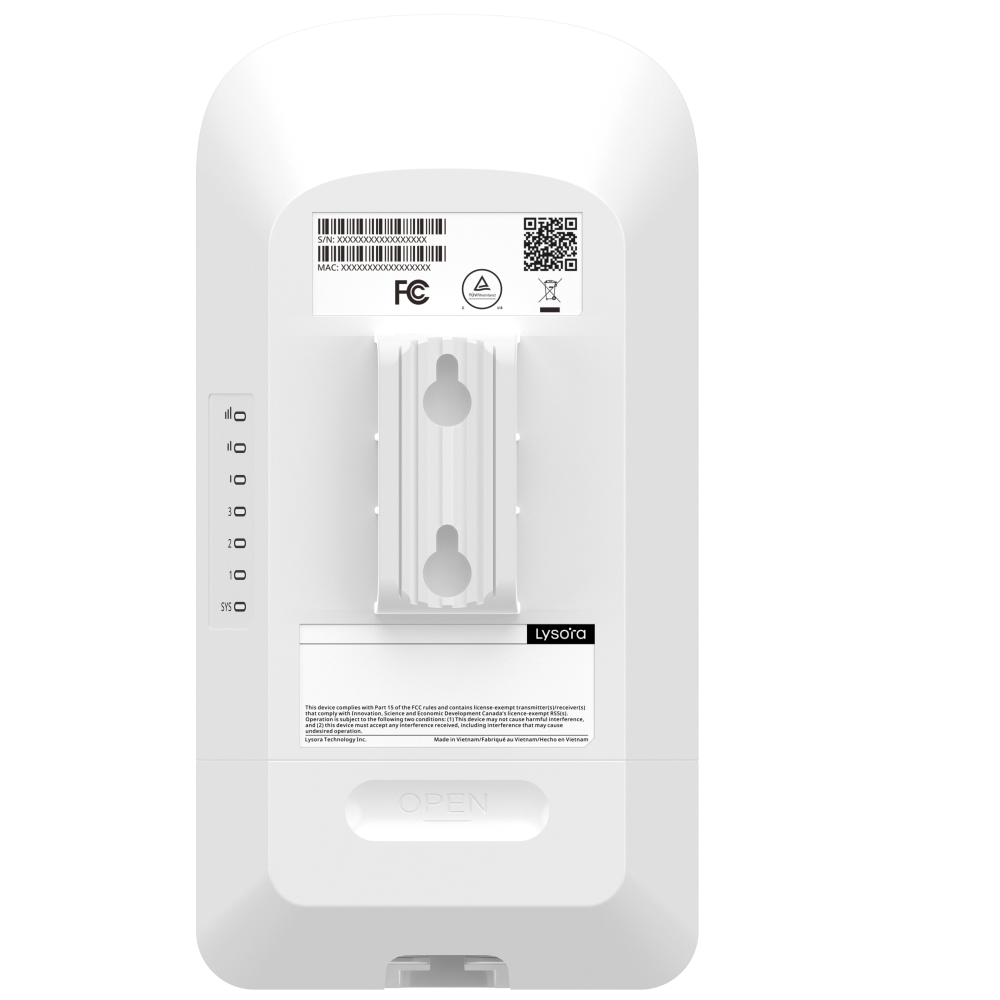

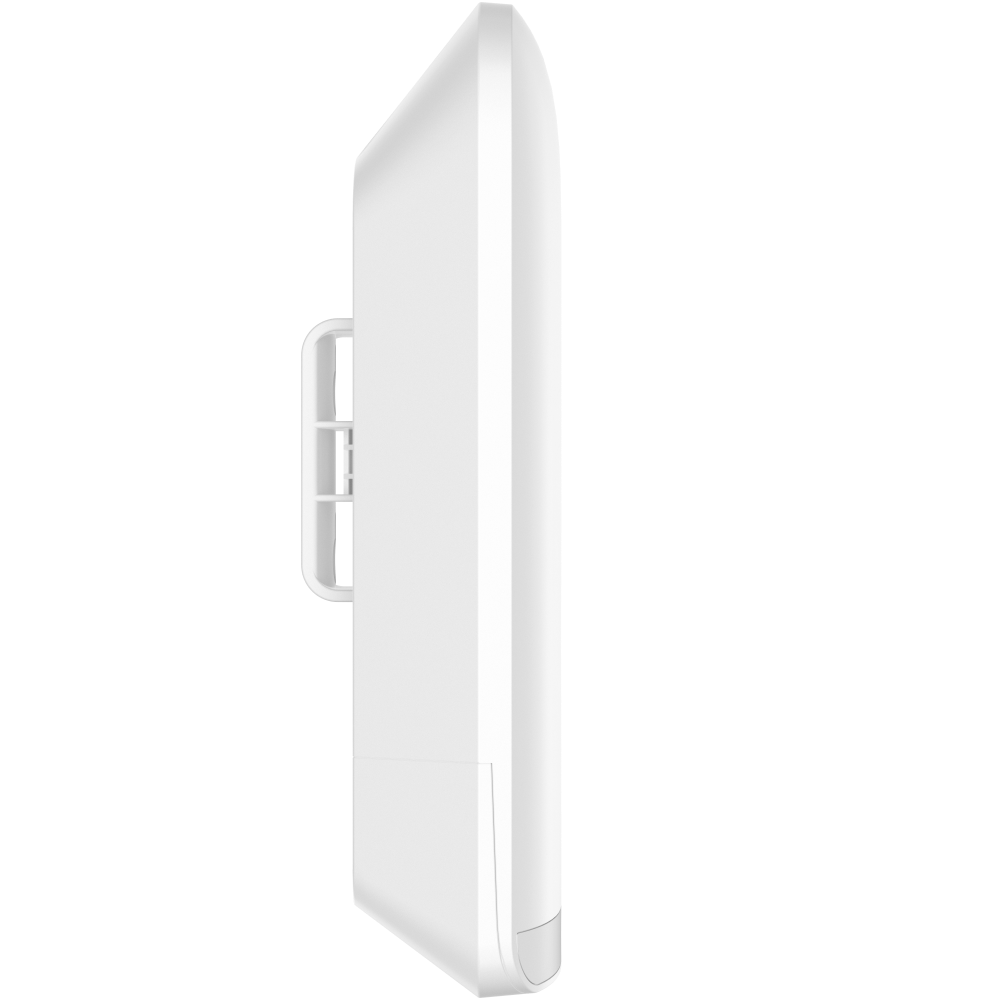

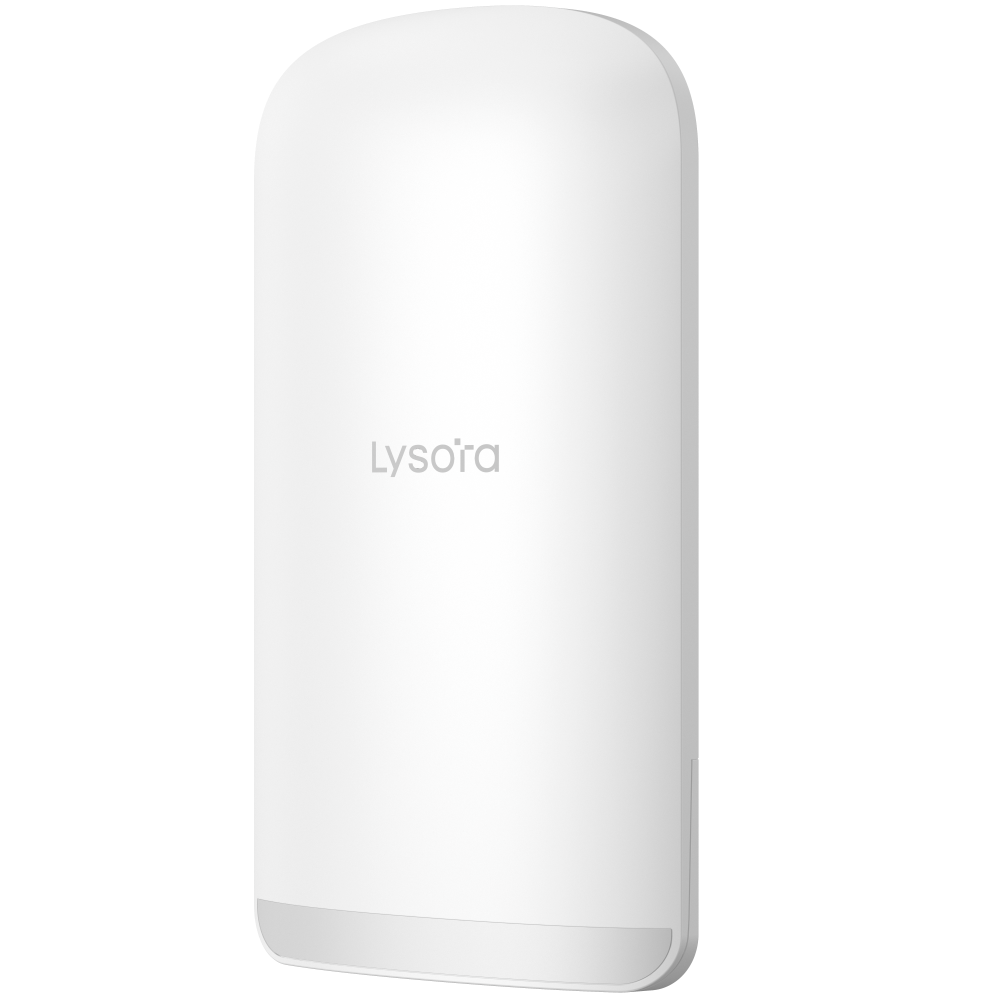

Lysora 5 GHz CPE Wireless Bridge CPE3-P

Lysora

5 GHz CPE Wireless Bridge

Model: CPE3-P

$118.00

In stock

Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

At a glance

  • Dimensions: 103mm x 53.4 mm x 199 mm (4.06 in. x 2.1 in. x 7.83 in.) (excluding mounting bracket)
  • Operating temperature: −30°C to +55°C
  • Weather protection: IP55
Warranty Limited manufacturer warranty: 3 years Warranty help
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast FulfillmentU.S. warehouse order processing
30-Day Eligible ReturnsUnused items with approved RMA

Need help choosing? (856) 317-0600

Overview

The Lysora CPE3-P is a compact outdoor Wi-Fi 5 AC867 customer premises equipment (CPE) designed for reliable long-range wireless bridging. Built for point-to-point (PtP) and point-to-multipoint (PtMP) applications, it provides stable, low-latency connectivity for surveillance systems, remote buildings, and network extension projects in outdoor environments.

  • Wi-Fi 5 (802.11ac) AC867 performance
  • Optimized for long-range outdoor wireless bridging
  • Point-to-point (PtP) and point-to-multipoint (PtMP) support
  • Up to 867 Mbps wireless link rate on 5 GHz; actual throughput is lower and wired ports are limited to 100 Mbps

Additional Product Information

Key Features

  • Directional high-gain antenna design
  • 3 × 10/100 Mbps Ethernet ports
  • Passive PoE support for simplified installation
  • Compact weather-resistant outdoor enclosure
  • LED signal alignment indicators for easy setup
  • Low-latency optimized for video surveillance backhaul
  • BaseStation and CPE operating modes
  • Web-based management interface
  • Surge protection for outdoor reliability
  • Pole or wall mounting options

Technical Specifications

Physical
Dimensions103mm x 53.4 mm x 199 mm (4.06 in. x 2.1 in. x 7.83 in.) (excluding mounting bracket)
Weight0.37 kg (0.82 lbs) (without packaging)
Mounting TypeWall/Pole
Radio
Wi-Fi StandardsIEEE 802.11 a/b/g/n/ac
Wi-Fi Protocols2.4 GHz: IEEE 802.11 b/g/n 5 GHz: IEEE 802.11 a/n/ac
5 GHz MIMO2 × 2 MIMO
Channel bandwidth2.4 GHz: 20/40 MHz 5 GHz: 20/40/80 MHz
5 GHz maximum wireless link rate867 Mbps (wireless link rate, not wired throughput)
Antenna Gain2.4 GHz: 2 dBi 5 GHz: 13 dBi
Antenna horizontal orientation30°
Antenna vertical orientation30°
Max. Transmit Power2.4 GHz: 20 dBm 5 GHz: 29 dBm
Modulation802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Receiver Sensitivity802.11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps） 802.11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps) 802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65dBm@MCS15 802.11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9) 802.11ac HT40: -79 dBm (MCS0), -54 dBm (MCS9) 802.11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)
Hardware
CPUSingle-core processor, 575/580 MHz clock frequency
Flash Memory16 MB
RAM64 MB

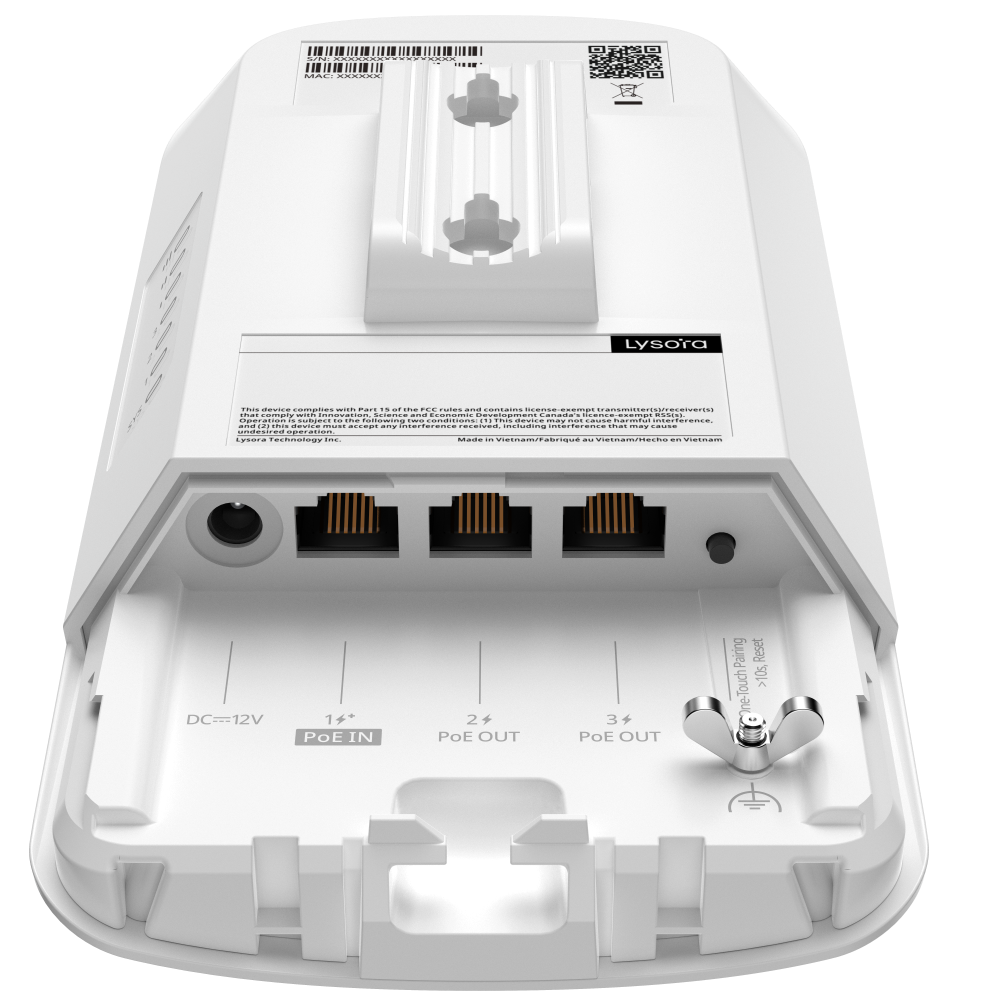

Networking Interface3 x 10/100BASE-T ports

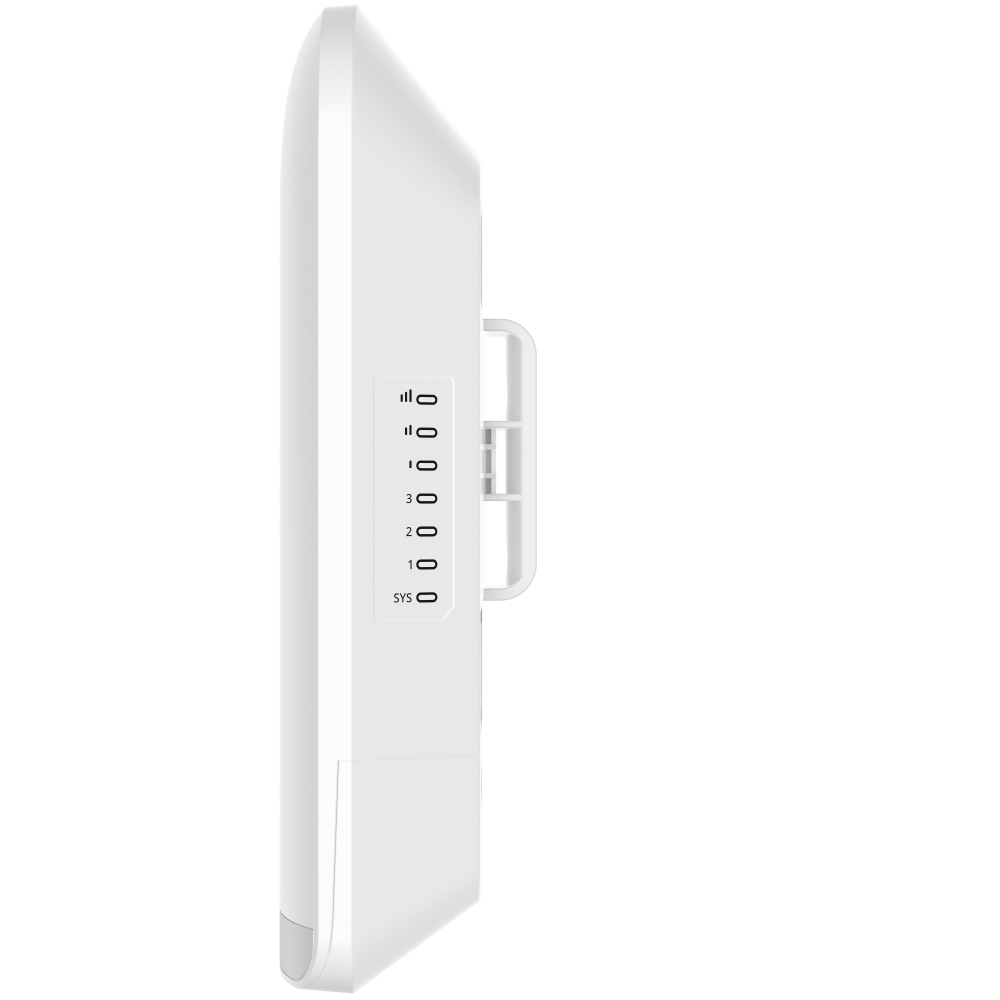

LED1 x system status LED 3 x Ethernet port LEDs 3 x Signal status LEDs
Button1 x Reset button
Power
Power Consumption9 W (Without PoE Out) 24.4 W (With PoE Out)
Power Method12 V DC; 24 V passive PoE; PoE/PoE+
PoE Power Pins1-2 (+), 3-6 (-);4-5 (+), 7-8 (-)
PoE Budget15.4 W (PoE budget for two ports) When powered by 24 V passive PoE or 802.3at, the device can supply power to other devices via PoE. When powered by 12 V DC or 802.3af, the device cannot supply power to other devices via PoE
Environment
Operating temperature−30°C to +55°C
Storage temperature−40°C to +85°C
Operating humidity5–95% RH, non-condensing
Storage humidity5–95% RH, non-condensing
Weather protectionIP55
Surge protectionService port: ±4 kV common mode; power connector: ±4 kV common mode and ±2 kV differential mode
Working Mode
BaseStationYes
CPEYes
WLAN
TDMAYes
Bridge SSID hidingYes
Antenna alignmentYes
Spectrum scanYes
VLANYes
Management and Maintenance
Self Organizing NetworkYes
SSHYes
Web managementYes
Cloud managementYes
Bridge performance
Maximum bridge distanceUp to 3 km (1.86 miles)
Minimum bridge distance2 m (6.56 ft.)
Maximum root-bridge connections5
Maximum self-organizing network devices200
One-touch pairing distanceUp to 20 m
HT40 bridge performance by distance (manufacturer rating)90 Mbps at 0.5 km; 80 Mbps at 1 km; 60 Mbps at 2 km; 40 Mbps at 3 km
RSSI by distance−53 dBm at 0.5 km; −59 dBm at 1 km; −65 dBm at 2 km; −70 dBm at 3 km

Built for Scale

Simplify network deployment and everyday management with the Lysora networking ecosystem.

  • Unified cloud dashboard
  • Self-organizing networking
  • Zero-touch deployment
  • AI-assisted optimization
  • Scalable network performance
  • License-free cloud management
  • Controller-free architecture
  • Local product support from NSI Security
Lysora cloud dashboard displayed on desktop and mobile

Ecosystem features vary by model, firmware and network setup.

Get help choosing your Lysora network equipment

Need help matching this product to your project? Ask NSI

Specifications

Compatibility & accessories

Compatible products

Choose accessories for your setup. Sold separately.

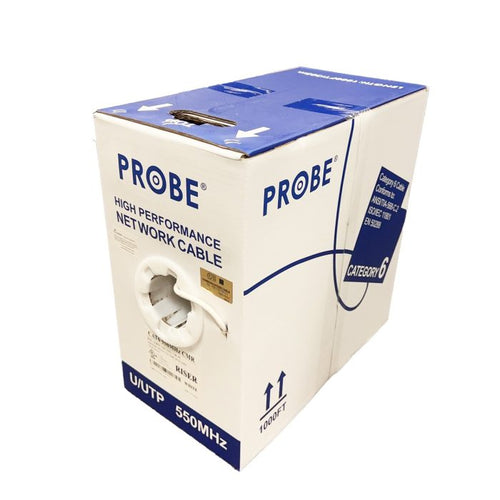

Cat6 UTP CMR Riser Bulk Ethernet Cable 1000 ft White (SK-CAT6-1000)
