Premium NDAA
Model: IPC-HNC328N-XBU/2.8
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

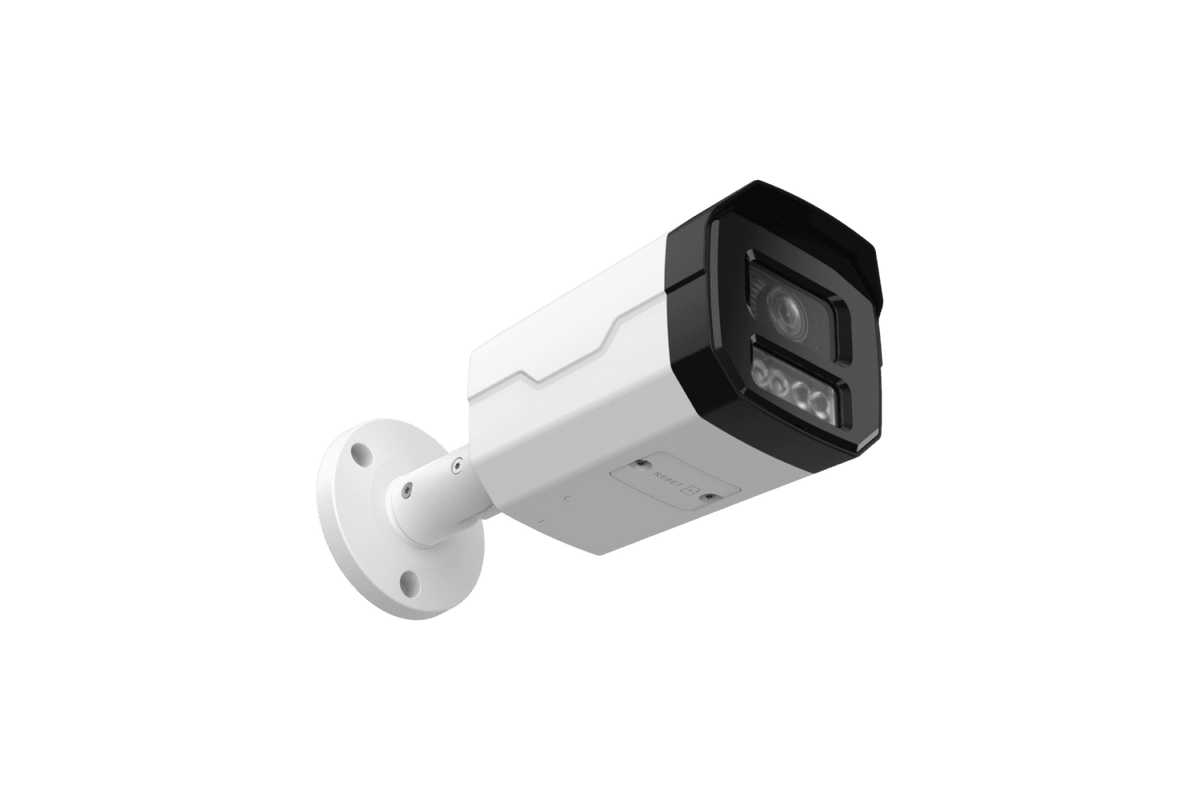

The Premium NDAA IPC-HNC328N-XBU/2.8 is an 8MP dual-light bullet camera with a fixed 2.8mm lens.
| Camera & imaging | |
|---|---|
| Model | IPC-HNC328N-XBU/2.8 |
| Camera Type | 8MP / 4K Fixed-Lens Network Bullet Camera |
| Image Sensor | 1/2.7-Inch 8MP Progressive CMOS |
| Maximum Resolution | 3840 × 2160 |
| Lens & positioning | |
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Maximum Aperture | F1.6 |
| Field Of View | Horizontal: 110° Vertical: 58° Diagonal: 132° |
| Close Focus Distance | 1.5m / 4.9 ft |
| DORI Distance | Detect: 84.5m / 277.2 ft Observe: 33.6m / 110.3 ft Recognize: 16.6m / 54.5 ft Identify: 8.3m / 27.2 ft |
| Installation Adjustment | Pan / Rotation: 0°–360° Tilt: 0°–90° |
| Iris Type | Fixed |
| Illumination & night monitoring | |
| Minimum Illumination | Color: 0.007 Lux @ F1.6 Black & White: 0.0007 Lux @ F1.6 0 Lux With IR On |
| Illuminators | IR LEDs / White-Light LEDs With Smart Lux |
| IR Distance | Up To 30.5m / 100 ft |
| White-Light Distance | Up To 30.5m / 100 ft |
| Illuminator Control | Automatic / Manual |
| Video & image settings | |
| Maximum Frame Rate | Main Stream: 3840 × 2160 @ 20 fps Sub Stream: D1 @ 30 fps |
| Electronic Shutter | Automatic / Manual, 1/3s to 1/100,000s |
| S/N Ratio | >56dB |
| Wide Dynamic Range | 120dB WDR |
| Noise Reduction | 3D NR |
| Day / Night | Automatic ICR / Color / Black & White |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG (Sub Stream Only) |
| Video Streams | 2 Streams |
| Video Bit Rate | H.264: 3–8,192 kbps H.265: 3–8,192 kbps |
| Bit Rate Control | CBR / VBR |
| Image Rotation | 0°/90°/180°/270° (90°/270° Available for 2688 × 1520 Resolution or Lower) |
| Region Of Interest | 4 Zones |
| Privacy Masking | 4 Zones |
| Standard Codec | Supported |
| Supported Resolutions | 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 5MP (2880 × 1620), 4MP (2688 × 1520), 3MP (2048 × 1536), 3MP (2304 × 1296), 1080P (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240) |
| Mirror Rotation | Supported |
| Audio, analytics & alarms | |
| Video Content Analytics | Line Crossing / Intrusion |
| Smart Motion Detection | Human & Vehicle Classification |
| Audio Input | Built-In Microphone |
| Audio Compression | G.711a / G.711Mu / PCM |
| Alarm Events | Line Crossing, Intrusion, Motion Detection, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception |
| Network & storage | |
| Network Interface | RJ45 10/100 Base-T Ethernet |
| ONVIF | Profiles S / G / T |
| Browser Support | Chrome / Firefox / Edge |
| Storage | FTP / SFTP / MicroSD Card Up To 256GB |
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Power & environment | |
| Power | 12VDC / PoE IEEE 802.3af |
| 12VDC Power Consumption | Normal: 2.0W / Maximum: 5.5W |
| PoE Power Consumption | Normal: 3.0W / Maximum: 7.2W |
| Weather Protection | IP67 |
| Housing Material | Metal |
| Operating Temperature | -40°C to 60°C / -40°F to 140°F |
| Operating Humidity | Less Than 95% RH, Non-Condensing |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Dimensions & compliance | |

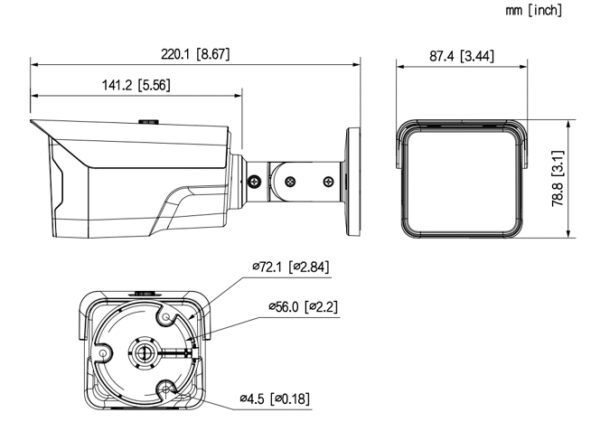

| Dimensions | 220.1 × 87.4 × 78.8 mm (8.7 × 3.4 × 3.1 in.) |
| Net Weight | 0.6 kg / 1.3 lb |
| Certifications & Compliance | FCC, IC; NDAA compliant |
| Gross Weight | 0.8 kg (1.8 lb) |
| Packaging Dimensions | 251.0 mm × 136.0 mm × 112.0 mm (9.9 in. × 5.4 in. × 4.4 in.) |
| Compatibility & included items | |

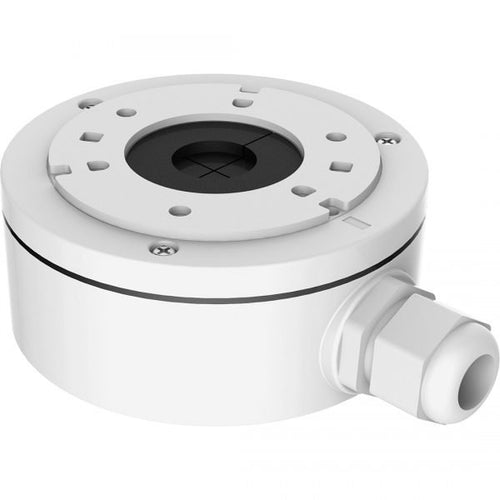

| Electrical Box | HTH-280ZJ-XS |
| App & warranty | |
| Mobile App | NeoViewer – iPhone & Android |
| Warranty | 3-Year Manufacturer Warranty |
3-Year Manufacturer Warranty. Warranty coverage is subject to the applicable manufacturer terms.
This product is an alternative to Dahua IP camera models N53CB62, N82DDS2.
Confirm lens coverage, recorder resolution and channel capacity, firmware, analytics, power and mounting requirements for the installation.
Available features depend on the model, firmware and system setup.
Desktop software is separate from the mobile app. Supported features depend on the device model and firmware.
Flexible deployment
View a compatible camera with NeoViewer. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use NeoViewer for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
