Premium NDAA
Model: IPC-HNC345N-XDLUSL
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

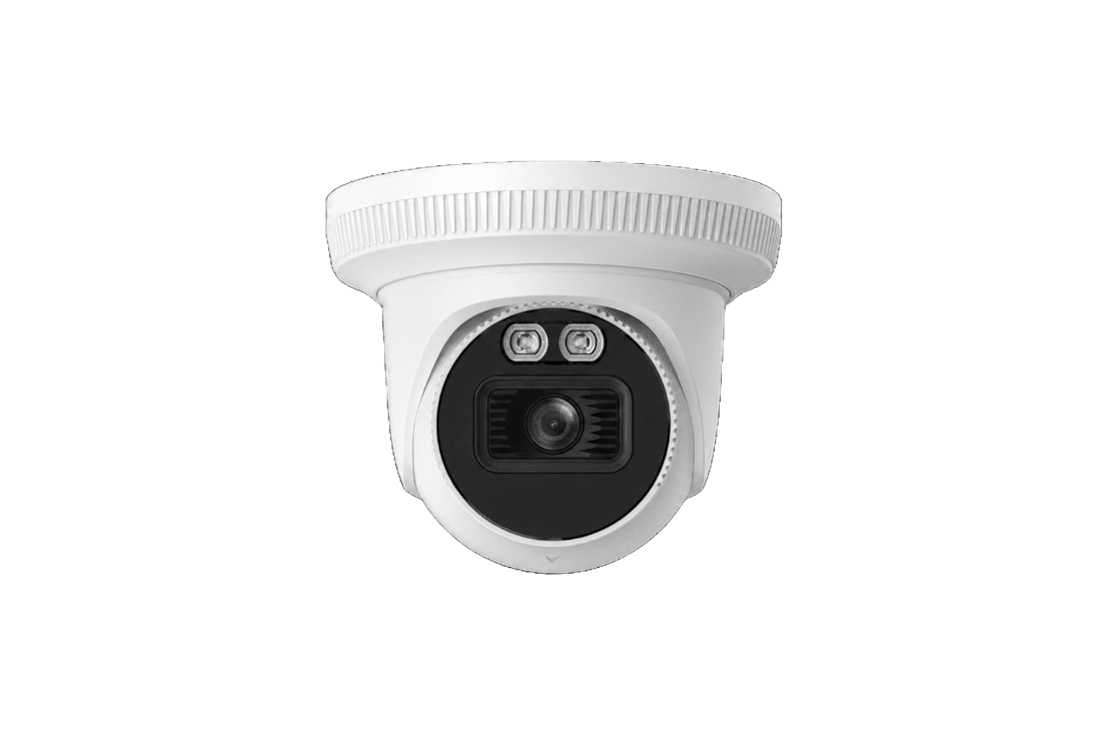

The Premium NDAA IPC-HNC345N-XDLUSL is a 5MP fixed-lens turret camera with active-deterrence features.
| Camera & imaging | |
|---|---|
| Model Number | IPC-HNC345N-XDLUSL |
| Image Sensor | 1/2.7″ CMOS |
| Maximum Resolution | 2960 x 1668 |
| Lens & positioning | |
| Installation Angle | Pan and Rotation: 0° to 360°; Tilt: 0° to 78° |
| Lens Type / Iris Type | Fixed / Fixed |
| Focal Length / Aperture | 2.8 mm / F1.6 |
| Field of View (FOV) | Horizontal: 111° Vertical: 58° Diagonal: 132° |
| Close Focus Range | 1.1 m (3.61 ft) |
| DORI Distance | Detect: 63.3 m (208.01 ft) Observe: 25.2 m (82.35 ft) Recognize: 12.3 m (40.68 ft) Identify: 6.1 m (20.34 ft) |
| Illumination & night monitoring | |
| Minimum Illumination | Color: 0.007 Lux at F1.6 Black/White: 0.0007 Lux at F1.6 0 Lux With IR Light On |
| Number of Illuminators | 1 x Warm White Light, 1 x IR Light |
| Illuminator Control | Automatic, Manual, Off |
| Maximum Illumination Distance | Up to 30 m (100 ft) |
| Video & image settings | |
| Electronic Shutter Speed | Automatic, Manual (1/3 s to 1/100,000 s) |
| S/N Ratio | > 56 dB |
| Video Compression | H.265, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Two (2) Streams (CBR/VBR support) |
| Supported Resolutions | 5MP (2960×1668), 5MP (2880×1620), 4MP (2688×1520), 4MP (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 1.3MP (1280×960), 720P (1280×720), D1 (704×480), VGA (640×480), CIF (352×240) |
| Maximum Frame Rate | Main Stream: 2960×1668 at 20 fps, 2688×1520 at 30 fps Sub Stream 1: D1 at 30 fps |
| Video Bit Rate | H.264 / H.265: 3 kbps to 8192 kbps |
| Light & Noise Balancing | Wide Dynamic Range (120 dB) / 3D NR / HLC / BLC |
| Day / Night Mode | Automatic (ICR), Color, Black and White |
| Image Parameters | Image Angle: 0°/90°/180°/270° (90°/270° available for 2688×1520 or lower); Mirror Rotation Supported |
| Regions / Masking | Region of Interest (ROI): 4 Zones; Privacy Masking: 4 Zones |
| Standard Codec | Supported |
| Audio, analytics & alarms | |
| Video Content Analytics | Line Crossing, Intrusion |
| Intelligent Target Capture | Smart Motion Detection with Dedicated Vehicle and Human Alarms |
| Audio Compression | G.711a, G.711Mu, PCM |
| Audio Interface | Input: Built-in Microphone Output: Built-in Speaker (Supports Audio Linkage) |
| Alarm Events Tracking | Line Crossing, Intrusion, Motion Detection, Smart Motion, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception |
| Alarm Interface | N/A |
| Network & storage | |
| Network Interface & Interop | RJ-45 (10/100 Base-T); ONVIF (Profile S/G/T), CGI |
| Supported Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Supported Browsers | Chrome, Firefox, Edge |
| Edge Storage Capacity | FTP, SFTP, Micro SD Card (Max. 256 GB) |
| Power & environment | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption | 12 VDC: Normal 2.5 W / Max 6.9 W PoE: Normal 3.2 W / Max 8.2 W |
| Operating Conditions | -40 to 60 °C (-40 to 140 °F) / < 95% RH (Non-Condensing) |
| Protection / Material | IP67 Weatherproof / Metal Construction |
| Storage Temperature | −40 °C to 60 °C (−40 °F to 140 °F) |
| Dimensions & compliance | |
| Product Dimensions | Φ123.0 mm x 94.9 mm (Φ4.84″ x 3.74″) |
| Packaging Dimensions | 148 mm x 139 mm x 137 mm (5.83'' × 5.47'' × 5.39'') (L x W x H) |
| Weight Parameters | Net: 0.52 kg (1.14 lb); Gross: 0.68 kg (1.5 lb) |
| Certifications & Compliance | FCC, NDAA Compliant |
| Compatibility & included items | |
| Compatible System Mounts | Electrical Box: HTH-280NJ-J02, HTH-280NJ-CJ11 Wall Mount: HTH-272NJ-W01, HTH-272NJ-120B Pendant Mount: HTH-271NJ-120 2-4 ft Telescope Mount: HTH-271NJ-120-24 3-6 ft Telescope Mount: HTH-271NJ-120-36 |
| App & warranty | |
| Client Software | NeoViewer, NeoViewer App |
3-Year Manufacturer Warranty. Warranty coverage is subject to the applicable manufacturer terms.
Confirm lens coverage, recorder resolution and channel capacity, firmware, analytics, power and mounting requirements for the installation.
Desktop software is separate from the mobile app. Supported features depend on the device model and firmware.
Flexible deployment
View a compatible camera with NeoViewer. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use NeoViewer for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
