Premium NDAA
Model: IPC-HNC348N-XDLUSLR/2.8
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

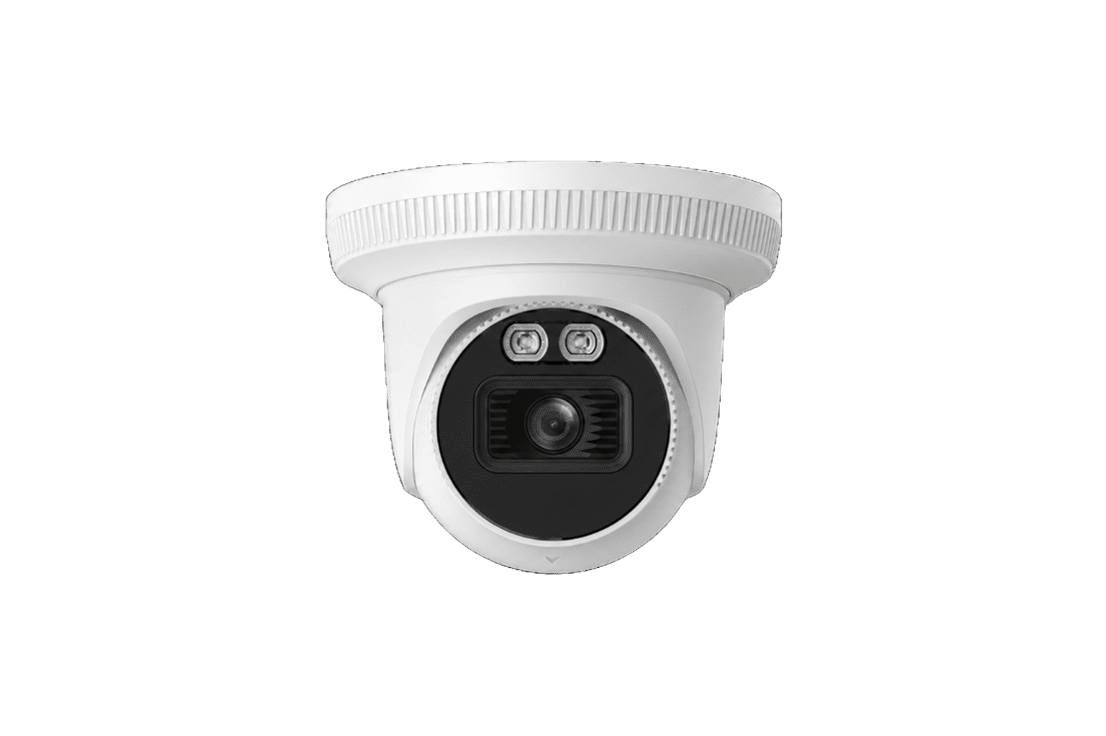

The Premium NDAA IPC-HNC348N-XDLUSLR/2.8 is an 8MP active-deterrence turret camera with a fixed 2.8mm lens.
| Camera & imaging | |
|---|---|
| Model Number | IPC-HNC348N-XDLUSLR/2.8 |
| Image Sensor | 1/2.8-in. 8MP Progressive CMOS |
| Maximum Resolution | 3840 × 2160 |
| Lens & positioning | |
| Installation Angle | Pan: 0°; Tilt: 0°; Rotation: 0° to 360° |
| Lens Type / Iris Type | Fixed / Fixed |
| Focal Length / Aperture | 2.8 mm / F1.2 |
| Field of View (FOV) | Horizontal: 106° Vertical: 55° Diagonal: 125° |
| Close Focus Range | 2.0 m (6.6 ft) |
| DORI Distance | Detect: 91.0 m (298.6 ft) Observe: 36.4 m (119.4 ft) Recognize: 18.2 m (59.7 ft) Identify: 9.1 m (29.9 ft) |
| Illumination & night monitoring | |
| Minimum Illumination | Color: 0.001 Lux Black/White: 0.0001 Lux 0 Lux With IR Light On |
| Number of Illuminators | IR: Two (2); White Light: Two (2) |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | IR: Up to 50.0 m (164.0 ft) White Light: Up to 40.0 m (131.0 ft) |
| Video & image settings | |
| Electronic Shutter Speed | Automatic, Manual (1/3 s to 1/100,000 s) |
| S/N Ratio | > 56 dB |
| Video Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Three (3) Streams |
| Supported Resolutions | 8MP (3840x2160), 6MP (3072×2048), 5MP (3072×1728), 5MP (2592×1944), 4MP (2688×1520), 4MP (2560×1440), 3MP (2304×1296), 3MP (2048×1536), 1080p (1920×1080), 1.3MP (1280×960), 720p (1280×720), D1 (704×576 / 704×480), VGA (640×480), CIF (352×288 / 352×240) |
| Maximum Frame Rate | Main Stream: 3840 × 2160 at 30 fps Sub Stream 1: 704 × 576 at 30 fps, 704 × 480 at 30 fps Sub Stream 2: 1920 × 1080 at 30 fps |
| Video Bit Rate | H.264: 32 to 8192 kbps H.265: 12 to 8192 kbps (CBR/VBR) |
| Day / Night Mode | Automatic (ICR), Color, Black and White |
| Noise Reduction / WDR | 3D NR / Wide Dynamic Range (120 dB) |
| Image Parameters | Image Angle: 0°/90°/180°/270° (90°/270° available for 4MP or lower); Mirror Rotation Supported |
| Regions / Masking | Region of Interest (ROI): 4 Zones; Privacy Masking: 8 Zones |
| Standard Codec | Supported |
| Audio, analytics & alarms | |
| Video Content Analytics | Line Crossing, Intrusion, Loitering Detection |
| Intelligent Target Capture | Smart Motion Detection (Vehicles & Humans Filter); Smart Search Support |
| Audio Compression | PCM, G.711a, G.711Mu, G.726, G.723 |
| Audio Interface | Input: Built-in Dual Microphones and 1x RCA Port Output: Built-in Speaker and 1x RCA Port |
| Alarm Events Tracking | No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Scene Changing, Audio Detection, External Alarm |
| Alarm Interface Connections | Input: 1 Channel (3V-5VDC, 5 mA) Output: 1 Channel (12 VDC, 300 mA) |
| Network & storage | |
| Network Interface & Interop | RJ-45 (10/100 Base-T); ONVIF (Profile S/G/T), CGI |
| Supported Protocols | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Supported Browsers | Chrome, Firefox, Edge |
| Edge Storage Capacity | FTP, SFTP, Micro SD Card (Max. 256 GB) |
| Power & environment | |
| Power Supply | 12 VDC, PoE (802.3af) |
| Power Consumption | 12 VDC: Normal 4.0 W / Max 8.7 W PoE: Normal 5.0 W / Max 10.9 W |
| Operating Conditions | -40 to 60 °C (-40 to 140 °F) / < 95% RH (Non-Condensing) |
| Protection / Material | IP67 Weatherproof / Metal Construction |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Dimensions & compliance | |

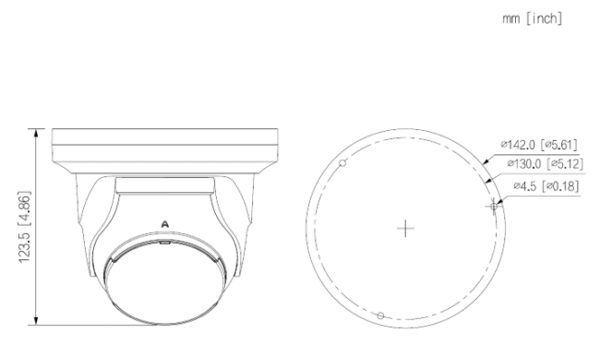

| Product Dimensions | 123.5 mm × Φ 142.0 mm (4.9 in. × Φ 5.6 in.) |
| Weight Parameters | Net: 0.8 kg (1.9 lb) Gross Shipping Weight: 1.0 kg (2.2 lb) |
| Certifications & Compliance | FCC, IC, NDAA Compliant |
| Compatibility & included items | |

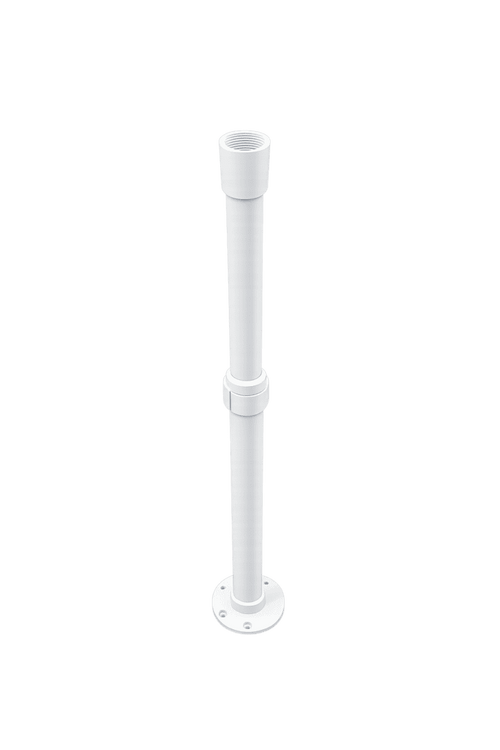

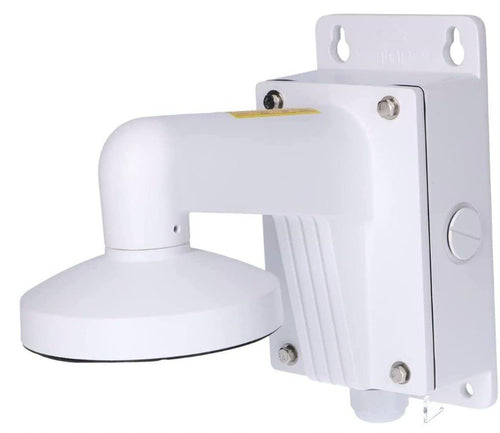

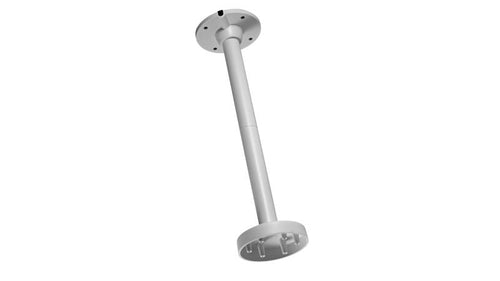

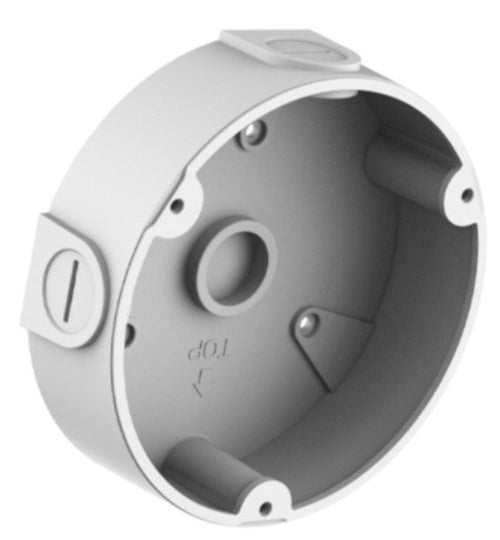

| Compatible System Mounts | Electrical Box: HTH-285NJ-J04 Wall Mount: HTH-273NJ-140B Pendant Mount: HTH-271NJ-140 2-4 ft Telescope Mount: HTH-271NJ-140-24 3-6 ft Telescope Mount: HTH-271NJ-140-36 |
| App & warranty | |
| Client Software | NeoViewer, NeoViewer App |
3-Year Manufacturer Warranty. Warranty coverage is subject to the applicable manufacturer terms.
This product is an alternative to Dahua IP camera model N83BU82.
Confirm lens coverage, recorder resolution and channel capacity, firmware, analytics, power and mounting requirements for the installation.
Desktop software is separate from the mobile app. Supported features depend on the device model and firmware.
Flexible deployment
View a compatible camera with NeoViewer. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use NeoViewer for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
