Premium NDAA
Model: IPC-HNP328N-LUR/25X
In stock
Shipping Only — Not Available for Local Pickup.
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

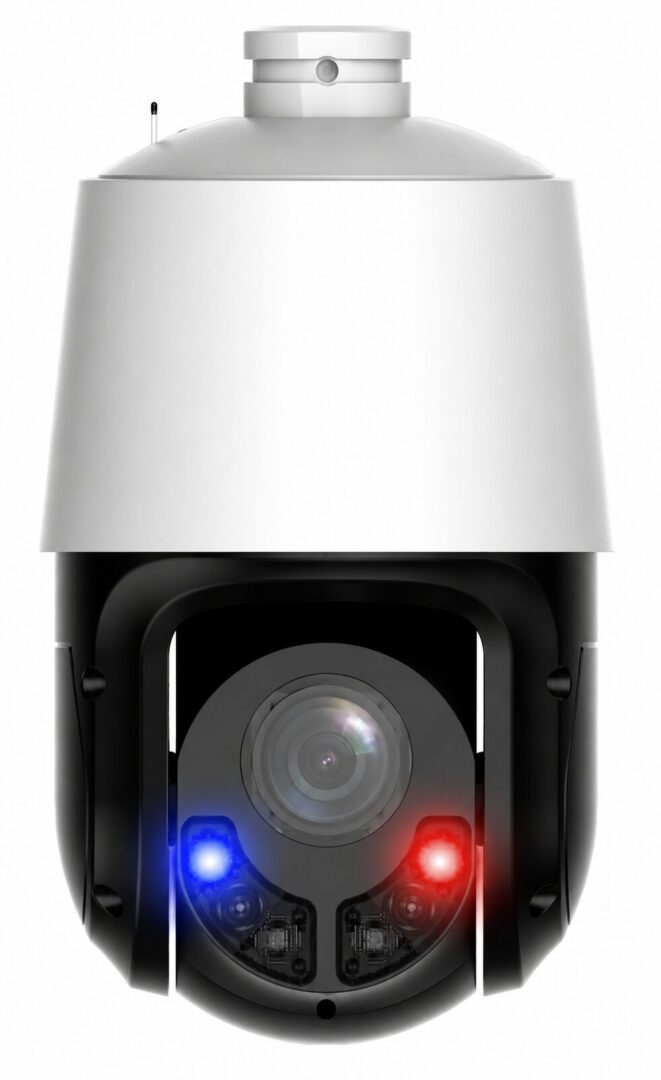

The Premium NDAA IPC-HNP328N-LUR/25X is an 8MP active-deterrence PTZ camera with 25× optical zoom.
| Camera & imaging | |
|---|---|
| Model | IPC-HNP328N-LUR/25X |
| Camera Type | 8MP Network Active Deterrence PTZ Camera |
| Image Sensor | 1/2.8-inch Progressive CMOS |
| Maximum Resolution | 8MP / 3840 × 2160 |
| Lens & positioning | |
| Optical Zoom | 25X |
| Focal Length | 5.0mm (F1.6) – 125.0mm (F3.6) |
| Horizontal Field Of View | 53.1° – 3.4° |
| Vertical Field Of View | 30.4° – 1.9° |
| Pan Range | 0°–360° Endless |
| Tilt Range | -15°–90° / 180° Auto Flip |
| Pan Speed | Manual: 0.1°/s–120°/s / Preset: 0.1°/s–240°/s |
| Tilt Speed | Manual: 0.1°/s–120°/s / Preset: 0.1°/s–240°/s |
| Presets | 300 |
| Tours | 8 Tours / Up To 32 Presets Per Tour |
| Patterns | 5 |
| Scans | 5 |
| Control Speed | Manual |
| Power Off Memory | Supported |
| Close Focus Range | 0.1 m to 1.5 m (0.3 ft to 4.9 ft) |
| DORI Distance | Detect: 137.9 m to 3,448.3 m (452.5 ft to 11,313.1 ft) Observe: 55.2 m to 1,379.3 m (181.0 ft to 4,525.2 ft) Recognize: 27.6 m to 689.7 m (90.5 ft to 2,262.6 ft) Identify: 13.8 m to 344.8 m (45.3 ft to 1,131.3 ft) |
| Diagonal field of view | 59.3° to 3.9° |
| Scheduled Modes | Preset, Pattern, Tour, Scan |
| Preset Freezing | Freezes Images Between Presets |
| 3D Positioning | Automatically Pans, Tilts, and Zooms to a Selected Area |
| Illumination & night monitoring | |
| Minimum Illumination – Color | 0.006 Lux @ F1.6 |
| Minimum Illumination – B/W | 0.0006 Lux @ F1.6 / 0 Lux With Illuminators On |
| Illuminators | 2 × IR LEDs / 2 × White-Light LEDs |
| IR Distance | Up To 100.1m / 330 ft |
| White-Light Distance | Up To 50.3m / 165 ft |
| Illuminator Control | Zoom Priority, Manual, Automatic, Off |
| Video & image settings | |
| Maximum Frame Rate | 8MP / 3840 × 2160 @ 30 fps |
| Wide Dynamic Range | 120dB WDR |
| Video Streams | 3 Streams |
| Video Compression | Smart H.265, H.265, Smart H.264, H.264, MJPEG |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| S/N Ratio | > 56 dB |
| Standard Codec | Supported |
| Supported video resolutions | 8MP (3840 × 2160), 4MP (2560 × 1440), 3MP (2304 × 1296), 3MP (2048 × 1536), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240) |
| Video Bit Rate | H.265: 1,280 kbps to 10,240kbps H.264: 4,096 kbps to 16,384 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Auto (ICR), Color, Black and White |
| Noise Reduction | 3D NR |
| Image Rotation | 0°, 180° |
| Privacy | 8 zone |
| Defog | N/A |
| Region of Interest | 8 zone |
| Additional light balancing | BLC, HLC |
| Substream frame rates | Substream 1: D1 (704 × 480), 720p (1280 × 720) at 30 fps; substream 2: 1080p (1920 × 1080) at 30 fps |
| Audio, analytics & alarms | |
| Smart Motion Detection | Human & Vehicle Alarm Classification |
| VCA+ | Line Crossing, Intrusion, Loitering, Parking Detection, Virtual Fence, Abandoned/Missing Object, Aggregate Detection, Human/Vehicle Classification, Linkage Tracking |
| Smart Tracking | Supported |
| Active Deterrence | Built-In Speaker + Flashing Red/Blue Lights |
| Audio | 1 Input / Built-In Speaker / 1 Output |
| Alarm I/O | 2 Inputs / 1 Output |
| Audio compression | G.711a, G.711Mu, PCM |
| Alarm events | Motion Detection, Audio Detection, Video Tampering, Scene Changing, Disk Full, Disk Error, Security Warning, External Alarm, AI Event |
| Alarm linkage | Capture, Record, Send Email, Alarm Digital Output, Audio, Warning Light |
| Network & storage | |
| Network Interface | RJ45 10/100 Base-T |
| ONVIF | Profiles S / G / T |
| Local Storage | MicroSD Card Up To 256GB / FTP / SFTP / NAS |
| Network protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS |
| Browser support | Chrome, Firefox, Edge, Safari |
| Additional interoperability | CGI, SDK, P2P |
| Power & environment | |
| Power | 12VDC (3A ±10%) / PoE+ IEEE 802.3at |
| Power Consumption | 8W Standard / 13W Maximum |
| Weather Protection | IP66 |
| Operating Temperature | -40°C to 65°C (-22°F to 149°F) |
| Construction | Metal Cover With Plastic Dome |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating humidity | Less than 95% RH, non-condensing |
| Dimensions & compliance | |

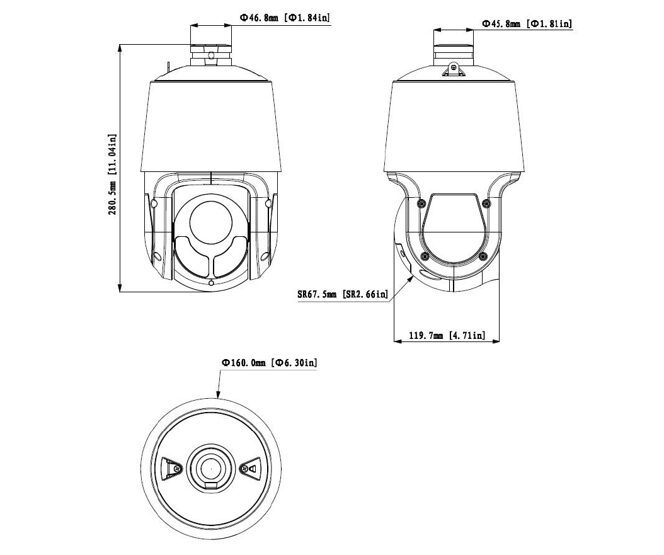

| Dimensions | Ø160.0 × 280.5mm (Ø6.3 × 11.0 in.) |
| Net Weight | 2.7 kg / 6.0 lb |
| Certifications & Compliance | FCC Certified / NDAA Compliant |
| Gross Weight | 4.5 kg (9.9 lb) |
| Certifications | FCC, IC |
| Compatibility & included items | |
| Included Mount | Mini Wall Mount Included |
| App & warranty | |
| Mobile App | NeoViewer – iPhone & Android |
| Warranty | 3-Year Manufacturer Warranty |
3-Year Manufacturer Warranty. Warranty coverage is subject to the applicable manufacturer terms.
Confirm lens coverage, recorder resolution and channel capacity, firmware, analytics, power and mounting requirements for the installation.
Available features depend on the model, firmware and system setup.
Desktop software is separate from the mobile app. Supported features depend on the device model and firmware.
Flexible deployment
View a compatible camera with NeoViewer. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use NeoViewer for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
