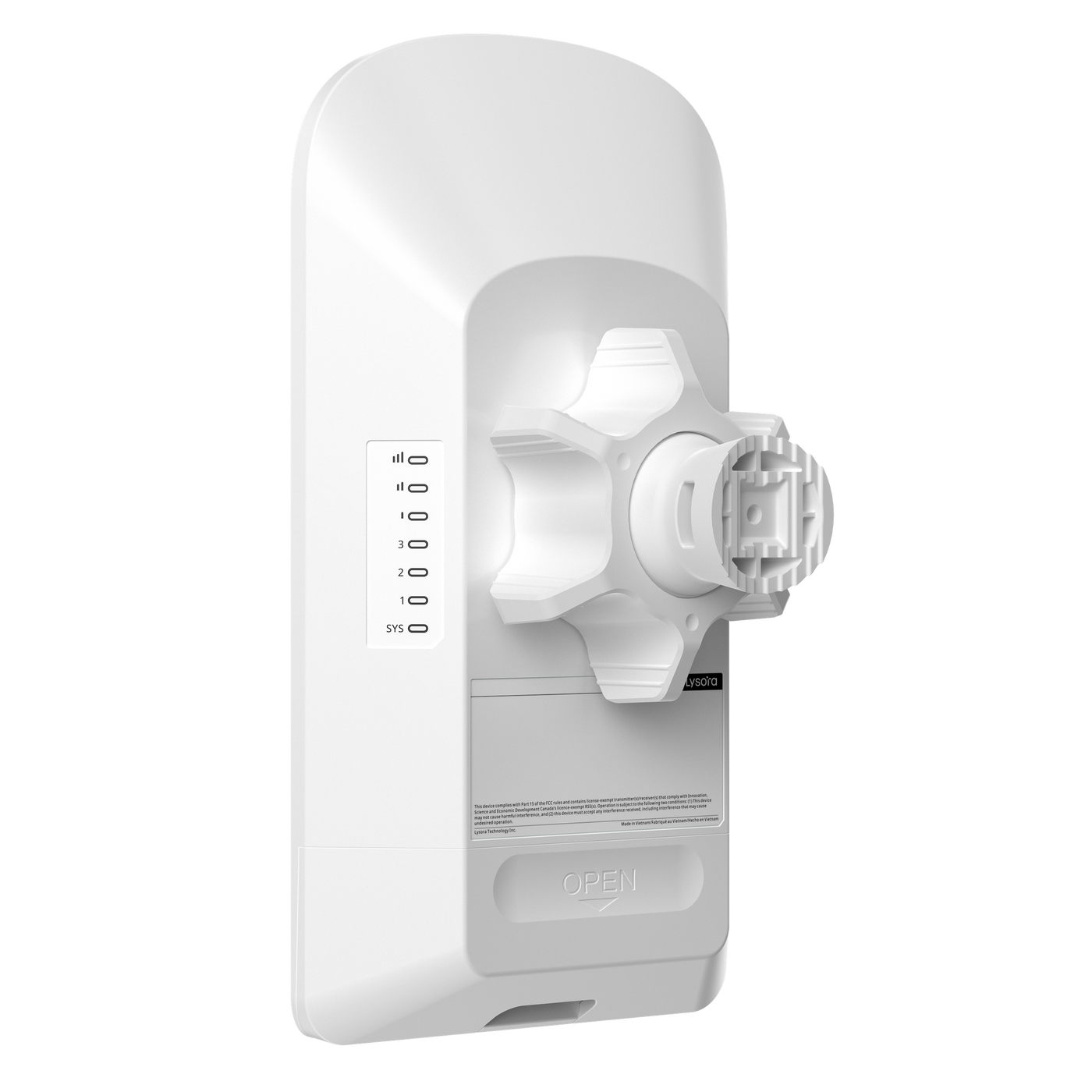

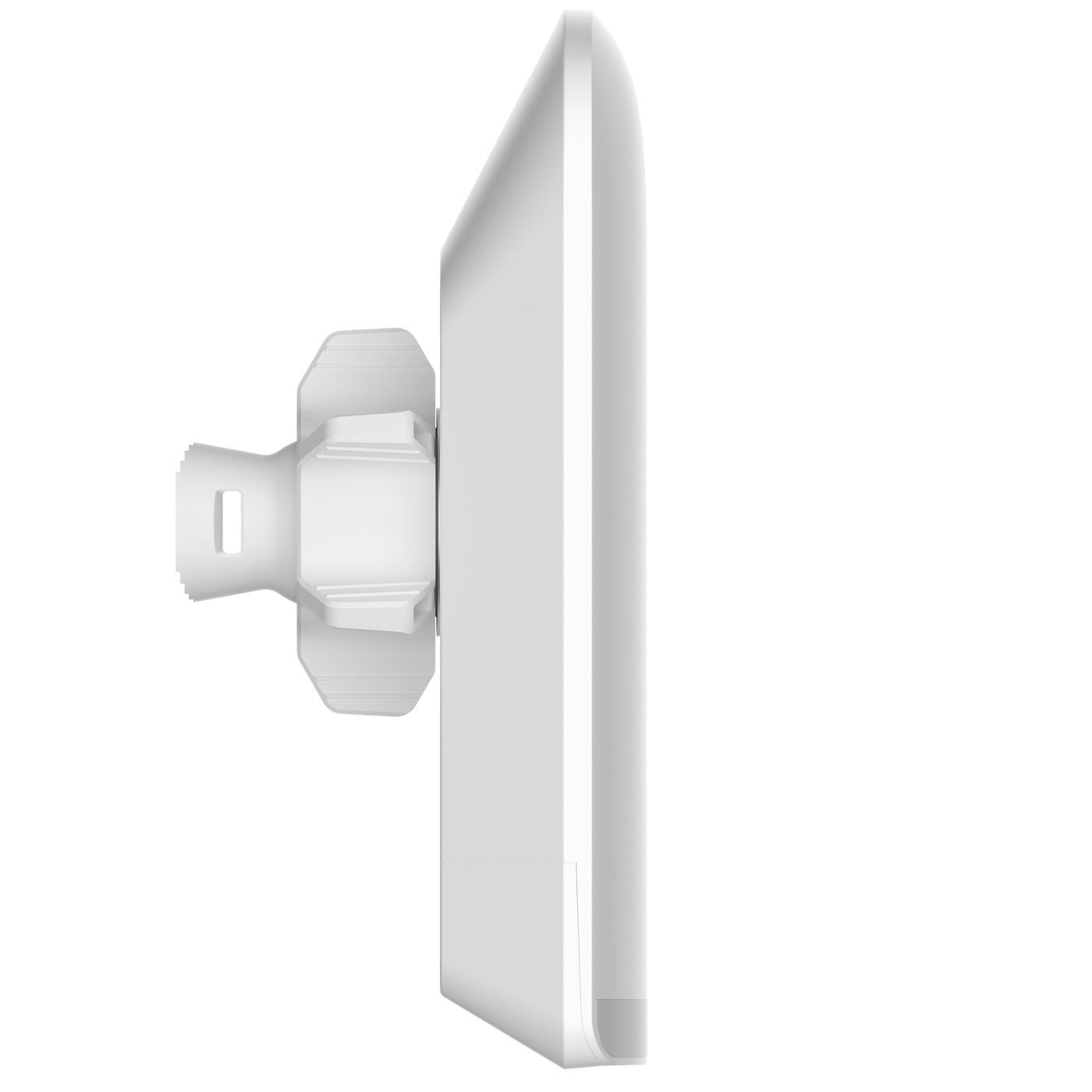

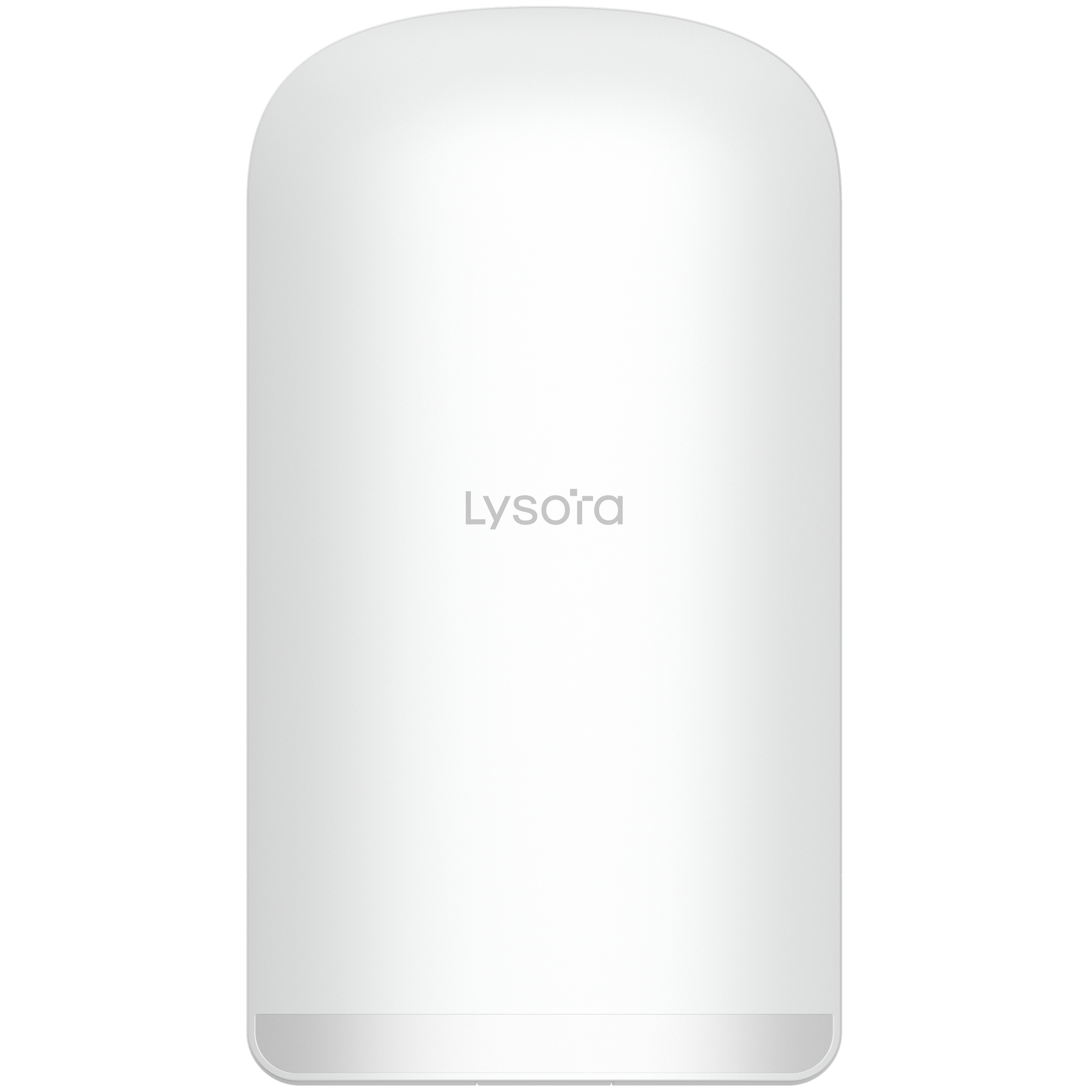

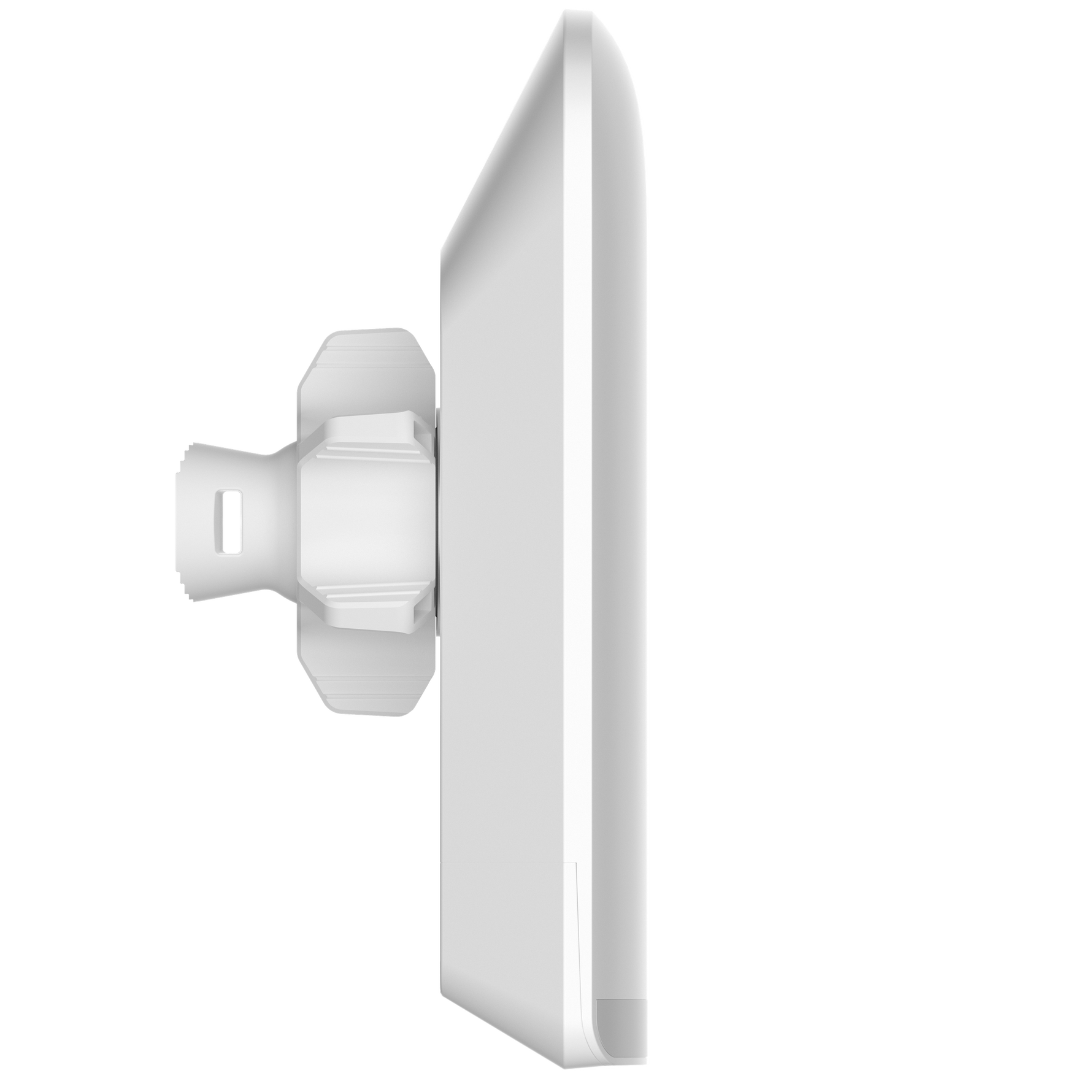

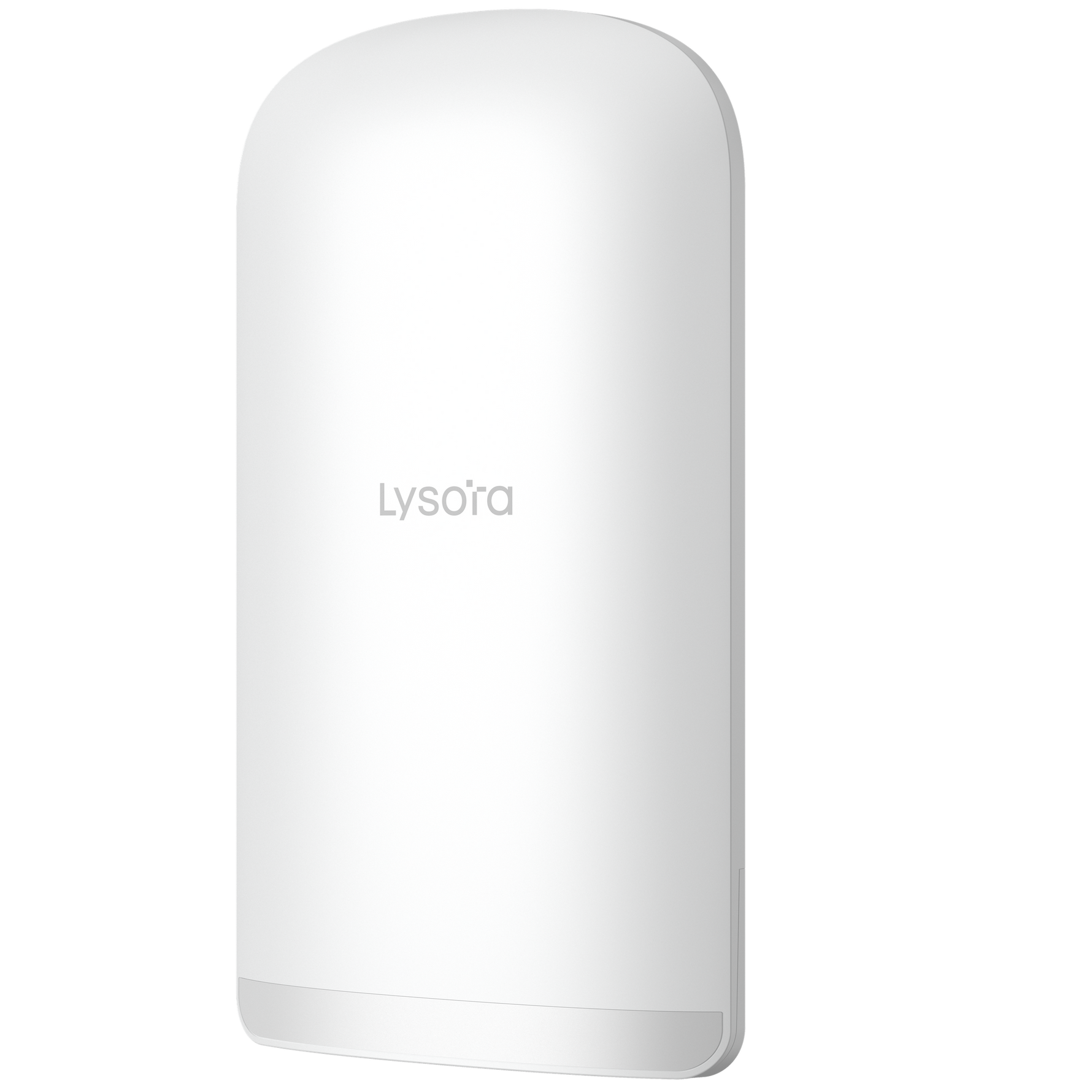

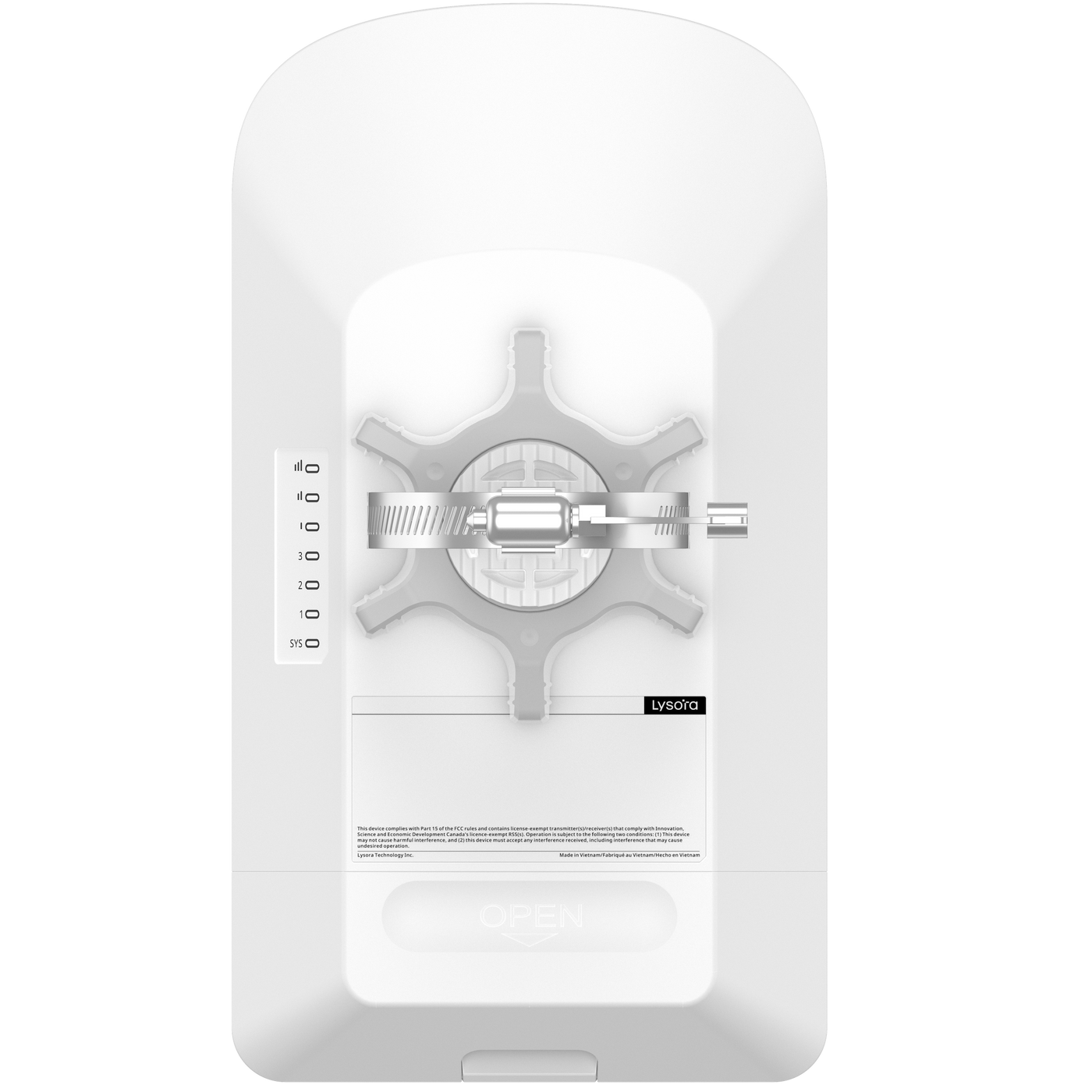

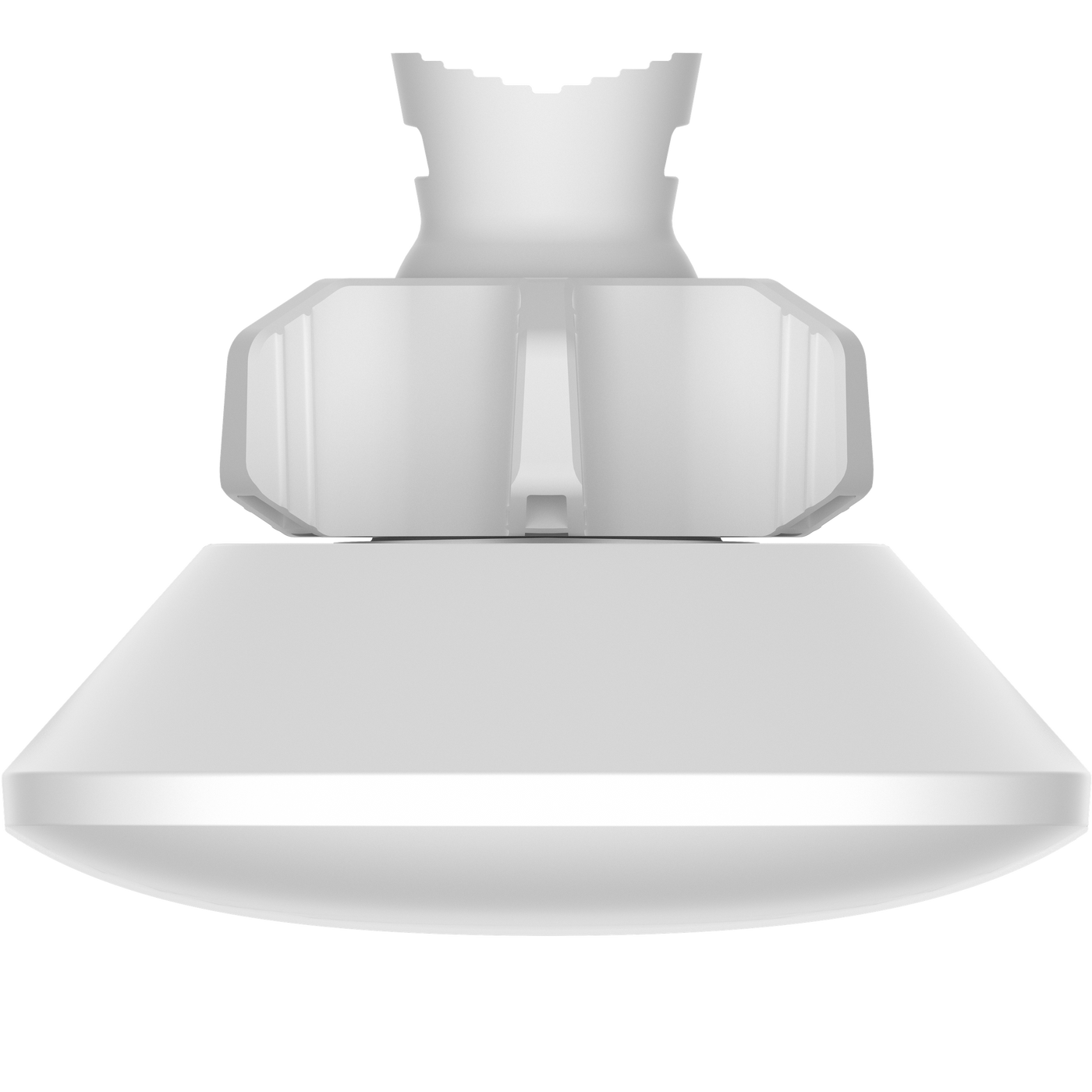

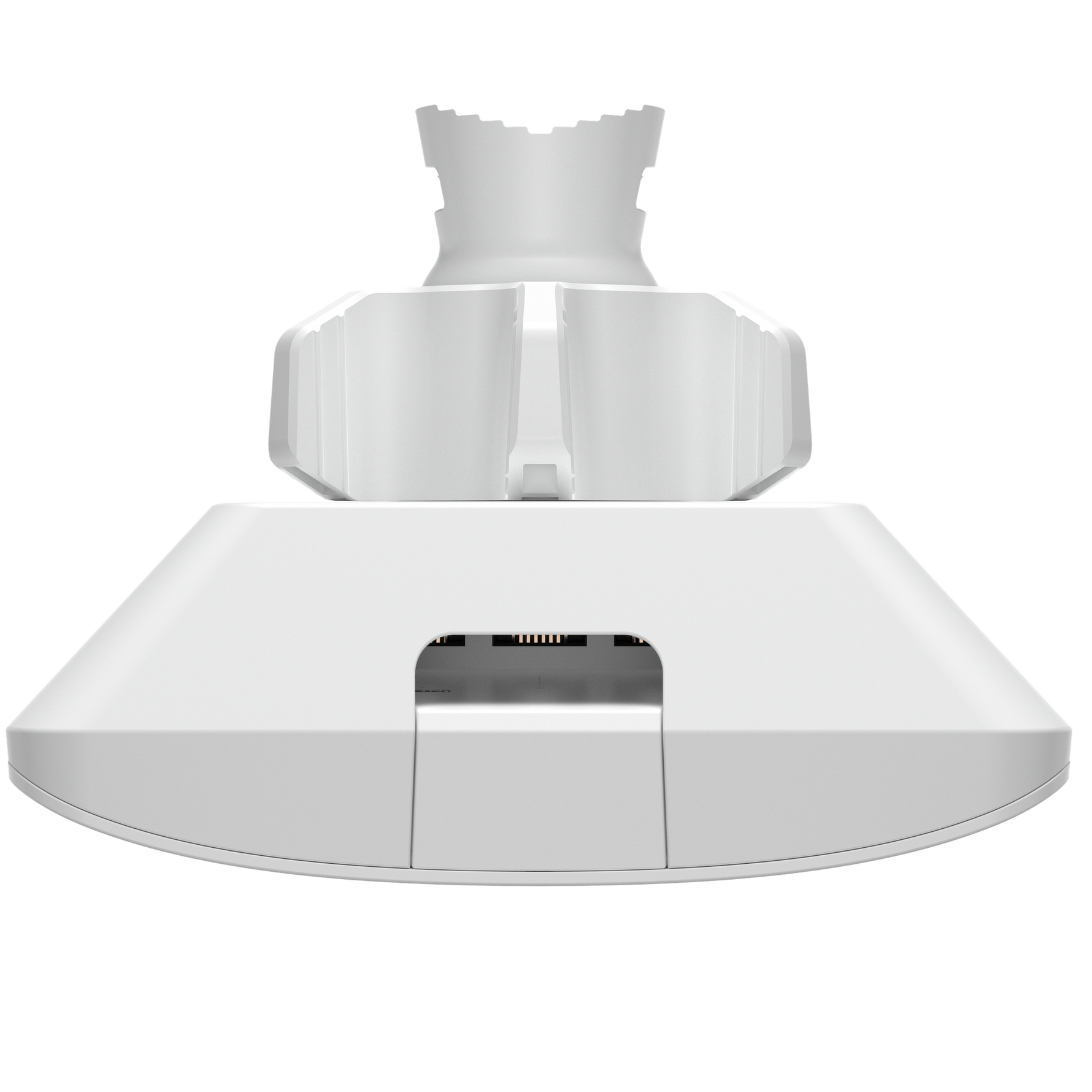

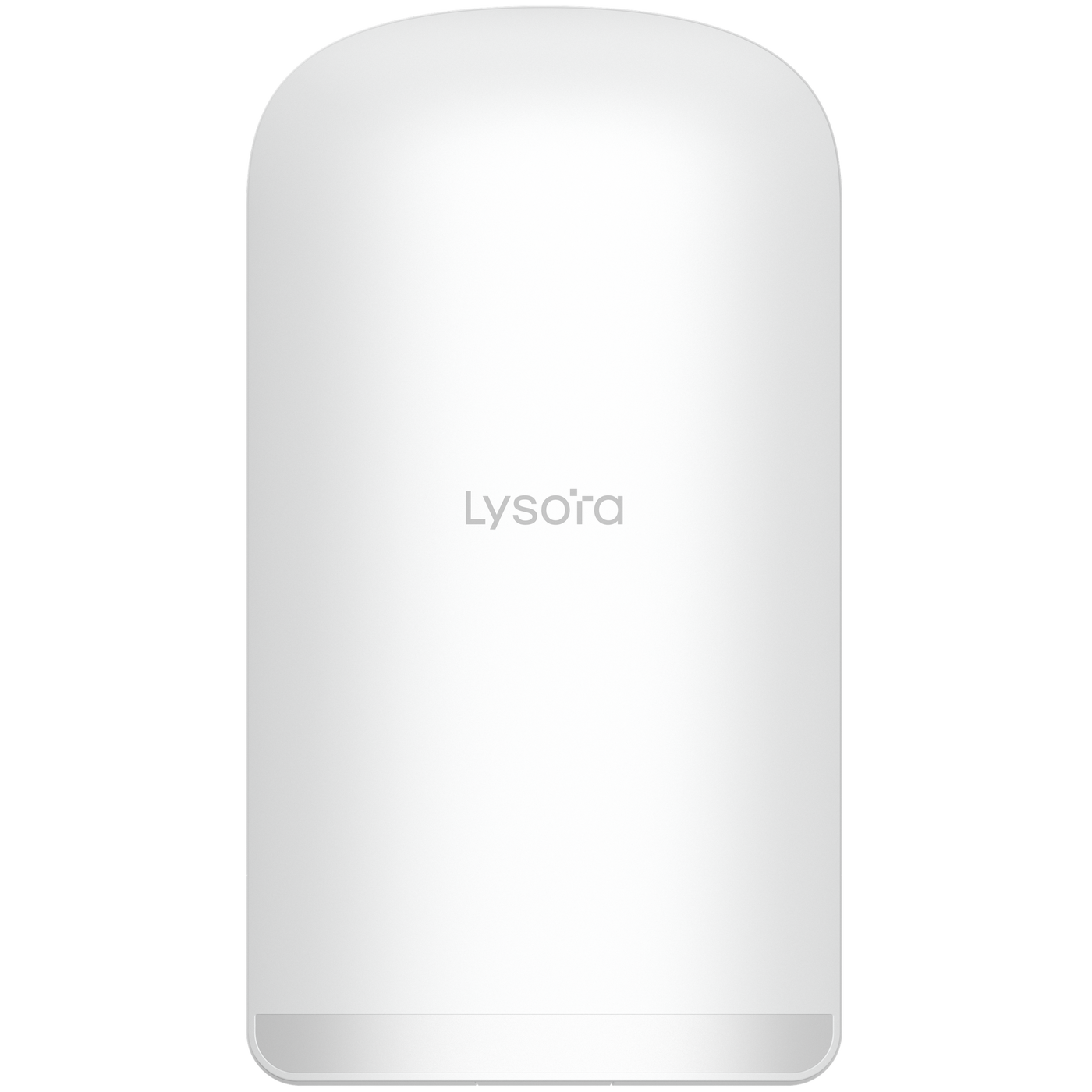

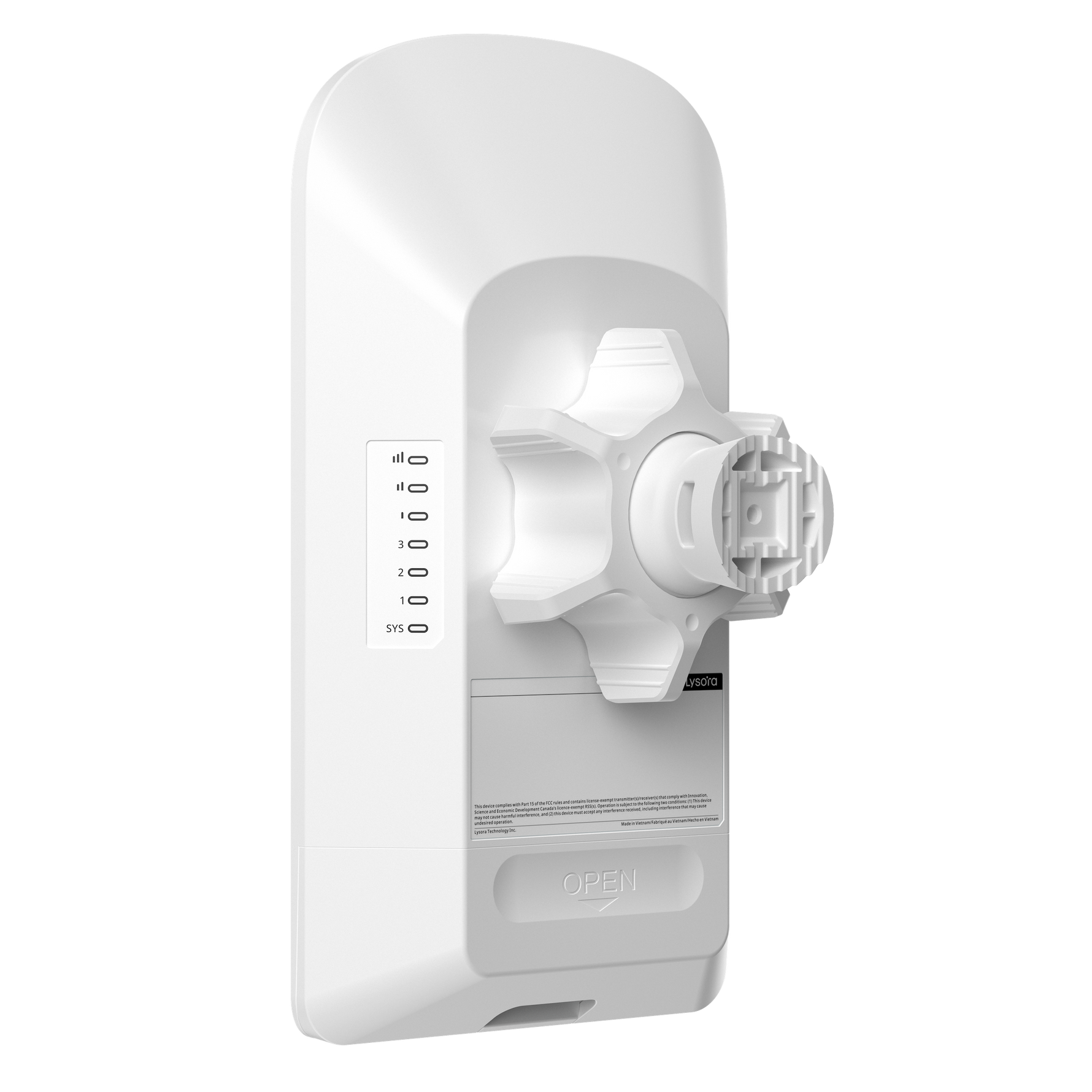

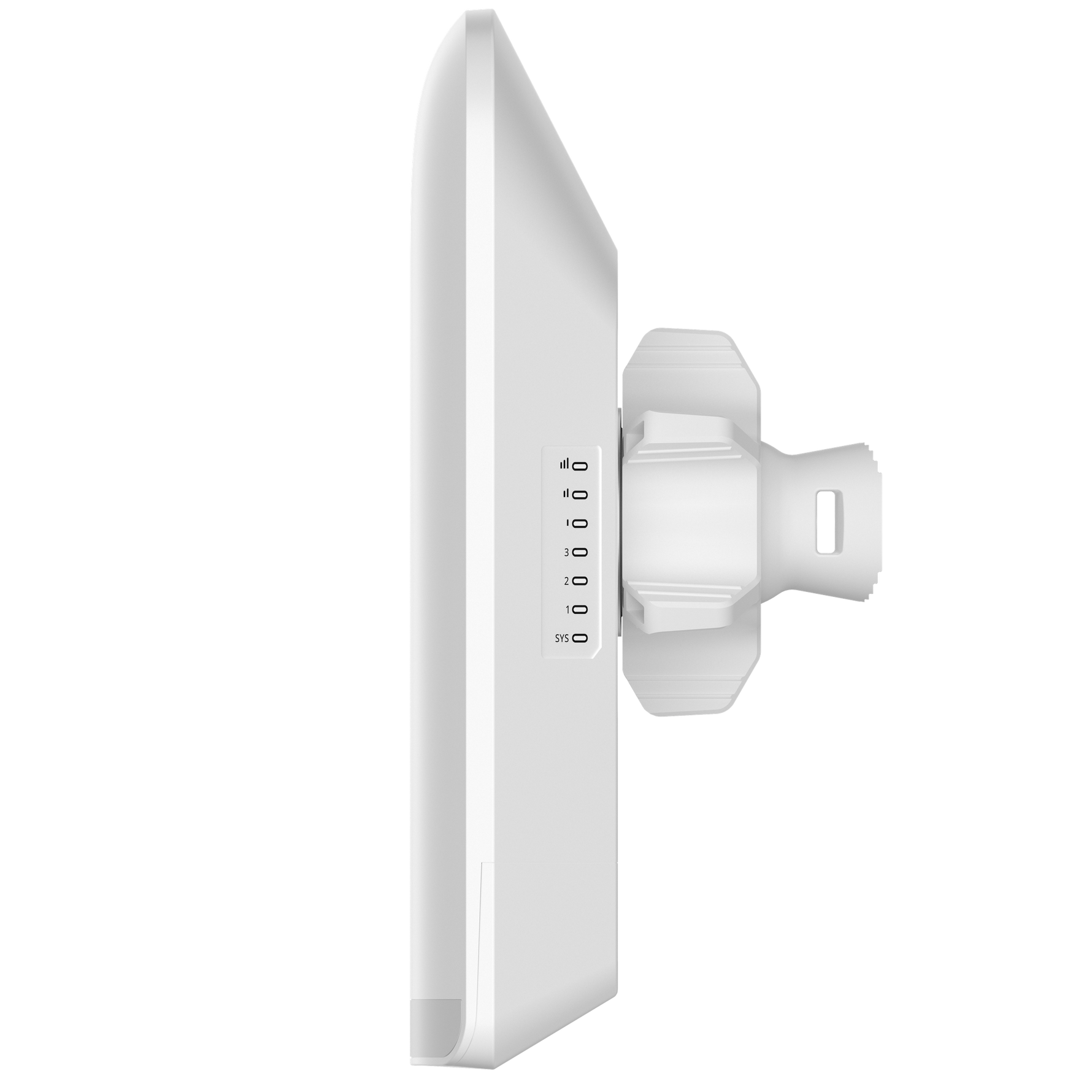

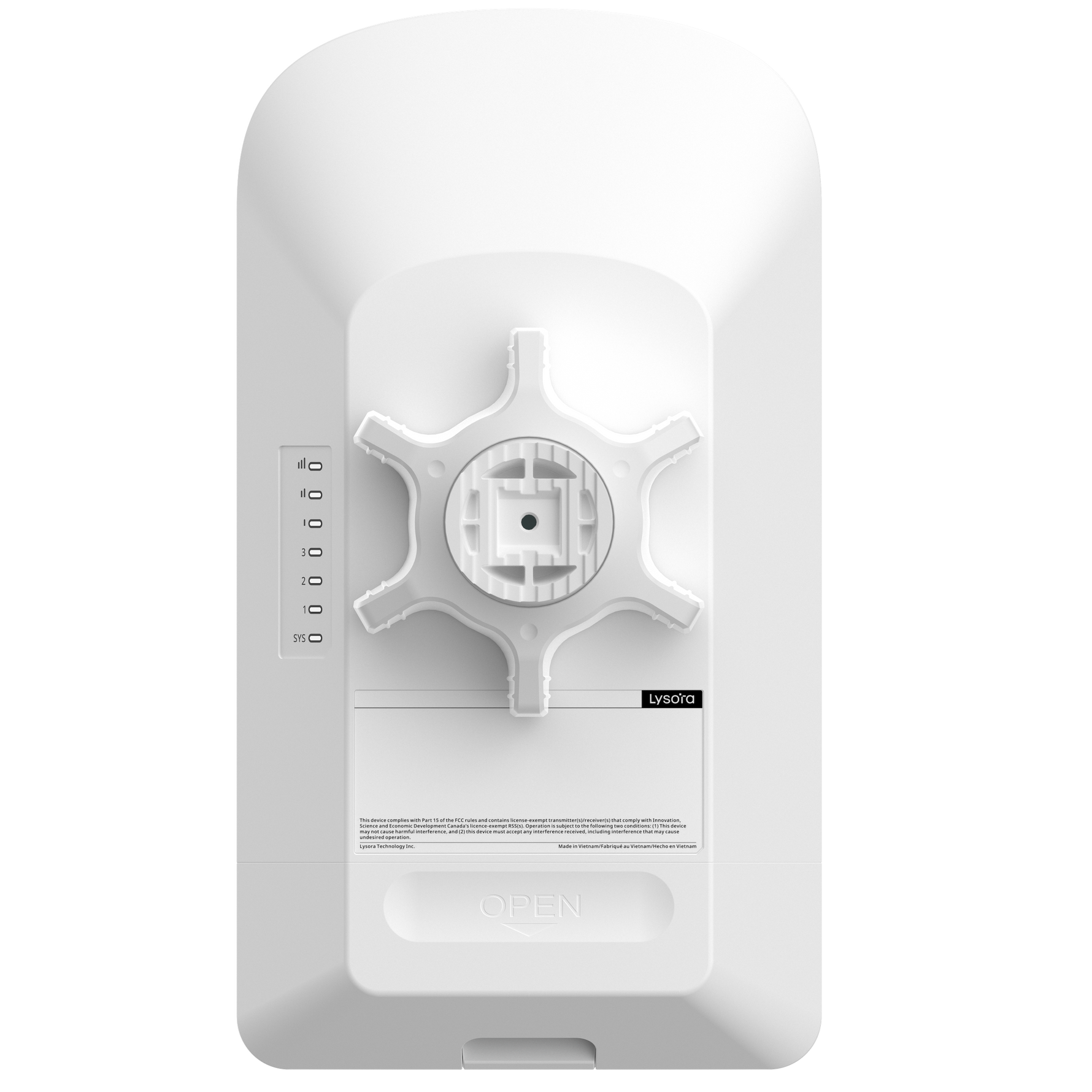

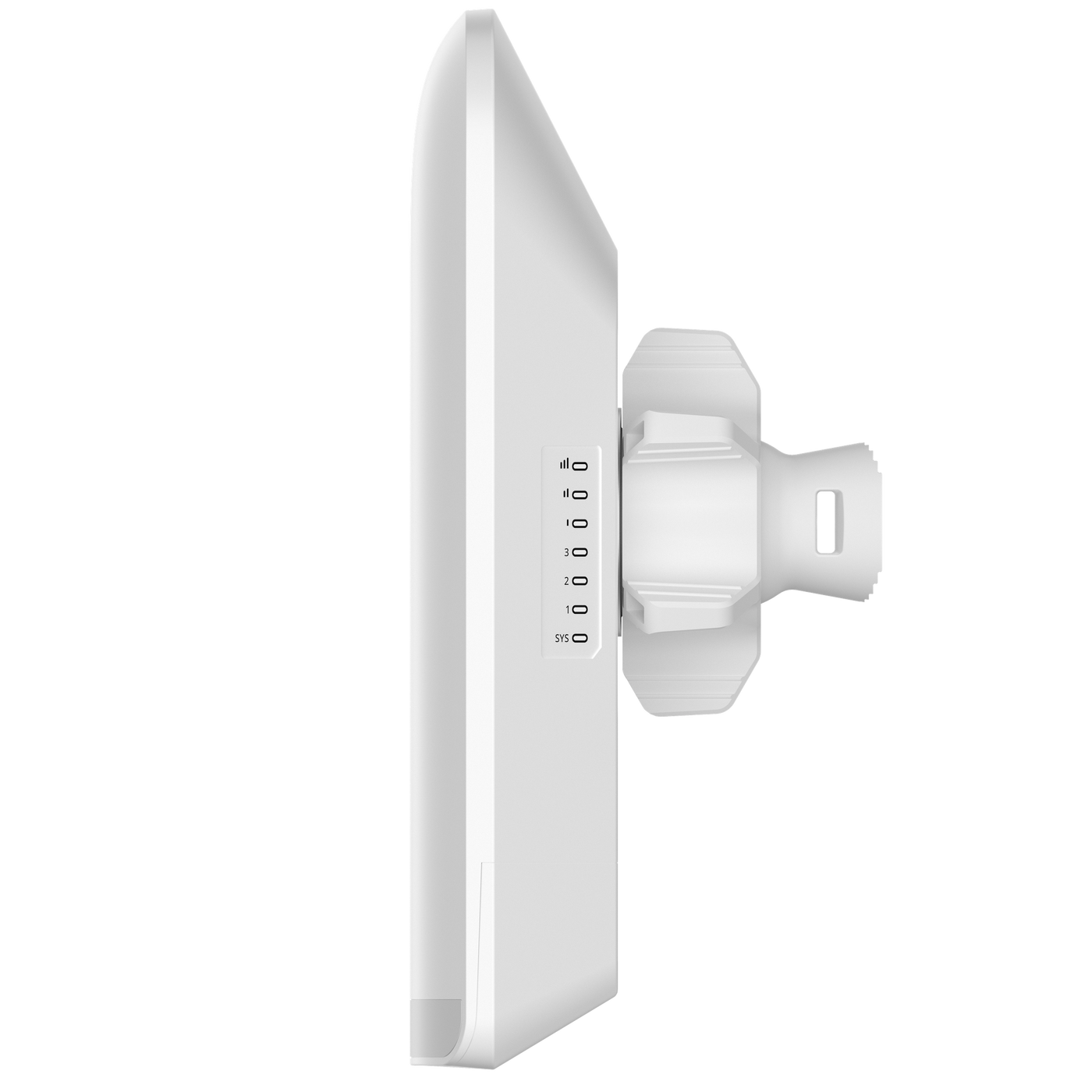

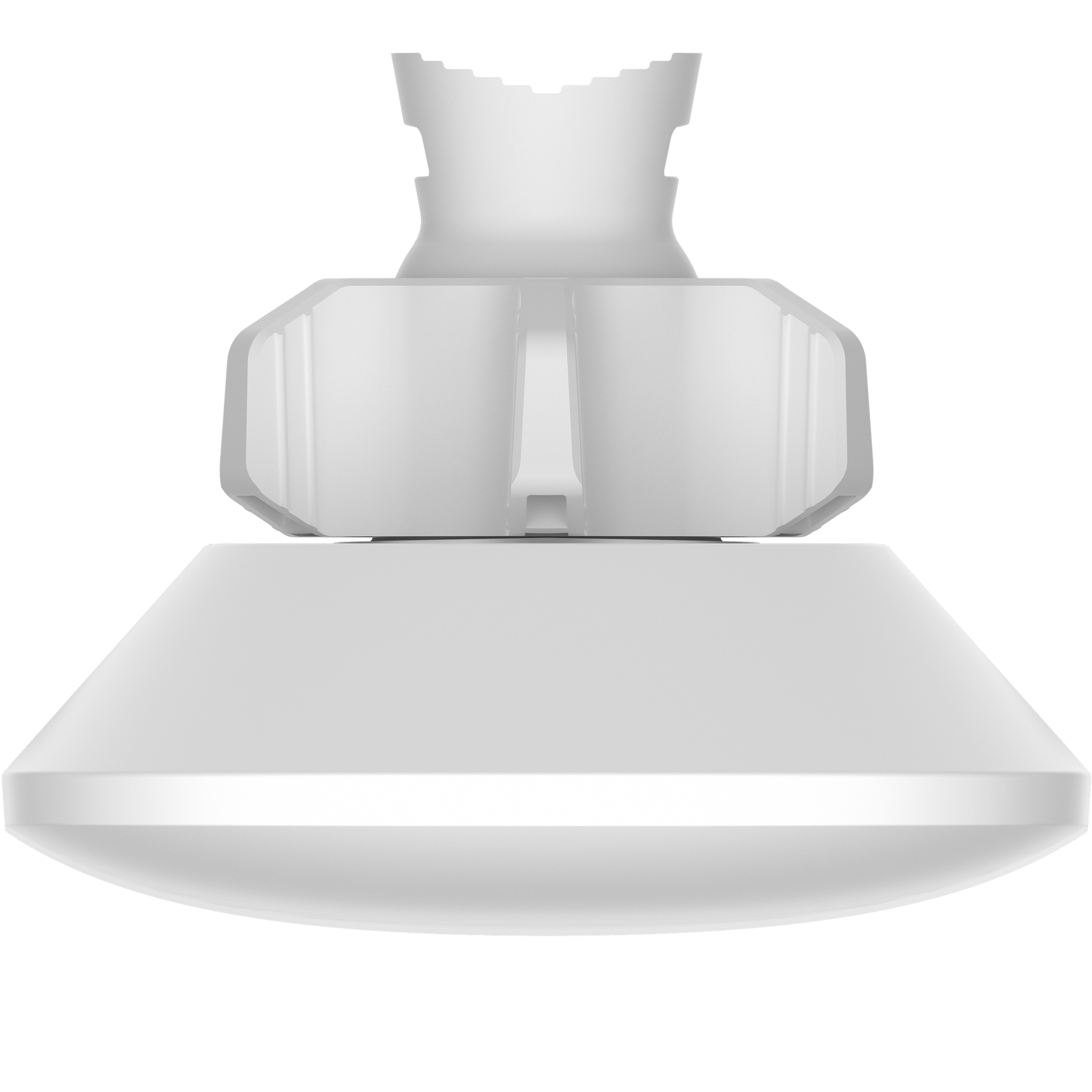

Lysora 5 GHz CPE Wireless Bridge CPE5 (Pair)
SKU: CPE5
$278.00
Pre-order item — ships when inventory is received. Contact us for the current lead time before ordering.
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast FulfillmentU.S. warehouse order processing
30-Day Eligible ReturnsUnused items with approved RMA
Need project pricing? Request a private quote for larger or special orders. Request Project Pricing
Need compatibility help?
Call (856) 317-0600 for professional assistance.
Product overview
Reliable Wireless Networking
Designed to extend dependable wireless connectivity for surveillance and networking applications. Performance varies with distance, interference, installation environment, and system configuration.
Use the compatibility tools below to select supported components.
Get assistance with configuration, installation and product selection.
U.S.-based fulfillment and protected checkout.
Product assistance
Need Assistance?
Documentation, system compatibility tools, shipping information, and direct support from NSI Security.
Shipping InformationU.S. fulfillment
Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.
View Shipping Policy →DocumentationBy request
Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.
Request Documentation →Technical SupportNSI assistance
Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.
Contact Support →Verified System ComponentsProduct-specific compatibility
Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.
View Components →RMA RequestAfter-purchase assistance
Request return authorization, repair evaluation, or replacement assistance for an eligible order.
Start RMA Request →Contact Our TeamSales and product questions
Contact NSI Security for product selection, availability, compatibility, and order assistance.
Contact NSI Security →
System compatibility
Verified System Components
Product-specific components selected for a more confident system configuration. Only populated categories are displayed.
Cat6 Outdoor U/UTP 4 Pair Network Cable Black 1000 Ft (SK-CAT6-DB1000)
$229.00 ● In stock
One-click system configuration
Build Your Complete Solution
Select the components you need and add the complete configuration to your cart.

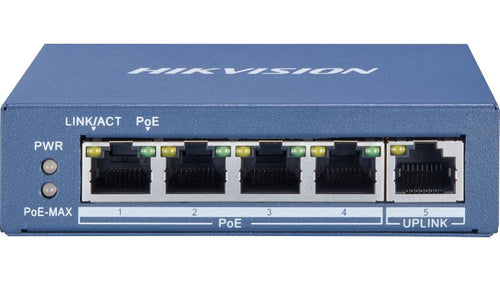

PoE Switches
Product information
Product Details & Technical Specifications
Long-Distance Wireless Backhaul for Cameras and Networks
The CPE5 can extend Ethernet connectivity between buildings or carry surveillance traffic from remote cameras without trenching new cable. The 5 GHz radio handles bridge traffic, while the 2.4 GHz radio is available for management. For the best performance, install each unit with clear line of sight, accurate antenna alignment and proper surge protection.
Key Features
867 Mbps 5 GHz Wireless
Wi-Fi 5 / 802.11ac bridge connectivity with 20, 40 and 80 MHz channel-width support.
16 dBi Directional Antenna
Built-in high-gain 5 GHz antenna focuses the wireless signal for stable long-distance links.
Up to 5 km Range
Supports outdoor transmission up to approximately 3.11 miles under properly aligned line-of-sight conditions.

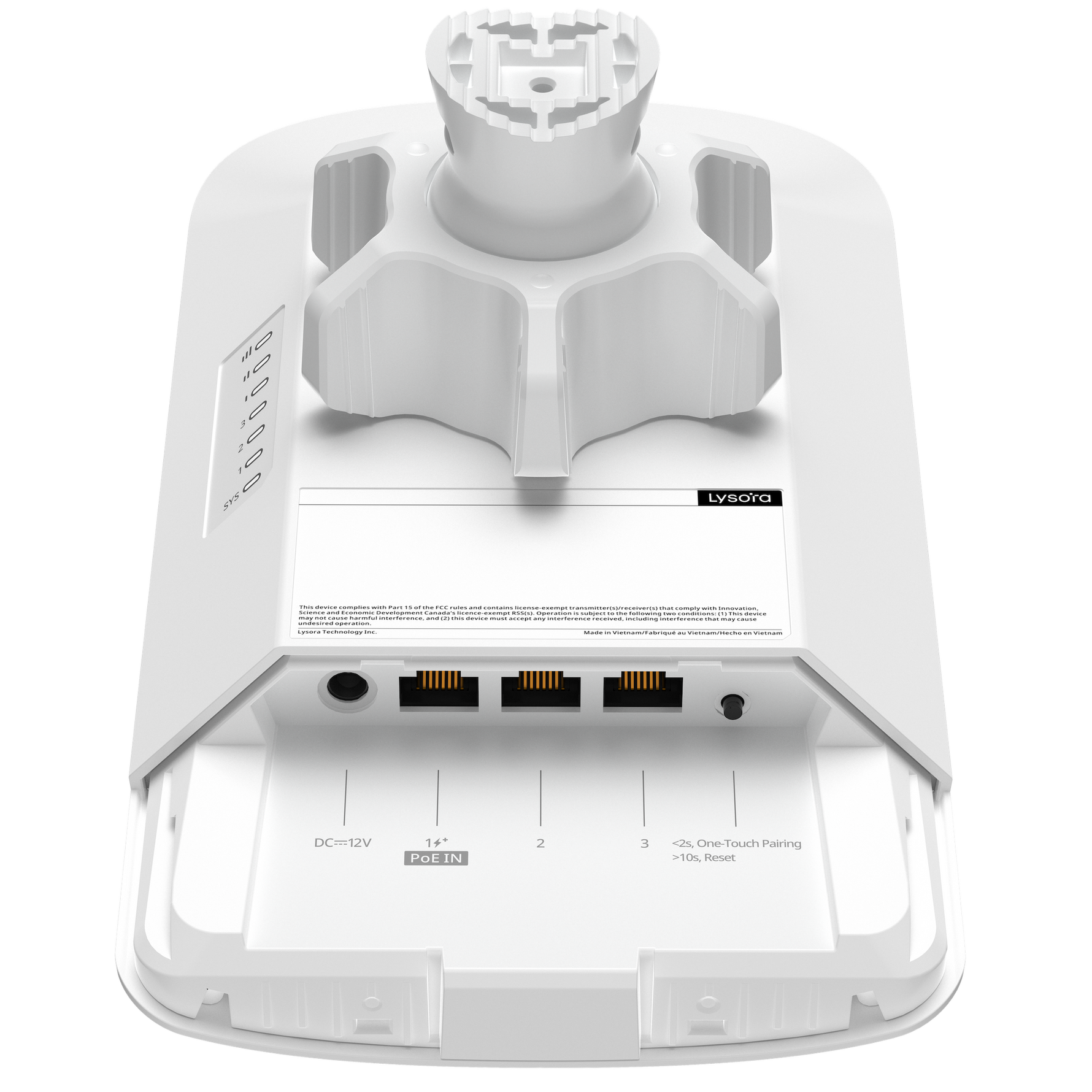

Three Gigabit Ports
Three 10/100/1000BASE-T interfaces provide flexible connectivity for network and surveillance devices.
Web & Lysora Cloud Management
Manage and monitor the wireless bridge through local web tools or the supported Lysora Cloud platform.
PTP & PTMP Support
TDMA supports point-to-point links and point-to-multipoint deployment with up to five CPE clients.
Flexible Power Options
Supports 24V passive PoE, included power accessories, local DC input and standard PoE/PoE+ options.
IP55 Outdoor Design
Weather-resistant housing supports outdoor wall or pole mounting when properly installed.
Feature Overview
✓ 5 GHz wireless bridge with up to 867 Mbps data rate
✓ 2.4 GHz management radio up to 300 Mbps
✓ IEEE 802.11 a/b/g/n/ac support
✓ 5 GHz 2 × 2 MIMO and 2.4 GHz 1 × 1 SISO
✓ 16 dBi 5 GHz directional antenna
✓ 31° horizontal and 14° vertical antenna beamwidth
✓ Maximum transmission distance up to 5 km
✓ Three Gigabit Ethernet interfaces
✓ TDMA point-to-multipoint support for up to 5 CPEs
✓ Dual-core 880 MHz processor
✓ 128MB RAM and 16MB flash memory
✓ 20/40 MHz at 2.4 GHz and 20/40/80 MHz at 5 GHz
✓ Maximum 5 GHz transmit power up to 29 dBm
✓ Web and Lysora Cloud management
✓ 24V passive PoE injector and adapter included
✓ PoE/PoE+ power support
✓ Maximum device power consumption ≤12W

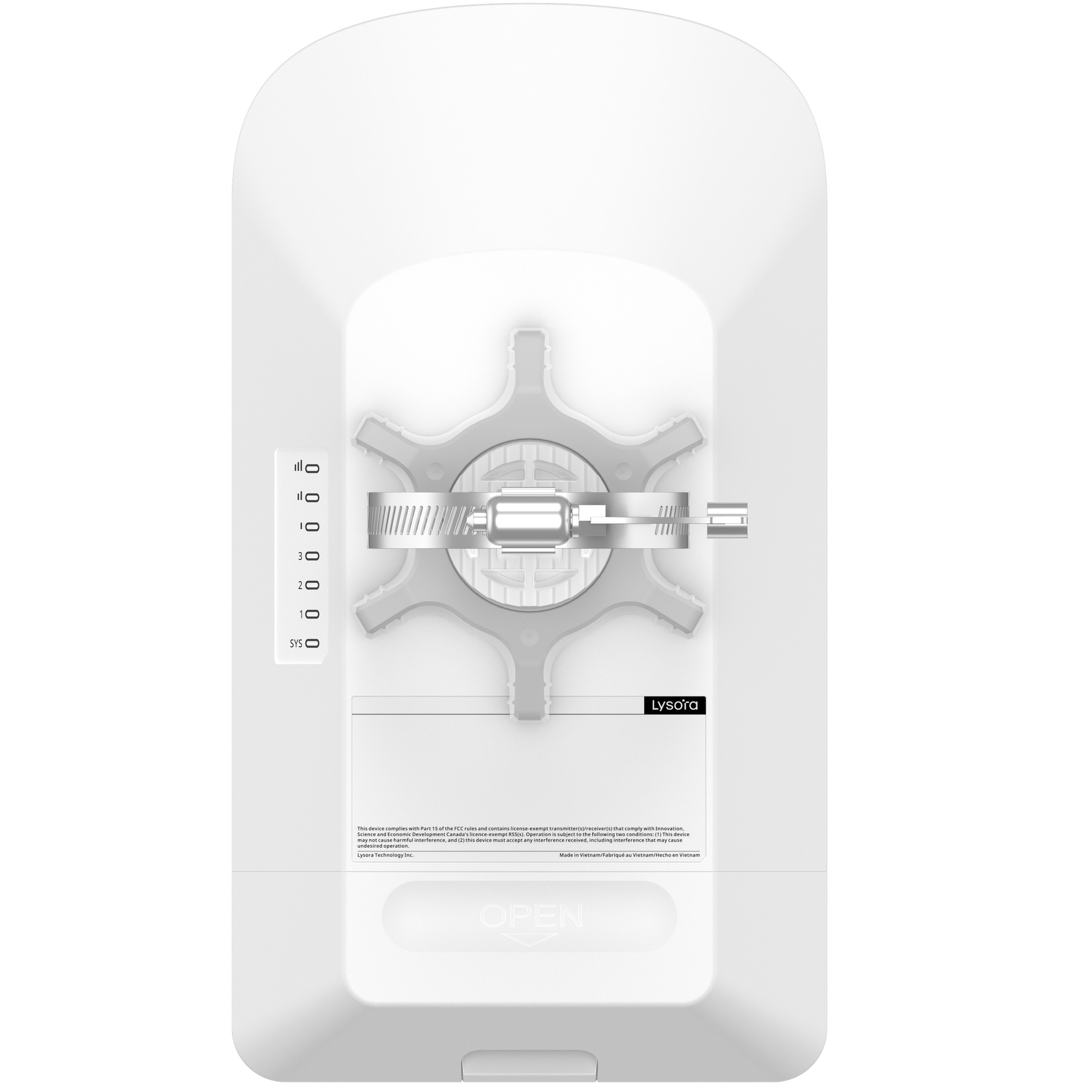

✓ Wall or pole mounting
✓ IP55 outdoor weather resistance
✓ NDAA compliant product positioning
Best Applications
CCTV Backhaul
Building-to-Building
Remote IP Cameras
Parking Lots
Warehouses
Rural Network Links
Product Highlights
| Model | CPE5 |
| Product Type | Outdoor CPE wireless bridge |
| Primary Application | CCTV backhaul, PTP and PTMP wireless links |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac |
| Spatial Streams | 3 total |
| 5 GHz Radio | 2 × 2 MIMO, up to 867 Mbps |
| 2.4 GHz Radio | 1 × 1 SISO management radio, up to 300 Mbps |
| Channel Width | 2.4 GHz: 20/40 MHz; 5 GHz: 20/40/80 MHz |
| 5 GHz Antenna | Built-in 16 dBi directional antenna |
| 2.4 GHz Antenna | Built-in 2 dBi antenna |
| Beamwidth | 31° horizontal / 14° vertical |
| Maximum Link Distance | Up to 5 km / 3.11 miles under suitable conditions |
| Maximum Transmit Power | 2.4 GHz: 20 dBm; 5 GHz: 29 dBm |
| Ethernet Interfaces | 3 × 10/100/1000BASE-T ports |
| Processor | Dual-core, 880 MHz per core |
| Memory | 128MB RAM / 16MB flash |
| PTMP Capacity | Up to 5 CPE clients via TDMA |
| Management | Local web management and Lysora Cloud |
| Power Methods | 12V DC input, 24V passive PoE, PoE/PoE+ |
| Included Power Accessories | 24V DC adapter and passive PoE injector |
| Maximum Power Consumption | ≤12W |
| PoE Output | No PoE-out |
| Mounting | Wall or pole |
| Dimensions | 240 × 133 × 108 mm / 9.45 × 5.24 × 4.25 in, excluding bracket |
| Unit Weight | 0.56 kg / 1.24 lb without packaging |
| Weather Protection | IP55 |
| Compliance | NDAA compliant |
Package Quantity Notice
A complete point-to-point wireless bridge requires two compatible CPE devices. Some distributor listings package the CPE5 as a pre-paired two-unit kit, while other listings may sell individual units. Confirm the quantity included in this specific NSI Security product listing before ordering.
Pre-Paired for Easy Installation
Each wireless bridge kit is automatically paired before shipment. Both units arrive brand new and pre-matched, eliminating the need for manual wireless pairing. The two bridge units are pre-paired and communicate only with each other by default, helping simplify installation and improve deployment reliability.
In most installations, simply mount both units, connect power and Ethernet, align them with a clear line of sight, and complete any required network settings. This significantly reduces installation time and makes deployment fast and straightforward.
Installation Recommendation
For best performance, both bridge units should have clear line of sight with minimal obstruction through trees, roofs, walls or metal structures. Confirm Fresnel-zone clearance, mounting height, antenna alignment, channel selection, interference levels, grounding, outdoor cable sealing, PoE wiring, surge protection and actual bandwidth requirements before installation. Maximum distance and throughput are not guaranteed and vary by environment.
Network & Camera Compatibility
The CPE5 transports standard Ethernet traffic and can be used with compatible IP cameras, NVRs, switches and network equipment. Actual camera count depends on measured wireless throughput, camera bitrate, codec, frame rate, network overhead, interference and link quality. The CPE5 does not provide PoE output to power a connected camera.
Warranty Information
Warranty coverage and duration are listed in the applicable NSI Security product description and begin on the date the product is delivered. Warranty coverage is subject to product eligibility, serial-number verification, exclusions and return procedures.
Important: Wireless speed, throughput, range and connection stability vary with line of sight, Fresnel-zone clearance, antenna alignment, interference, channel width, weather, mounting height, cable quality, firmware, local radio regulations and network design. The listed 867 Mbps value is the maximum wireless link rate, not guaranteed usable Ethernet throughput. Specifications, included accessories, package quantity, cloud functions and compliance status are subject to change. Verify current Lysora documentation and the exact NSI Security package contents before ordering.
