Uniview

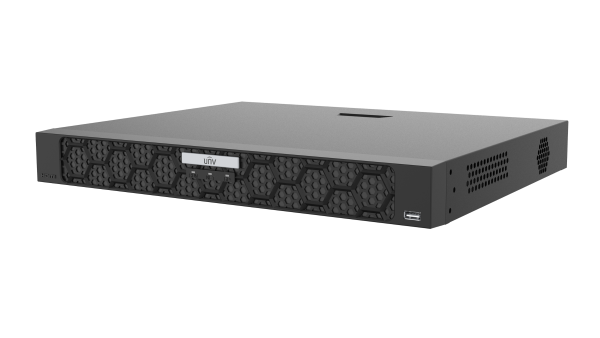

Model: NVR502-08B-P8-IQ
In stock
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.
The UNV NVR502-08B-P8-IQ pairs eight PoE camera connections with two drive bays and recorder-side AI. It offers a compact way to power cameras, store footage and search supported events.
Incoming bandwidth is up to 320Mbps with Smart Off and 160Mbps with Smart On. Select one analyzer mode at a time; available channel capacity changes with the function and camera resolution.
RAID 1 keeps a copy of recordings on the second drive. Usable storage is reduced compared with the combined raw capacity of two drives.
| Recording and decoding | |
|---|---|
| Model | NVR502-08B-P8-IQ |
| IP video inputs | 8 channels |
| Built-in PoE | 8 ports |
| Video formats | Ultra 265, H.265, H.264 |
| Recording resolutions | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, CIF |
| Smart-off decoding | 2 × 16MP@30fps; 2 × 12MP@30fps; 4 × 4K@30fps; 8 × 4MP@30fps; 8 × 3MP@30fps; 8 × 1080p@30fps |
| Smart-on decoding | 2 × 12MP@30fps; 2 × 4K@30fps; 6 × 4MP@30fps; 8 × 3MP@30fps; 8 × 1080p@30fps |
| Decoding configuration | Listed decoding capacities are alternative configurations, not additive; each channel is limited to 8192 × 4096 pixels |
| Local synchronous playback | 16 channels |
| ANR | Supported with compatible cameras and configuration |
| Cloud upgrade | Supported |
| PoE | |
| PoE interfaces | 8 × RJ45 10/100Mbps |
| PoE standards | IEEE 802.3af / 802.3at |
| Maximum per-port power | 30W |
| Total PoE budget | 130W |
| Network | |
| Incoming bandwidth — Smart Off | 320Mbps |
| Incoming bandwidth — Smart On | 160Mbps |
| Outgoing bandwidth | 160Mbps |
| Remote users | Up to 128 |
| LAN interfaces | 1 × RJ45 10/100/1000Mbps |
| Network protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, IPv4, IPv6 |
| Browser support | IE10/11, Chrome 45+, Edge 79+, Firefox 52+ (plugin required) |
| IP speaker channels | 32 |
| POS | All channels |
| Video, audio and snapshots | |
| HDMI | 1 output; 3840 × 2160 at 30Hz; 1920 × 1080 at 60/50Hz; 1600 × 1200, 1280 × 1024, 1280 × 720 and 1024 × 768 at 60Hz |
| VGA | 1 output; 1920 × 1080 at 60/50Hz; 1600 × 1200, 1280 × 1024, 1280 × 720 and 1024 × 768 at 60Hz |
| Display operation | Independent HDMI/VGA output; VGA live video is displayed by default. Clear VGA preview video to obtain the highest-resolution HDMI video |
| Live-view layouts | 1 / 4 / 6 / 8 / 9 |
| Corridor layouts | 3 / 4 / 5 / 7 / 9 |
| RCA audio input / output | 1 / 1 |
| Two-way audio | 1 channel through RCA input and output |
| Audio formats | G.711A, G.711U |
| FTP / scheduled / event snapshots | 4 channels; maximum source video 8MP (3840 × 2160), snapshot resolution 1080p |
| Analytics and search | |
| Camera-side analytics | All channels, up to 8 images/s total: face detection/comparison, LPR vehicle detection, temperature detection, SIP, UMD, video metadata and traffic monitoring; compatible cameras required |
| Recorder-side analytics | Face detection/comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| Analyzer modes | Face Recognition, SIP, UMD or AcuSearch/AcuTrack; only one analyzer mode can operate at a time |
| AcuSearch / AcuTrack | All channels with compatible UNV SIP/UMD cameras |
| Face detection by recorder | Up to 8 channels with UNV face-detection cameras; with supported normal UNV/third-party cameras: 2 × 2MP or 1 × 4MP |
| SIP with normal cameras | 4 × 2MP, 2 × 4MP or 1 × 4K; supported UNV/third-party cameras |
| UMD with normal cameras | 8 × 2MP, 4 × 4MP or 2 × 4K; supported UNV/third-party cameras |
| Image search | Supported |
| VCA search | AcuSearch, AcuTrack, face snapshot/comparison, motor vehicle, non-motor vehicle, human body and general searches; people-counting reports and heat maps |
| Vehicle-picture libraries | Up to 5 libraries; 25,000 pictures total |
| Smart record capacity | Face snapshots: 2 million; vehicle snapshots: 2 million; SIP: 3 million; video metadata: 2 million |
| Storage | |
| SATA bays | 2 |
| Maximum drive capacity | Up to 24TB per HDD; capacity depends on drive size and ambient temperature; ambient temperature must not exceed 40°C for this capacity specification |
| Raw installed capacity | Up to 48TB with two supported 24TB drives; RAID 1 mirrors data and does not provide 48TB usable recording capacity |
| Storage modes | RAID 1, disk groups and redundant storage |
| Interfaces and events | |
| USB | Front: 1 × USB 2.0; rear: 1 × USB 3.0 |
| RS485 | 1 |
| RS232 | None |
| Alarm inputs / outputs | 8 / 2 |
| General events | Defocus, scene change, object left/removed, auto-tracking, motion, tampering, human-body detection, video loss, alarm input and audio detection |
| System alerts | IP conflict, disconnected network, offline/abnormal disk, illegal access, low/full disk, abnormal recording/snapshot, damaged/degraded array |
| Power and physical | |
| Power supply | 100–240V AC |
| Power switch | Supported |
| Consumption without HDD | ≤12W |
| Operating temperature | -10°C to 50°C; maximum-capacity HDD operation is subject to the 40°C limit above |
| Operating humidity | ≤90% RH, non-condensing |
| Chassis height | 1U |
| Dimensions | 380 × 322 × 53mm |
| Weight without HDD | ≤2.7kg |
| GUI languages | 38 languages |
| Certifications | CE, FCC, UL, RoHS, WEEE |
| CE standards | EN 55032; EN 61000-3-3; EN IEC 61000-3-2; EN 55035 |
| FCC | Part 15 Subpart B |
| Camera integration | Compatible Uniview cameras; ONVIF Profiles S, G and T; RTSP. Third-party features depend on camera compatibility and configuration. |
AcuSearch and AcuTrack require compatible UNV SIP/UMD cameras. Keep connected cameras within both the per-port power limit and the shared 130W PoE budget.
NDAA compliant.
