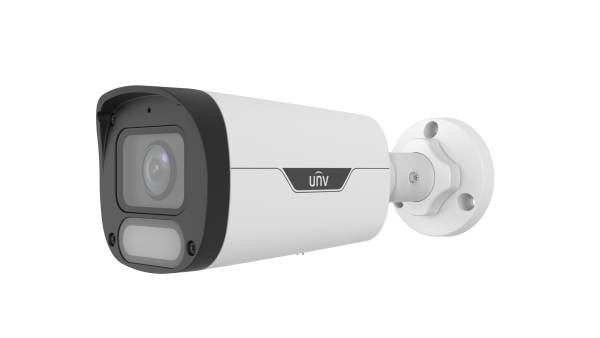

Uniview IPC2314SR-ADF28KM-WP 4MP OwlView ColourHunter Full-Color Bullet Network Camera

The Uniview IPC2314SR-ADF28KM-WP is a professional 4MP OwlView (ColourHunter) bullet IP camera designed to deliver vivid full-color surveillance 24 hours a day. Equipped with a 1/1.8" CMOS sensor, an ultra-large F1.0 aperture, and Uniview's Wise-ISP image processing technology, this camera produces exceptionally bright and detailed color images even in extremely low-light environments.

Unlike conventional infrared cameras, the IPC2314SR-ADF28KM-WP uses an integrated 30m warm white LED illuminator to maintain full-color video at night. Combined with 120 dB True WDR, built-in microphone, intelligent human detection, and Ultra 265 compression, this camera is ideal for residential, commercial, retail, parking, and perimeter security applications.

Key Features

  • 4MP OwlView (ColourHunter) Full-Color Bullet Network Camera
  • 1/1.8" Progressive Scan CMOS Sensor
  • 2.8mm Fixed Lens
  • Large F1.0 Aperture for Superior Low-Light Performance
  • Maximum Resolution: 2688 × 1520
  • 24/7 Full-Color Imaging
  • Wise-ISP Intelligent Image Processing
  • 120 dB True Wide Dynamic Range (WDR)
  • 30m (98ft) Warm White LED Illumination
  • Built-in Microphone
  • Ultra 265, H.265, H.264 and MJPEG Compression
  • Human Detection with Cross Line & Intrusion Detection
  • Motion Detection, Audio Detection and Tampering Alarm
  • Smart Illumination
  • Digital Defog
  • 2D/3D Digital Noise Reduction
  • MicroSD Card Support up to 512GB
  • PoE IEEE802.3af and 12V DC
  • IP67 Weatherproof Housing
  • 4kV Surge Protection
  • 3-Axis Adjustable Mount

Specifications

Model IPC2314SR-ADF28KM-WP
Camera Type 4MP OwlView Full-Color Bullet Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Maximum Resolution 2688 × 1520
Maximum Frame Rate 4MP @ 25fps (30fps at 3MP/1080P)
Lens 2.8mm Fixed Lens
Lens Aperture F1.0
Horizontal Field of View 110.4°
Vertical Field of View 60.5°
Diagonal Field of View 115.2°
Minimum Illumination 0.0003 Lux (Color)
Night Vision 30m Warm White LED Full-Color Illumination
Wide Dynamic Range 120 dB True WDR
Video Compression Ultra 265, H.265, H.264, MJPEG
AI Detection Human Detection, Cross Line, Intrusion
Additional Detection Motion, Audio, Tampering
Built-in Microphone Yes
Edge Storage MicroSD Card up to 512GB
Network RJ45 10/100 Mbps Ethernet
Power Supply 12V DC ±25% / PoE IEEE802.3af
Maximum Power Consumption 2.8W
Protection Rating IP67
Material Graphene + Metal
Dimensions 206 × 73 × 73 mm (8.1 × 2.9 × 2.9 in)
Weight 0.48 kg (1.06 lb)
Operating Temperature -30°C to 60°C (-22°F to 140°F)

Compatible Mounting Accessories

  • TR-A01-IN Waterproof Cable Gland
  • TR-JB05-B-IN Bullet Junction Box
  • TR-UP06-C-IN-V2 Pole Mount Bracket
  • TR-UC08-C-V2 Corner Mount Bracket

Ideal Applications

  • Residential security
  • Retail storefronts
  • Office buildings
  • Parking lots
  • Warehouses
  • Schools and campuses
  • Building entrances
  • Perimeter surveillance

```

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
