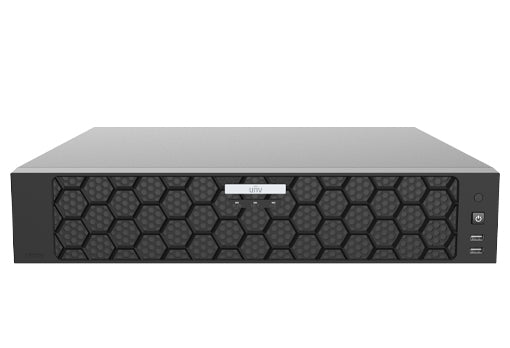

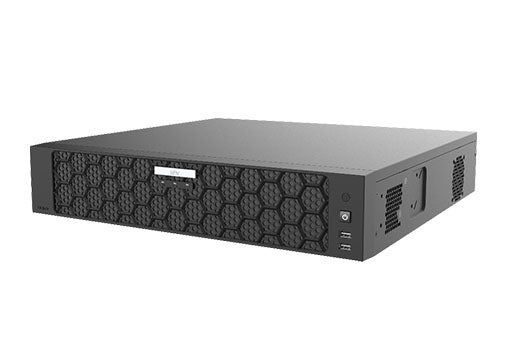

UNV NVR508-64B 64-Channel 8-Bay Network Video Recorder
In Stock Sale

Uniview

UNV NVR508-64B 64-Channel 16MP 8-Bay Network Video Recorder

SKU: NVR508-64B

$3,499.00 $4,219.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast ShippingU.S. warehouse fulfillment
Easy RMA SupportStreamlined assistance when needed
Need compatibility help? Call (856) 317-0600 for professional assistance.
Overview Resources & Support Compatibility Solution Builder Specifications
Product overview

Reliable Video Recording

Built for dependable video recording, AI analytics, and scalable surveillance deployments. Features vary by model, firmware, storage configuration, and connected devices.

Professional Quality

Designed for demanding surveillance and networking environments.

System Compatibility

Use the compatibility tools below to select supported components.

Technical Support

Get assistance with configuration, installation and product selection.

Secure Purchasing

U.S.-based fulfillment and protected checkout.

Product assistance

Need Assistance?

Documentation, system compatibility tools, shipping information, and direct support from NSI Security.

Shipping InformationU.S. fulfillment

Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.

View Shipping Policy →
DocumentationBy request

Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.

Request Documentation →
Technical SupportNSI assistance

Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.

Contact Support →
Verified System ComponentsProduct-specific compatibility

Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.

View Components →
RMA RequestAfter-purchase assistance

Request return authorization, repair evaluation, or replacement assistance for an eligible order.

Start RMA Request →
Contact Our TeamSales and product questions

Contact NSI Security for product selection, availability, compatibility, and order assistance.

Contact NSI Security →
System compatibility

Verified System Components

Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

One-click system configuration

Build Your Complete Solution

Select the components you need and add the complete configuration to your cart.

Storage

PoE Switches

Product information

Product Details & Technical Specifications

Professional 64-Channel Network Video Recorder

UNV NVR508-64B

The UNV NVR508-64B is a professional 64-channel network video recorder designed for large commercial and enterprise IP video surveillance systems requiring high camera capacity, substantial recording bandwidth, scalable storage, and centralized security management.

Supporting recording resolutions up to 16 megapixels, up to 320Mbps incoming bandwidth, eight internal SATA hard-drive bays, RAID storage, N+1 hot-spare operation, independent or simultaneous HDMI and VGA display configurations, and Uniview Ultra 265 compression, the NVR508-64B provides a dependable recording platform for demanding multi-camera installations.

64 IP Camera Channels
16MP Maximum Recording Resolution
8-Bay SATA Storage Capacity
320Mbps Incoming Bandwidth
Important

Standard Non-PoE Recorder

The NVR508-64B does not include built-in PoE camera ports. All IP cameras must connect through compatible external PoE switches or the existing network infrastructure.

This is the standard NVR508-64B and should not be confused with the NVR508-64E-IQ, NVR508-64E-R, or NVR508-64E-R-IQ models.

Enterprise-Scale Recording

Product Highlights

64CH

64-Channel IP Camera Support

Connect and manage up to 64 compatible IP cameras for centralized live viewing, recording, playback, event review, and administration.

16MP

Up to 16MP Recording

Supports recording from compatible cameras at resolutions up to 16 megapixels for detailed professional surveillance video.

320

High Network Throughput

Provides up to 320Mbps incoming and 160Mbps outgoing bandwidth for demanding multi-camera recording and remote-viewing systems.

8 HDD

Eight SATA Hard-Drive Bays

Accommodates up to eight compatible surveillance hard drives for extended recording retention and flexible storage planning.

RAID

RAID 1 and RAID 5

Supports RAID storage configurations, disk groups, and redundant recording to improve storage resilience.

N+1

N+1 Hot-Spare Support

A compatible standby recorder can assume recording duties if a primary recorder becomes unavailable in a supported deployment.

4K

4K HDMI and VGA Display

Supports HDMI output up to 4K and flexible simultaneous or independently configurable HDMI and VGA viewing modes.

U265

Ultra 265 Compression

Supports Ultra 265, H.265, and H.264 formats to help reduce storage usage and network-bandwidth requirements.

Professional Recording Platform

Designed for Large Surveillance Systems

The NVR508-64B combines high camera capacity, extensive internal storage, substantial network bandwidth, and centralized administration in a professional 2U rack-mount enclosure.

  • Up to 64 compatible IP camera channels
  • Up to 16MP recording resolution
  • Eight internal SATA interfaces
  • RAID 1 and RAID 5 support
  • N+1 recorder hot-spare capability
  • Up to 16-channel synchronous local playback
  • Dual Gigabit Ethernet interfaces
Flexible Integration

UNV and Third-Party Camera Support

The recorder supports compatible Uniview cameras and supported third-party IP cameras using ONVIF Profiles S, G, and T or RTSP.

  • ONVIF Profile S support
  • ONVIF Profile G support
  • ONVIF Profile T support
  • RTSP network-stream support
  • Local, browser, software, and mobile access
  • Cloud upgrade support
Camera-Side Intelligence

Compatible Smart Event Integration

When paired with compatible intelligent cameras, the NVR508-64B can receive, display, record, and search supported camera-generated smart events and VCA data.

Supported functions may include face detection, vehicle detection, license-plate recognition, intrusion detection, cross-line detection, Ultra Motion Detection, temperature alarms, people counting, video metadata, traffic monitoring, and heat-map reporting.

This standard recorder does not provide the same recorder-side AI processing available on IQ-series models. Smart functions depend on the connected camera, firmware, available system resources, and configuration.

Scalable Video Storage

Eight-Bay Storage and RAID

8 Internal SATA Interfaces
RAID 1 Mirrored Storage
RAID 5 Distributed Parity
24TB* Listed Maximum per Drive

*Uniview’s current online specification lists support for up to 24TB per compatible hard drive. Maximum capacity may vary by firmware, approved hard-drive model, physical drive dimensions, operating temperature, and product revision. Hard drives are sold separately unless specifically included with the selected product option.

Technical Overview

Specifications

Model NVR508-64B
Product Type Professional Network Video Recorder
IP Camera Inputs Up to 64 Channels
Built-In PoE Ports No — External PoE Switch Required
Recording Resolution Up to 16MP; also supports 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, and CIF
Video Compression Ultra 265, H.265, and H.264
Incoming Bandwidth Up to 320Mbps
Outgoing Bandwidth Up to 160Mbps
Remote Users Up to 128
Decoding — Ultra 265/H.265 Up to 2 × 16MP at 30fps, 2 × 12MP at 30fps, 4 × 4K at 30fps, 6 × 5MP at 30fps, 8 × 4MP at 30fps, 10 × 3MP at 30fps, 16 × 1080p at 30fps, 32 × 960p at 25fps, 36 × 720p at 30fps, or 64 × D1
Local Synchronous Playback Up to 16 Channels
HDMI Output 1 × HDMI, Up to 4K at 30Hz
VGA Output 1 × VGA, Up to 1920 × 1080 at 60Hz
Display Operation Simultaneous HDMI/VGA output by default; independent output can be configured
Live-View Layout Up to 64-camera display in simultaneous-output mode; up to 32-camera display per output in independent mode
Audio Input 1 × RCA
Audio Output 1 × RCA
Two-Way Audio 1 Channel Using RCA Audio Input and Output
Audio Compression G.711A and G.711U
Hard-Drive Interfaces 8 × SATA
Maximum Listed Drive Capacity Up to 24TB per compatible HDD, subject to drive dimensions, firmware, approved-drive support, temperature, and revision
Storage Features Disk Groups and Redundant Storage
RAID Support RAID 1 and RAID 5
Hot-Spare Support N+1 Recorder Hot Spare
Network Interfaces 2 × RJ45 10/100/1000Mbps Self-Adaptive Gigabit Ethernet Ports
Camera Compatibility Compatible UNV Cameras, ONVIF Profiles S/G/T, and Supported RTSP Devices
USB Interfaces Front: 2 × USB 2.0;
Rear: 1 × USB 3.0
Alarm Inputs 16 Channels
Alarm Outputs 4 Channels
Serial Interface 1 × RS485
ANR Support Yes, with Compatible Cameras and Edge Storage
Power Supply AC 100–240V
Power Consumption Up to 25W Without Hard Drives
Operating Temperature -10°C to 55°C / 14°F to 131°F
Operating Humidity Up to 90% RH, Non-Condensing
Dimensions 442 × 426 × 89mm / 17.4 × 16.8 × 3.5 Inches
Weight Up to 5.5kg / 12.13 lb Without Hard Drives
Chassis Professional 2U Rack-Mount Design
Compliance NDAA Listed; CE, FCC, UL, RoHS, and WEEE
Recommended Use

Ideal Applications

Commercial Properties
Apartment Complexes
Warehouses
Schools and Campuses
Hotels and Hospitality
Retail Operations
Industrial Facilities
Large Multi-Site Systems

Third-Party Camera Integration

Third-party IP cameras may not be plug-and-play and may require manual network, ONVIF, RTSP, user-account, stream, codec, resolution, and frame rate configuration.

Compatibility may vary depending on ONVIF profile support, firmware, authentication method, video codec, resolution, frame rate, audio format, stream profile, and smart-event support. Full functionality is not guaranteed with every third-party camera.

Storage and Recording-Retention Notice

Recording retention depends on camera count, resolution, frame rate, bitrate, compression format, scene activity, recording schedule, smart-event configuration, hard-drive capacity, and RAID settings.

Surveillance-grade hard drives are recommended. Hard drives are not included unless specifically stated in the selected product option.

3
Manufacturer Warranty

Three-Year UNV Recorder Warranty

This UNV network video recorder includes a three-year manufacturer warranty when purchased through NSI Security, subject to manufacturer warranty terms, serial-number verification, product eligibility, and NSI Security’s applicable Terms and Conditions.

Important Product Information

Specifications are subject to change without notice. Features, camera compatibility, smart functions, storage capacity, hard-drive support, recording performance, decoding capability, bandwidth, display output, cloud access, and overall system performance may vary depending on firmware, connected cameras, hard-drive models, network configuration, installation environment, system settings, and regional product revision.

Smart analytics listed for this standard recorder are generated by compatible IP cameras and do not mean the recorder includes the same recorder-side analytics provided by an IQ-series model.

Please verify current manufacturer documentation and NDAA status before ordering for government, public-sector, or compliance-sensitive projects.

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
