Uniview

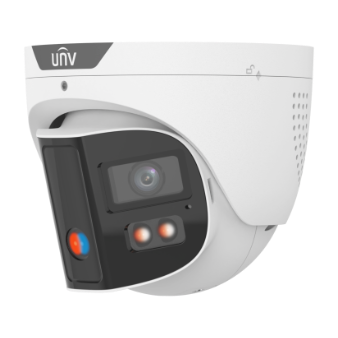

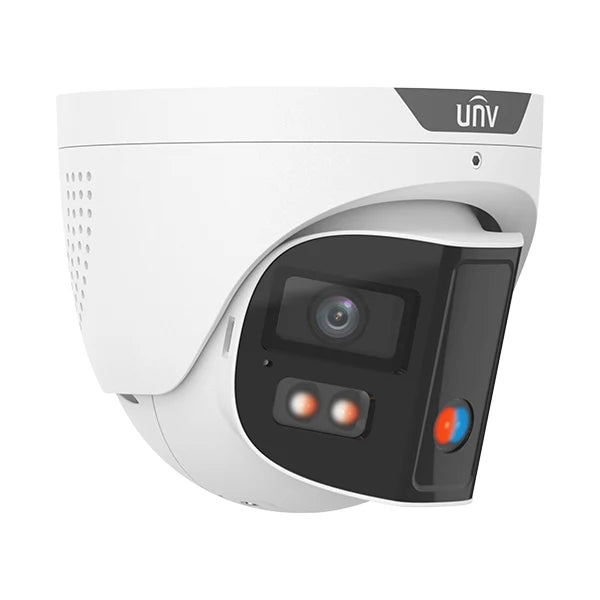

8MP 180° Dual-Lens Camera — NDAA Compliant
Model: IPC3K28SE-ADF28KMC-DL-I0
In stock
Check camera and recorder compatibility
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Most orders are processed within 1–3 business days after payment confirmation. Special orders and custom configurations may take longer. Processing time is separate from transit time.
Final shipping costs are shown at checkout. View shipping policy

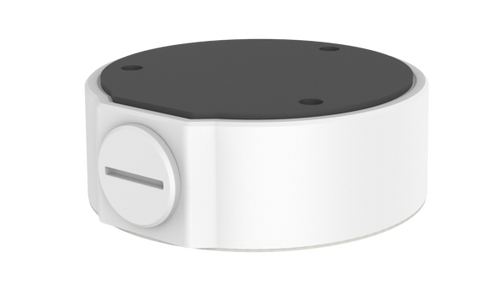

Compatible accessories
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.
Overview
The UNV IPC3K28SE-ADF28KMC-DL-I0 joins two lenses into a single 180° panoramic view. This 8MP ColorHunter turret combines wide coverage with warning lights, dual microphones and a speaker.
- 8MP panorama at up to 20fps
- 180° horizontal view
- 130dB WDR and dual illumination
- Red/blue warnings and two-way audio
Panoramic framing
The stitched image can cover a broad frontage or open area from one position. Keep the important subjects within useful viewing distance; a wider scene does not provide the same close detail everywhere.
Events and audio
Human and vehicle classification supports targeted intrusion rules. Configure warning lights and sound for the site, and test two-way audio through the selected recorder or app.
Specifications
| Low-Light Processing | ColorHunter |
|---|---|
| Model | IPC3K28SE-ADF28KMC-DL-I0 |
| Type | 8MP ColorHunter Omniview dual-lens turret network camera |
| Image Sensor | 1/2.5" CMOS sensor |
| Maximum Resolution | 8MP, up to 4096 × 1860 |
| Frame Rate | 8MP 4096 × 1860 at up to 20fps |
| Lens | 2.8mm fixed lens, F1.0 aperture |
| Field of View | Horizontal 180°, Vertical 65°, Diagonal 180° |
| WDR | 130dB true WDR |
| Illumination | IR and warm light support for low-light monitoring |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Audio | Built-in dual microphones and built-in speaker |
| Audio I/O | 1 input / 1 output |
| Alarm I/O | 1 input / 1 output |
| Local Storage | MicroSD up to 1TB with compatible firmware and supported card; card sold separately. |
| Power | DC 12V ±25% or PoE IEEE 802.3af |
| Power Consumption | Max. 12.6W |
| Weather Protection | IP67 rated |
| Operating Temperature | -30°C to 60°C / -22°F to 140°F |
Compatibility
The recorder must accept the 4096 × 1860 stream. Confirm smart-event integration and the desired warning controls; microSD storage is sold separately.
Flexible deployment
Deploy It Your Way
Standalone operation
View a compatible camera with UniEase. Local microSD recording is available on supported models.

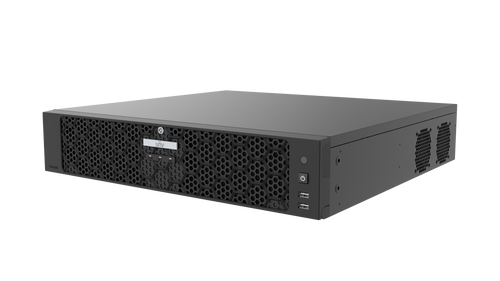

Connect to a compatible NVR
Bring cameras together for centralized recording and viewing. Use UniEase for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
Need help matching this product to your project? Ask NSI
Specifications
Compatibility & accessories
Compatible products
Choose accessories for your setup. Sold separately.
Downloads & support
UniEase
Mobile viewingLive view, playback and alerts for supported UNV cameras and recorders.
EZStation
Desktop video managementManage supported cameras and recorders with the EZStation desktop CMS.
EZTools 3.0
Device setupDiscover and configure supported devices on your local network.
Features and compatibility depend on the device model, firmware and software version. Check UniEase device compatibility
