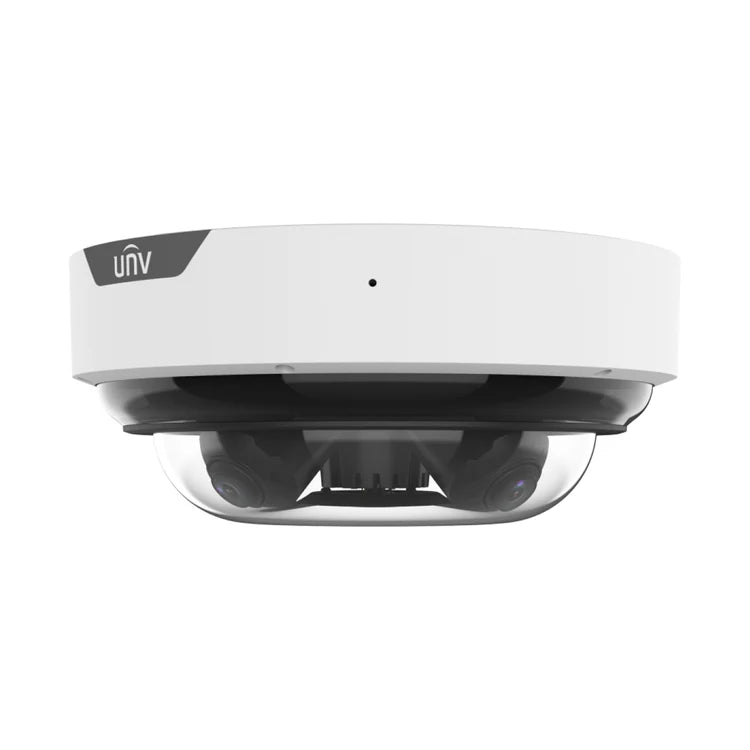

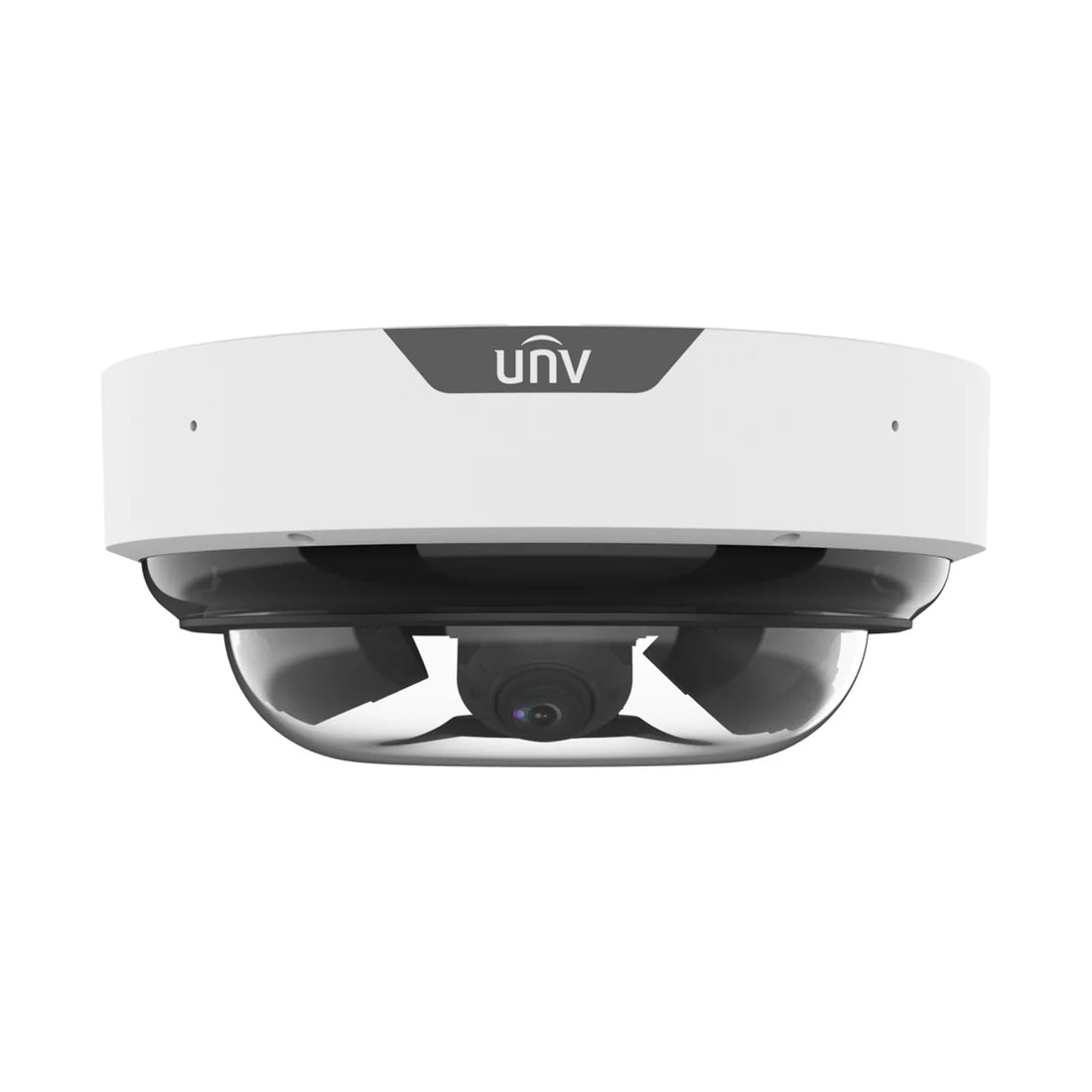

UNV IPC8645EA-ADZKM-I1 20MP 4 × 5MP Super Starlight MultiView Motorized IR Dome Camera
SKU: IPC8645EA-ADZKM-I1
$3,999.00
$4,989.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast ShippingU.S. warehouse fulfillment
Easy RMA SupportStreamlined assistance when needed
Need compatibility help?
Call (856) 317-0600 for professional assistance.
Product overview
Reliable Security Performance
Designed to deliver dependable video surveillance with features and performance that vary by model, firmware, environment, and system configuration.
Designed for demanding surveillance and networking environments.
Use the compatibility tools below to select supported components.
Get assistance with configuration, installation and product selection.
U.S.-based fulfillment and protected checkout.
Product assistance
Need Assistance?
Documentation, system compatibility tools, shipping information, and direct support from NSI Security.
Shipping InformationU.S. fulfillment
Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.
View Shipping Policy →DocumentationBy request
Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.
Request Documentation →Technical SupportNSI assistance
Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.
Contact Support →Verified System ComponentsProduct-specific compatibility
Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.
View Components →RMA RequestAfter-purchase assistance
Request return authorization, repair evaluation, or replacement assistance for an eligible order.
Start RMA Request →Contact Our TeamSales and product questions
Contact NSI Security for product selection, availability, compatibility, and order assistance.
Contact NSI Security →
System compatibility
Verified System Components
Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

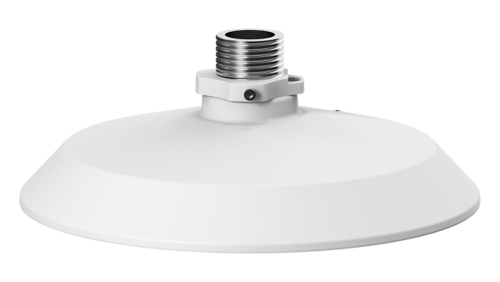

UNV TR-UF45-K-IN Multi-Sensor Camera Pendant & Wall Mount Adapter
$86.00 ● In stock
UNV NVR501-08B 8-Channel 16MP 1-Bay Network Video Recorder
$329.00 ● In stock
UNV NVR504-32B 32-Channel 16MP 4-Bay Network Video Recorder
$1,189.00 ● In stock
UNV NVR504-32B-IQ 32-Channel 4-Bay AI NVR
$1,419.00 ● In stock
UNV NVR508-64B 64-Channel 16MP 8-Bay Network Video Recorder
$3,499.00 ● In stock
UNV NVR508-64E-R-IQ 64-Channel 8-Bay AI NVR
$5,399.00 ● In stock
One-click system configuration
Build Your Complete Solution
Select the components you need and add the complete configuration to your cart.
Mounting & Accessories
Compatible Recorders
Product information
Product Details & Technical Specifications
UNV 20MP Super Starlight Four-Directional MultiView IR Dome Camera
Model: IPC8645EA-ADZKM-I1Replace multiple conventional cameras with one advanced four-directional surveillance platform. The UNV IPC8645EA-ADZKM-I1 combines four independently adjustable 5MP motorized zoom channels, Super Starlight low-light imaging, intelligent analytics, 130dB true WDR, long-range Smart IR and heavy-duty weather and vandal protection through one IP address and network connection.
4 × 5MP
Four independent video channels
5× Zoom
Four motorized 2.7–13.5mm lenses
164 ft IR
Long-range infrared coverage
IP67 + IK10
Weather and vandal protection
Four professional cameras in one housing
Why Choose the IPC8645EA-ADZKM-I1?
Designed for large commercial and industrial locations where multiple viewing directions, adjustable zoom and advanced analytics are required from one centralized camera position.
Four Independent 5MP Channels
Four separate imaging channels provide up to 2880 × 1620 resolution each. Every lens produces its own independent video stream instead of combining all four views into one stitched panoramic image.
One IP Address and Network Connection
All four camera channels operate through one Gigabit Ethernet interface and one IP address, helping reduce network connections, switch ports and mounting locations compared with installing four independent cameras.
Four Motorized Zoom Lenses
Each channel includes a 2.7–13.5mm motorized varifocal lens with 5× optical zoom. Installers can independently frame wide overview scenes or zoom toward entrances, gates and distant areas of interest.
Independently Adjustable Viewing Angles
The pan, tilt and rotation angle of each lens can be adjusted independently, allowing the camera to cover complicated intersections, multiple building sides, separate entrances or different activity zones.
Super Starlight Low-Light Imaging
Super Starlight and LightHunter imaging technology help preserve useful image detail and color visibility in low-light environments before the camera switches to infrared night mode.
130dB True WDR
True Wide Dynamic Range helps balance bright and dark areas in the same scene, improving visibility around glass entrances, vehicle headlights, loading docks and strongly backlit locations.
Smart Intrusion Prevention
Supports cross-line, intrusion, enter-area and leave-area detection with target classification for humans, motor vehicles and non-motor vehicles, helping reduce false alarms caused by irrelevant movement.
People Counting and Crowd Density
Intelligent people-flow counting and crowd-density monitoring support commercial applications that require traffic statistics, occupancy awareness or activity analysis.
164-Foot Smart IR
Integrated infrared illumination provides nighttime viewing up to approximately 164 feet while automatic IR control helps maintain usable image exposure as subjects move through the scene.
Built-In Microphone and Two-Way Audio
A built-in microphone captures environmental audio. External audio input and output connections support compatible two-way communication systems, amplifiers or speakers.
Alarm Integration
Three alarm inputs and two alarm outputs allow supported sensors, contacts, warning devices and external security equipment to interact with the camera and compatible recording platform.
Commercial-Grade Construction
The metal enclosure carries IP67 weather protection and IK10 vandal resistance, supporting demanding indoor and outdoor commercial installations.
One Mounting Position. Four Adjustable Surveillance Zones.
The IPC8645EA-ADZKM-I1 is designed for complex scenes where several fixed cameras would normally be installed. Each lens can be aimed and zoomed independently, allowing one camera assembly to monitor four separate directions without forcing every view to use the same focal length.
Four Building Sides
Position each channel toward a separate wall, entrance or perimeter route.
Intersection Coverage
Monitor multiple hallways, vehicle lanes or pedestrian paths from one point.
Wide and Zoomed Views
Use one channel for overview coverage and another for focused identification.
Independent Analytics
Enable different intelligent functions on different channels based on each scene.
Triple Streams per Channel
Supports flexible main, sub and third-stream configurations for each view.
Efficient Compression
Ultra 265 and H.265 help manage the storage and bandwidth demands of four channels.
Recommended applications
Ideal Installation Locations
Best suited for large properties and complex surveillance scenes that require four independently controlled views from one mounting location.
Warehouses
Monitor loading docks, entrances, yards and storage zones.
Industrial Facilities
Cover intersections, restricted zones and production areas.
Parking Facilities
Observe several vehicle lanes, entrances and pedestrian routes.
Transportation Sites
Monitor terminals, platforms, loading areas and public circulation.
Schools and Campuses
Cover courtyards, corridor intersections and multiple walkways.
Shopping Centers
Monitor entrances, storefront paths and shared public areas.
Corporate Properties
Protect building corners, parking lots and multiple access points.
Large Outdoor Areas
Observe yards, plazas and perimeter activity from one secure position.
Technical overview
Product Highlights
| Camera Type | 20MP four-directional MultiView motorized varifocal IR dome network camera |
|---|---|
| Video Channels | Four independent video channels through one IP address and network interface |
| Total Resolution | 4 × 5MP, providing up to 20MP combined imaging |
| Maximum Resolution | Up to 2880 × 1620 per channel |
| Image Sensors | Four 1/2.7-inch CMOS imaging channels |
| Maximum Frame Rate | Up to 30 fps at 2880 × 1620 on the main stream of each channel |
| Lens | Four 2.7–13.5mm motorized varifocal lenses with 5× optical zoom |
| Aperture | F1.2 per channel |
| Horizontal Field of View | Approximately 110.3° wide to 31° telephoto per channel |
| Vertical Field of View | Approximately 57.1° wide to 17.5° telephoto per channel |
| Lens Adjustment | Pan: 0°–360°; tilt: 0°–65°; rotation: 0°–355° for supported lens positioning |
| Minimum Illumination | 0.002 lux in color; 0 lux with IR illumination activated |
| Wide Dynamic Range | 130dB true WDR |
| Night Vision | Infrared illumination up to approximately 50m / 164 ft |
| Video Compression | Ultra 265, H.265, H.264 and MJPEG |
| Video Streams | Triple-stream support for each channel |
| Video Bitrate | 128 Kbps to 16 Mbps per channel |
| Smart Intrusion Prevention | Cross-line, intrusion, enter-area and leave-area detection with human, motor-vehicle and non-motor-vehicle classification |
| People Analysis | People-flow counting and crowd-density monitoring |
| Additional Intelligent Events | Scene-change detection, defocus detection, object removed and object left behind |
| Basic Events | Motion detection, ultra motion detection, tampering detection and audio detection |
| Built-In Audio | Built-in microphone |
| External Audio | One audio input and one audio output with compatible two-way audio support |
| Alarm Connections | Three alarm inputs and two alarm outputs |
| Edge Storage | MicroSD card support up to 512GB, subject to compatible card, firmware and configuration |
| Network Storage | ANR and NAS using NFS |
| Integration | ONVIF Profiles S, G, T and M; API and SDK support |
| Network Connection | 1 × RJ45 10/100/1000 Mbps Gigabit Ethernet port |
| Power Options | 24V DC, 24V AC or IEEE 802.3bt PoE |
| Maximum Power Consumption | Approximately 31 watts |
| Auxiliary Power Output | Built-in 12V DC output support |
| Environmental Protection | IP67 weather-resistant and IK10 vandal-resistant |
| Housing Material | Metal |
| Operating Temperature | -22°F to 140°F / -30°C to 60°C |
| Surge Protection | Up to 6kV |
| Dimensions | Approximately 12.52 × 5.38 inches / Ø318 × 136.6mm |
| Weight | Approximately 10.52 lb / 4.77kg |
| Corridor Mode | Supported |
Important Four-Channel Recorder Compatibility Notice
This camera contains four separate 5MP video channels while using one network interface and one IP address. A compatible NVR or VMS may consume four camera channels, licenses or decoding resources. Confirm that the recorder supports this MultiView camera and has sufficient incoming bandwidth, channel capacity, decoding capability, display resources and storage capacity. Analytics, audio, alarm functions, remote lens control and playback support may vary by recorder model, software platform and firmware version.
High-Bandwidth Camera Planning Notice
This camera can generate four high-resolution main streams plus additional substreams and third streams. Network-switch capacity, recorder incoming bandwidth, client decoding power, monitor layout and storage calculations should be reviewed before installation. Using Ultra 265 or H.265 and properly configured bitrates can help control bandwidth and storage usage.
Professional Installation Tip
This is a large and heavy professional camera weighing more than ten pounds. Mount it only to a structurally suitable surface using the correct UNV adapter and bracket. Plan all four viewing directions before final mounting, then independently adjust each lens for the required scene. Use an IEEE 802.3bt-compatible PoE source or the specified 24V power supply, and verify that the network cable, surge protection, grounding and mounting hardware meet the requirements of the installation environment.
Complete the installation
Recommended Accessories
Complete the installation with compatible structural mounting, power, recording, storage and network accessories.
UNV TR-UF45-K-IN Mounting Adapter
Four-directional camera adapter designed for compatible ceiling or wall-mounting configurations.
UNV TR-CE45-IN
Indoor ceiling-mounting bracket for supported dome-camera installations.
UNV TR-WE45-B-IN Gooseneck Bracket
Compatible dome gooseneck wall bracket for professional mounting.
UNV TR-WE45-A-IN
Long wall-mount bracket for installations requiring additional clearance.
UNV TR-UC08-A-IN or TR-UC08-B-IN
Corner-mounting hardware for supported exterior building installations.
UNV TR-UP08-A-IN or TR-UP08-B-IN
Compatible pole-mounting brackets for suitable commercial installations.
High-Endurance MicroSD Card
Add compatible surveillance-grade storage for edge recording and supported ANR applications.
IEEE 802.3bt PoE Switch or Injector
This camera requires a compatible high-power PoE source when powered through the network cable.
High-Bandwidth UNV Network Video Recorder
Select an NVR with sufficient channels, incoming bandwidth, decoding power and storage for all four 5MP streams.
Surveillance-Grade Hard Drives
Four continuous high-resolution channels can require substantial storage capacity depending on bitrate, frame rate and retention goals.
Commercial UPS Battery Backup
Protect the camera power source, recorder, PoE switch and network equipment from brief outages and unexpected shutdowns.
Network Surge Protection
Add appropriate surge protection and grounding for outdoor or electrically exposed installations.
Manufacturer resources
Product Downloads and Support
Visit the official UNV product page for the latest datasheet, quick installation guide, dimensions, product images and firmware resources.
3-Year UNV Manufacturer Warranty
This UNV product includes a three-year manufacturer equipment warranty when purchased through NSI Security, subject to applicable warranty terms, exclusions, product eligibility and return procedures. Labor, removal, reinstallation, configuration, shipping and onsite service are not included unless separately stated in writing.
Important Product Information
Specifications are subject to change without notice. Features, MicroSD card support, audio functions, image performance, IR distance, PoE behavior, compatibility and overall system performance may vary depending on firmware version, hardware revision, recorder model, installation environment, lighting conditions, network setup, camera settings and system configuration. This camera contains four independent video channels and may consume four recorder channels, VMS licenses or decoding resources even though it uses a single network connection and IP address. Smart analytics, people counting, crowd-density monitoring, two-way audio, alarm integration, motorized lens control and other functions may vary by active channel and compatible recorder or software platform. Actual storage retention, bandwidth usage and playback performance depend on resolution, frame rate, compression, bitrate, recording schedule, scene activity and recorder configuration. Please always double-check the manufacturer’s official specifications and contact NSI Security for the most accurate and up-to-date product, compatibility and installation information before ordering.
Important product information:
Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
