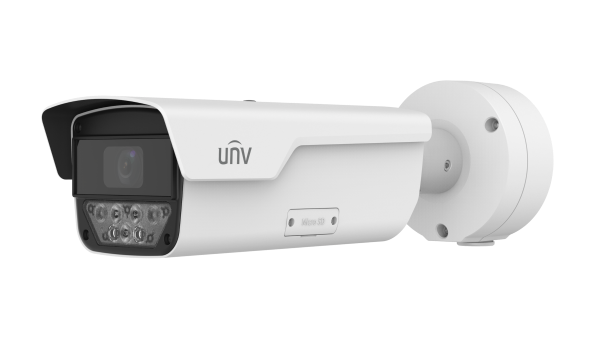

Professional ANPR / LPR Traffic Camera

UNV 4MP Long-Range IR License Plate Recognition Bullet Camera

PKC2641-Z100-IR-P

Designed for controlled entrances, parking facilities and regular-road vehicle capture, this professional LPR camera combines 4MP video at up to 60 FPS, a 10–50mm motorized lens, AI-enhanced imaging, built-in license plate recognition, vehicle attribute analysis, 164-foot IR illumination, barrier control interfaces, 512GB MicroSD support, PoE+, IP67 and IK10 protection.

4MP @ 60 FPS 10–50mm Lens ANPR / LPR Up to 80 km/h 164 ft IR PoE+
▣
4MP 2688 × 1520 capture
⌕
10–50mm Long-range motorized lens
⚡
60 FPS High-speed vehicle capture
☾
164 ft IR Dedicated infrared illumination
Purpose-built for vehicle identification

Why Choose the PKC2641-Z100-IR-P?

This is a specialized traffic and access-control camera engineered for license plate capture—not a general-purpose surveillance camera.

Built-In License Plate Recognition

Recognizes supported license plates containing letters and numbers without relying solely on external server-side analytics.

4MP Video at Up to 60 FPS

High-frame-rate imaging helps capture moving vehicles more effectively than conventional 25 or 30 FPS security cameras.

10–50mm Motorized Lens

The long-range zoom lens provides a narrow, focused field of view for roadway lanes, gates and distant plate-capture zones.

AI-Enhanced Image Processing

AI ISP, automatic gain, white balance, 120dB WDR, HLC, BLC, digital defog and 3D noise reduction support difficult traffic scenes.

Vehicle Attribute Recognition

Supports vehicle type, color and manufacturer recognition in compatible regions and configurations.

Allowlist and Blocklist

Stores up to 20,000 entries per list and supports import, export, addition and deletion operations.

Barrier Control Integration

Configurable relay outputs and access policies can trigger supported gates or barriers based on recognized vehicles.

164-Foot Integrated IR

Five built-in infrared LEDs provide up to approximately 50 meters of illumination for nighttime plate capture under suitable conditions.

512GB MicroSD and ANR

Supports local edge storage and automatic network replenishment during supported network-interruption scenarios.

IP67 and IK10 Protection

The heavy-duty enclosure is designed for outdoor weather exposure and impact-resistant commercial installations.

Complete Vehicle Access Intelligence

The camera can do more than record plates. It can classify vehicle details, compare plates against access lists, communicate with barriers and preserve evidence with configurable image overlays.

License Plate NumberRecognizes supported alphanumeric plate formats.
Vehicle TypeClassifies cars, vans, buses, trucks, SUVs, pickups and motorcycles.
Vehicle ColorSupports recognition of common vehicle colors.
Vehicle ManufacturerSupports recognition across a large manufacturer database.
Bidirectional DetectionSupports bidirectional, top-to-bottom and bottom-to-top capture directions.
Barrier PoliciesOpen for all, allowlisted vehicles, or vehicles not on the blocklist.
Recognition capabilities

ANPR and Vehicle Analytics

Plate Recognition
Vehicle Detection
Vehicle Type
Vehicle Color
Manufacturer Recognition
Allowlist
Blocklist
Barrier Trigger
Recommended applications

Ideal Installation Locations

🚧
Gated Entrances Automated access decisions and plate logging.
🅿️
Parking Facilities Entry, exit and vehicle record management.
🏢
Commercial Properties Employee, visitor and delivery vehicle control.
🏭
Industrial Sites Truck, vendor and restricted-area access tracking.
🏘️
Residential Communities Resident and guest vehicle entry management.
🛣️
Regular Roads Supported capture scenarios up to 80 km/h.
🏫
Campuses Vehicle access records for schools and institutions.
🚚
Loading Facilities Delivery vehicle and fleet identification.
Technical overview

Product Highlights

Camera Type 4MP long-range infrared license plate recognition bullet IP camera
Image Sensor 1/1.8-inch 4MP CMOS
Maximum Resolution 2688 × 1520
Maximum Frame Rate Up to 60 FPS at 2688 × 1520
Lens 10–50mm motorized zoom lens
Field of View Horizontal 34.3°–8.7°; vertical 19.9°–4.8°; diagonal 40.5°–9.8°
Minimum Illumination Approximately 0.002 lux at F1.7
Wide Dynamic Range 120dB WDR
Shutter Range 1/500 to 1/100000 second
Vehicle Speed Scenario Regular-road applications up to approximately 80 km/h, subject to installation and configuration
IR Illumination 5 integrated IR LEDs, up to approximately 50m / 164 ft
Video Compression H.264 and H.265
Streams Main, sub and third stream support
Plate Lists Allowlist and blocklist, up to 20,000 items per list
Storage MicroSD up to 512GB with ANR support
Network 1 × 10/100 Mbps RJ45
Control Interfaces 2 × RS485, 2 relay outputs, 2 Boolean inputs and Wiegand output
Audio 1 audio input and 1 audio output; external audio equipment required
Power 12V DC or IEEE 802.3at PoE+, Class 4
Maximum Power Approximately 20W
Protection IP67 weather resistance and IK10 impact resistance
Operating Temperature -40°C to 60°C / -40°F to 140°F
Dimensions Approximately 406 × 126 × 130mm
Weight Approximately 2.02kg / 4.45 lb
Compliance NDAA compliant
ⓘ

License Plate Recognition Compatibility Notice

Supported countries, plate formats, vehicle attributes, barrier behavior, third-party integrations and recognition accuracy vary by firmware, region, installation geometry, lighting, vehicle speed and system configuration. Confirm the required country and plate format before ordering.

⚠

Important ANPR / LPR Recorder Compatibility Note

Not every recorder supports ANPR / LPR features. License plate recognition, plate search, vehicle attribute search, allowlist / blocklist functions, and barrier control may require a compatible UNV recorder, supported firmware, and proper camera configuration. If you have any questions about recorder compatibility, please contact us before placing your order.

⚠

Professional Site Survey Required

LPR performance depends heavily on lane width, plate size in the image, camera height, horizontal and vertical angle, shutter speed, vehicle speed, headlight glare and capture distance. This camera should not be installed like a general overview camera.

Professional Installation Tip

Dedicate the camera to one controlled capture lane whenever possible. Mount it so plates remain large, level and consistently positioned in the image. Avoid steep angles, excessive lane width, strong cross traffic and unnecessary background coverage. Test daytime, nighttime and headlight conditions before finalizing the mounting position and barrier logic.
