Uniview
Model: IPC2128SR-ADF28KM-H
In stock
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

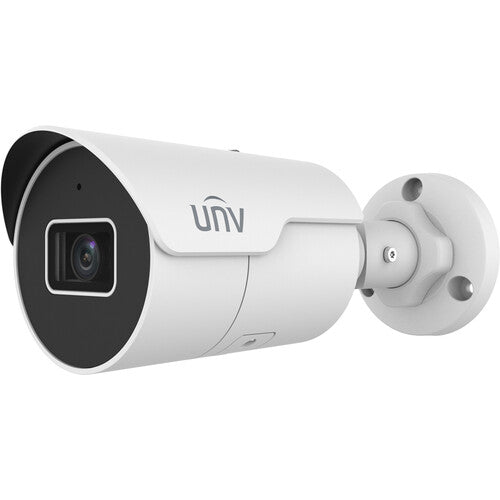

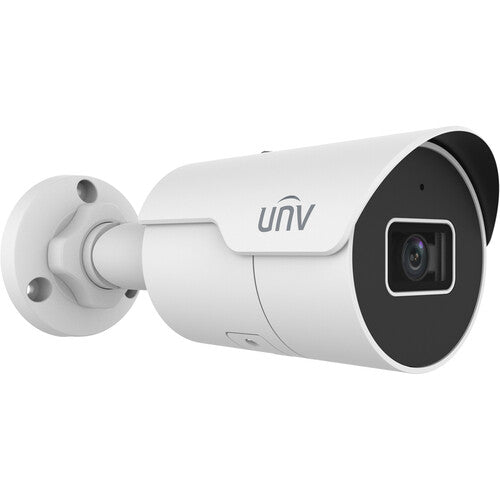

The UNV IPC2128SR-ADF28KM-H is an 8MP EasyStar bullet camera with a fixed 2.8mm lens. It provides general outdoor coverage with a built-in microphone and infrared illumination for night viewing.
Full-resolution 8MP operation has different frame-rate limits from lower-resolution modes. Select the combination that fits the required image detail, motion and recorder capacity.
Aim the camera away from close walls or other reflective surfaces that can wash out the IR image. Protect the Ethernet and power connections as part of the weatherproof installation.
| Model | IPC2128SR-ADF28KM-H |
| Camera Type | 8MP EasyStar Fixed IR Bullet Network Camera |
| Maximum Resolution | 8MP — 3840 × 2160 |
| Image Sensor | 1/2.8-inch Progressive Scan CMOS |
| Lens | 2.8 mm Fixed Lens |
| Low-Light Technology | EasyStar |
| Wide Dynamic Range | 120 dB True WDR |
| IR Distance | Up to 50 m / 164 ft Smart IR |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Audio | Built-In Microphone |
| Edge Storage | MicroSD Card Support |
| Power | PoE IEEE 802.3af / 12 VDC |
| Protection | IP67 Weather Resistant |
| Third-Party Recorder Integration | ONVIF / RTSP Supported; Configuration May Be Required |
| Compliance | NDAA Compliant / NDAA Supported |
| Stream | Typical Resolution / Frame Rate Options |
|---|---|
| Main Stream | 8MP 3840 × 2160 up to 20 fps; 5MP, 4MP, and 1080p options up to 30/25 fps depending on configuration |
| Sub Stream | Lower-resolution stream options for remote viewing, mobile access, and bandwidth management |
Match the NVR’s codec, resolution and frame-rate support. Smart events and microphone audio require compatible integration.
Match the complete camera and accessory model numbers, including any V2 suffix. Accessories are sold separately. Wall, ceiling, pole and corner installations may require additional mounting hardware; the accessory list does not mean every part mounts directly to the camera.
Flexible deployment
View a compatible camera with UniEase. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use UniEase for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
Need help matching this product to your project? Ask NSI
Choose accessories for your setup. Sold separately.
Live view, playback and alerts for supported UNV cameras and recorders.
Manage supported cameras and recorders with the EZStation desktop CMS.
Discover and configure supported devices on your local network.
Features and compatibility depend on the device model, firmware and software version. Check UniEase device compatibility
