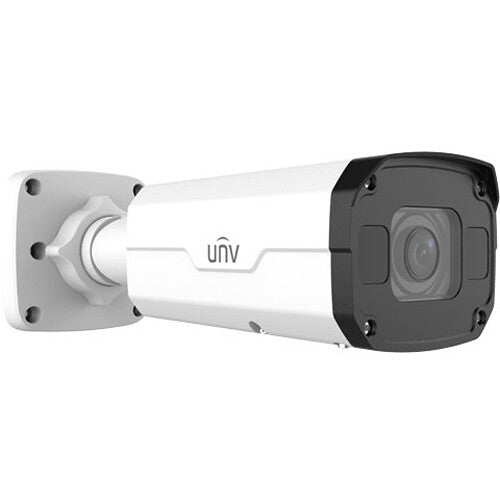

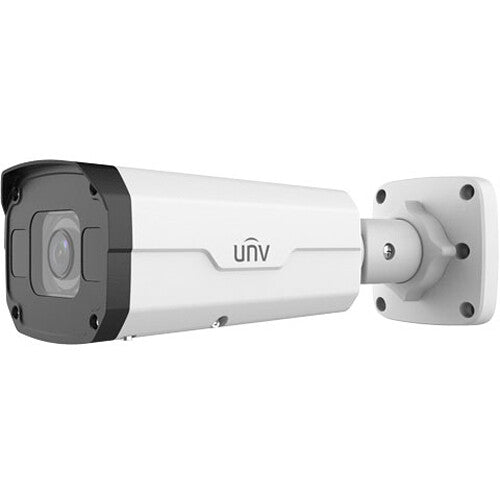

UNV IPC2325SB-DZK-I0 5MP LightHunter 5× Motorized Zoom IR Bullet Camera
In Stock Sale

Uniview

UNV IPC2325SB-DZK-I0 5MP LightHunter 5× Motorized Zoom IR Bullet Camera

SKU: IPC2325SB-DZK-I0

$759.00 $939.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast ShippingU.S. warehouse fulfillment
Easy RMA SupportStreamlined assistance when needed
Need compatibility help? Call (856) 317-0600 for professional assistance.
Overview Resources & Support Compatibility Solution Builder Specifications
Product overview

Reliable Security Performance

Designed to deliver dependable video surveillance with features and performance that vary by model, firmware, environment, and system configuration.

Professional Quality

Designed for demanding surveillance and networking environments.

System Compatibility

Use the compatibility tools below to select supported components.

Technical Support

Get assistance with configuration, installation and product selection.

Secure Purchasing

U.S.-based fulfillment and protected checkout.

Product assistance

Need Assistance?

Documentation, system compatibility tools, shipping information, and direct support from NSI Security.

Shipping InformationU.S. fulfillment

Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.

View Shipping Policy →
DocumentationBy request

Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.

Request Documentation →
Technical SupportNSI assistance

Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.

Contact Support →
Verified System ComponentsProduct-specific compatibility

Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.

View Components →
RMA RequestAfter-purchase assistance

Request return authorization, repair evaluation, or replacement assistance for an eligible order.

Start RMA Request →
Contact Our TeamSales and product questions

Contact NSI Security for product selection, availability, compatibility, and order assistance.

Contact NSI Security →
System compatibility

Verified System Components

Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

One-click system configuration

Build Your Complete Solution

Select the components you need and add the complete configuration to your cart.

Mounting & Accessories

Compatible Recorders

PoE Switches

Product information

Product Details & Technical Specifications


Professional 5MP LightHunter Surveillance

UNV 5MP LightHunter Motorized Zoom IR Bullet Network Camera

Model: IPC2325SB-DZK-I0

Built for demanding commercial surveillance, the UNV IPC2325SB-DZK-I0 combines detailed 5MP video, a flexible 2.7–13.5mm motorized zoom lens, LightHunter low-light imaging, 120dB true WDR, intelligent target classification, 164-foot Smart IR, external audio and alarm connections, MicroSD edge recording, PoE and heavy-duty IP67 and IK10 protection.

▣
5MP 2880 × 1620 at up to 30 fps
⌕
5× Zoom 2.7–13.5mm motorized lens
☾
164 ft IR Long-range Smart IR coverage
◆
IP67 + IK10 Weather and vandal protection
Flexible long-range commercial surveillance

Why Choose the IPC2325SB-DZK-I0?

A professional motorized-varifocal bullet camera for entrances, parking areas, loading docks, warehouses, gates and perimeter locations that require adjustable framing and dependable low-light performance.

Detailed 5MP Video at Up to 30 fps

The 5MP progressive-scan CMOS sensor captures up to 2880 × 1620 resolution at 30 frames per second, providing smooth motion and greater recorded detail than standard 1080p surveillance cameras.

2.7–13.5mm Motorized Zoom Lens

The autofocus motorized lens provides approximately 5× optical zoom. Installers can remotely adjust from wide overview coverage to a tighter view of gates, doors, driveways or distant areas of interest.

LightHunter Low-Light Imaging

LightHunter technology helps preserve useful color, brightness and image detail in dim environments before the camera transitions to infrared night mode.

120dB True WDR

True Wide Dynamic Range balances bright and dark areas within the same scene, improving visibility around headlights, loading docks, windows, entrances and strongly backlit environments.

164-Foot Smart IR Night Vision

Integrated infrared illumination provides nighttime coverage up to approximately 164 feet. Smart IR helps reduce overexposure when people or vehicles move closer to the camera.

Target-Classified Intrusion Prevention

Supports cross-line, intrusion, enter-area and leave-area detection with classification for humans, motor vehicles and non-motor vehicles, helping reduce false alarms caused by lighting, birds and vegetation.

People Counting and Crowd Density

Intelligent people-flow counting and crowd-density monitoring support commercial locations that require traffic statistics, occupancy awareness or general activity analysis.

External Audio Input and Output

One audio input and one audio output support compatible microphones, powered speakers and two-way communication configurations. This model does not contain a built-in microphone or speaker.

Alarm Input and Output

One alarm input and one alarm output allow compatible sensors, contacts, warning devices and other security equipment to interact with the camera and supported recording system.

MicroSD Edge Recording

Supports compatible MicroSD cards up to 512GB for local event recording, network-interruption backup and supported stand-alone applications.

Triple-Stream Video

Three configurable video streams allow separate settings for recording, remote viewing and lower-bandwidth mobile or VMS applications.

Heavy-Duty Metal Housing

The IP67 weather-resistant and IK10 vandal-resistant metal enclosure is suitable for demanding indoor and outdoor commercial installations.

Wide Overview or Focused Long-Range Coverage

The motorized lens provides far more installation flexibility than a standard fixed-lens camera. Start wide for general coverage or zoom toward a specific entrance, lane, gate or distant monitoring point without physically replacing the lens.

Wide-Area Monitoring Use the 2.7mm setting for yards, entrances, parking areas and broad scenes.
Focused Identification Zoom toward 13.5mm for gates, doors and more distant areas of interest.
Full 5MP at 30 fps Capture high-resolution video with smoother motion than many 8MP cameras.
Corridor Mode 9:16 image rotation supports narrow passageways, aisles and vertical scenes.
Efficient Compression Ultra 265 and H.265 help reduce bandwidth and storage requirements.
Flexible Integration Supports compatible NVR, NAS, MicroSD, ONVIF, API and SDK applications.
Recommended applications

Ideal Installation Locations

Well suited for commercial and industrial sites that require adjustable viewing coverage, long-range infrared and reliable outdoor protection.

▤ Warehouses Monitor loading docks, entrances, inventory zones and yards.
▥ Parking Areas Adjust the lens for parking lanes, driveways and access points.
⇥ Gates and Entrances Zoom toward vehicle or pedestrian entry points requiring detail.
⚙ Industrial Facilities Protect restricted areas, production entrances and exterior zones.
⌂ Commercial Buildings Cover storefronts, office entrances and property perimeters.
▦ Schools and Campuses Monitor walkways, exterior doors and shared outdoor areas.
▰ Construction Sites Observe equipment, materials and temporary access routes.
⌖ Large Properties Monitor long driveways, yards and distant perimeter locations.
Technical overview

Product Highlights

Camera Type 5MP LightHunter motorized varifocal IR bullet network camera
Image Sensor 1/2.7-inch, 5MP progressive-scan CMOS
Maximum Resolution 2880 × 1620 / 5MP
Maximum Frame Rate Up to 30 fps at 5MP, 4MP, 3MP and 1080p, depending on video standard and stream configuration
Lens 2.7–13.5mm motorized zoom lens with automatic focusing
Optical Zoom Approximately 5×
Aperture F1.2
Horizontal Field of View Approximately 106.3° wide to 32.5° telephoto
Vertical Field of View Approximately 53.5° wide to 18° telephoto
Diagonal Field of View Approximately 126° wide to 38.5° telephoto
Minimum Illumination Approximately 0.002 lux in color with AGC enabled; 0 lux with IR illumination activated
Wide Dynamic Range 120dB true WDR
Night Vision Smart IR illumination up to approximately 50m / 164 ft
DORI Detection Distance Approximately 199.5 ft at 2.7mm to 996.7 ft at 13.5mm
DORI Identification Distance Approximately 20 ft at 2.7mm to 99.7 ft at 13.5mm
Video Compression Ultra 265, H.265, H.264 and MJPEG
Video Streams Triple-stream support
Video Bitrate 128 Kbps to 16 Mbps
Image Functions Smart IR, 2D/3D digital noise reduction, HLC, BLC, digital defog, ROI, privacy masking and image rotation
Corridor Mode 9:16 image rotation supported
Smart Intrusion Prevention Cross-line, intrusion, enter-area and leave-area detection with human, motor-vehicle and non-motor-vehicle classification
People Analysis People-flow counting and crowd-density detection
Basic Events Motion detection, ultra motion detection, tampering alarm and audio detection
Built-In Microphone Not included
Built-In Speaker Not included
External Audio 1 audio input and 1 audio output; compatible two-way audio supported
Alarm Connections 1 alarm input and 1 alarm output
Edge Storage MicroSD card support up to 512GB, subject to compatible card, firmware version and system configuration
Network Storage ANR and NAS using NFS
Integration ONVIF Profiles S, G, T and M; API and SDK support
Network Connection 1 × RJ45 10/100 Mbps Ethernet port
Power 12V DC or IEEE 802.3af PoE
Maximum Power Consumption Approximately 8 watts
Environmental Protection IP67 weather-resistant and IK10 vandal-resistant
Housing Material Metal
Operating Temperature -22°F to 140°F / -30°C to 60°C
Surge Protection Up to 6kV
Adjustment Range Pan 0°–360°; tilt 0°–90°; rotation 0°–360°
Dimensions Approximately 9.6 × 3.4 × 2.8 inches / 245 × 86 × 72mm
Weight Approximately 2.03 lb / 0.92kg
ⓘ

Recorder and Feature Compatibility Notice

Motorized zoom control, smart intrusion prevention, people counting, crowd-density monitoring, external audio, alarm integration, MicroSD recording and other intelligent functions may vary depending on the recorder model, VMS platform, mobile application and firmware version. Confirm that the recorder supports 5MP input, remote lens control and the required analytics before ordering.

⚠

External Audio Equipment Required

This camera includes audio input and output connections but does not contain a built-in microphone or speaker. Audio recording requires a compatible external microphone, and two-way communication requires suitable external audio equipment, power, wiring and compatible recorder or software support.

Professional Installation Tip

Use a compatible junction box to protect the Ethernet, audio, alarm and power connections. After mounting, adjust the motorized zoom while viewing the live video so the scene is framed around the exact gate, driveway, entrance or distant target area that matters most. Avoid aiming the camera directly toward nearby reflective walls or surfaces that may cause infrared reflection at night.

Complete the installation

Recommended Accessories

Complete your installation with compatible mounting, audio, storage, recording and network accessories.

Recommended

UNV TR-JB06-A-IN Junction Box

Provides protected cable management and a professional mounting surface for the bullet camera.

Rear-Wiring Option

UNV TR-JB07-D-IN-V2 Junction Box

Compatible junction box that supports wiring from behind the mounting surface for a cleaner installation.

Pole Mount

UNV TR-UP06-B-IN

Bullet-camera pole-mounting bracket for compatible commercial installations.

Junction-Box Pole Mount

UNV TR-UP06-C-IN-V2

Pole-mounting bracket designed for use with a compatible bullet-camera junction box.

Corner Mount

UNV TR-UC08-C-V2

Compatible corner-mounting bracket for supported exterior building installations.

Weather Protection

UNV TR-A01-IN Waterproof Joint

Helps protect the Ethernet connection from moisture when installed correctly in an outdoor environment.

Audio

Compatible External Microphone and Speaker

Add suitable powered audio equipment for environmental sound capture and supported two-way communication.

Edge Recording

High-Endurance MicroSD Card

Add compatible surveillance-grade storage up to 512GB for supported local event recording and network-interruption backup.

Recording

Compatible UNV Network Video Recorder

Select an NVR with sufficient 5MP input, incoming bandwidth, analytics, decoding capability and storage capacity.

Manufacturer resources

Product Downloads and Support

Visit the official UNV product page for the latest datasheet, high-resolution product images, user manual, quick installation guide, dimension drawing and firmware resources.

▤ Official Datasheet ⌘ User Manual & Quick Guide ⇩ Dimensions & Resources
✓

3-Year UNV Manufacturer Warranty

This UNV product includes a three-year manufacturer equipment warranty when purchased through NSI Security, subject to applicable warranty terms, exclusions, product eligibility and return procedures. Labor, removal, reinstallation, configuration, shipping and onsite service are not included unless separately stated in writing.

Important Product Information

Specifications are subject to change without notice. Features, MicroSD card support, audio functions, image performance, IR distance, PoE behavior, compatibility and overall system performance may vary depending on firmware version, hardware revision, recorder model, installation environment, lighting conditions, network setup, camera settings and system configuration. Motorized zoom, automatic focusing, smart intrusion prevention, people counting, crowd-density monitoring, external audio, alarm functions and edge recording may require compatible recorder, VMS, firmware and system resources. Smart analytics performance may vary according to mounting height, viewing angle, target size, scene activity, weather and environmental conditions. This model does not include a built-in microphone or speaker; external audio equipment is required for audio recording or two-way communication. Please always double-check the manufacturer’s official specifications and contact NSI Security for the most accurate and up-to-date product, compatibility and installation information before ordering.

```

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
