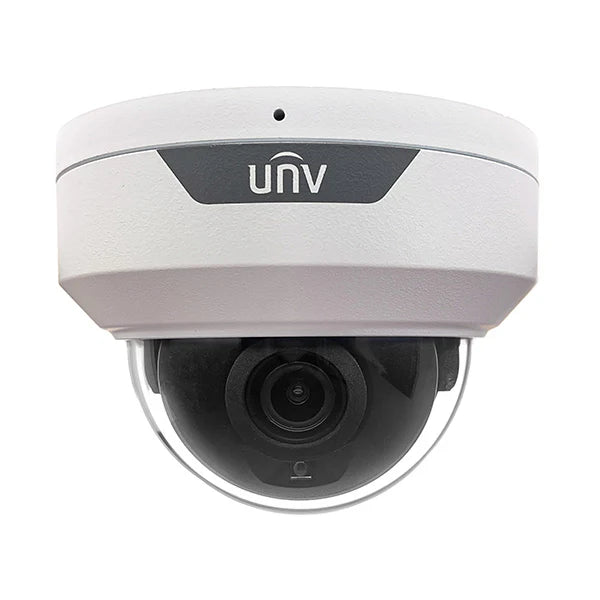

UNV IPC328SR-ADF28KM-H 8MP Vandal Dome IP Camera
In Stock Sale

Uniview

UNV IPC328SR-ADF28KM-H 8MP Vandal Dome IP Camera

SKU: IPC328SR-ADF28KM-H

$429.00 $529.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast ShippingU.S. warehouse fulfillment
Easy RMA SupportStreamlined assistance when needed
Need compatibility help? Call (856) 317-0600 for professional assistance.
Overview Resources & Support Compatibility Solution Builder Specifications
Product overview

Reliable Security Performance

Designed to deliver dependable video surveillance with features and performance that vary by model, firmware, environment, and system configuration.

Professional Quality

Designed for demanding surveillance and networking environments.

System Compatibility

Use the compatibility tools below to select supported components.

Technical Support

Get assistance with configuration, installation and product selection.

Secure Purchasing

U.S.-based fulfillment and protected checkout.

Product assistance

Need Assistance?

Documentation, system compatibility tools, shipping information, and direct support from NSI Security.

Shipping InformationU.S. fulfillment

Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.

View Shipping Policy →
DocumentationBy request

Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.

Request Documentation →
Technical SupportNSI assistance

Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.

Contact Support →
Verified System ComponentsProduct-specific compatibility

Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.

View Components →
RMA RequestAfter-purchase assistance

Request return authorization, repair evaluation, or replacement assistance for an eligible order.

Start RMA Request →
Contact Our TeamSales and product questions

Contact NSI Security for product selection, availability, compatibility, and order assistance.

Contact NSI Security →
System compatibility

Verified System Components

Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

One-click system configuration

Build Your Complete Solution

Select the components you need and add the complete configuration to your cart.

Mounting & Accessories

Compatible Recorders

PoE Switches

Product information

Product Details & Technical Specifications


Professional 4K Vandal-Resistant Surveillance

UNV 8MP EasyStar WDR Fixed IR Mini Dome Network Camera

Model: IPC328SR-ADF28KM-H

Capture detailed 4K video in a compact, vandal-resistant dome design. The UNV IPC328SR-ADF28KM-H combines an 8MP image sensor, EasyStar low-light technology, 120dB true WDR, a wide 2.8mm fixed lens, built-in microphone, human-based event detection, 98-foot Smart IR, onboard MicroSD recording, PoE and heavy-duty IP67 and IK10 protection.

▣
8MP 4K 3840 × 2160 video resolution
◉
2.8mm Wide 98.7° horizontal view
☾
98 ft IR Smart infrared night vision
◆
IP67 + IK10 Weather and vandal protection
Detailed 4K video in a compact metal housing

Why Choose the IPC328SR-ADF28KM-H?

A professional fixed-lens dome camera for entrances, hallways, retail locations, offices, warehouses and exterior areas where detailed video, discreet appearance and vandal resistance are important.

Detailed 8MP 4K Imaging

The 8MP CMOS sensor captures video at up to 3840 × 2160 resolution, providing substantially more detail than standard 1080p cameras for reviewing people, objects and activity within the scene.

Wide 2.8mm Fixed Lens

The fixed 2.8mm lens provides an approximately 98.7° horizontal field of view, making it suitable for entrances, rooms, hallways, storefronts and general overview coverage.

EasyStar Low-Light Technology

EasyStar imaging helps maintain clearer and brighter video in low-light environments before the camera changes to infrared night mode.

120dB True WDR

True Wide Dynamic Range helps balance bright and dark areas within the same image, improving visibility near windows, doors, glass entrances and strongly backlit locations.

Smart IR Night Vision

Integrated Smart IR provides nighttime coverage up to approximately 98 feet while helping reduce excessive brightness when a person or object moves closer to the camera.

Built-In Microphone

The integrated microphone allows compatible UNV recorders and software to capture synchronized environmental audio without requiring a separate external microphone.

Human-Based Event Detection

Supports cross-line and intrusion detection based on human-body detection, helping reduce unnecessary alerts compared with basic image-change motion detection alone.

MicroSD Edge Recording

Supports compatible MicroSD cards up to 512GB for local event recording, network-interruption backup and supported stand-alone applications.

Three-Axis Installation Adjustment

The three-axis camera module supports flexible pan, tilt and rotation adjustment, helping installers level and aim the image on ceilings, walls and other suitable mounting surfaces.

IP67 and IK10 Metal Housing

The metal enclosure is rated for outdoor weather exposure and impact resistance, making it suitable for demanding indoor and outdoor commercial installations.

Professional 4K Coverage Without a Bulky Camera

The IPC328SR-ADF28KM-H combines high-resolution surveillance with a compact mini-dome housing. Its discreet appearance fits offices, retail locations and indoor public areas, while its weather-resistant and vandal-resistant construction also supports exposed commercial installations.

Wide Overview Coverage The 2.8mm lens is designed for broad room, entrance and corridor views.
4K Recorded Detail Higher resolution provides greater digital detail during playback and review.
Strong Backlight Handling 120dB true WDR improves scenes affected by windows, sunlight and bright doors.
Corridor Mode 9:16 image rotation supports narrow hallways, aisles and vertical scenes.
Efficient Compression Ultra 265 and H.265 help reduce bandwidth and storage requirements.
Flexible Recording Record to a compatible UNV NVR, NAS or supported onboard MicroSD card.
Recommended applications

Ideal Installation Locations

Well suited for commercial and residential locations that require detailed video, wide fixed-lens coverage and a durable dome enclosure.

⌂ Retail Stores Monitor entrances, checkout areas and general sales-floor activity.
▣ Offices Cover reception areas, hallways and shared interior spaces.
▤ Warehouses Observe inventory zones, loading areas and interior access points.
⇥ Entrances Provide detailed coverage of doors, vestibules and access areas.
↕ Hallways Use corridor mode for narrow vertical surveillance scenes.
▦ Schools Cover corridors, common areas and protected entry points.
▥ Parking Entrances Monitor pedestrian paths and nearby vehicle activity.
⌖ Building Perimeters Protect exterior doors, covered walkways and sheltered outdoor areas.
Technical overview

Product Highlights

Camera Type 8MP EasyStar WDR three-axis fixed IR mini dome network camera
Maximum Resolution 3840 × 2160 / 8MP
Image Sensor 1/2.8-inch CMOS
Maximum Frame Rate Up to 20 fps at 8MP; up to 30 fps at 5MP, 4MP, 1080p and supported lower resolutions
Lens 2.8mm fixed lens with F1.6 aperture
Field of View Approximately 98.7° horizontal, 53.9° vertical and 103.6° diagonal
Minimum Illumination Color: approximately 0.005 lux with AGC enabled; 0 lux with IR activated
Wide Dynamic Range 120dB true WDR
Night Vision Smart IR illumination up to approximately 30m / 98.4 ft
Video Compression Ultra 265, H.265, H.264 and MJPEG
Video Streams Dual-stream support
Video Bitrate 128 Kbps to 16 Mbps
Image Functions 2D/3D digital noise reduction, Smart IR, HLC, BLC, digital defog, ROI and privacy masking
Corridor Mode 9:16 image rotation supported
Detection Features Motion detection, ultra motion detection, tampering alarm, audio detection, human-based cross-line detection and human-based intrusion detection
Built-In Audio Built-in microphone
Two-Way Audio Not supported; no built-in speaker or external audio input/output
Edge Storage MicroSD card support up to 512GB
Network Storage ANR and NAS using NFS
Integration ONVIF Profiles S, G and T; API and SDK support
Network Connection 1 × RJ45 10/100 Mbps Ethernet port
Power 12V DC or IEEE 802.3af PoE
Maximum Power Consumption Approximately 4.9 watts
Environmental Protection IP67 weather-resistant and IK10 vandal-resistant
Housing Material Metal
Operating Temperature -22°F to 140°F / -30°C to 60°C
Surge Protection Up to 4kV
Adjustment Range Pan: approximately 8°–360°; tilt: 0°–68°; rotation: approximately 10°–360°
Dimensions Approximately Ø4.4 × 3.3 inches / Ø111 × 83mm
Weight Approximately 0.79 lb / 0.36kg
Reset Button Supported
ⓘ

Recorder and Feature Compatibility Notice

8MP recording, built-in microphone audio, human-based event detection, MicroSD recording, browser access and smart-feature availability may vary depending on the recorder model, firmware version, VMS platform, mobile application and system configuration. Confirm that the recorder supports 8MP input and has sufficient incoming bandwidth, decoding capability and storage capacity before installation.

⚠

8MP Frame-Rate Planning Notice

The camera supports up to 20 frames per second at its full 8MP resolution. Frame rates up to 30 fps are available at supported 5MP and lower resolutions. Select the resolution and frame rate according to the required image detail, motion performance, recorder capacity, bandwidth and storage-retention goal.

Professional Installation Tip

Use a compatible junction box or mounting bracket to protect the cable connection and provide a clean installation. Aim the 2.8mm lens so the important activity remains within the center portion of the image. Avoid mounting the camera directly beside reflective walls, soffits or glass that may cause infrared reflection at night. Confirm image rotation and horizon alignment before tightening the dome assembly.

Complete the installation

Recommended Accessories

Complete your installation with compatible mounting, storage, recording and network accessories.

Recommended

UNV TR-JB03-G-IN Junction Box

Provides protected cable management and a professional mounting surface for the mini-dome camera.

Wall Mount

UNV TR-WM03-D-IN

Compatible wall-mounting bracket for supported mini-dome installation configurations.

Wall Assembly

UNV TR-JB07/WM03-G-IN-V2

Combined wall-mounting assembly designed for compatible fixed-dome and mini-dome camera installations.

Pendant Mount

UNV TR-CM24-IN

Indoor pendant-mounting bracket for supported ceiling and suspended installations.

Pendant Extension

UNV TR-SE24-IN or TR-SE24-A-IN

Select the appropriate 200mm or 500mm pendant mounting pole according to the installation height.

Weather Protection

UNV TR-A01-IN Waterproof Cable Gland

Helps protect the Ethernet connection from moisture when installed correctly in an outdoor environment.

Pole Mount

UNV TR-UP06-IN

Universal pole-mounting bracket for compatible professional mounting arrangements.

Edge Recording

High-Endurance MicroSD Card

Add compatible surveillance-grade storage up to 512GB for supported event recording and network-interruption backup.

Recording

Compatible UNV 8MP Network Video Recorder

Select an NVR with sufficient 8MP channel support, incoming bandwidth, decoding capability and storage capacity.

Manufacturer resources

Product Downloads and Support

Visit the official UNV product page for the latest datasheet, high-resolution product images, quick installation guide, dimension drawing and firmware resources.

▤ Official Datasheet ⌘ Quick Guide & Dimensions ⇩ Firmware and Resources
✓

3-Year UNV Manufacturer Warranty

This UNV product includes a three-year manufacturer equipment warranty when purchased through NSI Security, subject to applicable warranty terms, exclusions, product eligibility and return procedures. Labor, removal, reinstallation, configuration, shipping and onsite service are not included unless separately stated in writing.

Important Product Information

Specifications are subject to change without notice. Features, MicroSD card support, audio functions, image performance, IR distance, PoE behavior, compatibility and overall system performance may vary depending on firmware version, hardware revision, recorder model, installation environment, lighting conditions, network setup, camera settings and system configuration. Full 8MP recording is limited to the supported maximum frame rate, while available frame rate may change when resolution, stream, WDR, analytics or other camera settings are adjusted. Human-based cross-line and intrusion detection performance may vary according to mounting height, viewing angle, target size, lighting, weather, scene activity and environmental conditions. Built-in audio captures environmental sound only; this model does not include a speaker or support two-way audio. Please always double-check the manufacturer’s official specifications and contact NSI Security for the most accurate and up-to-date product, compatibility and installation information before ordering.

```

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
UNV IPC328SR-ADF28KM-H 8MP Vandal Dome IP Camera$429.00
