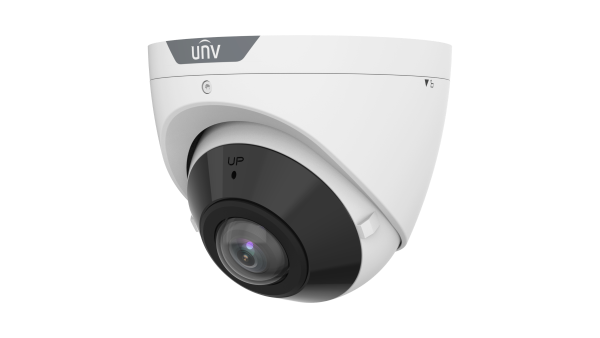

Uniview IPC3605SB-ADF16KM-I0 5MP OmniView 180° Wide-Angle IR Turret Network Camera

The Uniview IPC3605SB-ADF16KM-I0 is a professional 5MP OmniView panoramic network camera designed to eliminate blind spots with an ultra-wide 180° horizontal field of view. Equipped with a 1.68mm fixed lens, this camera captures an entire scene using a single camera, making it ideal for entrances, storefronts, parking lots, warehouses, hallways, schools, and other large open areas.

Powered by Uniview's OmniView technology, the camera supports adjustable dewarping modes (Levels 1–9), allowing users to display panoramic images in multiple viewing formats. Combined with intelligent intrusion prevention, target classification, 120 dB True WDR, built-in microphone, and Smart IR illumination up to 20m, it delivers excellent image quality day and night.

Key Features

  • 5MP OmniView panoramic fixed IR turret network camera
  • Ultra-wide 1.68mm fixed lens
  • 180° horizontal panoramic viewing angle
  • 1/2.7" progressive scan CMOS sensor
  • Maximum resolution: 2880 × 1620 @ 30fps
  • Built-in image dewarping with selectable viewing modes
  • Adjustable dewarping levels (1–9)
  • 120 dB True WDR
  • Smart IR illumination up to 20m (65.6 ft)
  • Built-in microphone
  • Smart intrusion prevention
  • Human, vehicle and non-motor vehicle classification
  • Cross Line, Intrusion, Enter Area and Leave Area detection
  • Ultra 265, H.265, H.264 and MJPEG compression
  • Triple video streams
  • MicroSD card support up to 512GB
  • PoE (IEEE 802.3af) and 12V DC
  • IP67 weatherproof
  • IK10 vandal resistant
  • 6kV surge protection

Specifications

Model IPC3605SB-ADF16KM-I0
Camera Type 5MP OmniView Panoramic IR Turret Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Maximum Resolution 2880 × 1620
Frame Rate Up to 30fps
Lens 1.68mm Fixed Lens
Lens Aperture F2.0
Horizontal Field of View 180°
Vertical Field of View 100°
Minimum Illumination 0.01 Lux Color / 0 Lux with IR
Wide Dynamic Range 120 dB True WDR
IR Distance Up to 20m (65.6 ft)
Dewarping Supported (Levels 1–9)
Video Compression Ultra 265, H.265, H.264, MJPEG
Smart Detection Cross Line, Intrusion, Enter Area, Leave Area
Target Classification Human, Vehicle, Non-Motor Vehicle
Built-in Microphone Yes
Edge Storage MicroSD up to 512GB
Network 1 × RJ45 10/100 Mbps Ethernet
Power 12V DC ±25% / PoE IEEE802.3af
Protection IP67 / IK10
Operating Temperature -30°C to 60°C (-22°F to 140°F)

Ideal Applications

  • Retail storefronts
  • Building entrances
  • Warehouses
  • Office lobbies
  • Schools and universities
  • Hotel reception areas
  • Parking entrances
  • Large indoor and outdoor open spaces

```

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
