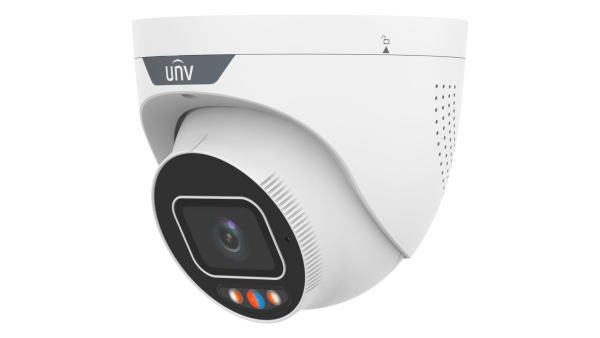

UNV IPC3634SS-ADF28KMC-I1 4MP NDAA Tri-Guard Turret Camera
In Stock Sale

Uniview

UNV IPC3634SS-ADF28KMC-I1 4MP NDAA Tri-Guard Turret Camera

SKU: IPC3634SS-ADF28KMC-I1

$539.00 $669.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast ShippingU.S. warehouse fulfillment
Easy RMA SupportStreamlined assistance when needed
Need compatibility help? Call (856) 317-0600 for professional assistance.
Overview Resources & Support Compatibility Solution Builder Specifications
Product overview

Reliable Security Performance

Designed to deliver dependable video surveillance with features and performance that vary by model, firmware, environment, and system configuration.

Professional Quality

Designed for demanding surveillance and networking environments.

System Compatibility

Use the compatibility tools below to select supported components.

Technical Support

Get assistance with configuration, installation and product selection.

Secure Purchasing

U.S.-based fulfillment and protected checkout.

Product assistance

Need Assistance?

Documentation, system compatibility tools, shipping information, and direct support from NSI Security.

Shipping InformationU.S. fulfillment

Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.

View Shipping Policy →
DocumentationBy request

Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.

Request Documentation →
Technical SupportNSI assistance

Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.

Contact Support →
Verified System ComponentsProduct-specific compatibility

Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.

View Components →
RMA RequestAfter-purchase assistance

Request return authorization, repair evaluation, or replacement assistance for an eligible order.

Start RMA Request →
Contact Our TeamSales and product questions

Contact NSI Security for product selection, availability, compatibility, and order assistance.

Contact NSI Security →
System compatibility

Verified System Components

Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

One-click system configuration

Build Your Complete Solution

Select the components you need and add the complete configuration to your cart.

Mounting & Accessories

Compatible Recorders

Product information

Product Details & Technical Specifications

NDAA Compliant 4MP Tri-Guard Dual-Light Turret Network Camera

UNV IPC3634SS-ADF28KMC-I1 4MP Tri-Guard Fixed Dual-Light Turret Network Camera

The UNV IPC3634SS-ADF28KMC-I1 is a 4MP NDAA-compliant Tri-Guard turret IP camera designed for active deterrence and intelligent security monitoring. It features a 1/2.7" CMOS sensor, 2.8mm fixed F1.0 lens, 130dB true WDR, Smart IR, warm light, red and blue warning light, built-in microphone, built-in speaker, alarm I/O, audio I/O, MicroSD card support, PoE power, ONVIF integration support, and IP67 outdoor protection.

4MP
HD Image
NDAA
Compliant
Tri-Guard
Active Deterrence
130dB
True WDR
IP67
Outdoor Rated

Tri-Guard Active Deterrence with Intelligent Detection

The IPC3634SS-ADF28KMC-I1 is designed for locations that need more than basic video recording. Its Tri-Guard features combine intelligent detection, warning light, audio capability, and strong image performance to help deter unwanted activity and capture useful video details.

Key Features

📷

4MP HD Image

Captures detailed 4MP video for commercial and professional surveillance applications.

🛡️

NDAA Compliant

Suitable for projects requiring NDAA-compliant security equipment when verified with current manufacturer documentation.

🚨

Tri-Guard Active Deterrence

Supports warning light, audible warning, and intelligent detection features for stronger event response.

🔴🔵

Red & Blue Warning Light

Red and blue warning light support helps provide visible deterrence when properly configured.

💡

Dual-Light Illumination

Supports Smart IR and warm light illumination up to 30m / 98.4ft depending on scene conditions.

🔆

130dB True WDR

Helps balance bright and dark areas for clearer images in strong backlight scenes.

🎙️

Built-In Mic & Speaker

Built-in microphone and speaker support audio features when used with compatible recorder, settings, and local regulations.

🔗

ONVIF Integration Support

Supports third-party integration through ONVIF profiles, depending on recorder compatibility and firmware support.

🌧️

IP67 Outdoor Protection

Weather-rated metal housing supports outdoor installation when properly mounted and sealed.

Feature Overview

✓ NDAA compliant / NDAA supported security camera
✓ 4MP Tri-Guard fixed dual-light turret network camera
✓ 1/2.7" CMOS image sensor
✓ 2.8mm fixed F1.0 lens
✓ 102.3° horizontal field of view
✓ 130dB true WDR
✓ Smart IR and warm light up to 30m / 98.4ft
✓ Red and blue warning light support
✓ Ultra 265 / H.265 / H.264 / MJPEG
✓ Triple stream support
✓ Third-party recorder integration flexibility
✓ ONVIF Profile S / G / T / M, API, and SDK support
✓ Intelligent perimeter protection and target classification
✓ People flow counting and crowd density detection
✓ Built-in microphone and built-in speaker
✓ Audio I/O and alarm I/O support
✓ MicroSD card support up to 512GB
✓ DC 12V and PoE power support
✓ IP67 weather protection

Best Applications

Storefronts
Building Entrances
Parking Areas
Car Wash Sites
Warehouse Areas
Public-Sector Projects

Product Highlights

The IPC3634SS-ADF28KMC-I1 supports multiple main stream, sub stream, and third stream resolution options. This is helpful for third-party recorder integration because some non-UNV recorders may not support the camera’s full 4MP output, full frame rate, codec, ONVIF profile, audio features, warning light behavior, smart event features, or stream profile. If a third-party recorder cannot display or record the full-resolution stream properly, the camera may need to be adjusted to a lower supported resolution, FPS, compression format, or stream setting for better compatibility.

Model IPC3634SS-ADF28KMC-I1
Camera Type 4MP Tri-Guard Fixed Dual-Light Turret Network Camera
NDAA Compliance NDAA compliant / NDAA supported. Please verify current manufacturer documentation before ordering for government, public-sector, or compliance-sensitive projects.
Image Sensor 1/2.7" CMOS
Resolution 4MP
Main Stream 4MP 2688 × 1520, max 30fps
4MP 2560 × 1440, max 30fps
3MP 2304 × 1296, max 30fps
1080P 1920 × 1080, max 30fps
720P 1280 × 720, max 30fps
Sub Stream 1080P 1920 × 1080, max 30fps
720P 1280 × 720, max 30fps
D1 720 × 576, max 30fps
640 × 360, max 30fps
2CIF 704 × 288, max 30fps
CIF 352 × 288, max 30fps
Third Stream D1 720 × 576, max 30fps
640 × 360, max 30fps
2CIF 704 × 288, max 30fps
CIF 352 × 288, max 30fps
Third-Party Recorder Integration Third-party recorder compatibility is commonly affected by ONVIF profile support, firmware version, codec support, camera resolution, frame rate, audio support, alarm I/O support, warning light behavior, smart event behavior, and stream profile settings. If a third-party recorder cannot display or record the full 4MP stream properly, the camera may need to be adjusted to a lower supported resolution, FPS, compression format, or stream setting.
Compatible Integration API, SDK, ONVIF Profile S / Profile G / Profile T / Profile M
Video Compression Ultra 265 / H.265 / H.264 / MJPEG
Video Bit Rate 128 Kbps to 16 Mbps
Video Stream Triple Streams
Minimum Illumination Color: 0.001 Lux, 0 Lux with IR on
Wide Dynamic Range 130dB True WDR
Lens 2.8mm Fixed Lens, F1.0
Field of View Horizontal 102.3°
Vertical 54.7°
Diagonal 106.8°
DORI Distance Detect: 63.0m / 206.7ft
Observe: 25.2m / 82.7ft
Recognize: 12.6m / 41.3ft
Identify: 6.3m / 20.7ft
Supplemental Light Dual Light: Smart IR + Warm Light
IR / Warm Light Distance IR up to 30m / 98.4ft; Warm Light up to 30m / 98.4ft
Warning Light Red and Blue Warning Light Support
Audio Built-In Microphone and Built-In Speaker; Two-Way Audio Support; Audio I/O 1/1
Alarm I/O Alarm Input 1 / Alarm Output 1
Smart / Event Features Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection, Human / Vehicle / Non-Motor Vehicle Classification, People Flow Counting, Crowd Density Detection, Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind
Storage MicroSD Card Support up to 512GB; ANR; NAS (NFS)
Network 1 × RJ45 10M/100M Base-TX Ethernet
Power DC 12V ±25% / PoE IEEE 802.3af, max 9.5W
Dimensions Ø129mm × 118mm / Ø5.1" × 4.7"
Weight 0.70kg / 1.54lb
Material Metal
Adjustment Angle Pan 0°–360°, Tilt 0°–80°, Rotate 0°–360°
Protection IP67 Weather Rated

Installation Tip

For best image quality and recorder compatibility, confirm camera angle, IR reflection, warm light behavior, red/blue warning light behavior, audio recording rules, speaker behavior, alarm I/O requirements, PoE power, stream resolution, FPS, codec, ONVIF profile support, NDAA documentation, storage settings, and recorder compatibility during setup. If the recorder is a third-party model, test the main stream, sub stream, third stream, audio, and warning light behavior before final installation.

Note: Specifications are subject to change without notice. NDAA status, features, MicroSD card support, audio functions, speaker functions, alarm I/O behavior, warning light behavior, image performance, stream resolution, frame rate, codec support, IR distance, warm light distance, PoE behavior, ONVIF profile support, third-party recorder compatibility, smart detection behavior, Tri-Guard behavior, and overall system performance may vary depending on firmware version, recorder model, ONVIF implementation, installation environment, lighting conditions, network setup, camera settings, stream profile, and system configuration. Please always double-check the manufacturer’s official specifications, NDAA documentation, and recorder compatibility before ordering.

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
