Uniview
Model: IPC3638SS-ADF28KMC-I1
In stock
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

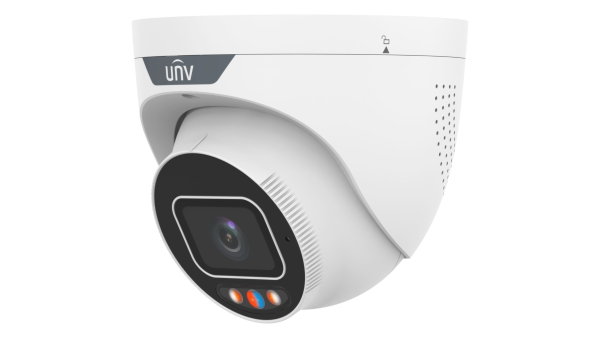

For 4K detail with an active response, the UNV IPC3638SS-ADF28KMC-I1 combines an 8MP sensor, warning functions and two-way audio. Its turret housing uses a fixed 2.8mm lens for broad coverage.
Set the camera’s warning behavior to suit the location and operating hours. Use detection zones to focus alerts on relevant approaches rather than all movement in the image.
MicroSD storage supports local footage, while the network stream can feed a compatible NVR. Allow sufficient bandwidth and decoding capacity for the selected 8MP settings.
| Noise Reduction | 2D / 3D DNR |
|---|---|
| Model | IPC3638SS-ADF28KMC-I1 |
| Type | 8MP Tri-Guard fixed dual-light turret network camera |
| Sensor | 1/2.8" CMOS sensor |
| Maximum Resolution | 8MP, up to 3840 × 2160 |
| Frame Rate | 8MP 3840 × 2160 up to 30/25fps; 5MP / 4MP / 1080P up to 30/25fps |
| Lens | 2.8mm fixed lens, F1.0 aperture |
| Field of View | Horizontal 106.5°, Vertical 57.9°, Diagonal 132° |
| DORI Distance | Detect 86.9m / 285.1ft; observe 34.8m / 114.2ft; recognize 17.4m / 57.1ft; identify 8.7m / 28.5ft, based on 2.8mm lens |
| WDR | 130dB true WDR |
| Illumination | Dual light — IR up to 30m / 98.4ft, warm light up to 30m / 98.4ft |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Audio | Built-in microphone and built-in speaker, supports two-way audio |
| Audio I/O | 1 input / 1 output |
| Alarm I/O | 1 input / 1 output |
| Local Storage | Built-in microSD card slot, supports up to 512GB, card sold separately |
| Network | 1 × RJ45 10M/100M Ethernet port |
| Power | DC 12V ±25% or PoE IEEE 802.3af |
| Power Consumption | Max. 10.0W |
| Weather Protection | IP67 rated |
| Operating Temperature | -30°C to 60°C / -22°F to 140°F |
Advanced analytics and warning control require compatible integration. MicroSD cards are sold separately; check the required mounting-box revision for this camera.
Original-version mounts below are documented in Uniview’s earlier model literature. Check your camera hardware revision before substituting newer V2 accessories.
Match the complete camera and accessory model numbers, including any V2 suffix. Accessories are sold separately. Wall, ceiling, pole and corner installations may require additional mounting hardware; the accessory list does not mean every part mounts directly to the camera.
Flexible deployment
View a compatible camera with UniEase. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use UniEase for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
Need help matching this product to your project? Ask NSI
Choose accessories for your setup. Sold separately.
Live view, playback and alerts for supported UNV cameras and recorders.
Manage supported cameras and recorders with the EZStation desktop CMS.
Discover and configure supported devices on your local network.
Features and compatibility depend on the device model, firmware and software version. Check UniEase device compatibility
