UNV TIC3612SA-F3-4F4AC-I1 Thermal & Optical Dual-Spectrum Turret Network Camera – NDAA Compliant
In Stock Sale

Uniview

UNV TIC3612SA-F3-4F4AC-I1 Thermal & Optical Dual-Spectrum Turret Network Camera – NDAA Compliant

SKU: TIC3612SA-F3-4F4AC-I1

$1,779.00 $2,219.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast FulfillmentU.S. warehouse order processing
30-Day Eligible ReturnsUnused items with approved RMA
Need project pricing? Request a private quote for larger or special orders. Request Project Pricing

Your request is reviewed privately. Approved project pricing is provided through a private quote or Shopify Draft Order.

Payment security: Do not enter a card number, expiration date, or security code in this form. Online payments are accepted only through Shopify's secure checkout or an authorized Shopify payment link.

Need compatibility help? Call (856) 317-0600 for professional assistance.
Overview Resources & Support Compatibility Solution Builder Specifications
Product overview

Reliable Security Performance

Designed to deliver dependable video surveillance with features and performance that vary by model, firmware, environment, and system configuration.

Professional Quality

Designed for demanding surveillance and networking environments.

System Compatibility

Use the compatibility tools below to select supported components.

Technical Support

Get assistance with configuration, installation and product selection.

Secure Purchasing

U.S.-based fulfillment and protected checkout.

Product assistance

Need Assistance?

Documentation, system compatibility tools, shipping information, and direct support from NSI Security.

Shipping InformationU.S. fulfillment

Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.

View Shipping Policy →
DocumentationBy request

Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.

Request Documentation →
Technical SupportNSI assistance

Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.

Contact Support →
Verified System ComponentsProduct-specific compatibility

Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.

View Components →
RMA RequestAfter-purchase assistance

Request return authorization, repair evaluation, or replacement assistance for an eligible order.

Start RMA Request →
Contact Our TeamSales and product questions

Contact NSI Security for product selection, availability, compatibility, and order assistance.

Contact NSI Security →
System compatibility

Verified System Components

Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

One-click system configuration

Build Your Complete Solution

Select the components you need and add the complete configuration to your cart.

Mounting & Accessories

Compatible Recorders

PoE Switches

Product information

Product Details & Technical Specifications

NDAA Compliant Thermal & Optical Dual-Spectrum Turret Camera

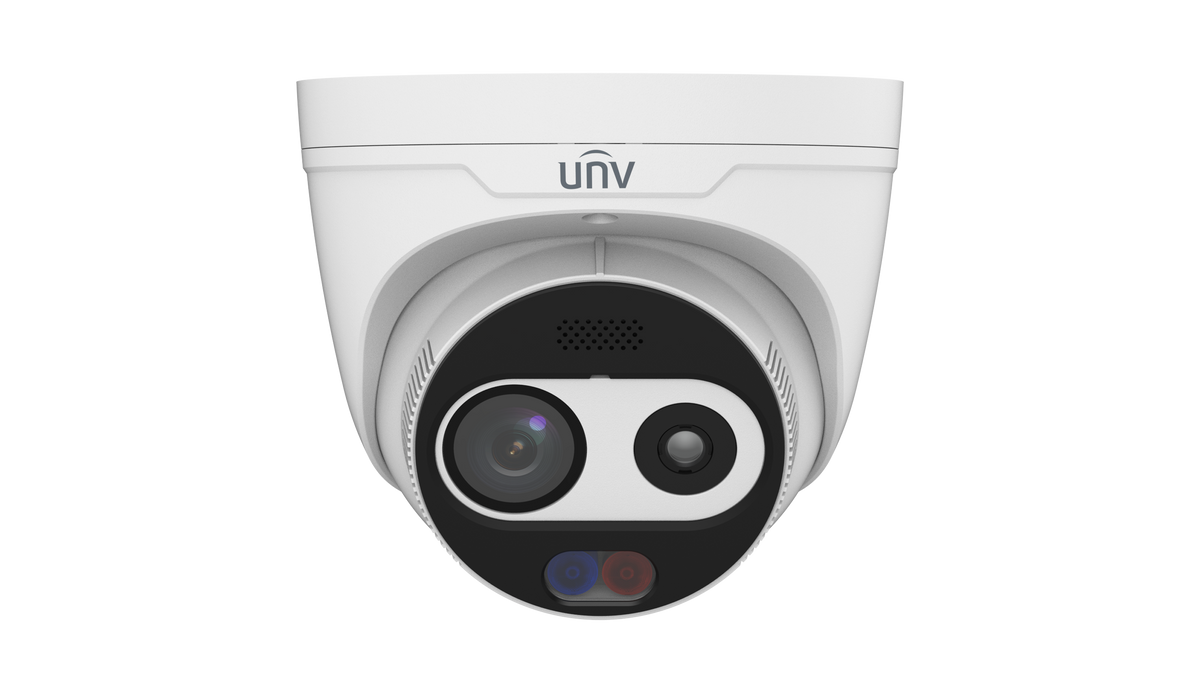

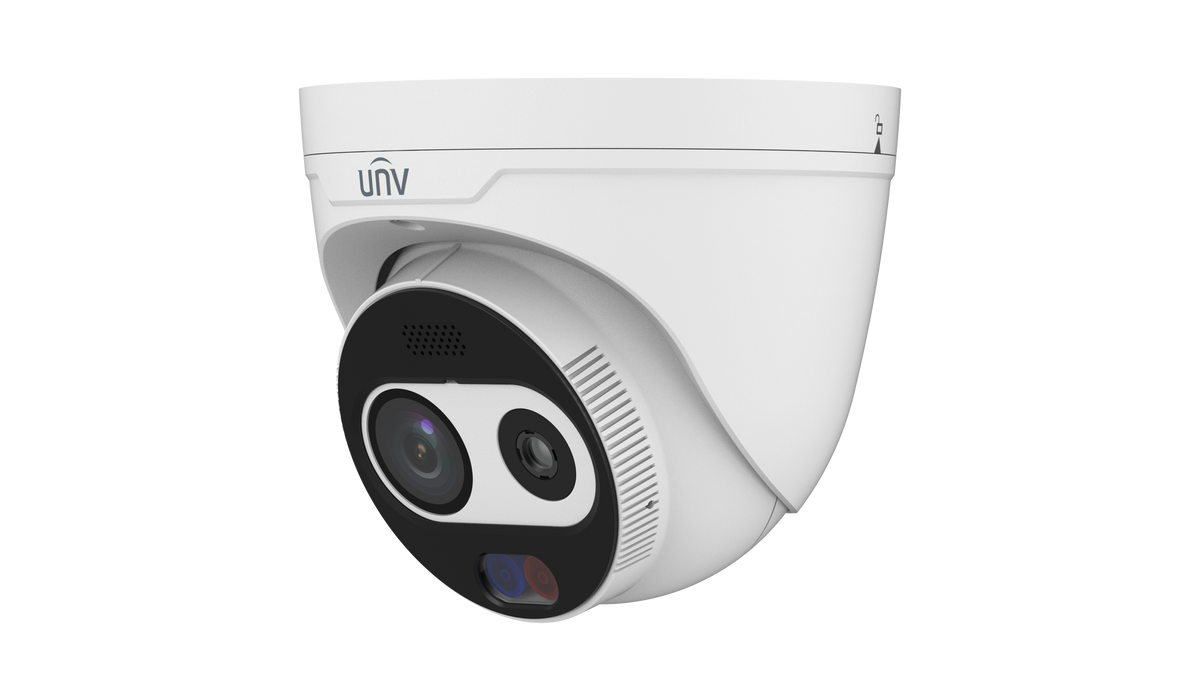

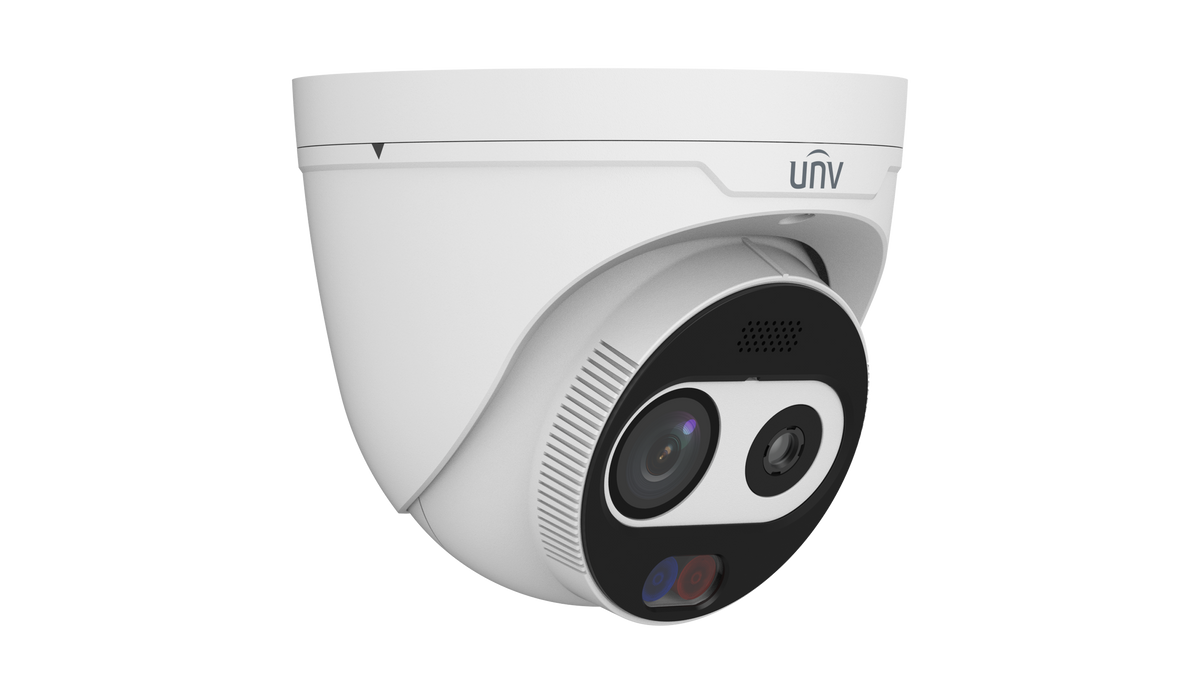

UNV TIC3612SA-F3-4F4AC-I1 4MP + 960P Thermal & Optical Dual-Spectrum Turret Network Camera

The UNV TIC3612SA-F3-4F4AC-I1 combines a 4MP optical channel and a 960P thermal channel through one IP address. It supports fire detection, temperature measurement, cold and hot spot tracking, dual-channel smart intrusion prevention, optical smoke recognition, picture-in-picture viewing, built-in red/blue warning lights, two-way audio, 2-in/2-out alarms, MicroSD storage up to 512GB, PoE, IP67 and 6kV surge protection.

4MP
Optical Channel
960P
Thermal Output
550°C
High Temp Range
512GB
MicroSD Support
IP67
Outdoor Rated

Thermal Detection + Visible Verification in One Device

The thermal channel detects heat patterns and abnormal temperatures in difficult lighting, while the optical channel provides detailed 4MP evidence for confirmation. The camera can run smart intrusion rules on both channels at the same time and supports picture-in-picture for direct thermal-versus-optical comparison.

Key Features

Thermal Temperature Measurement

Selectable -20°C to 150°C or 100°C to 550°C range with cold and hot spot tracking.

Fire Detection

Thermal fire detection with configurable fire-shield areas and alarm linkage.

4MP Optical Video

Up to 2688 × 1520 at 30fps with 120dB WDR and starlight-level sensitivity.

960P Thermal Output

256 × 192 native vanadium-oxide detector with upscaled 1280 × 960 thermal output at 30fps.

Audio & Light Alarm

Built-in microphone, speaker and red/blue warning lights support active alerts and two-way audio.

Dual-Channel Smart Intrusion

Cross-line, intrusion, enter-area and leave-area detection on both channels with classification filtering.

Smoke Recognition

Optical smog recognition can assist with supported fire-alarm reconfirmation workflows.

One IP, Two Channels

Thermal and optical streams operate through a single network connection and IP address.

Feature Overview

✓ NDAA compliant model
✓ 4MP optical and 960P thermal channels
✓ 256 × 192 native thermal sensor, 12μm pixel size
✓ NETD below 50mK at F1.0 and 25°C
✓ 4mm F1.6 optical lens and 3mm F1.0 thermal lens
✓ 30m optical IR using 750nm illumination
✓ 120dB optical WDR and over 56dB S/N
✓ Triple streams, 128Kbps to 16Mbps
✓ Ultra 265, H.265, H.264 and MJPEG
✓ 20 thermal palettes including white hot, black hot and hot iron
✓ Optical human, non-motor vehicle and vehicle classification
✓ Thermal human and vehicle classification
✓ Fire detection and optical smoke recognition
✓ Temperature accuracy ±8°C or ±8%, whichever is greater
✓ Built-in microphone and speaker with two-way audio
✓ Audio I/O 1/1 and alarm I/O 2/2
✓ MicroSD up to 512GB and ANR
✓ ONVIF Profiles S/G/T, API and SDK
✓ Maximum 35 bitstreams and 50Mbps bandwidth
✓ IP67, 6kV surge protection, reset button and RTC

Detection Distance Reference

Function Reference Target Distance
Vehicle Detection 4m × 1.4m 60m
Personnel Detection 1.8m × 0.5m 30m
Fire Detection 0.1m × 0.1m 13m
Temperature Detection 0.1m × 0.1m 8m

Product Highlights

Model TIC3612SA-F3-4F4AC-I1
Camera Type Thermal & Optical Dual-Spectrum Turret Network Camera
NDAA Compliance Yes — listed on Uniview USA’s current NDAA product list
Optical Sensor 1/2.8-inch CMOS
Optical Resolution 4MP, 2688 × 1520 at up to 30fps
Optical Minimum Illumination Color 0.003 lux; B/W 0.002 lux; 0 lux with IR
Optical Lens 4mm, F1.6
Optical Field of View H 74.9° / V 44.4° / D 97.4°
Optical DORI Detect 90m / Observe 36m / Recognize 18m / Identify 9m
Optical IR 30m, 750nm
Thermal Detector Vanadium oxide uncooled focal-plane array
Thermal Native Resolution 256 × 192
Thermal Output 1280 × 960 at up to 30fps
Thermal Pixel Size 12μm
Thermal Sensitivity NETD <50mK at F1.0 and 25°C
Thermal Lens 3mm, F1.0
Thermal Field of View H 58.0° / V 42.5° / D 72°
Temperature Range -20°C to 150°C or 100°C to 550°C
Temperature Accuracy ±8°C or ±8%, whichever is greater
Smart Intrusion Optical: human/non-motor vehicle/vehicle; Thermal: human/vehicle
Fire / Smoke Functions Thermal fire detection; optical smoke recognition
Video Compression Ultra 265, H.265, H.264, MJPEG
Streams / Bitrate Triple streams; 128Kbps to 16Mbps
Audio G.711U/G.711A, 16kHz, 128Kbps, two-way audio
Audio / Alarm I/O Audio 1 in / 1 out; Alarm 2 in / 2 out
Storage MicroSD up to 512GB; ANR
Network Capacity Maximum 35 bitstreams; 50Mbps bandwidth
Power 12V DC ±25% or PoE IEEE 802.3af; max 12W
Dimensions / Weight Ø129 × 114mm; 0.72kg
Environment -40°C to 70°C; ≤95% RH non-condensing
Protection IP67 and 6kV surge protection
Accessories TR-UP06-IN, TR-UC08-C, TR-JB03-H-IN, TR-WM03-B-IN

Third-Party Recorder Compatibility

Third-party integration may not be plug-and-play. Some NVRs and VMS platforms may not fully support both channels, thermal palettes, temperature metadata, fire alarms, picture-in-picture, smoke recognition, warning lights, two-way audio, RS485 or alarm I/O. Verify dual-channel ONVIF handling, thermal-camera support, firmware, codec, frame rate and event compatibility before deployment.

Installation Tip

Confirm target size, distance, emissivity, viewing angle, ambient temperature, reflective surfaces, heat sources, alarm thresholds, fire-shield areas, PoE budget, storage, alarm wiring and recorder compatibility. Thermal accuracy and detection performance are affected by glass, reflective materials, angle, distance, weather and configuration.

3-Year UNV Manufacturer Warranty

This product includes a three-year UNV manufacturer equipment warranty when purchased through NSI Security, subject to applicable warranty terms, eligibility, exclusions, serial-number verification and return procedures.

Important: This product is a surveillance and early-warning device and is not a substitute for a certified fire-alarm, life-safety, industrial process-control, medical or emergency-response system. Temperature accuracy, fire detection, smoke recognition, detection distances and alarm performance depend on target size, emissivity, distance, angle, weather, ambient temperature, reflective surfaces, installation, firmware, recorder support and configuration. Verify current manufacturer specifications, NDAA documentation and project-specific safety requirements before ordering.

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
